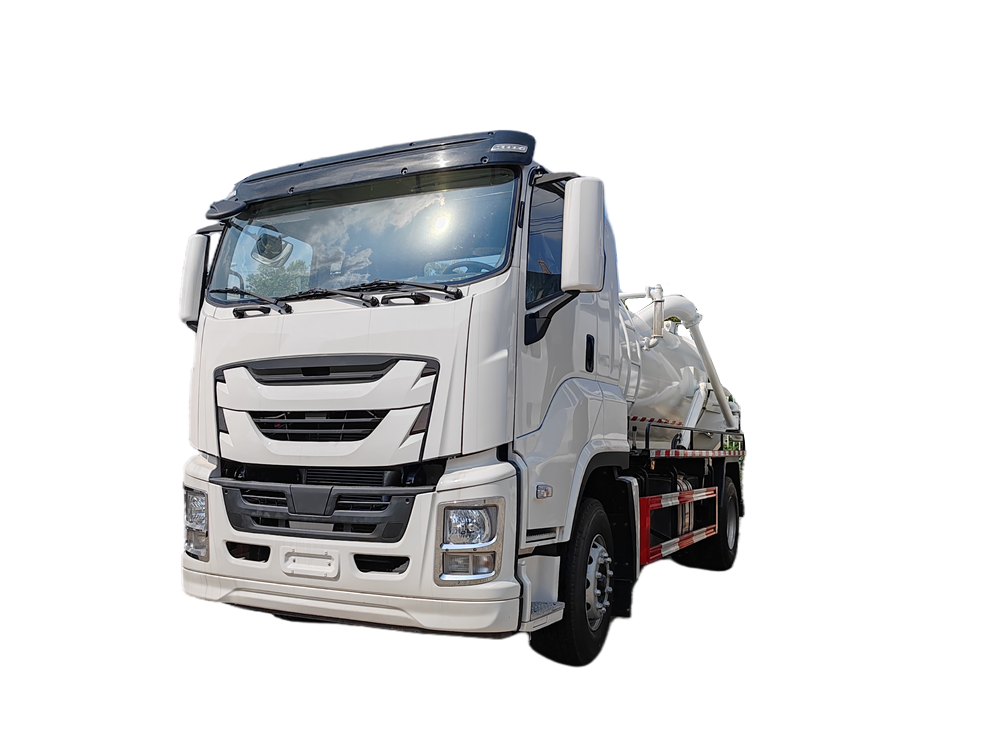

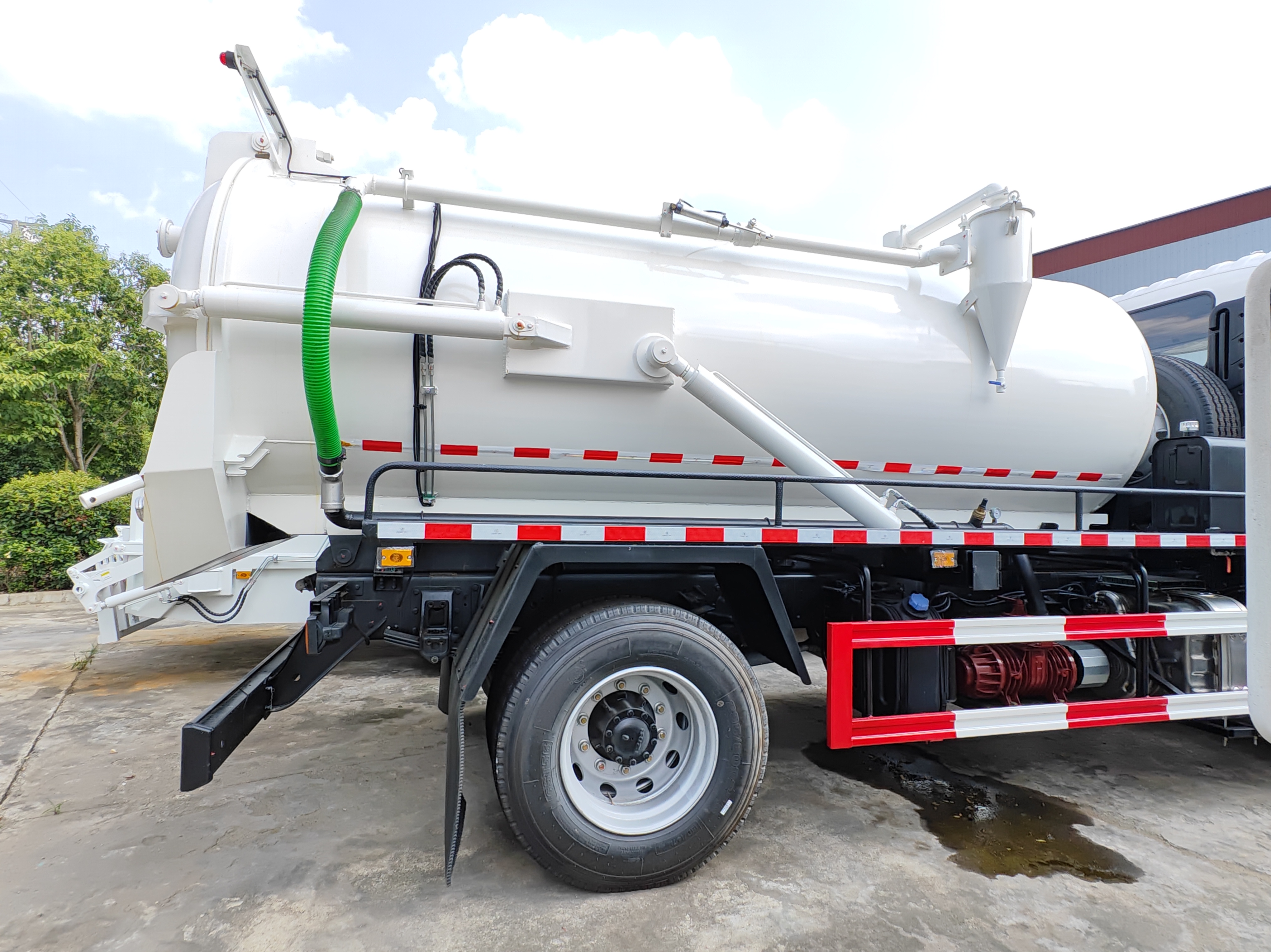

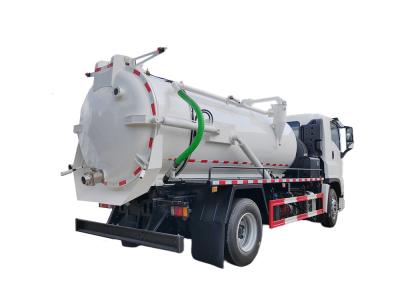

The Isuzu FVR 10 cubic meter sewage suction truck is modified based on the Isuzu FVR GIGA 5X chassis. It has a 4500mm wheelbase and is equipped with an Isuzu 6HK1-TCG61 240HP engine and a Fast 8-speed gearbox. The upper part is a 10 cubic meter sewage tank made of carbon steel. The vehicle is equipped with a view window, ladder, secondary filter, vacuum pressure gauge, water vapor/oil vapor separator, hydraulic oil tank, tailgate discharge valve, and a JUROP PN106D vacuum pump with a capacity of 1100Lt/min. A manual hydraulic operating valve on the driver's side to control the tailgate opened/closed and sewage tank lifting/down.
Manufacturer:
Powerstar TrucksWork capacity:
10 cbmDimension:
8200 x 2550 x 3200 mmCabin type:
Isuzu FVR GIGA 5X cabin,3 passengersWheelbase:
4500mmEngine power:
240HP / 177KwEngine type:
Isuzu 6HK1-TCG61Axle drive:
4x2 LHDGear box:
FAST 8-speed,manualRemarks:

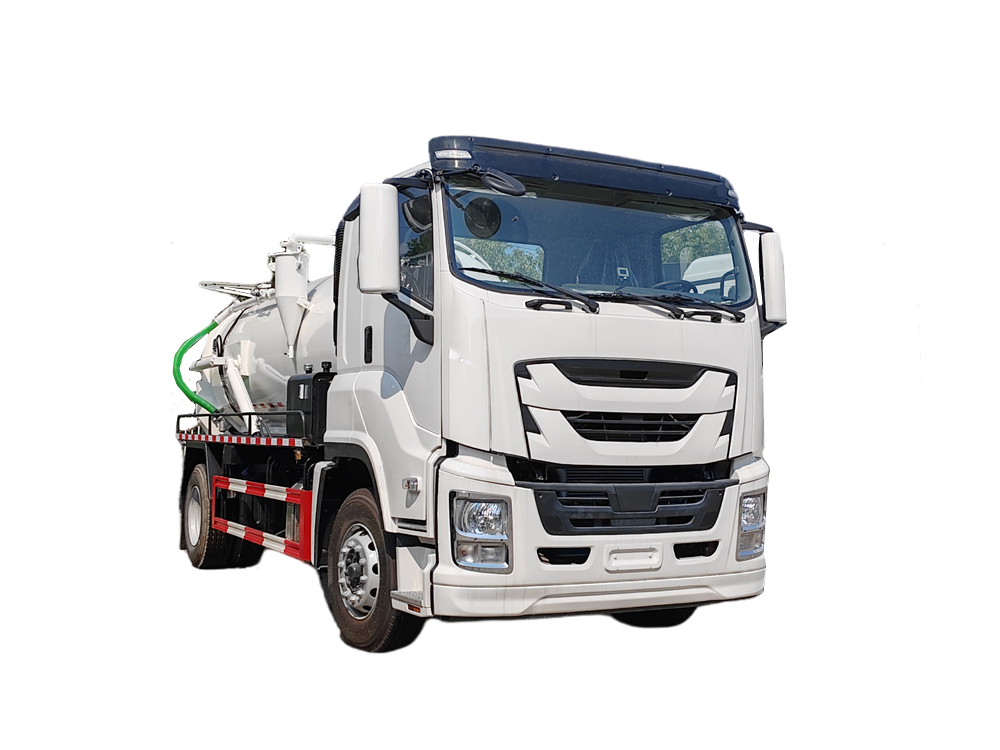

Tank capacity can be customizedThe Isuzu Giga Liquid Vacuum Truck 10cbm is an efficient and reliable vehicle designed for urban sanitation and industrial waste removal. Equipped with a powerful 240-horsepower engine and a Fast 8-speed transmission, it offers ample power and adaptability to complex road conditions. Its core superstructure features a 10-cubic-meter carbon steel tank with well-organized compartments and a strong seal. Equipped with an Italian JUROP high-flow vacuum pump, it rapidly extracts wastewater containing solid particles at speeds of up to 1,100 liters per minute. The vehicle's integrated hydraulic tailgate and tank lift system provide convenient operation. It is widely used for suctioning and transferring feces, sewage, and sludge in municipal pipeline networks, residential property management, industrial and mining enterprises, and other fields.
● China best Isuzu sewage suction truck factory
● 30 years experience on vacuum pumper truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Sewage suction truck also called vacuum suction truck,vacuum tank pumper truck, sewer vacuum truck,gully suction truck, is a special vehicle used for cleaning work in municipal pipe networks and industrial areas.
» Ⅱ.Product Parameter for Isuzu FVR sewage tank truck:
|
Jurop pump ISUZU Vacuum Suction Truck |
||
|
General |
Manufacturer |
POWERSTAR |
|
Truck Model |
PT5180GZY |
|
|
Overall Dimension(mm) |
8200 x 2550 x 3200mm |
|
|
GVW/Curb weight(kg) |
18000kg/ 9850kg |
|
|
Loading Volume |
10000L |
|
|
Chassis |
Brand |
ISUZU |
|
Drive Type |
4X2, LHD |
|
|
Wheelbase(mm) |
4500mm |
|
|
Front /rear overhang(mm) |
1360/2345mm |
|
|
Wheel truck(front /rear)(mm) |
2060/1855mm |
|
|
Axle loads |
6500/11500kg |
|
|
Max driving speed(km/h) |
105km/h |
|
|
Steering gear |
Power steering |
|
|
Tire |
7pcs with one spare tire |
|
|
295/80R22.5 |
||
|
Transmission |
Manual type;FAST 8-speed |
|
|
Cab |
A/C installed ,one and half row, 3 persons allowed |
|
|
Engine |
Model |
ISUZU 6HK1-TCG61 |
|
Fuel type |
Diesel |
|
|
Fuel tank capacity |
200L |
|
|
Power(kw) |
240HP/177Kw |
|
|
Displacement(ml) |
7790 |
|
|
Rated speed |
2400rpm |
|
|
Maximum torque |
760N.M |
|
|
Max torque speed |
1450rpm |
|
|
Intake form |
Six cylinder in line, water cooling, six stroke, pressurized medium - cooling, direct injection,diesel |
|
|
Emission standard |
Euro 6 |
|
|
Sewage Suction System |
||
|
Sewage Tanker |
Capacity |
10000L |
|
Material |
Carbon steel |
|
|
Dumping System |
Middle Tipper |
Hydraulic Controlled Rear Door and Middle lifting. |
|
Rear Door |
Hydraulic controlled with sewage drain pipe |
|
|
Vacuum Pump
|
JUROP PN106D vacuum pump |
|
|
Free air flow |
1100Lt/min(388cfm) |
|
|
Max.Vacuum |
27.5Hg/92% |
|
|
Continuous Duty Vacuum |
18nHg/60% |
|
|
Max. Pressure |
1.5bar |
|
|
Rotation speed |
1300rpm |
|
|
Max vacuum power. |
18.4hp/13.6kW |
|
|
Weight |
143kg |
|
|
108mmΦ suction pipe, suction time ≤5min, dump angle ≥45 |
||
|
Sewage Pipe |
8 meters Rubber Pipe (one unit pipe) |
|
|
Other Parts |
Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device...... |
|
» Ⅲ. Product Details:
Chassis configuration
• Chassis: Built on the Isuzu FVR GIGA 5X series heavy-duty chassis
• Wheelbase: 4500mm, balancing flexibility and stability for use in confined operating environments.
• Engine: Equipped with the Isuzu 6HK1-TCG61 inline six-cylinder turbocharged diesel engine, with a displacement of 7.79L and a rated power of 240 horsepower (177kW), it meets Euro VI emission standards, delivering powerful power and excellent fuel economy.
• Transmission: Equipped with the Fast Gear 8JS85E 8-speed manual transmission, it offers smooth shifting, adapts to diverse operating conditions, and exhibits outstanding heavy-load climbing capability.
Professional Upper Body Configuration
The upper body is the core of the sewage suction truck. This truck utilizes high-quality materials and a professional design to ensure durability and efficiency.
1. Sewage Tank:
• Capacity: The effective volume is 10 cubic meters, a moderate capacity that ensures efficient single-operation operation.
• Material: Constructed of high-quality carbon steel, it offers a sturdy structure, strong corrosion resistance, and a long service life.
• Structure: The tank features an elliptical cylindrical head with an internal anti-corrosion coating to effectively reduce sewage erosion.
2. Vacuum Pumping System (Core):

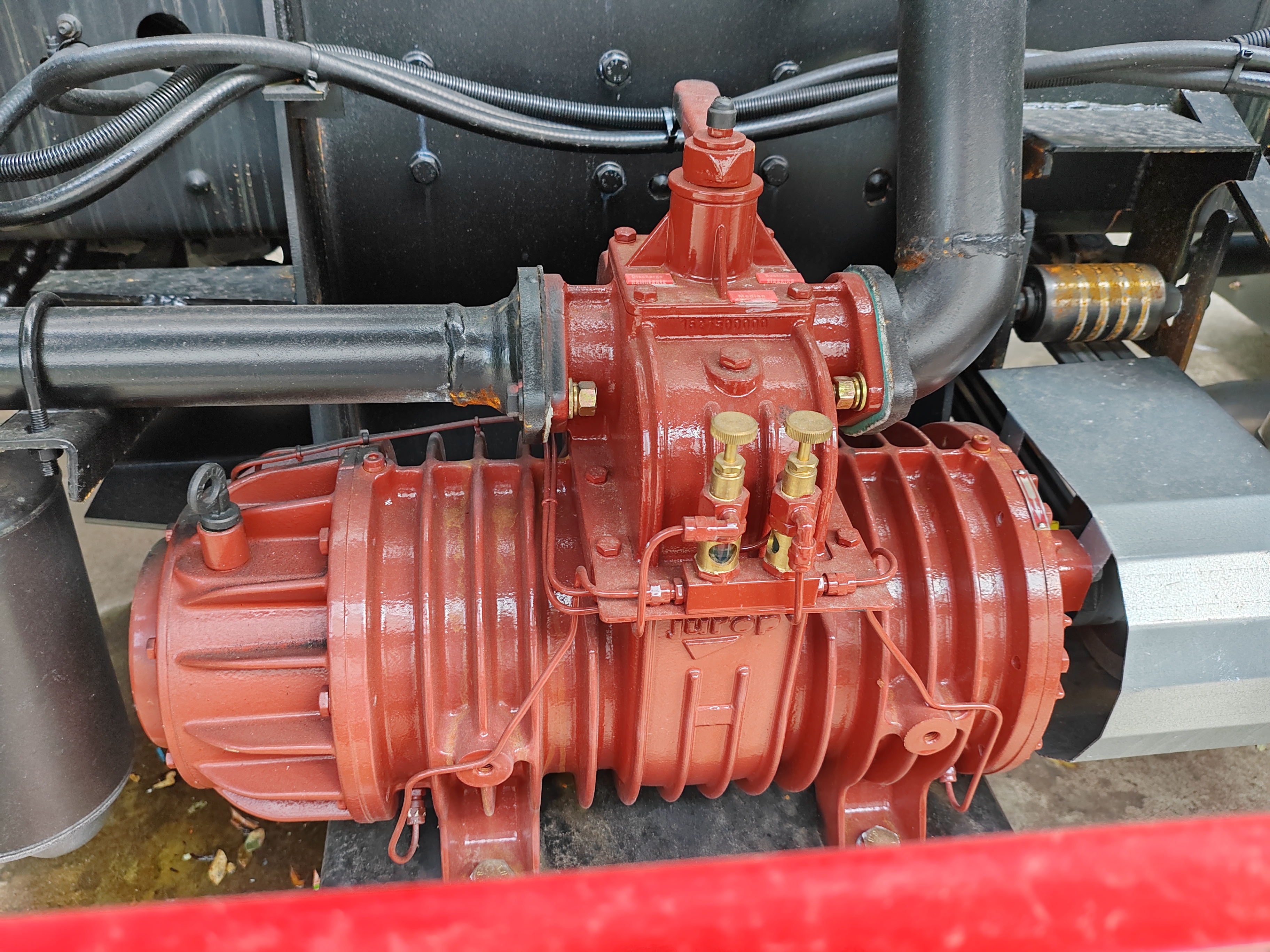

• Vacuum Pump: The core component is the high-performance JUROP PN106D water ring vacuum pump, with a pumping rate of up to 1100 liters/minute (1100 liters/minute). This pump provides powerful suction, quickly creates ultra-high negative pressure, and offers high efficiency, smooth, and reliable operation.
• Separation and Protection Devices:
◇ Water/Oil Vapor Separator: Effectively separates water vapor and oil vapor from the drawn air, protecting the vacuum pump from damage and extending its service life.

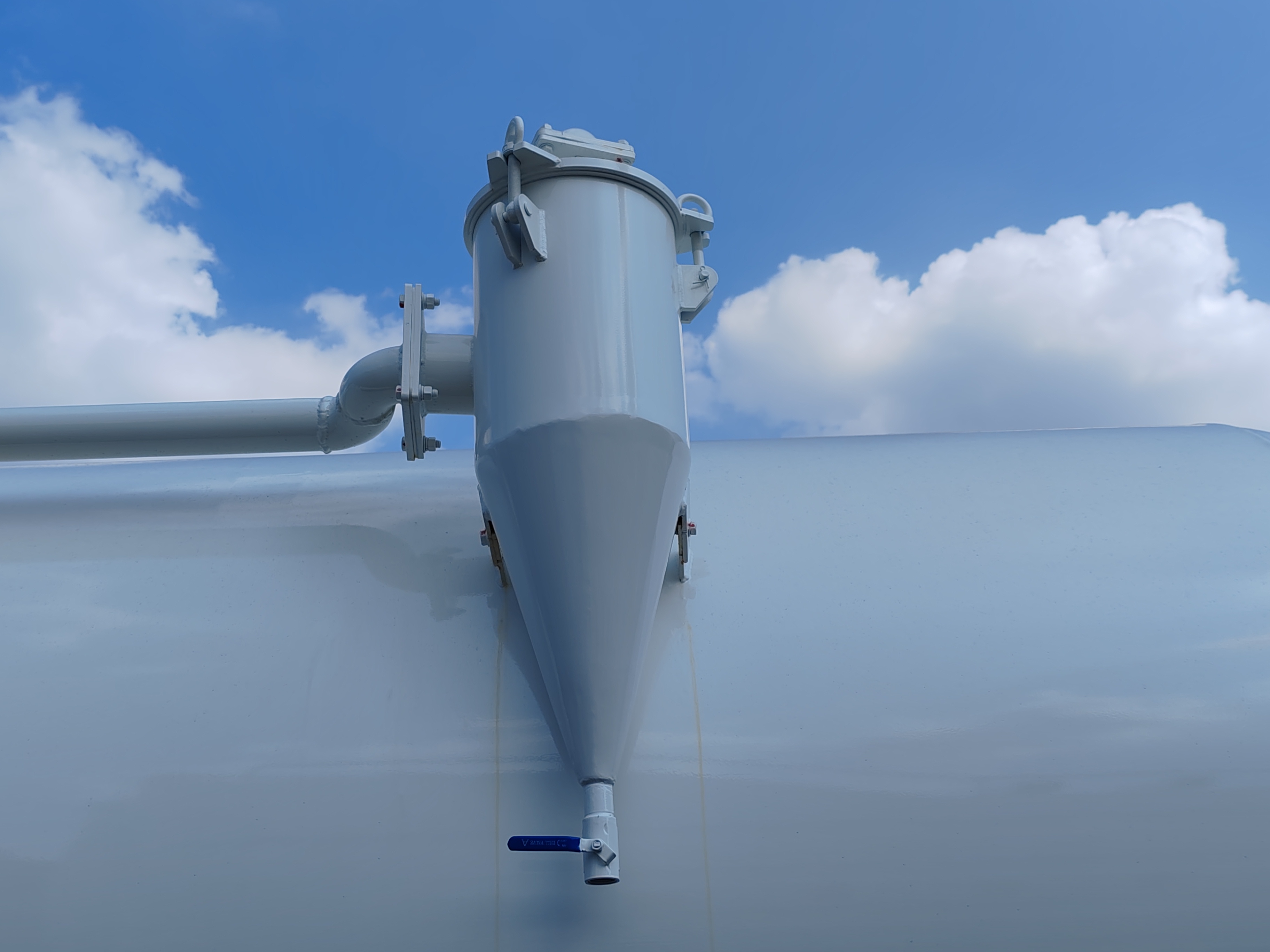

◇ Secondary Filter: Provides dual filtration protection, preventing impurities from entering the pump body, ensuring the cleanliness and proper operation of the entire vacuum system.
• Monitoring Devices:

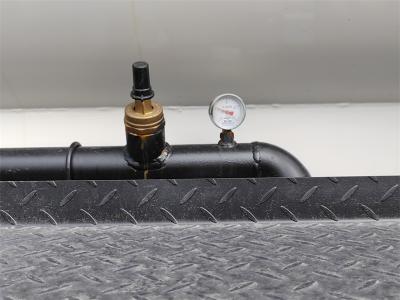

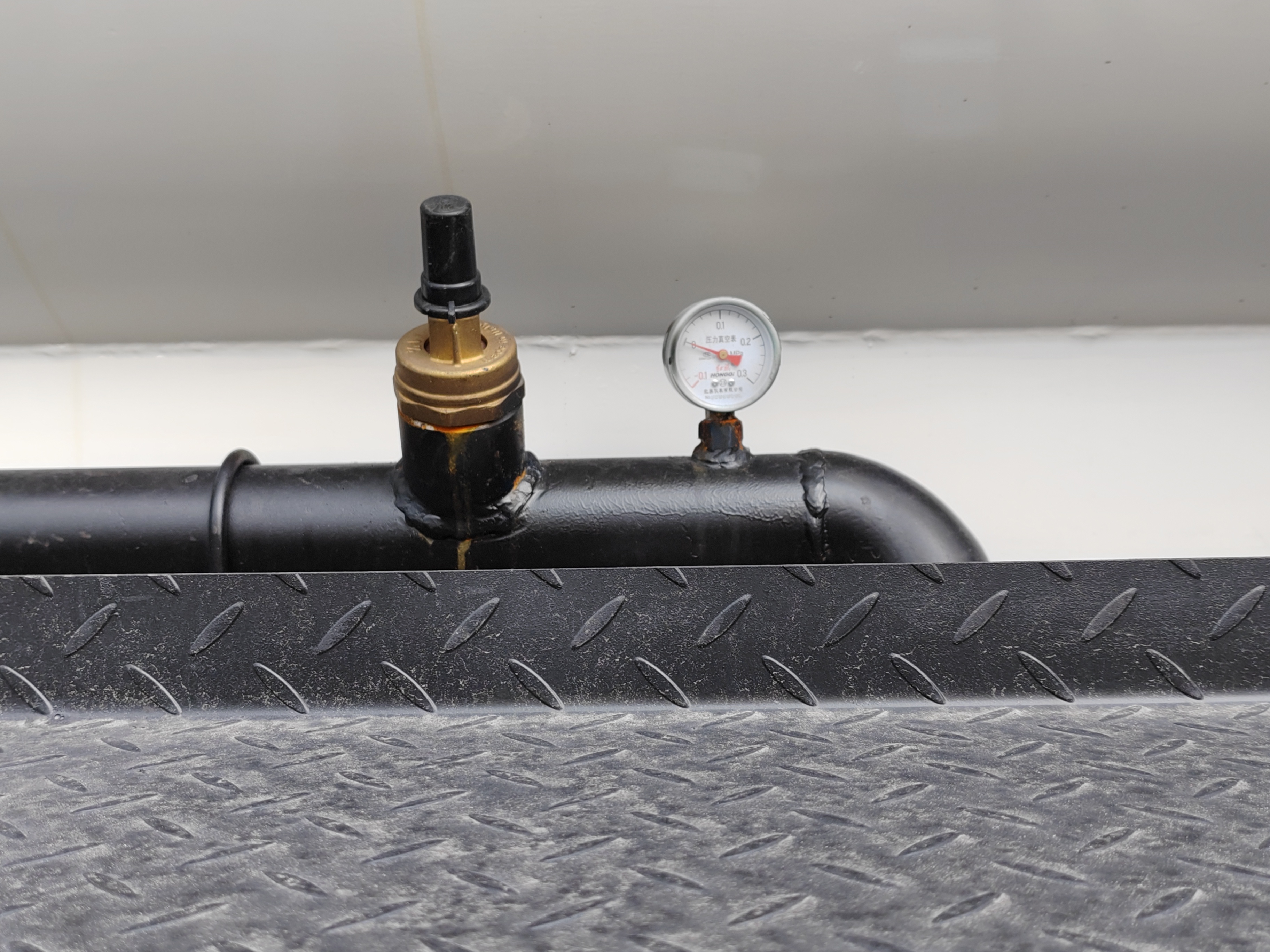

◇ Vacuum Pressure Gauge: Installed on the operator panel, it displays the vacuum pressure in the tank in real time, allowing the operator to accurately monitor the pumping progress and tank status, preventing overloading.
◇ Sight Glass: Used to monitor the tank's liquid level to prevent overfilling and overflow.
3. Hydraulic Operating System:

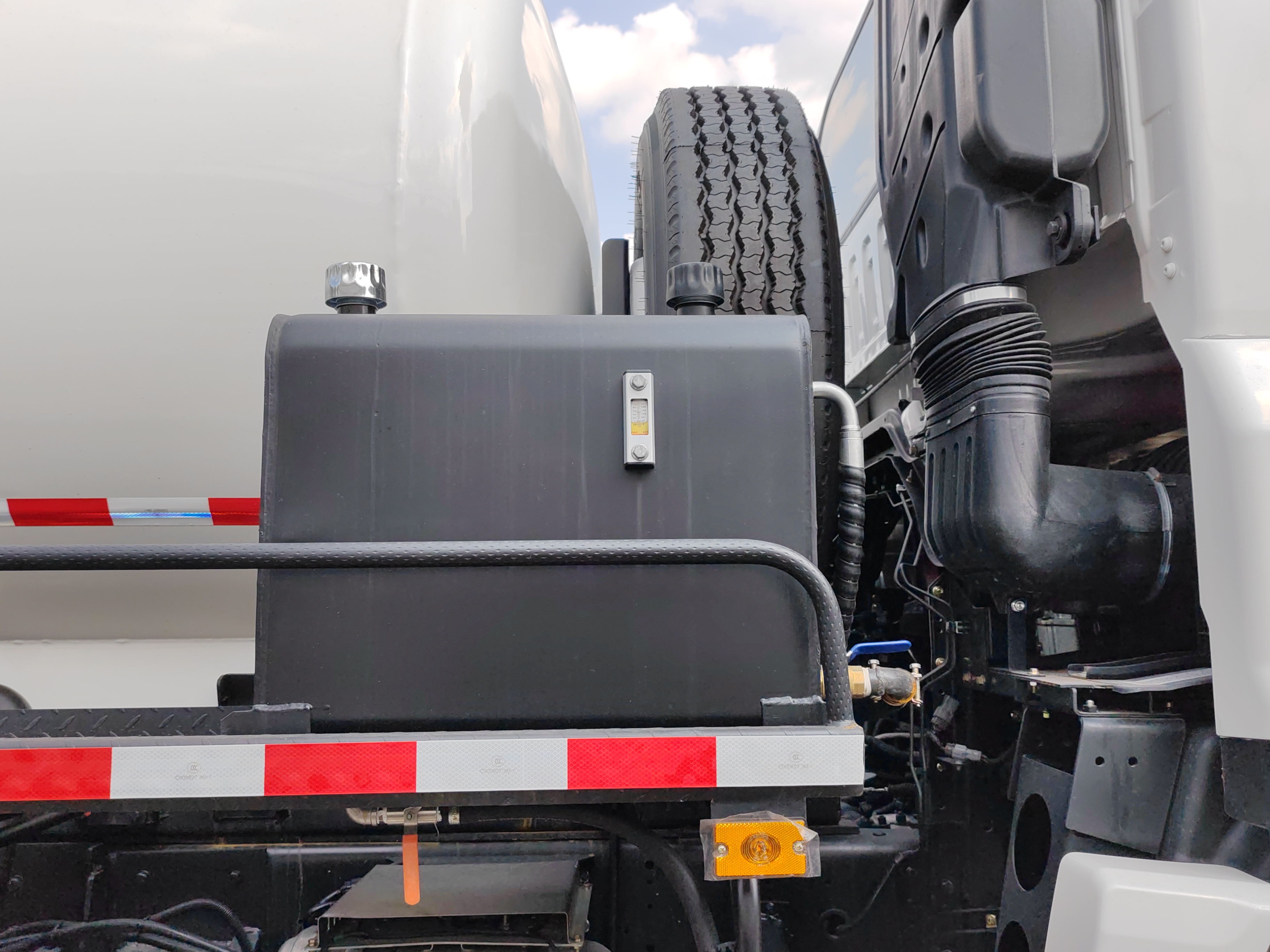

The system consists of a hydraulic oil tank, hydraulic oil pump, operating valves, and cylinders.

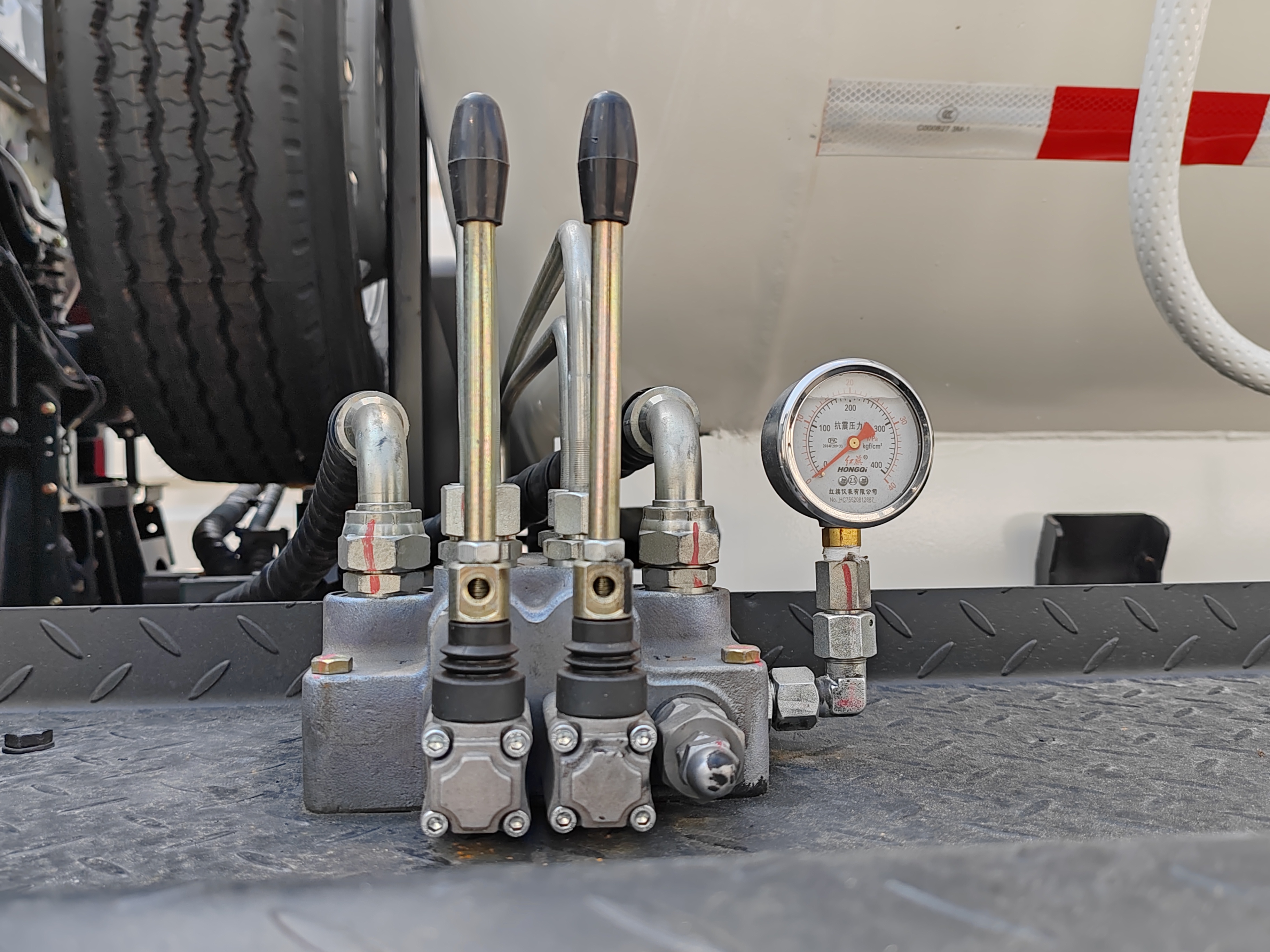

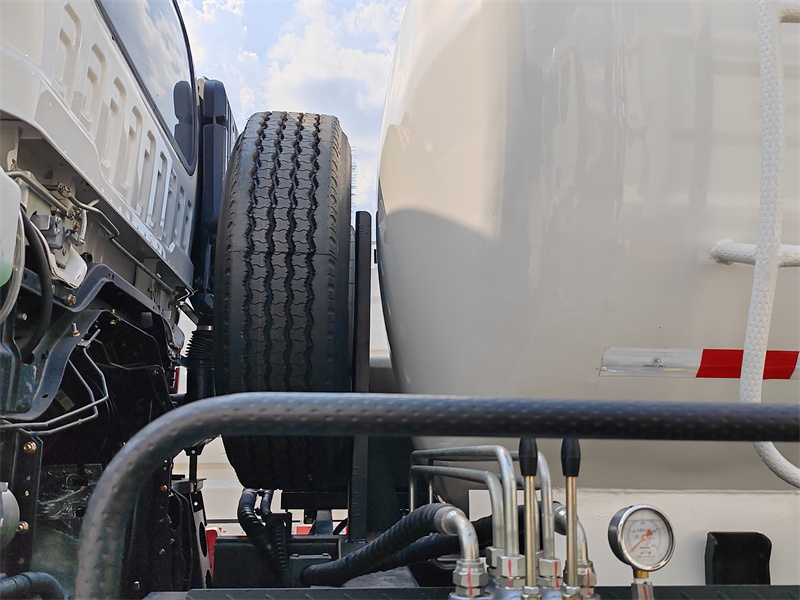

• Operation: Controls are simple and easily accessible via a manual hydraulic operating valve block located on the side of the cab.
• Control Functions:

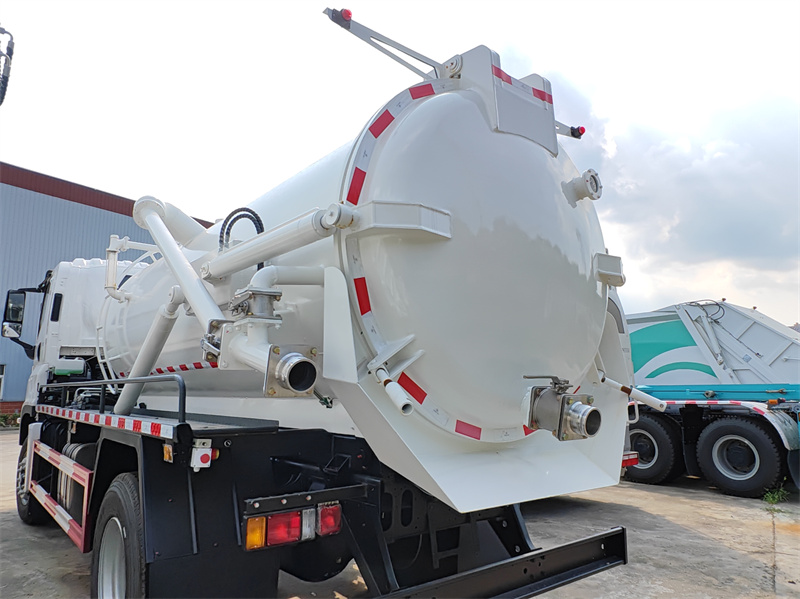

◇ Tailgate Opening and Closing: Hydraulically actuates the tailgate, ensuring a leak-free seal during transport.
◇ Tank Lifting Control: A hydraulic lifting mechanism enables the tank to be lifted and unloaded, ensuring complete and efficient waste discharge.

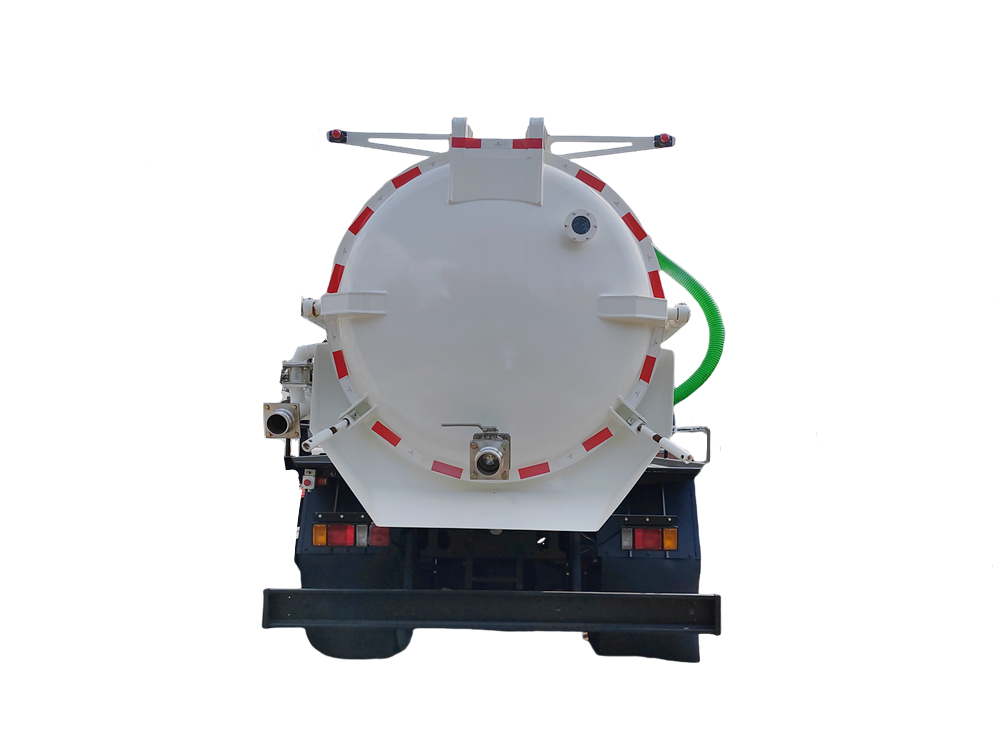

• Drain Valve: A hydraulic tailgate drain valve is installed at the rear of the tank, serving as the primary outlet for waste discharge.
4. Convenient Design:

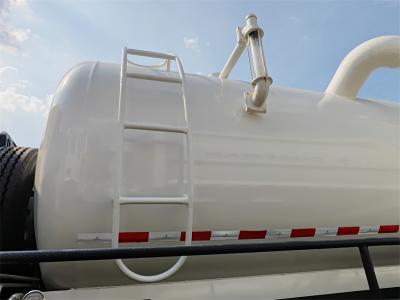

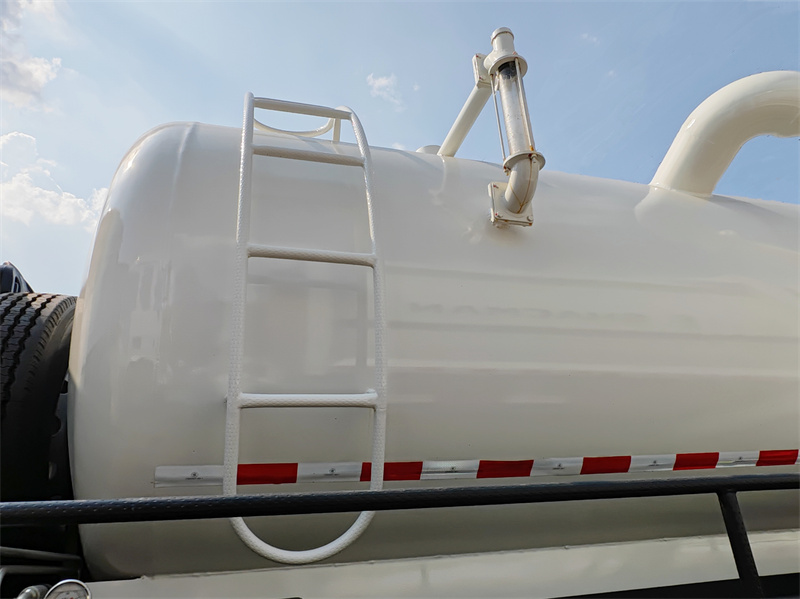

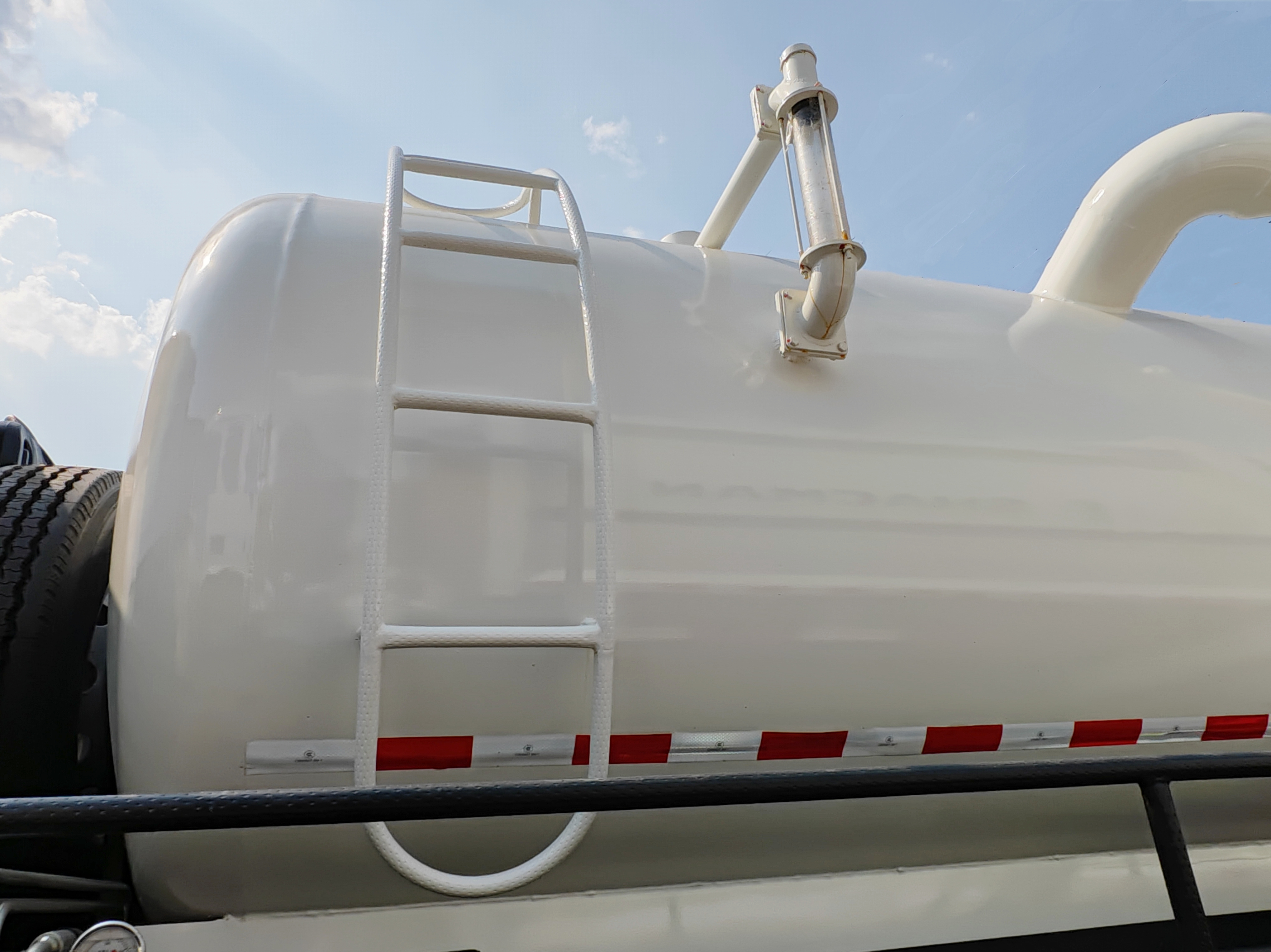

• Rear Ladder: A sturdy ladder is installed at the rear of the tank, allowing operators to easily access the tank roof for inspection or maintenance.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the sewage tank capacity, operation methods and location, also the whole truck size can be customized.
2. Working Principle
The core principle of the Isuzu FVR sewage suction truck is the use of vacuum to perform suction operations. Power is derived from the chassis engine, which drives a JUROP vacuum pump via a power take-off. During operation, the vacuum pump rotates at high speed, continuously extracting air from the completely sealed carbon steel tank, creating an extremely high negative pressure (vacuum state) within the tank. This creates a significant pressure differential between the external atmospheric pressure and the tank interior. This pressure differential forces sludge, liquids, and other waste from the septic tank or sewer into the tank through the suction hose, achieving efficient cleaning.
During operation, a moisture separator and secondary filter purify the incoming air, protecting the vacuum pump. The tank remains sealed during transport. To discharge, a hydraulic valve can be operated to inject positive air pressure into the tank, or the tank can be lifted to allow gravity unloading, completing the entire cleaning process.
» V. Product Advantages：
1. Reliable Performance: The golden power combination of the Isuzu chassis and the Fast transmission ensures excellent basic performance.
2. Powerful Suction: The JUROP high-flow vacuum pump, combined with a professional protection system, ensures fast and efficient suction operations.
3. Easy Operation: The centrally located manual hydraulic control valve and clear monitoring instruments make all operations clear at a glance, making them easy for a single person to complete.
4. Safe and Durable: The carbon steel tank, multiple filter protection devices, and reliable sealing design ensure durability and operational safety in harsh working environments.
