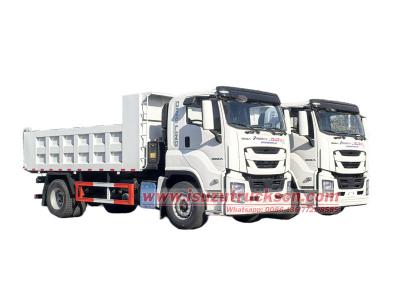

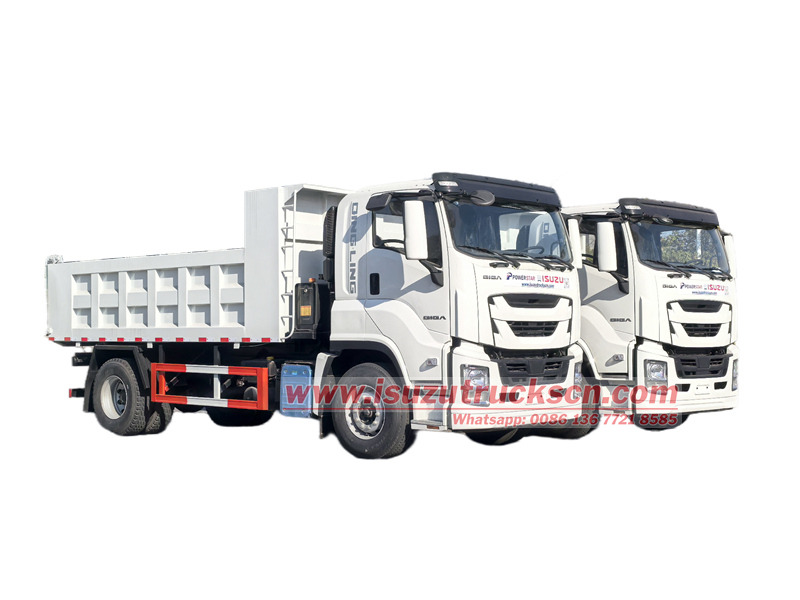

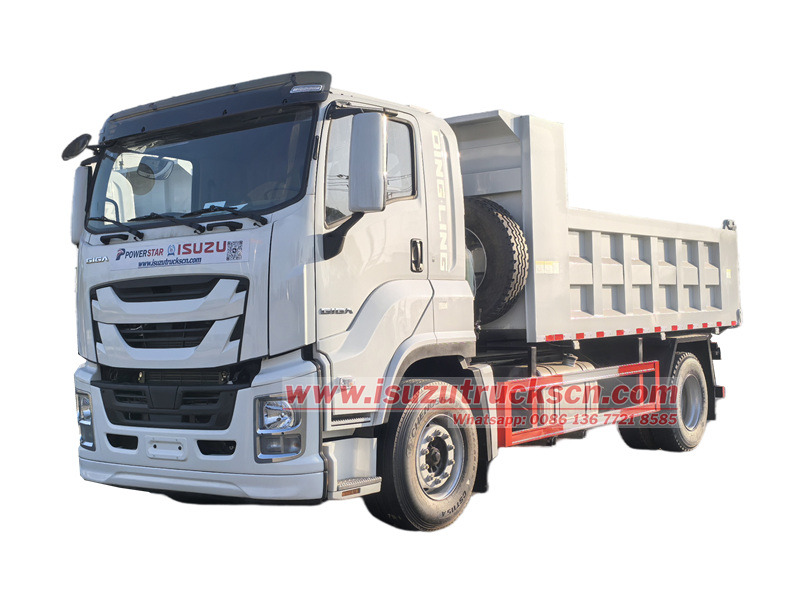

In the fields of engineering construction and mining transportation, a reliable and durable dump truck can significantly improve operational efficiency. The ISUZU GIGA 6-wheel dump truck, with its outstanding power performance, robust body structure, and user-friendly design, has become the preferred choice for many professionals.
Manufacturer:
Powerstar TrucksWork capacity:
12 tonsDimension:
7650 x 2500 x 3100mmCabin type:
ISUZU GIGA VC61,2 seats, a sleeperWheelbase:
4600mmEngine power:
380 HPEngine type:
6UZ1-TCG61Axle drive:
4×2Gear box:
FAST 12-speed, manualRemarks:

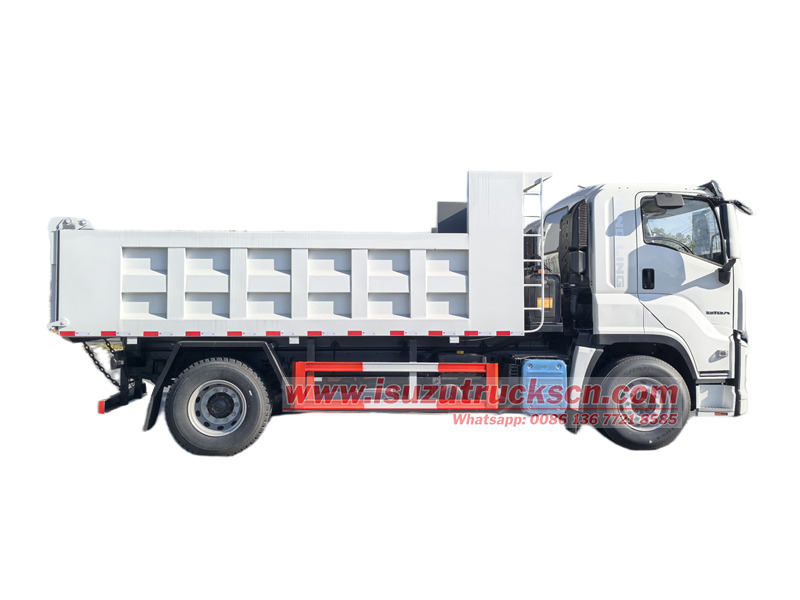

Reinforced cargo box bodyIn industries such as engineering construction, mining, and earthmoving, a dependable dump truck is crucial for ensuring operational efficiency. The ISUZU GIGA 6-wheel dump truck, with its powerful performance, stable chassis structure, and intelligent driving experience, is an ideal choice for medium- to short-distance heavy-load transportation.

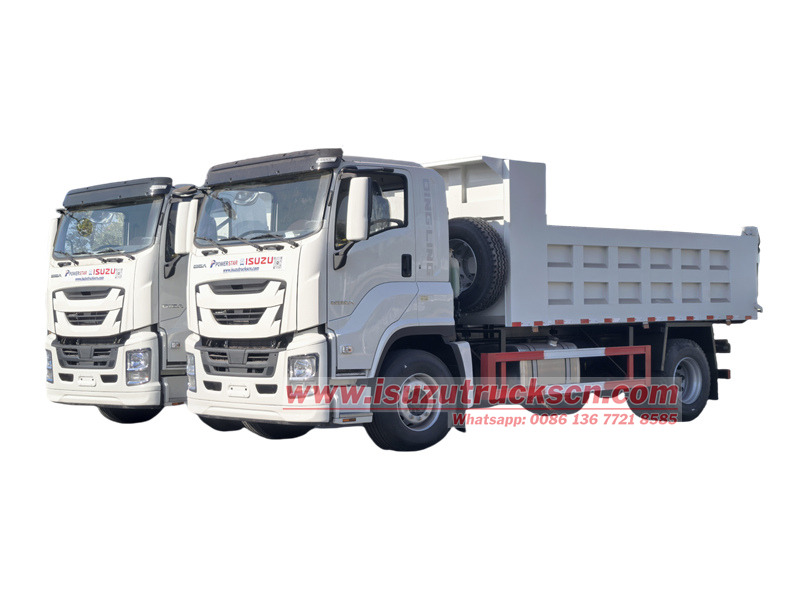

The cabin, where drivers spend long hours working, is vital for comfort and functionality. The ISUZU GIGA 4×2 Dump Truck features the ISUZU GIGA VC61 cabin, designed to be spacious and ergonomic. The cabin is equipped with two seats, a sleeper berth, and standard configurations such as air conditioning, a Bluetooth audio system, laminated glass, a multifunction steering wheel, power windows, central locking, and LED daytime running lights. These features not only enhance driving comfort but also improve road safety.
The ISUZU GIGA tipper lorry is powered by a 6UZ1-TCG61 6-cylinder diesel engine with a displacement of 9,839 cc, complying with the stringent Euro 6 emission standards. With a rated power of 279 kW and a maximum torque of 1,800 N·m, paired with a FAST 12-speed manual transmission, it effortlessly handles heavy loads and steep slopes, achieving a maximum gradient capability of 30%. The truck adopts a 4×2 drivetrain with a wheelbase of 4,600 mm, featuring front and rear axles capable of carrying 9,000 kg and 13,000 kg, respectively, and a gross vehicle weight of 22,000 kg. The chassis is equipped with a 7+6+8 leaf spring suspension and 295/80R22.5 large-size tires, ensuring stability and off-road capability on rugged construction sites.

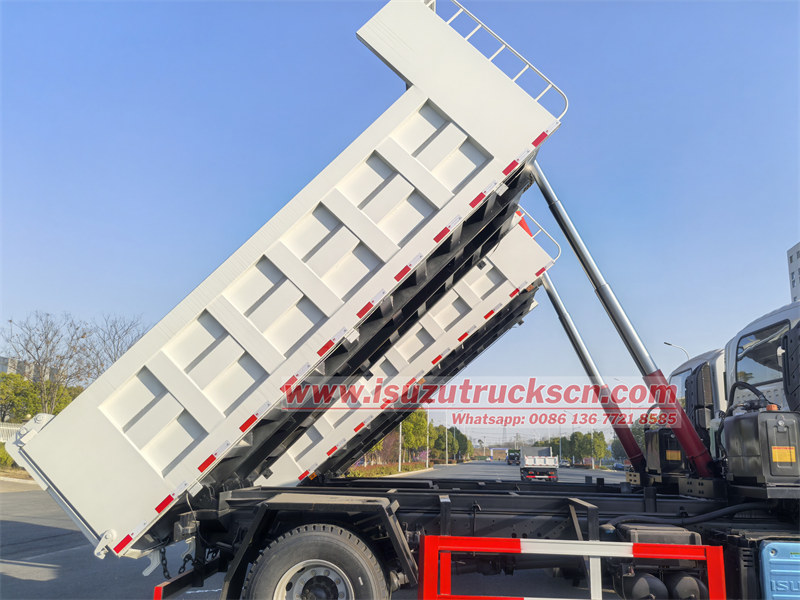

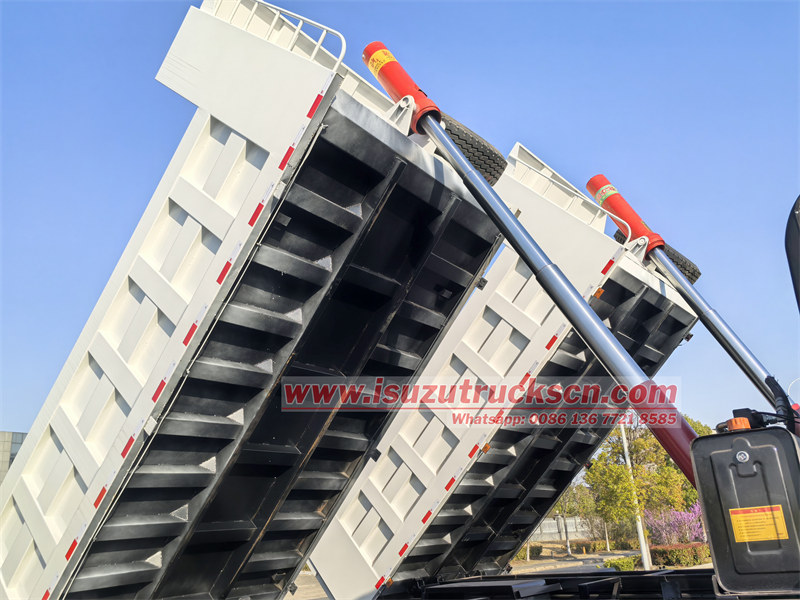

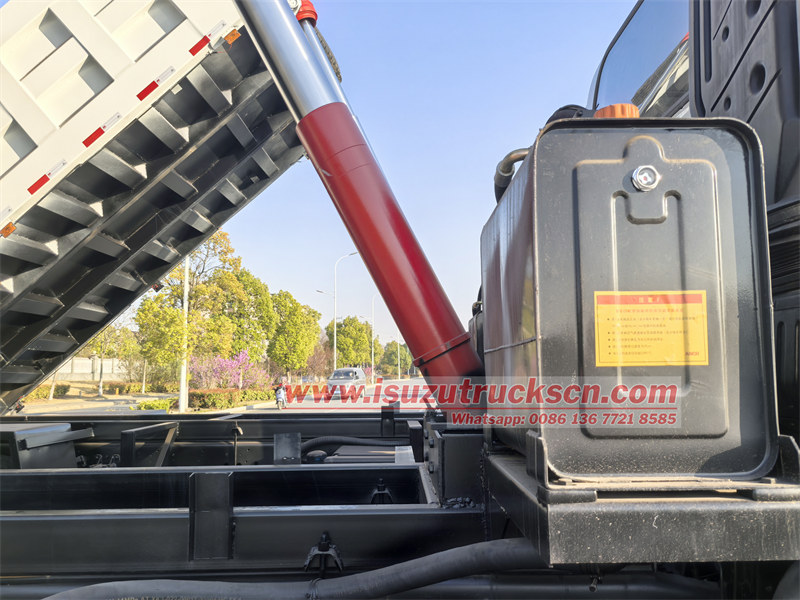

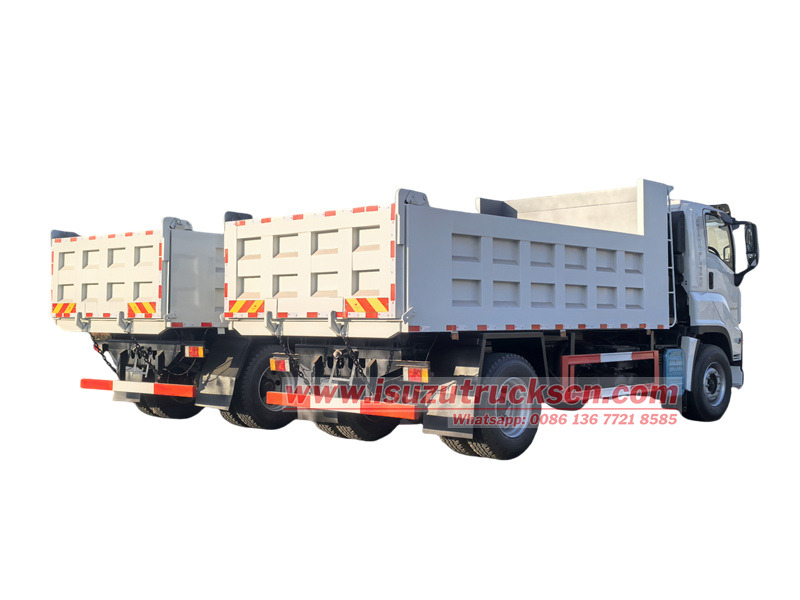

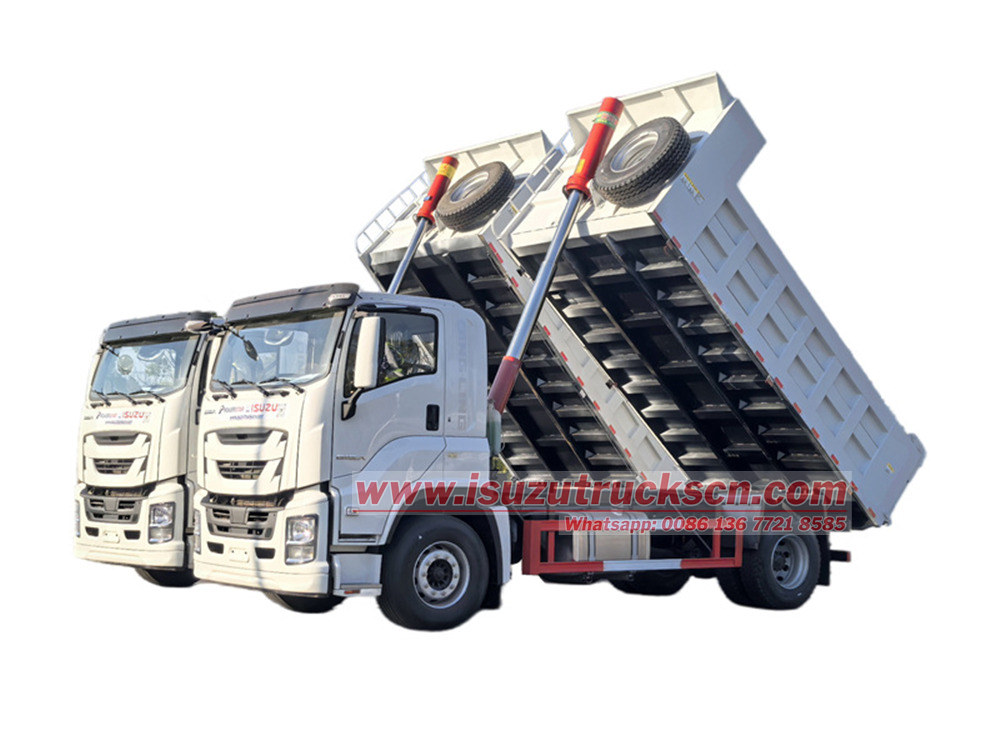

The body structure is a critical factor in the dump truck's safety. The ISUZU GIGA Tipper Truck's cargo box is constructed from high-strength materials, offering exceptional torsional rigidity and durability. The cargo box measures 4,600 × 2,500 × 1,500 mm and is made of Q235 carbon steel, with 6 mm side plates and an 8 mm floor plate, ensuring superior load-bearing capacity and service life. For lifting, the truck adopts a front-mounted hydraulic cylinder design, providing strong and stable lifting force to handle various heavy-load unloading requirements with ease.
● 30 years experience on ISUZU dump truck designing
● 50 units Isuzu tipper trucks in stock, 5 cbm, 8 cbm, 12 cbm
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
Product Specifications
|
ISUZU GIGA 6 wheeler dump truck specifications |
|||
|
Vehicle model |
PT5220ZZX |
||
|
Basic parameters of vehicle |
Driving form |
4 x 2 |
|
|
Gross vehicle weight (kg) |
22000 |
||
|
Curb weight (kg) |
8500 |
||
|
Vehicle dimensions |
Length (mm) |
7650 |
|
|
Width (mm) |
2500 |
||
|
Height (mm) |
3100 |
||
|
Wheelbase (mm) |
4600 |
||
|
Performance parameters |
Maximum driving speed (km/h) |
89 |
|
|
Maximum climb ( °) |
30% |
||
|
Chassis parameters |
Engine |
Model |
6UZ1-TCG61 |
|
Emission standard |
Euro 6 |
||
|
Number of cylinders |
6 |
||
|
Displacement |
9839 ml |
||
|
Rated power |
279 kW |
||
|
Max. speed |
2000 rpm |
||
|
Torque |
1800 N.m |
||
|
Cab |
Type |
ISUZU GIGA VC61 |
|
|
Standard configurations |
2 seats, one sleeper, AC, bluetooth player, laminated |
||
|
Gearbox |
FAST, Manual, 12 speed |
||
|
Front Axle |
Type |
Drum brake |
|
|
Load capacity (kg) |
9000 |
||
|
Rear axle |
Type |
Drum brake |
|
|
Load capacity (kg) |
13000 |
||
|
Speed ratio |
6.833 |
||
|
Leaf springs |
Number of pieces |
7 pieces of front spring, 6+8 pieces of rear spring |
|
|
Tires |
Quantity |
6 + 1 |
|
|
Model number |
295/80R22.5 |
||
|
Steering system |
Type |
Hydraulic power steering system |
|
|
Braking system |
Brake type |
Drum brake with ABS anti-lock braking system |
|
|
Service brake system type |
Dual circuit air brake |
||
|
Type of parking brake system |
Spring brake |
||
|
Parking maneuvering type |
Hand brake handling |
||
|
Upper-body parameters |
Cargo box |
Cargo box size (mm) |
4600×2500×1500 |
|
Material |
Q235 carbon steel |
||
|
Thickness (mm) |
Side plates: 6mm; floor plate: 8mm |
||
|
Lifting type |
Hydraulic cylinder, front lifting |
||
Product Advantages
1. Powerful Performance & Efficient Drivetrain
The ISUZU GIGA dump truck is equipped with a 6UZ1-TCG61 turbocharged diesel engine, boasting a 9.8L displacement, delivering a maximum power output of 279 kW (380 hp) and a peak torque of 1,800 N·m. Paired with a FAST 12-speed manual transmission, it ensures smooth and efficient power delivery, effortlessly tackling steep 30% gradients while maintaining excellent fuel efficiency. With an average fuel consumption of just 35L per 100 km, it significantly reduces operating costs.
2. Exceptional Load Capacity & Stable Chassis
The truck features a professional engineering chassis design, with a front axle capacity of 9,000 kg and a rear axle capacity of 13,000 kg, supporting a gross vehicle weight of 22,000 kg. The reinforced 7+6+8 leaf spring suspension system and 295/80R22.5 large-size industrial tires ensure outstanding stability and off-road performance even under heavy loads, making it particularly suitable for challenging terrains such as mines and construction sites.
3. Durable & Reliable Body Structure
The cargo box is constructed from Q235 carbon steel, with an 8 mm floor plate and 6 mm side plates, offering exceptional impact and deformation resistance. Key components of the vehicle are treated with anti-corrosion galvanization, significantly extending service life and reducing long-term ownership costs.
4. Comprehensive Safety Features
The truck is equipped with a dual-circuit air brake system, ABS anti-lock braking, and a spring-loaded parking brake, ensuring reliable braking performance. The hydraulic power steering system enhances maneuverability, while LED daytime running lights improve visibility. Optional smart safety features such as blind-spot monitoring and tire pressure monitoring provide additional protection for drivers.
5. Ergonomic & Comfortable Driving Experience
The spacious VC61 wide-body cabin is designed for comfort, featuring air conditioning, a Bluetooth audio system, a multifunction steering wheel, and ergonomic suspension seats to minimize driver fatigue. The sleeper berth allows for rest during long hauls, while power windows and central locking add convenience, enabling drivers to focus more on their transportation tasks.
