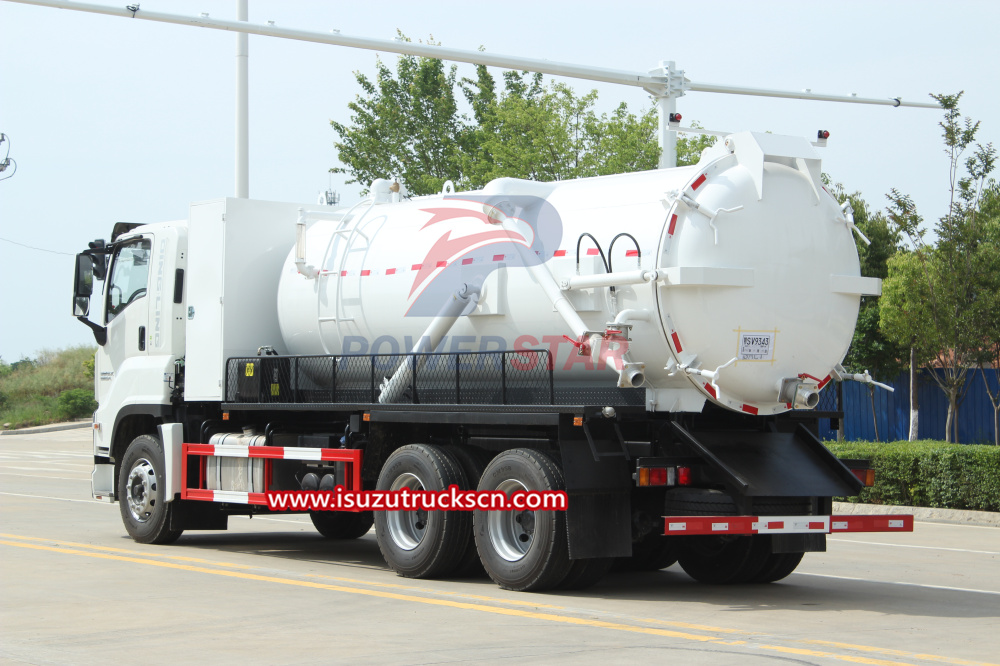

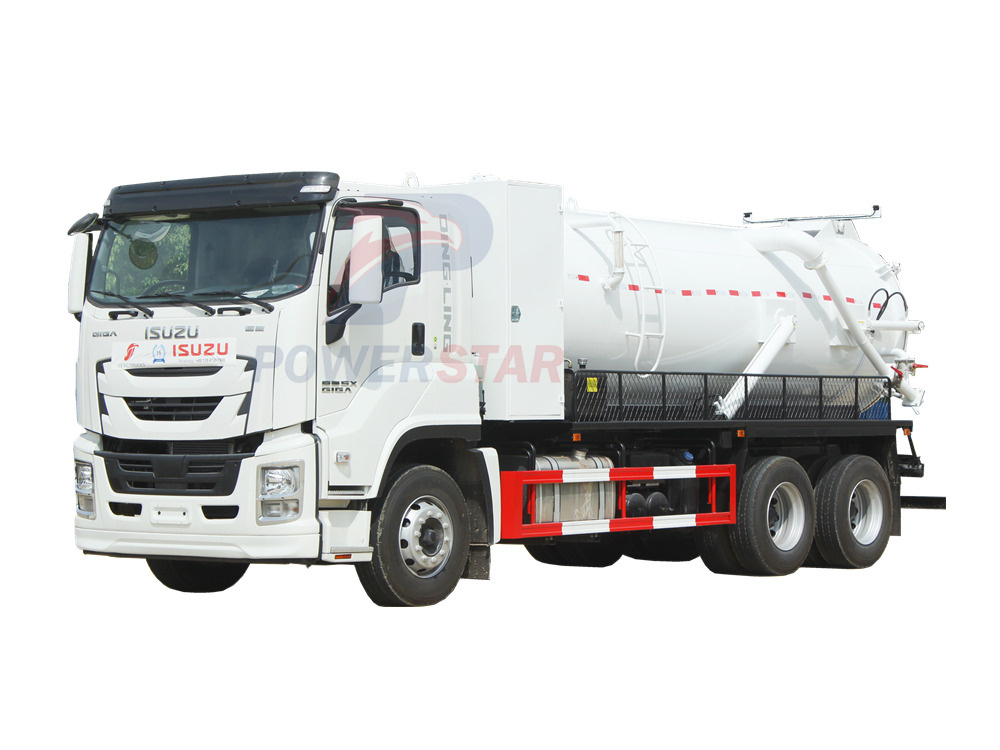

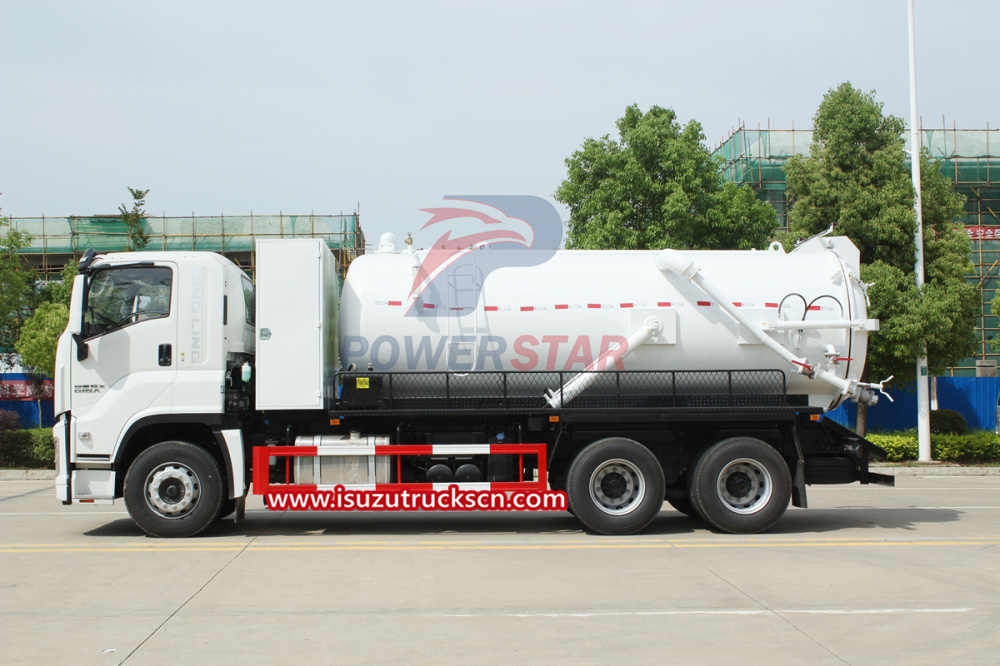

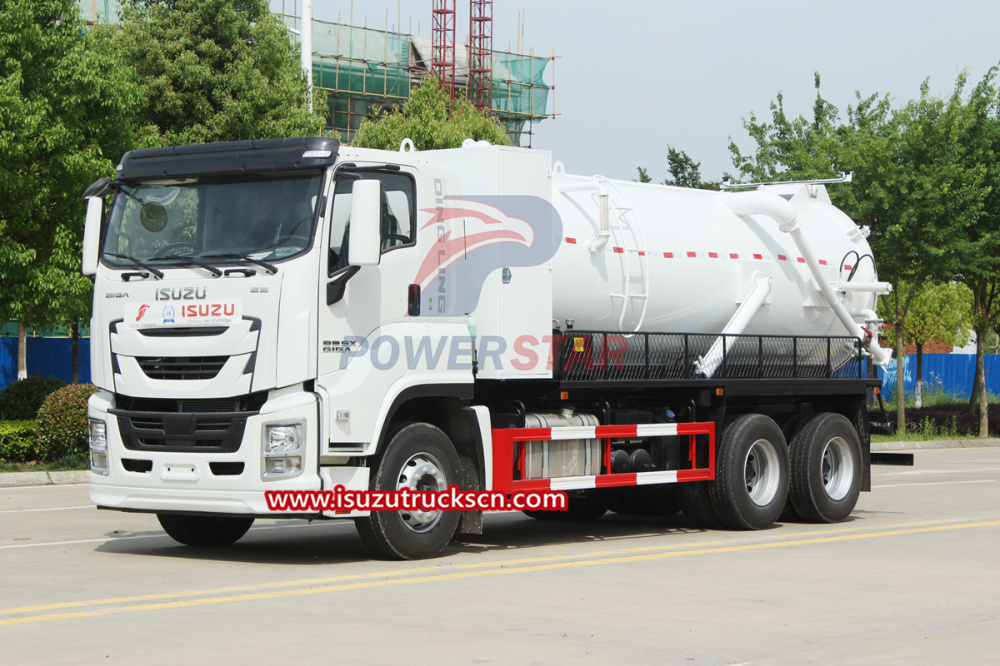

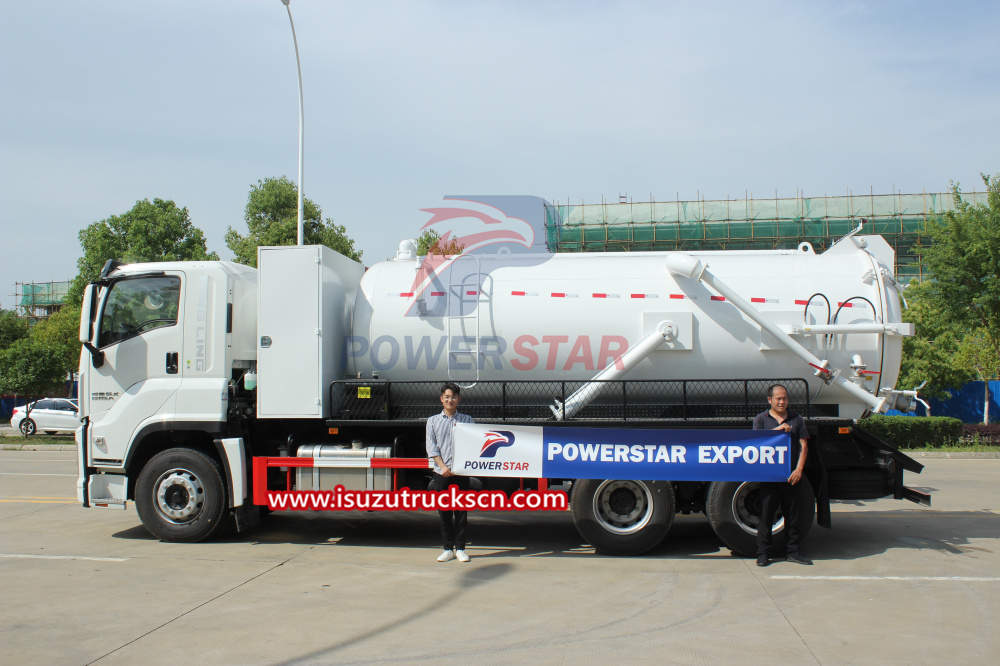

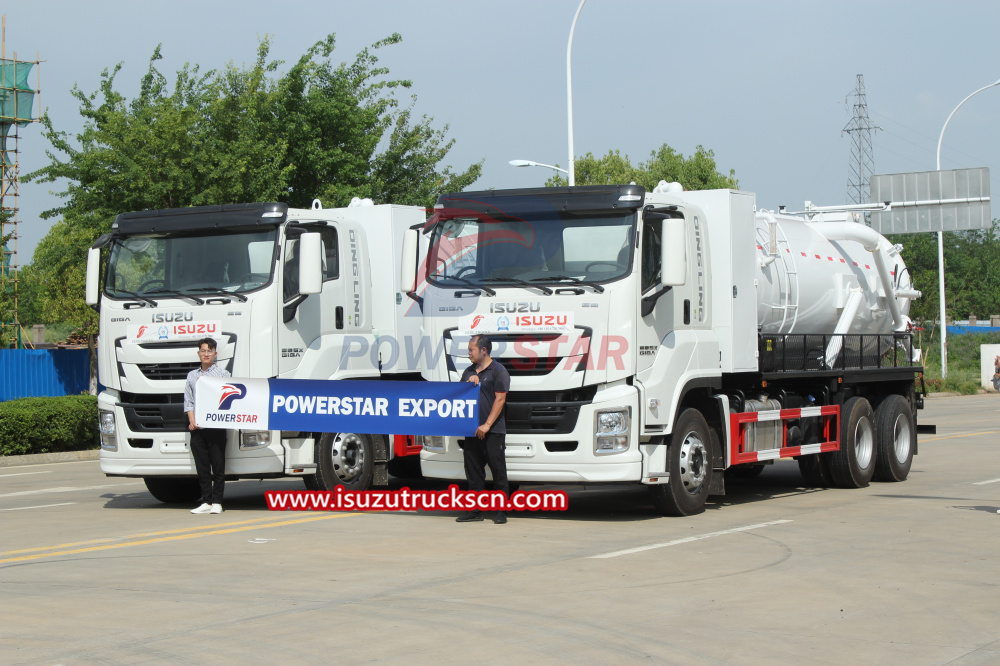

The Isuzu Giga septic tank pump truck is a specialized vehicle designed for the emptying and transportation of waste from septic tanks. It is equipped with a powerful vacuum system that efficiently sucks up the contents of septic tanks, allowing for proper disposal and preventing the spread of harmful waste materials.
The key component of the Isuzu Giga septic tank pump truck is its vacuum pump. This pump generates a strong suction force that enables the efficient extraction of liquids, sludge, and solids from septic tanks. The pump is typically mounted on the truck's chassis and connected to a large storage tank.
To operate the truck, a hose or pipe is connected to the vacuum pump's intake, and the other end is inserted into the septic tank through a designated access point. The vacuum pump is then activated, creating a negative pressure that draws the waste material into the storage tank. This process continues until the septic tank is emptied.
Sludge tank
Shape
Cylindrical shaped tank
Material
Mild steel.
Capacity .
Sludge tank 20,000L
Shell thickness
5mm.
Dish thickness
5mm.
Tank inner filter
Separate the sucked wastewater and solid, which protects key parts like pump, valve and hose
Working pressure
-0.95bar.

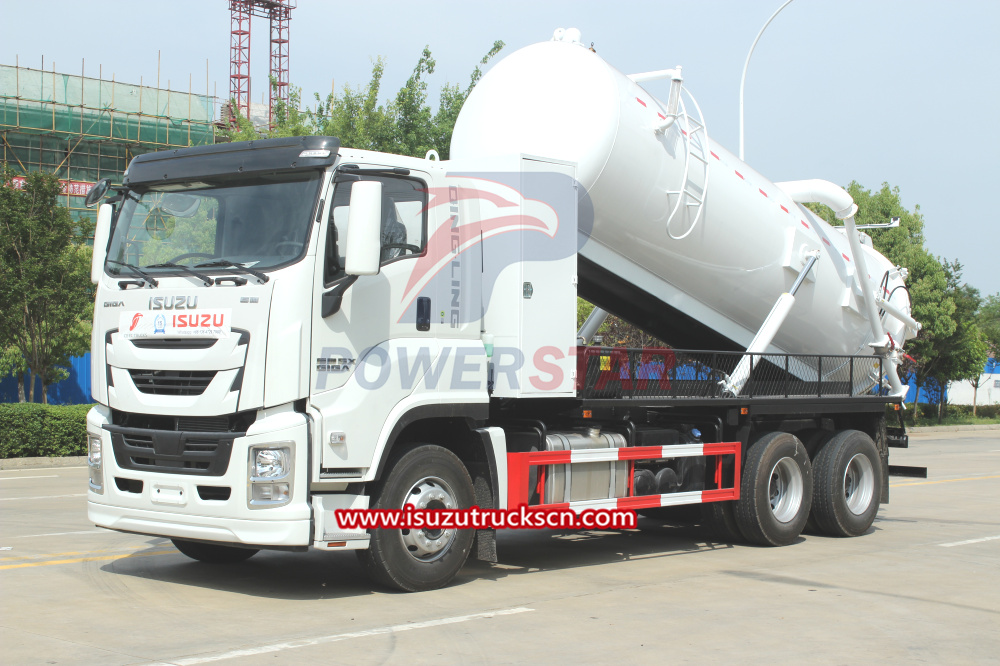

Tipping cylinder
Italy brand, front single acting tipping cylinder with safety support, provided for 40° liquid removal.

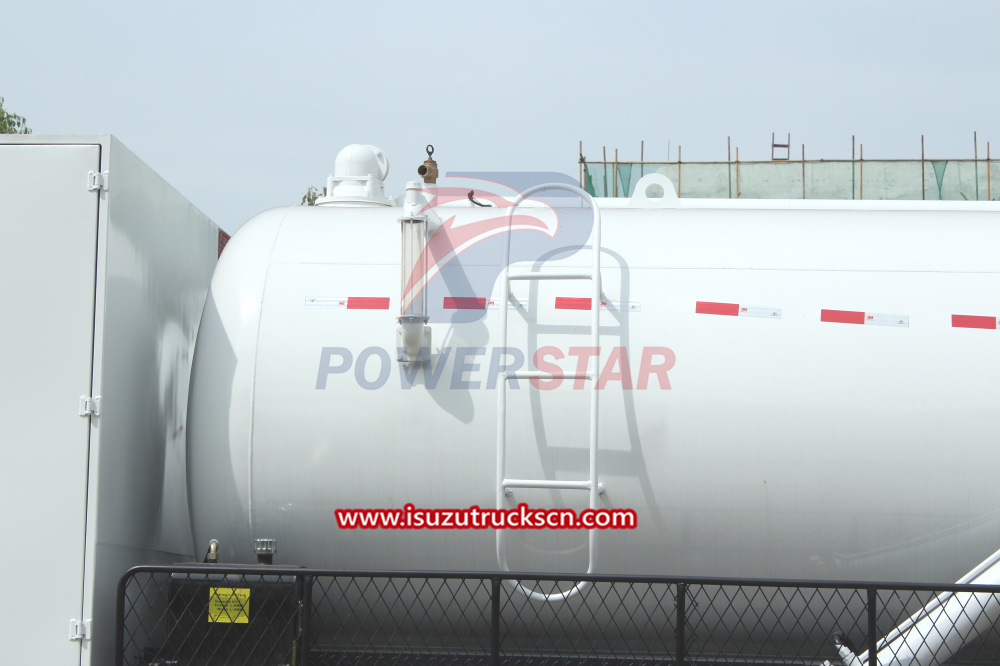

Liquid level indicator
Glass indicator at the rear of tank.
Primary shut off
SS float ball prevents overfilling sludge tank.
Secondary shut off
Once the tank’s full, ultrasonic level indicator is activated and vacuum pump is closed automatically, no need to shut it down from the control box

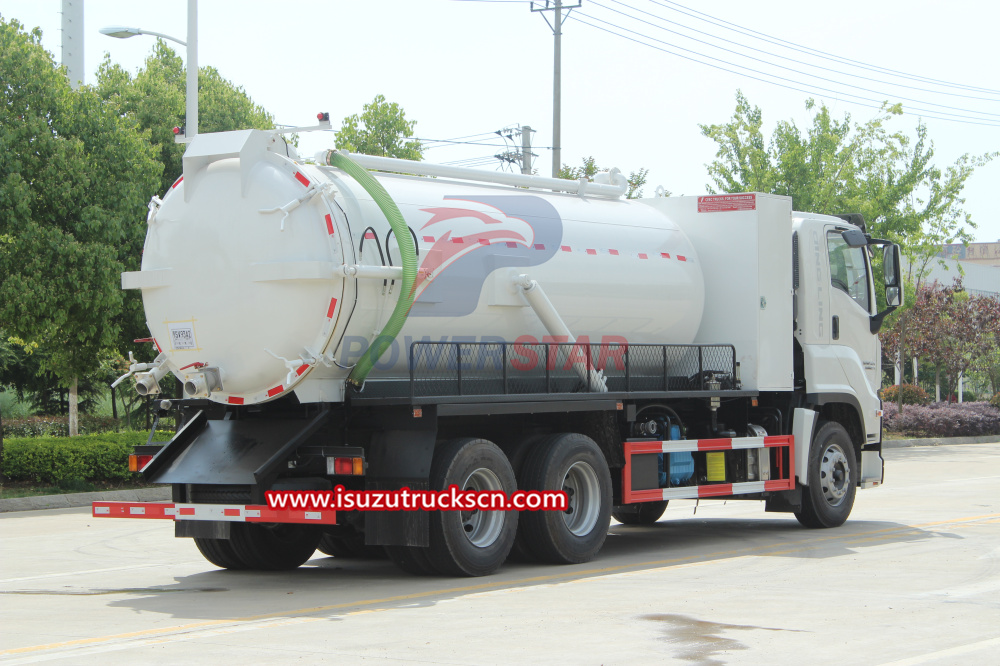

Full opening rear lid
Hydraulically opening and locking
Outlet Valve
One 4" ball valve, manual operation.
|

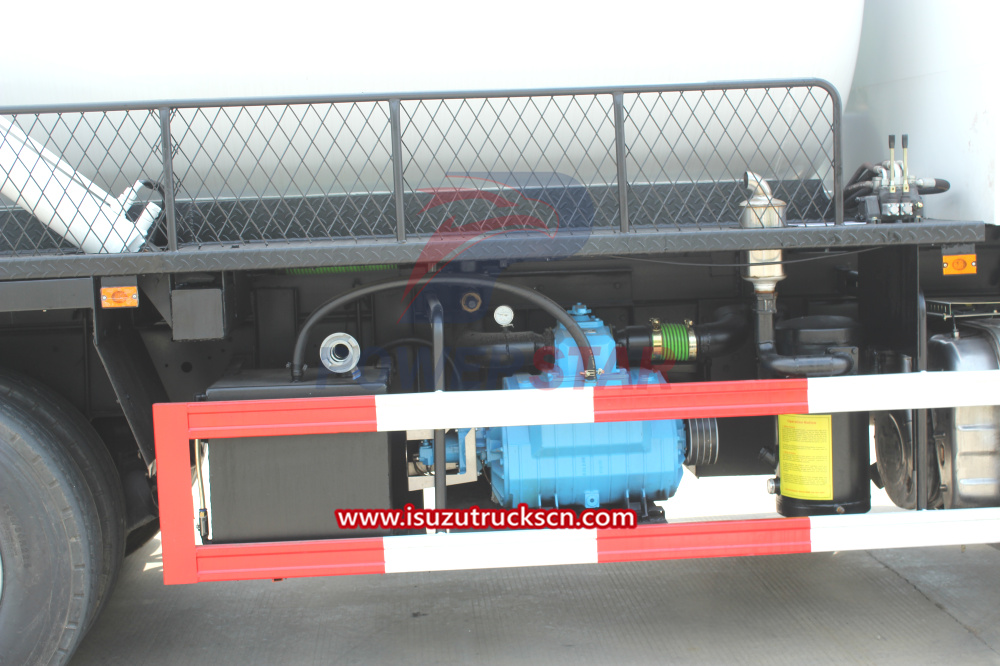

Vacuum pump
|
Air cooling vane pump.
|
|
Brand
|
JUROP
|
|
Max vacuum level
|
-0.9bar
|
|
Air flow rate
|
540m3/h.
|
|
Protection
|
1. filter 2. Vacuum pressure relief valve
|
|
Suction hose
|
4", 10m, can be lengthened, with non-return valves
|
|

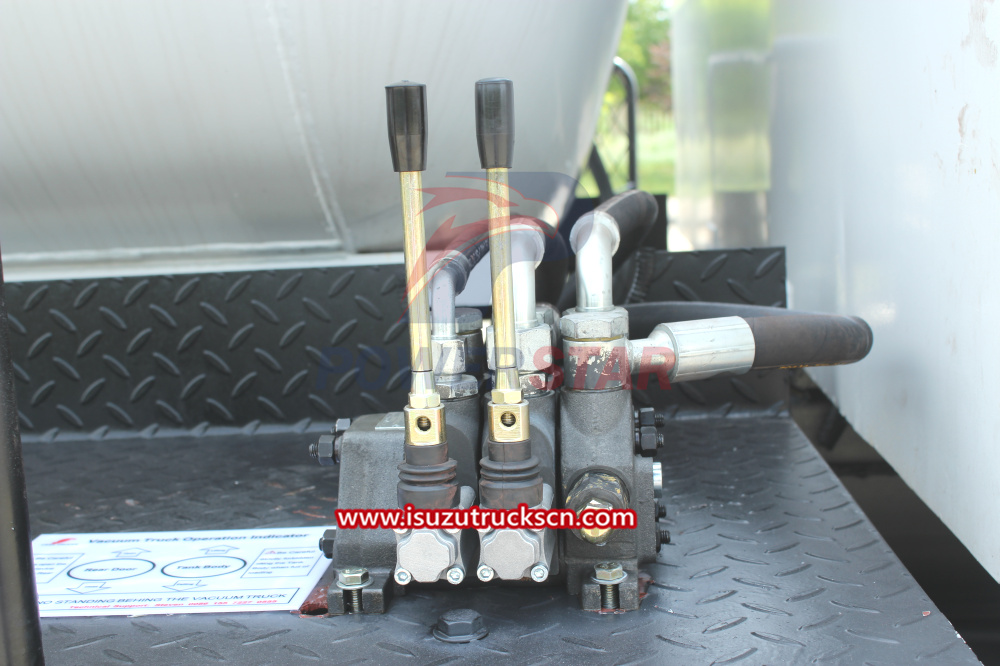

Controls
|
Manual control and radio remote control are both included
|
In addition to the vacuum system, the Isuzu septic tank pump truck may also be equipped with various features to enhance its functionality and ease of use. These can include a hydraulic lifting mechanism to assist with accessing and emptying septic tanks, a water jet system for cleaning tank surfaces, and controls that allow the operator to adjust suction power and monitor tank levels.
Proper maintenance and regular cleaning of the Isuzu septic tank pump truck are essential for its optimal performance. This includes routine inspection and cleaning of the vacuum pump, storage tank, hoses, and other components to prevent clogs, leaks, or malfunctions.
