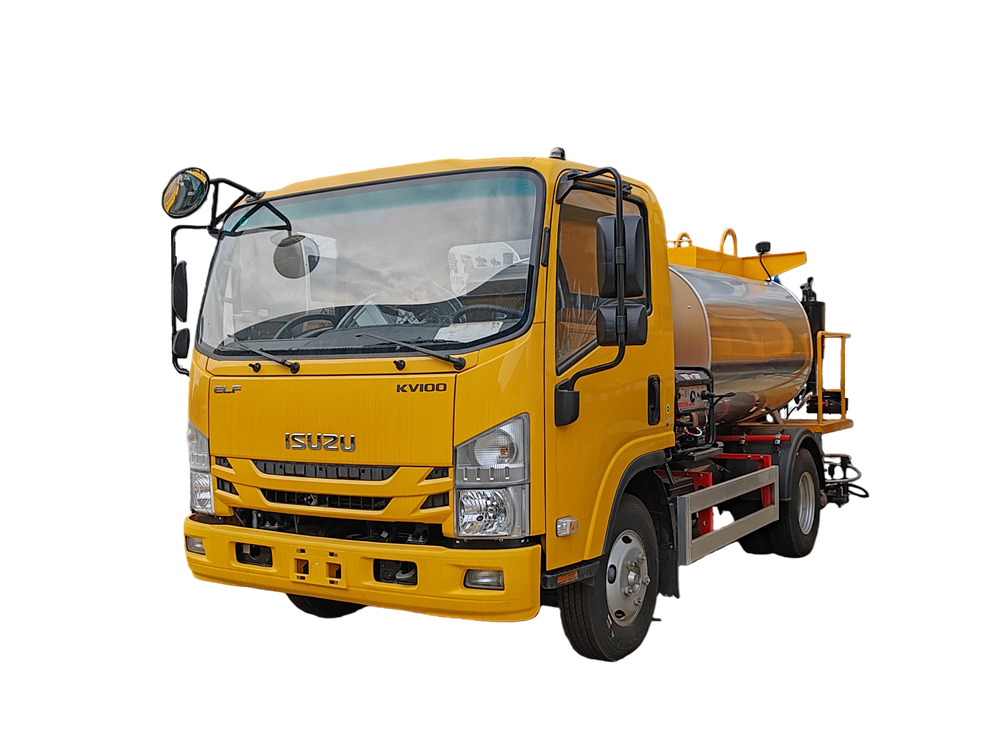

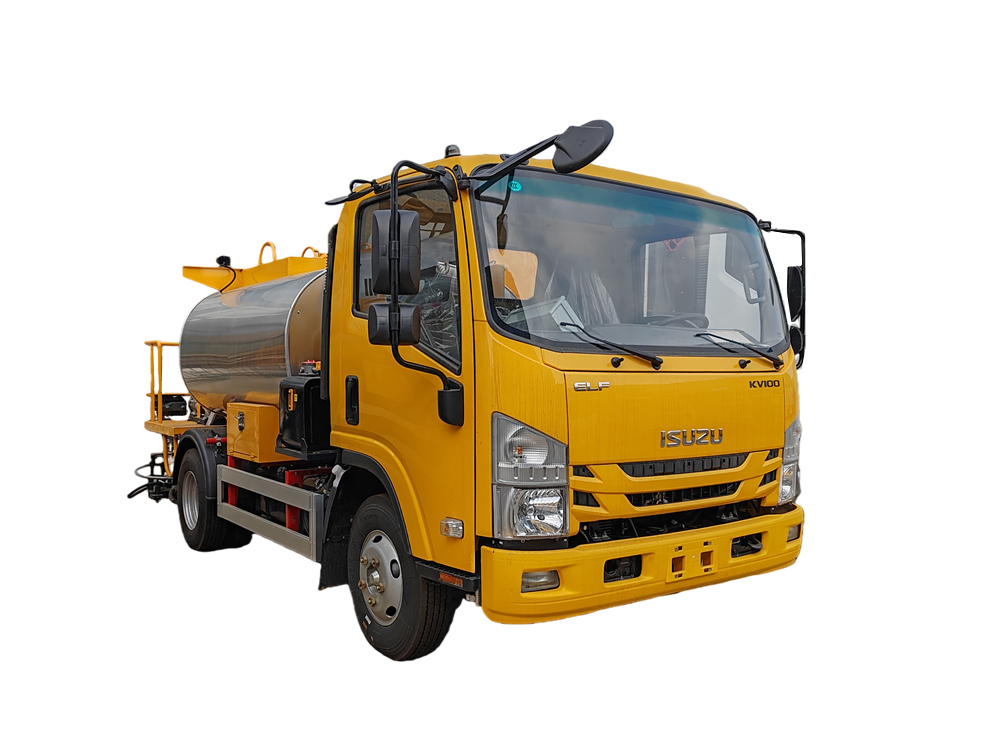

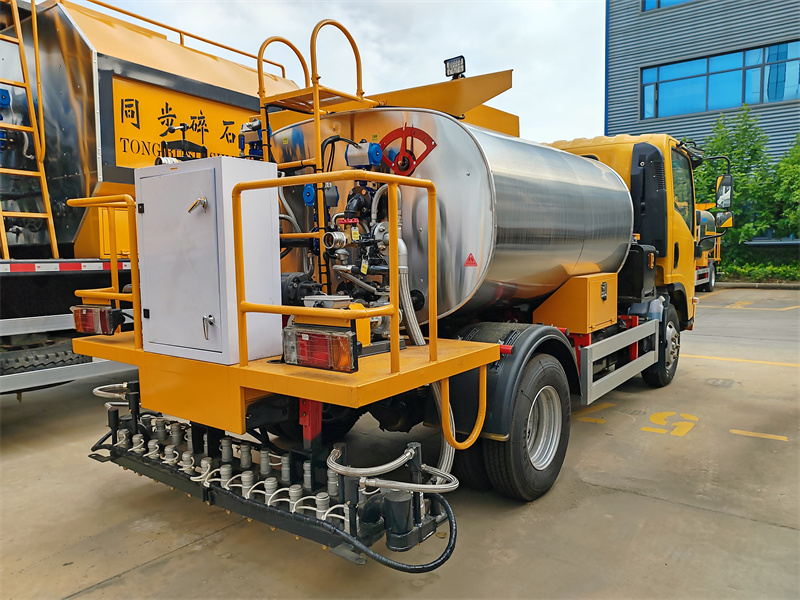

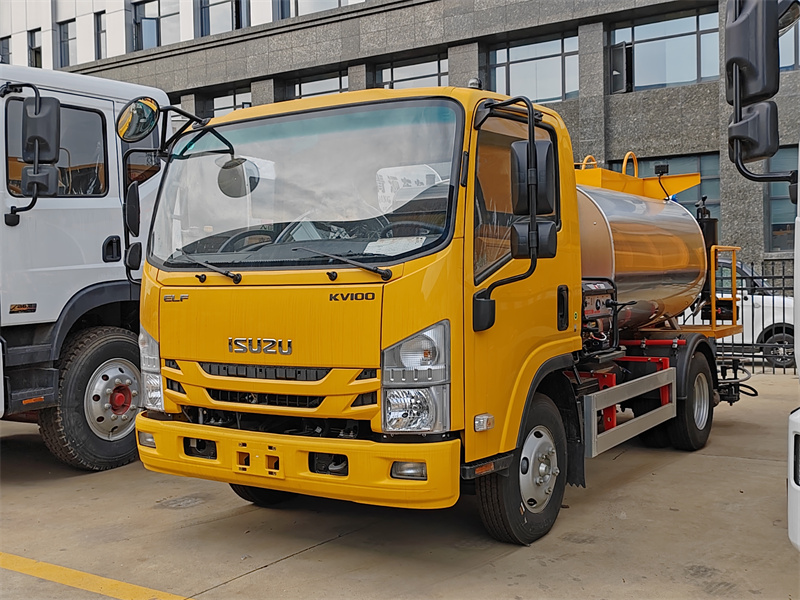

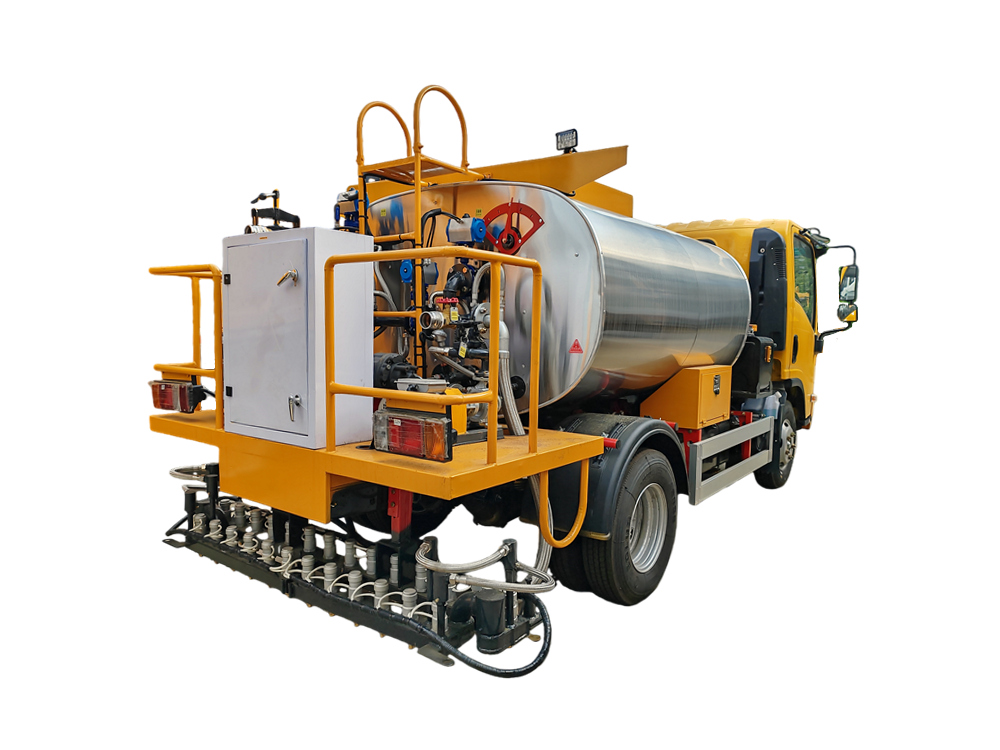

Isuzu KV100 cabin truck mounted asphalt tanker
Isuzu KV100 4cbm asphalt distributor truck, 3360mm wheelbase, 4KH1CN6LB engine and MSB 5-speed gearbox. The upper is a 4-cubic asphalt tank, equipped with an intelligent QGB680 asphalt insulation pump. with 26 individually controlled asphalt nozzles, 4m spray width. an imported Italian Riello G10, automatic heating with heat transfer oil, a gasoline generator, an optional manual spray gun, intelligent computer control in the cab, and manual control on the tail operation console.
Manufacturer:
Powerstar TrucksWork capacity:
4000LDimension:
6050×2100×2350 mmCabin type:
Isuzu KV100 cab,3 seatsWheelbase:
3360mmEngine power:
120HP/88KwEngine type:
ISUZU 4KH1CN6LBAxle drive:
4x2,LHDGear box:
ISUZU MSB 5-speed,manualRemarks:
Tank capacity availableThis Isuzu KV100 cabin truck mounted asphalt tanker is primarily designed for highway maintenance and meticulous municipal construction. With a design capacity of 4 cubic meters and equipped with the Riello G10 heat transfer oil heating system, it can effortlessly handle emulsified, hot, and modified asphalt. The spraying system, equipped with a QGB680 pump and 26 independently controlled nozzles, enables wide-range spraying up to 4 meters, supporting dual control modes from both the cab's computer and the tail operation console. It stands as an ideal and efficient equipment for small and medium-sized road maintenance and new construction projects.
▶ Product Parameter :
|
ISUZU 4000L Asphalt Spreader Truck |
||
|
Genaral |
Cab |
ISUZU KV100,3 seats,with A/C,USB... |
|
Dimension (L×W×H) |
6050×2100×2350 mm |
|
|
GVW/Curb weight |
7300/5150kg |
|
|
Drive Type |
4×2,LHD |
|
|
Engine |
Engine Type |
4cylinders in line, 4-stroke,water cooling, turbo-charged diesel engine, inter-cooling |
|
Engine model |
ISUZU 4KH1CN6LB |
|
|
Horse power |
120HP/88Kw |
|
|
Fuel Type |
Diesel |
|
|
Emission Standard |
Euro 6 |
|
|
Displacement |
2999ml |
|
|
Gasoline generator |
Model |
V3600E |
|
Power |
2.8 Kw/3.75HP |
|
|
Rated Voltage |
230V |
|
|
Wheelbase |
3360mm |
|
|
Tire size |
7.00R16 |
|
|
Gear Box |
ISUZU MSB 5-speed, manual |
|
|
Brake |
Air brake |
|
|
Tank |
material |
Stainless steel/carbon steel |
|
capacity |
4000L |
|
|

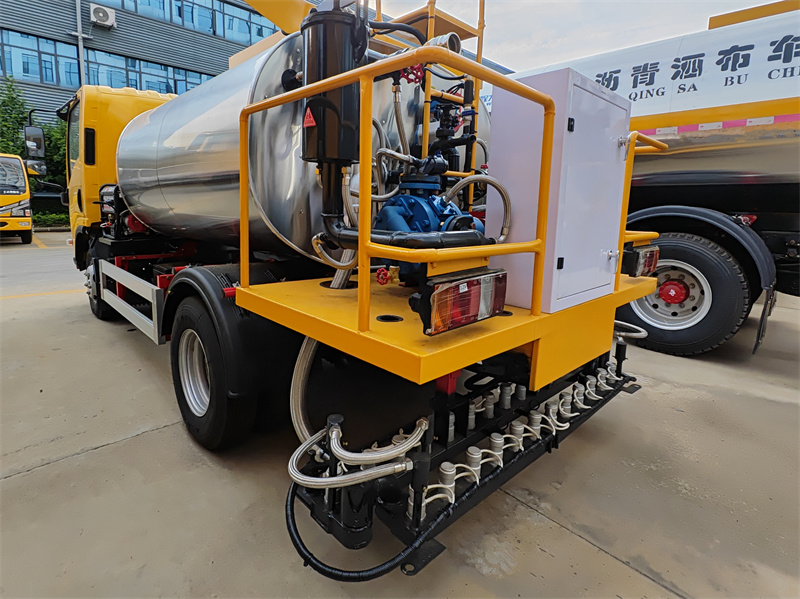

Asphalt Pump |
Model |
QGB680, Intelligent |
|
Flow |
680L/min |
|
|
Asphalt Pump Hydraulic Drive Motor |
Model |
05-110-BD31 |
|
Hydraulic Pump |
Model |
CBQ540-L |
|
Spray |
Width |
4 m |
|
Volume |
0.20-1.5L/㎡ |
|
|
Precision |
1% |
|
|
Medium |
Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media |
|
|

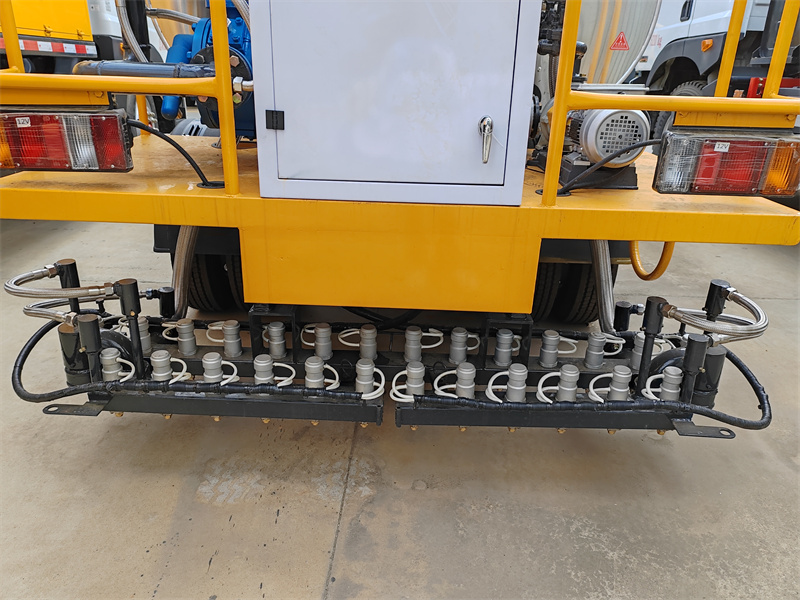

Asphalt Nozzle Number |
26 pcs intelligent nozzles |
|
|
Apply |
road paving,etc |
|
|
Asphalt Heating Method |
Burner (Riello G10, Italy) + Automatic Thermal Oil Heating |
|
|
Control system |
Intelligent computer control in the cabin,rear manual control |
|
|
Equipment |
chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, and an operating platform. |
|
▶ Chassis Configuration:
• Chassis model: Isuzu KV100
• Wheelbase: 3360 mm
• Engine: Isuzu original 4KH1CN6LB, power: 88kW / 120 horsepower
• Transmission: Isuzu MSB-5-speed manual transmission (5 forward gears, 1 reverse gear)
• Cab: Original Isuzu wide cab with wide vision, equipped with standard air conditioning, power steering, and ABS.
• Tires: 7.00R16LT steel wire tires

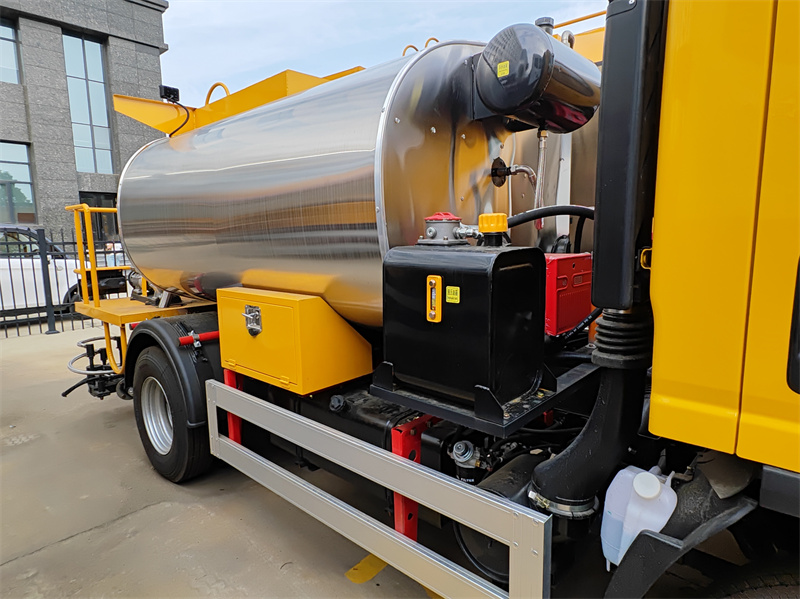

▶ Tank body:
• Tank volume: 4 cubic meters
• Tank material: Three-layer structure
* Inner liner: High-quality carbon steel (Q235B),
* Insulation layer: High-density rock wool, ensuring insulation effect and reducing fuel consumption.
* Outer skin: Stainless steel plate, corrosion-resistant, aesthetically pleasing and easy to clean
• Heating system: Riello G10 burner imported from Italy
The heat transfer oil is automatically heated, with precise temperature control and fast temperature rise.
It can heat emulsified asphalt, hot asphalt, and modified asphalt.

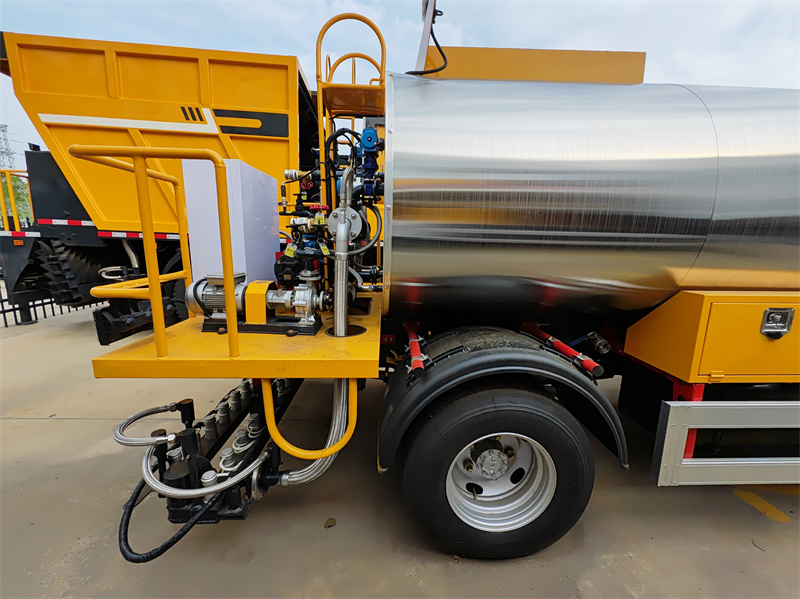

▶ Sprinkler system (high precision):

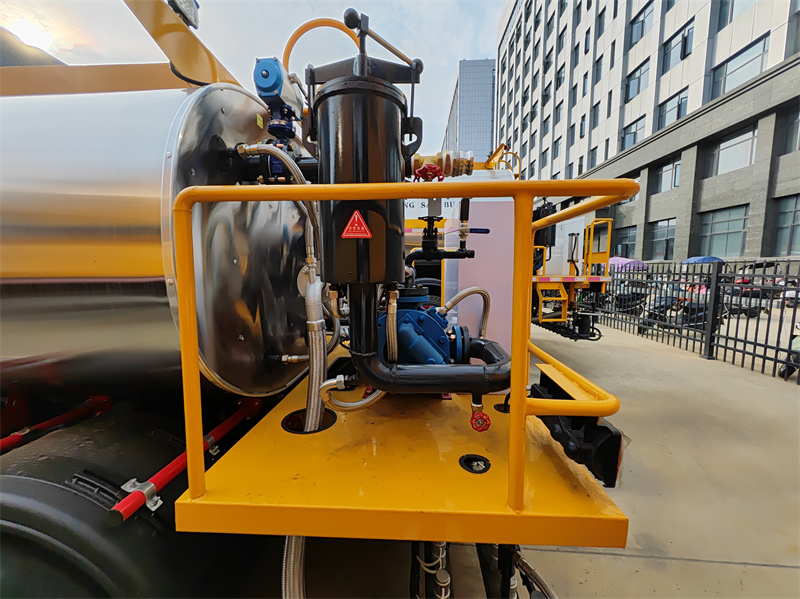

▶ Hydraulic and power system:

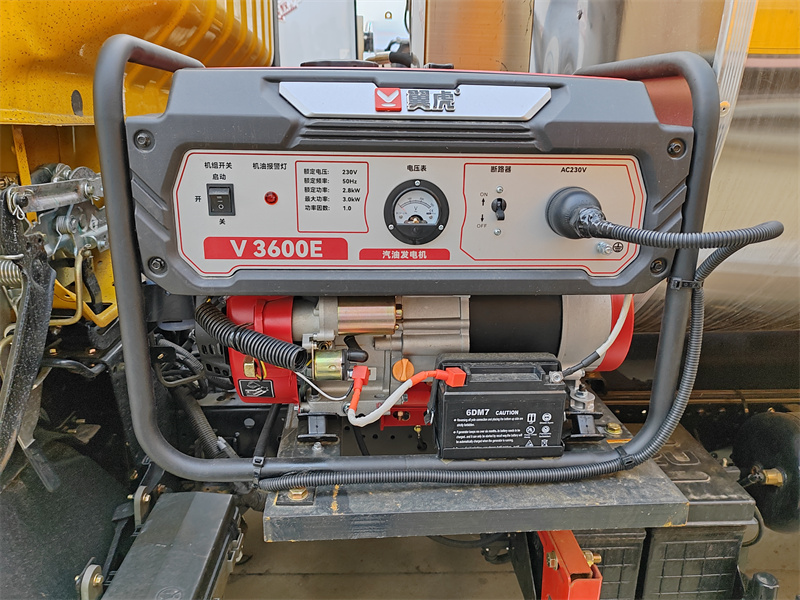

• Auxiliary power: Yihu V3600E gasoline generator, 2.8kw
• Dedicated hydraulic system:
* Hydraulic pump: CBQ540-L
* Asphalt pump motor: 05-110-BD31
* Heat transfer oil pump: Dedicated heat transfer oil circulating pump (high temperature resistant)
• Cooling system: Equipped with Risheng brand radiators, ensuring stability for long-term continuous operation.
▶ Intelligent control system:

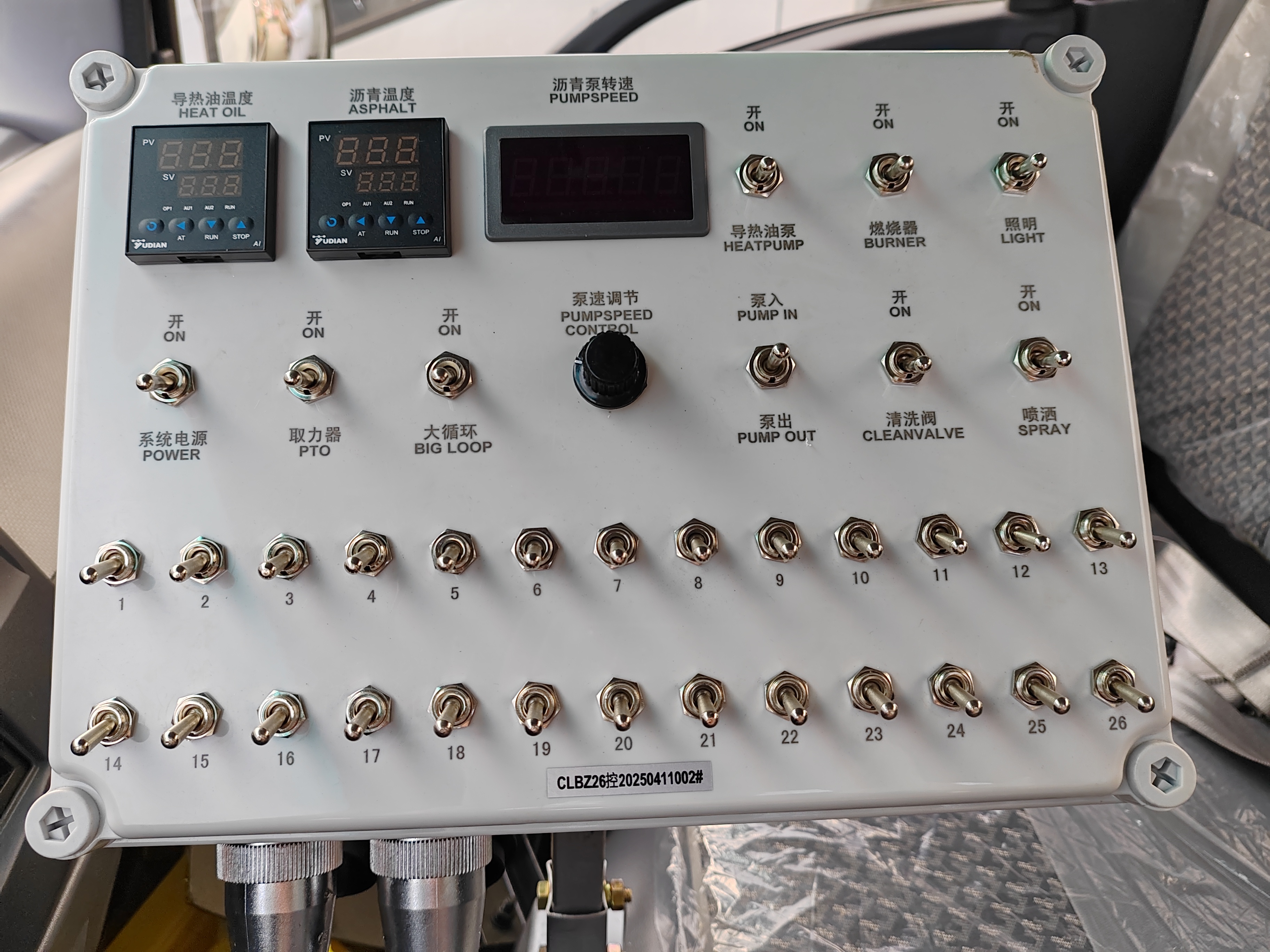

1. Cab Intelligent control
o An integrated intelligent computer control system is used to control the spraying width, asphalt pump speed, and spray nozzle, while real-time monitoring parameters such as heat transfer oil temperature, asphalt temperature, and asphalt pump speed.

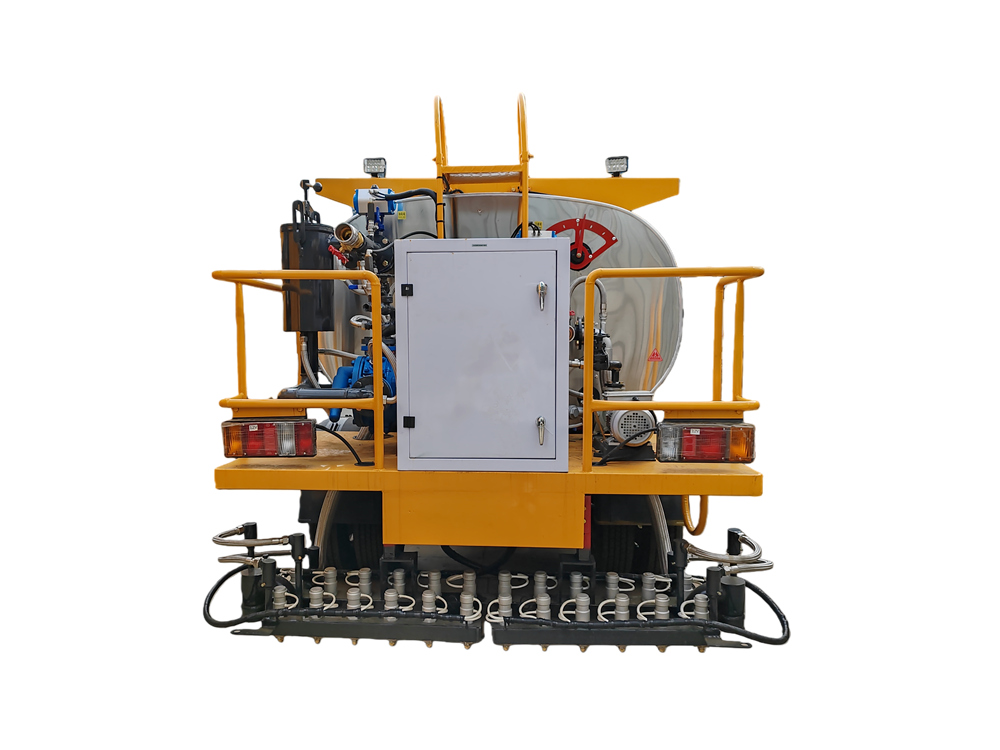

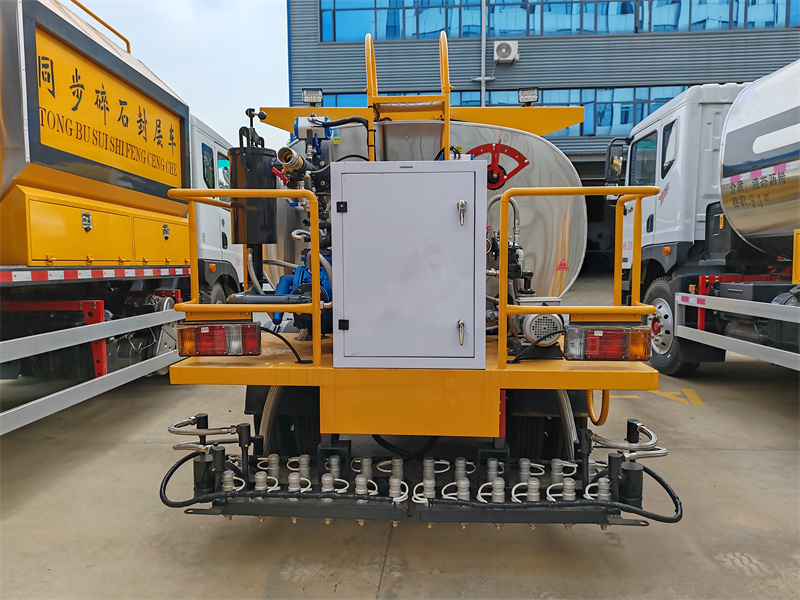

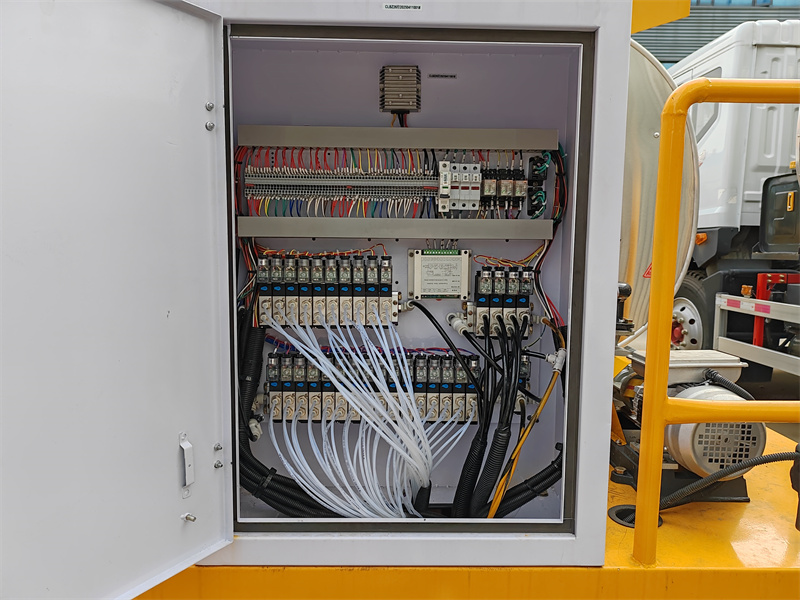

2. Rear operation box
o Manual control mode: It allows for intuitive observation and control from the tail, reducing the risk of misoperation.
 |
 |
