Isuzu NKR off road truck chassis

Isuzu NKR off road truck
Isuzu NKR off road truck
Isuzu NKR off road truck
Isuzu NKR off road truck
Isuzu NKR off road truck
Isuzu NKR off road truck
Isuzu NKR off road truck
Isuzu NKR off road truck

Isuzu NKR off road truck chassis

Equipped with a powerful engine, the Isuzu NKR chassis provides ample torque and horsepower to tackle steep inclines, rocky trails, and muddy paths with ease. Its advanced drivetrain system allows for seamless power delivery to all four wheels, providing maximum traction and control in challenging off-road conditions. The Isuzu NKR off-road truck chassis is powered by a powerful and efficient diesel engine, delivering ample torque and horsepower to tackle steep gradients and challenging obstacles.

  • Work capacity:

    4-6 tons
  • Truck model:

    PT5070DP
  • Engine power:

    120 hp
  • Engine type:

    4HK1-TC
  • Axle drive:

    4x2
  • Gear box:

    MLD 6-shift manual
  • Remarks:

    Customized to be 4x4 offroad Isuzu truck chassis

Isuzu NKR off-road truck chassis is a robust and reliable platform specifically designed for rugged terrains and challenging environments. With a sturdy construction and high ground clearance, this chassis is able to tackle rough roads, dirt trails, and off-road tracks with ease.

The Isuzu NKR off-road truck chassis features a durable frame that provides excellent stability and support for heavy loads. Equipped with heavy-duty suspension systems and reinforced axles, this chassis offers superior handling and control, even in the toughest of conditions.



Isuzu NKR off-road truck chassis plays an indispensable role in the Philippines. Its superior performance and reliable quality make it widely used in industry. It is the first choice for all walks of life and provides strong support for the industrial development of the Philippines. Mainly reflected in the following three aspects:

1. Isuzu NKR off-road truck chassis plays an important role in the construction industry in the Philippines. Due to the mountainous terrain and poor road conditions in the Philippines, construction sites often require transportation over rough roads, thus requiring a truck chassis with strong off-road performance. Isuzu NKR off-road truck chassis provides a stable and durable chassis that is capable of transportation in harsh environments and provides reliable support for construction projects.

2. Isuzu NKR off-road truck chassis also plays an irreplaceable role in the Philippine agricultural field. Farmers need to transport and harvest agricultural products in different terrain conditions, and the off-road performance and stability of the Isuzu NKR off-road truck chassis can help them complete these tasks more easily. In addition, the Isuzu NKR off-road truck chassis also has a strong load capacity and can meet the needs of large-scale transportation of agricultural products.

3. Isuzu NKR off-road truck chassis is also widely used in the mining field in the Philippines. The mining area has complex terrain and harsh road conditions, requiring powerful off-road trucks to support the mining and transportation of ore. The Isuzu NKR off-road truck chassis has an excellent suspension system and reliable power output, which can maintain efficient and stable transportation efficiency in harsh working environments, greatly improving the production efficiency of mining companies.

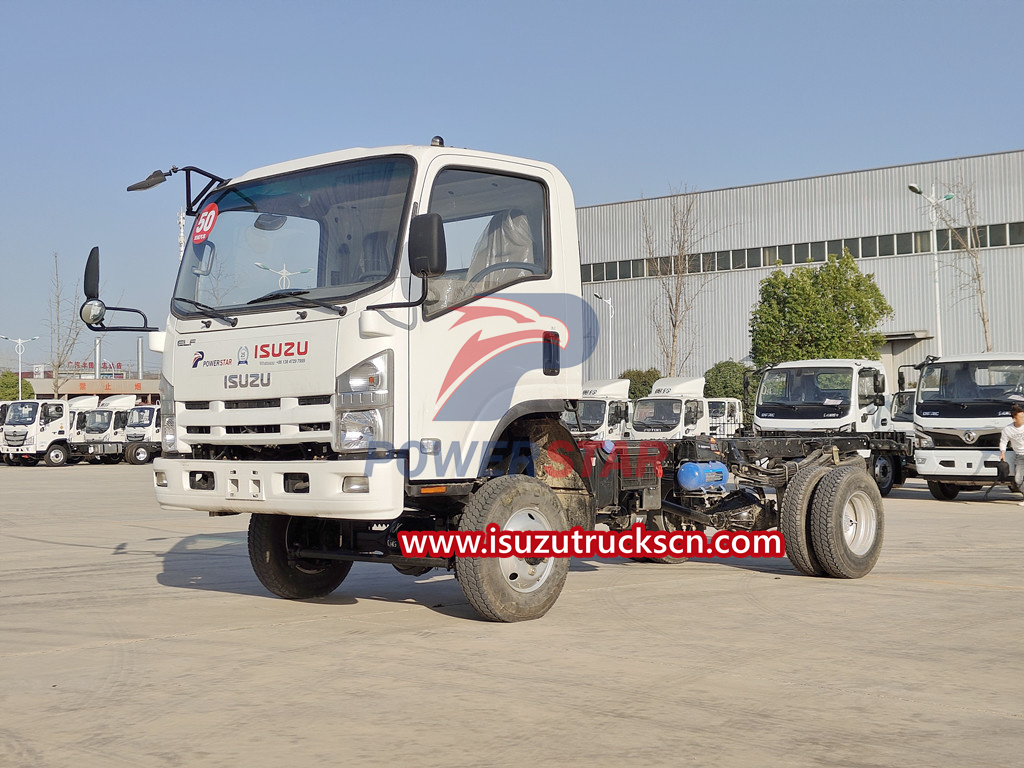

Isuzu kv600 off road truck chassis



Products Parameters for ISUZU 4x2 / 4x4 light duty diesel engine truck chassis:

ISUZU NPR truck chassis is flexible and adaptable, making Isuzu cargo truck suitable for traveling on city roads and tight neighborhoods. Isuzu NPR medium truck chassis wheelbase is reasonably designed, and the Isuzu truck chassis's control is stable and flexible, allowing the driver to operate easily and ensuring safe and stable transportation. The suspension system for Isuzu NPR 6 wheels truck chassis is optimized to provide a comfortable driving experience, effectively absorbing shocks and absorbing the impact of road bumps. The NPR 190HP Isuzu truck chassis has strong dynamic performance and can handle various cargo transportation tasks. The simple structural design of Isuzu NQR truck chassis makes it easy to maintain and maintain, reducing maintenance and operating costs and extending the service life of the vehicle. The ELF truck chassis is equipped with strong and durable wheels and tires to ensure stability and reliability in various road conditions.

General Technical Parameters
Overall Dimension 6980×2170×2350(mm) Gross Vehicle Weight 10055(Kg)
Curb Weight 3200(Kg) Loading Weight 7000(Kg)
RHD Isuzu NPR 4x2 truck chassis Specification
Chassis parameters Chassis Brand ISUZU NPR / ELF
Cabin Single, Right Hand Driving, with A/C
Engine Model 4KH1-TC, 4 Cylinders
Power 140KW/190HP
Emission standard EURO 5/6
Displacement 5.193L
Fuel type Diesel
Gearbox MLD, 6 Forward & 1 Reverse Gear
Front and Rear Axle load 4T / 7T
Wheel base 3815 / 4175 / 4475 / 5200 (mm)
Overhang( Front/Rear) 1680/1655(mm)
Angle(Approach/departure) 20/16(°)
Brake System Air brake
Steering Gear Power Assistant
Tire 235/75R17.5, 6 Pieces with 1 Spare Tire
Maximum speed 110(km/h)

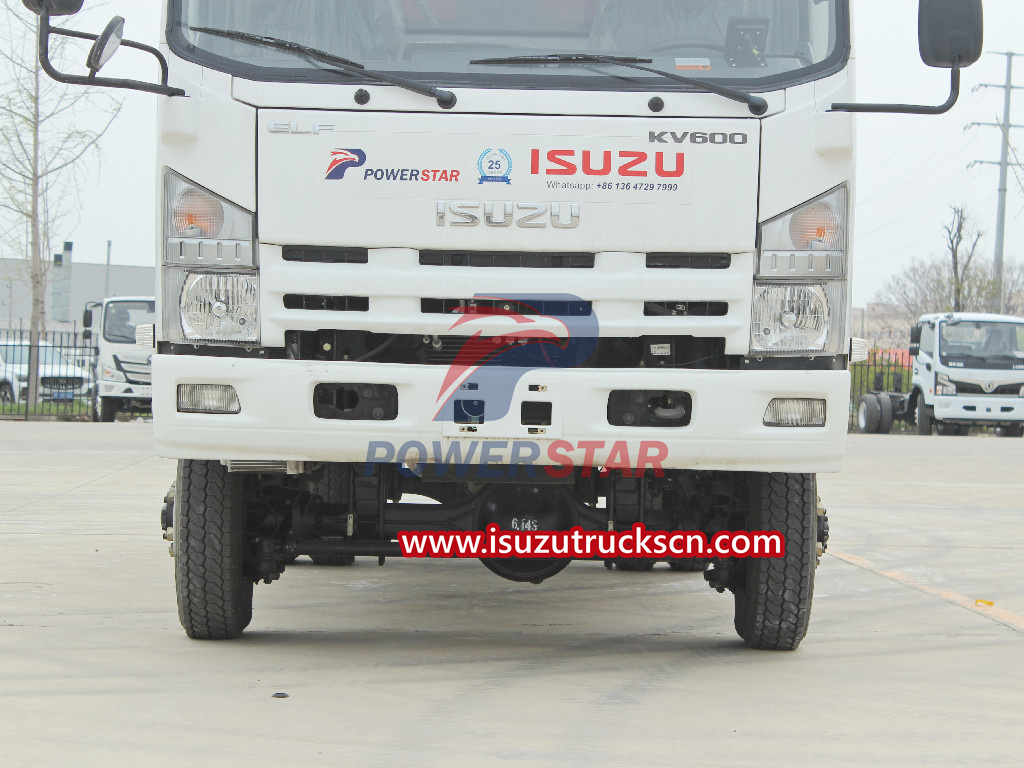

isuzu NKR off road truck chassis

isuzu NKR off road truck chassis

isuzu NKR off road truck chassis

Isuzu NKR off road truck chassis is a chassis that is very suitable for modification. It can be modified into a variety of special vehicles according to different needs, mainly including the following three types:

1. Isuzu NKR off road truck chassis can be converted into an off-road adventure vehicle. By installing a strengthened suspension system and large-size tires, its passability and off-road performance are improved. At the same time, bumpers, fenders and other devices can be installed on the vehicle body to protect the vehicle from damage in harsh road conditions. Such modifications allow the vehicle to drive stably in extreme environments such as rugged mountain roads and muddy swamps, making it a capable partner for extreme adventures.

2. Isuzu NKR off road truck chassis can also be converted into a truck. By adding cargo boxes, compartments and other facilities, it can be turned into a truck specially used for cargo transportation. According to different needs, you can choose different types such as enclosed trucks, flatbed trucks or vans. The modification of trucks can improve transportation efficiency and adapt to different transportation needs, and is widely used in various logistics and transportation fields.

3. The Isuzu NKR off road truck chassis can also be converted into a rescue vehicle. The addition of police lights, horns and rescue equipment can meet the needs of emergency rescue work. Rescue vehicles play an important role in emergency situations such as disaster rescue and medical rescue, providing first aid, transfer and other services to trapped people. The Isuzu NKR off road truck chassis converted into a rescue vehicle has strong off-road capabilities and load capacity, and can adapt to harsh environments and complex road conditions.cial transportation field. At the same time, its structure is simple, easy to maintain and maintain, reducing maintenance and operating costs, and is favored by the majority of logistics companies.

ISUZU NPR truck chassis is popular for its adaptability, strong power, stable handling, efficient loading capacity and easy maintenance, making it a rare and excellent choice in the commercial freight field.

Tools with ISUZU NPR truck chassis

SN

Tool name

Specifications

Quantity

1

Tool bag

-

1

2

Double-ended wrench

17×24

1

3

Double-ended wrench

12×14

1

4

Double-ended wrench

8×10

1

5

Pliers

150

1

6

Adjustable wrench

200×24

1

7

"+" "-" combination screw driver

-

1

8

Wheel nut wrench

41×19

1

9

Oil pressure Jack

QYH6

1

10

Jack rocker

-

1

11

Wheel wrench

-

1

12

Lifter rocker for spare tire

-

1



 Isuzu truck chassis
