Isuzu NPR cabin chassis trucks for sale from various reliable sources. You can find Isuzu truck cabin chassis for sale at Powerstar, a reputable Isuzu truck manufacturer offering a range of Isuzu chassis cabin truck. Like Isuzu NKR chassis cabin truck, Isuzu FVR cabin truck chassis, Isuzu Giga cabin truck chassis and so on.
Work capacity:
4 TonsTruck model:
PT5110DPEngine power:
190HPEngine type:
Isuzu 4HK1-TCGAxle drive:
4x2Gear box:
Isuzu MLD6SRemarks:
Double cabin truck chassisIsuzu NPR cabin chassis trucks for sale offer a range of features that make them versatile and suitable for various applications. Here are some common features of Sinotruk chassis trucks based on the available information:
- **Reliability**: Isuzu NPR cabin chassis trucks are known for their reliability, ensuring consistent performance in demanding conditions.
- **Durability**: These Isuzu NPR cabin trucks are built to be durable, with robust construction that can withstand heavy use.
- **Flexibility**: Isuzu NPR cabin trucks offer flexibility in configuration, allowing for customization to suit different needs and applications.
- **Quality Components**: The key parts of the truck, such as the axle, engine, and transmission, are made by Isuzu NPR cabin to ensure quality and control over the truck's performance.
- **Versatility**: Isuzu NPR cabin trucks are versatile and can be used for various purposes, from cargo transportation to specialized applications like crane trucks or aerial platform trucks.
- **Superior Build-Quality**: Isuzu NPR cabin chassis trucks are known for their superior build quality, ensuring long-term performance and reliability.
These features collectively make Isuzu NPR cabin chassis truck a popular choice for businesses and industries looking for dependable vehicles that can meet their transportation needs effectively.

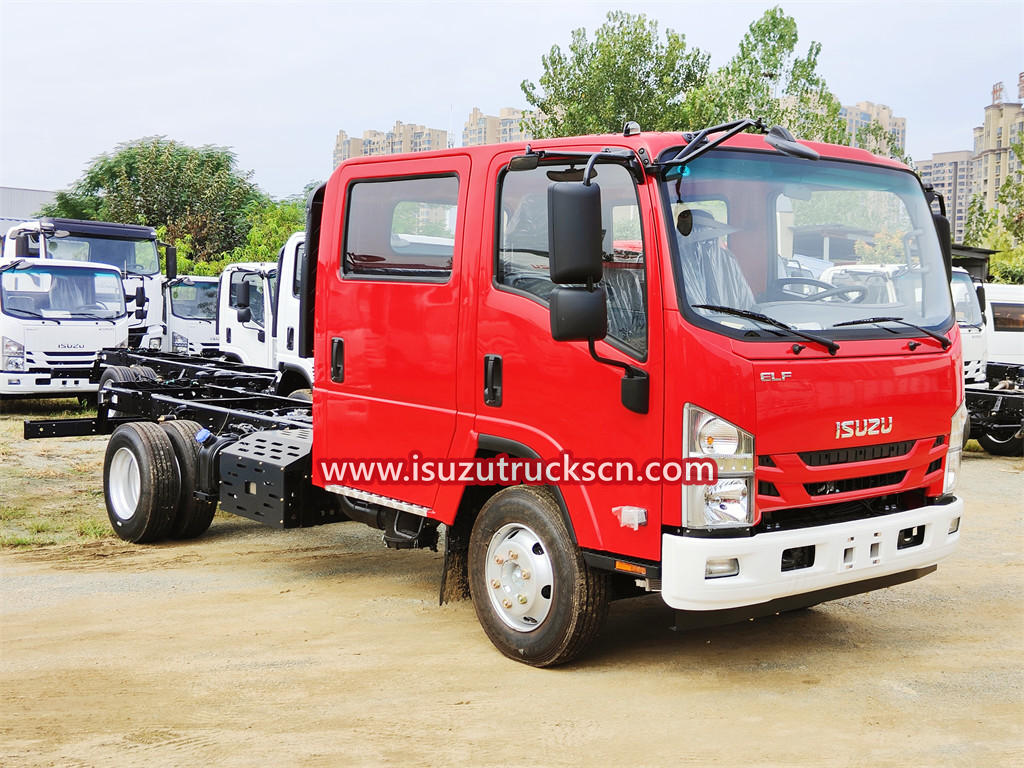

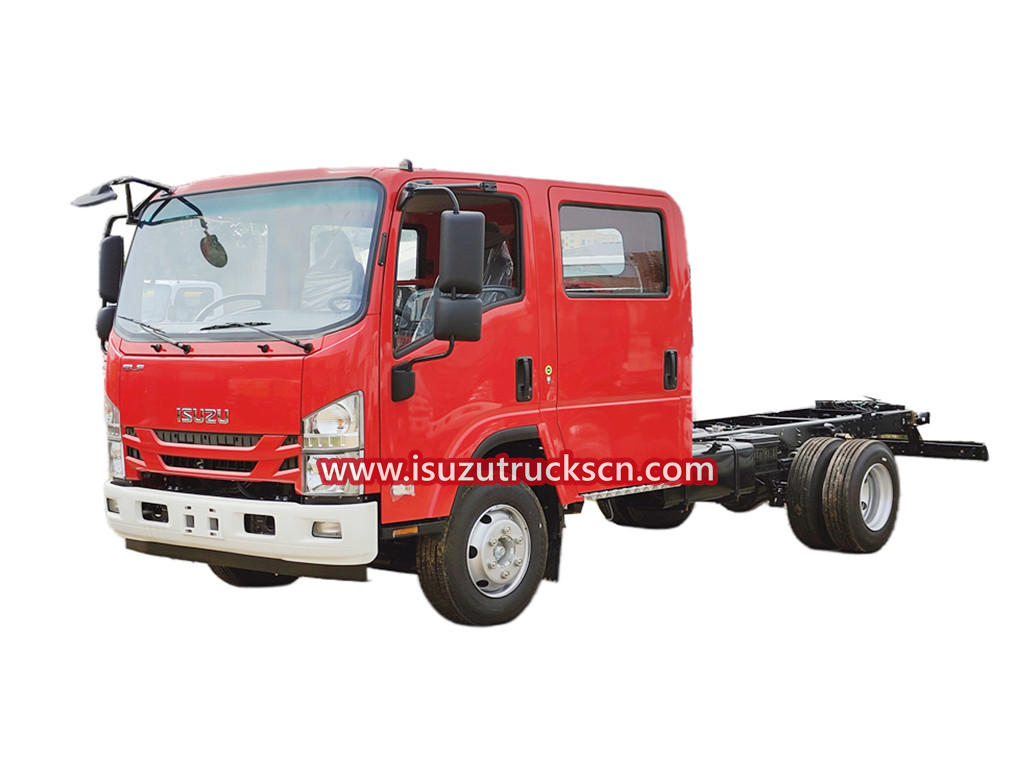

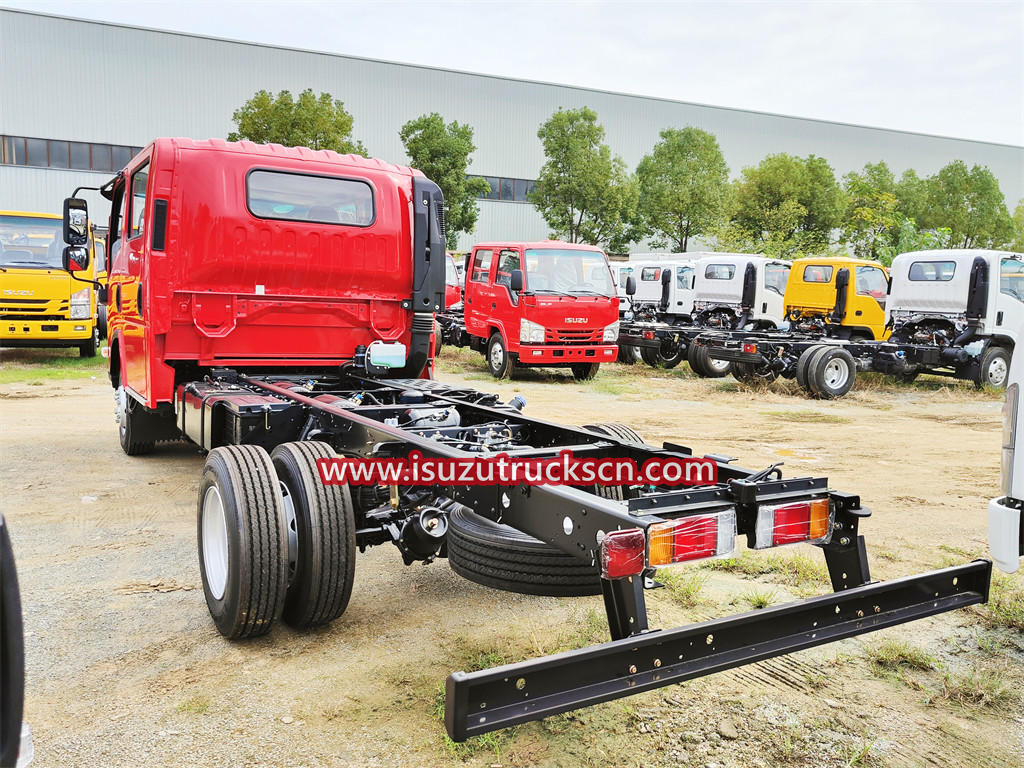

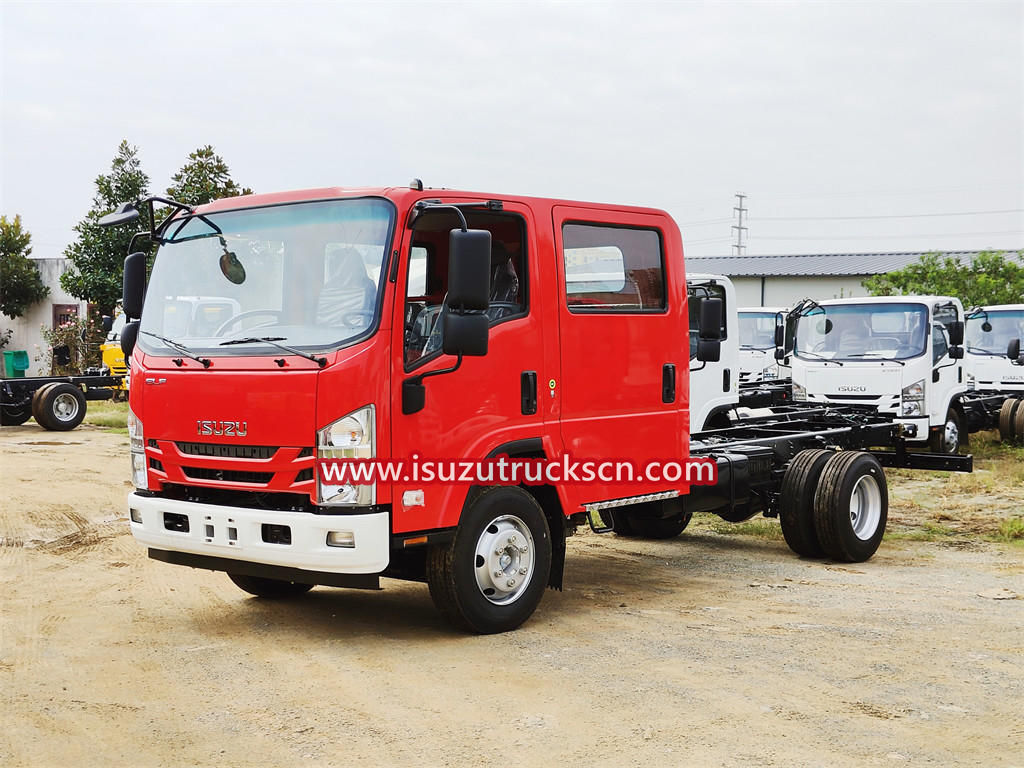

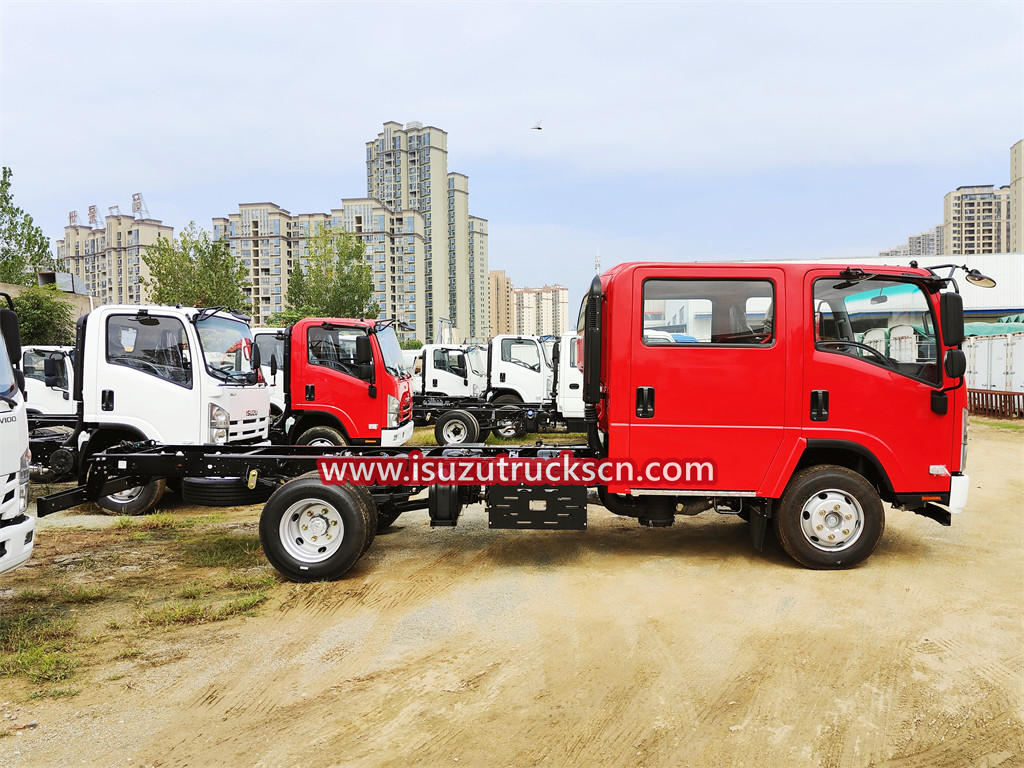

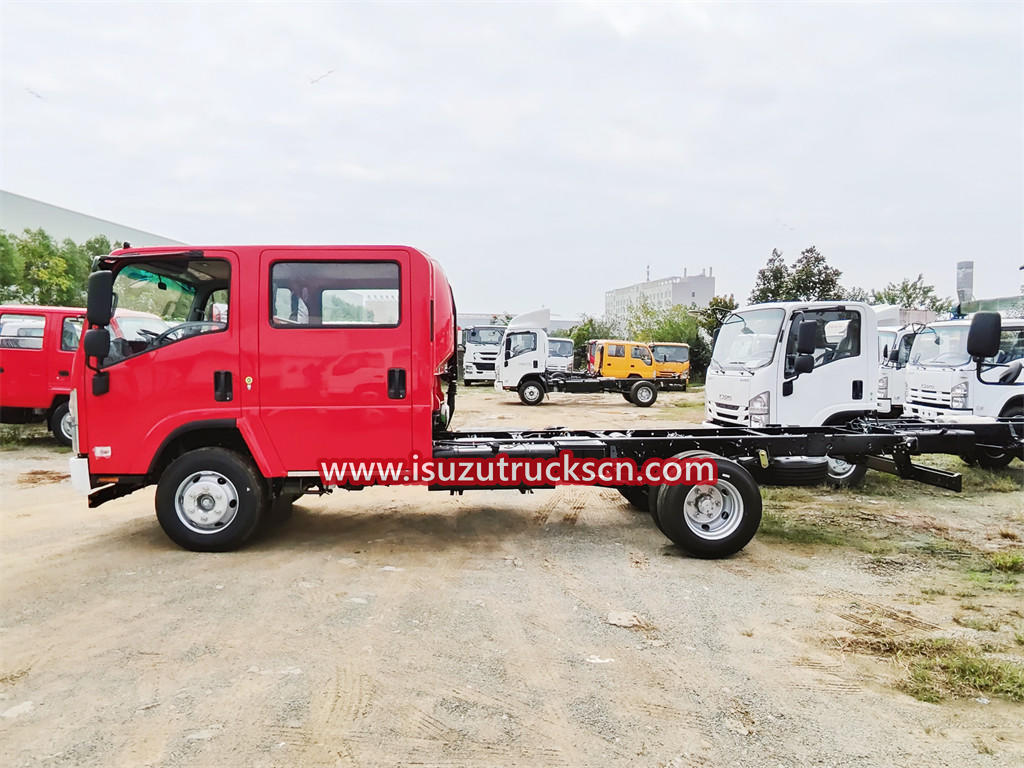

JAPAN ISUZU NPR/700P 4x2 Double Cabin Chassis Specifications (Euro V)
|
Chassis Model: |
QL1100A8KAY |
|
|

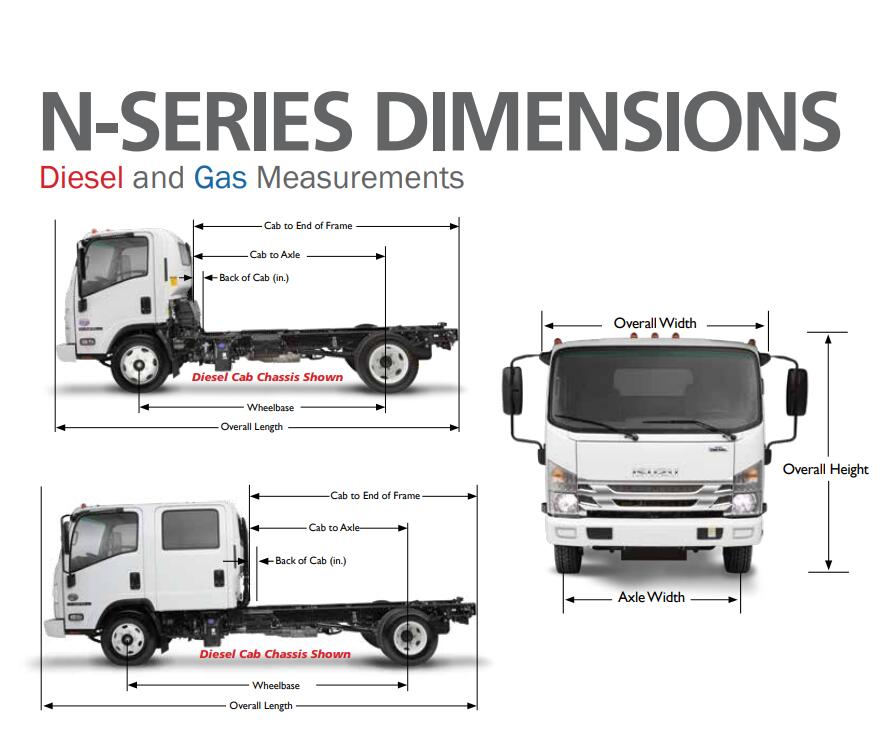

Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
6980×2170×2330mm |
|
Wheelbase: |
3815mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1110/2055mm |
|
|
Rear Axle Ratio: |
4.1 |
|
|
Approach/Departure Angle: |
17/14° |
|
|
Leaf Spring: |
8/10+6 |
|
|
Weights and Capacities |
Curb Weight: |
3180kg |
|
Payload: |
kg |
|
|
GVW: |
10000kg |
|
|
Axle Loads: |
3350/6650kg |
|
|
Engine |
Engine Model: |
4HK1-TCG51 |
|
Max output: |
141kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190ps |
|
|
Exhaust Gas Treatment Technology： |
DPF |
|
|
Transmission |
Transmission: |
MLD-6Q |
|
Forward Gear: |
6 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Air Brake |
|
|
Front Drum Back Drum |
||
|
With Exhaust Brake |
||
|
Generator |
12V- 80A |
|
|

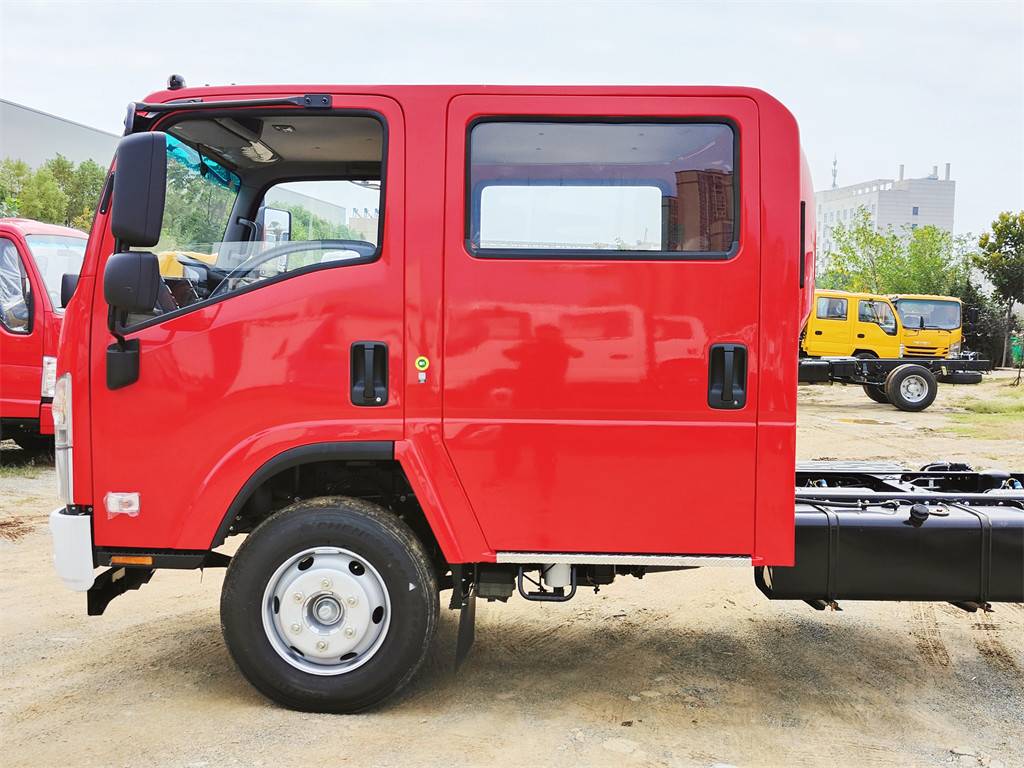

Cab |

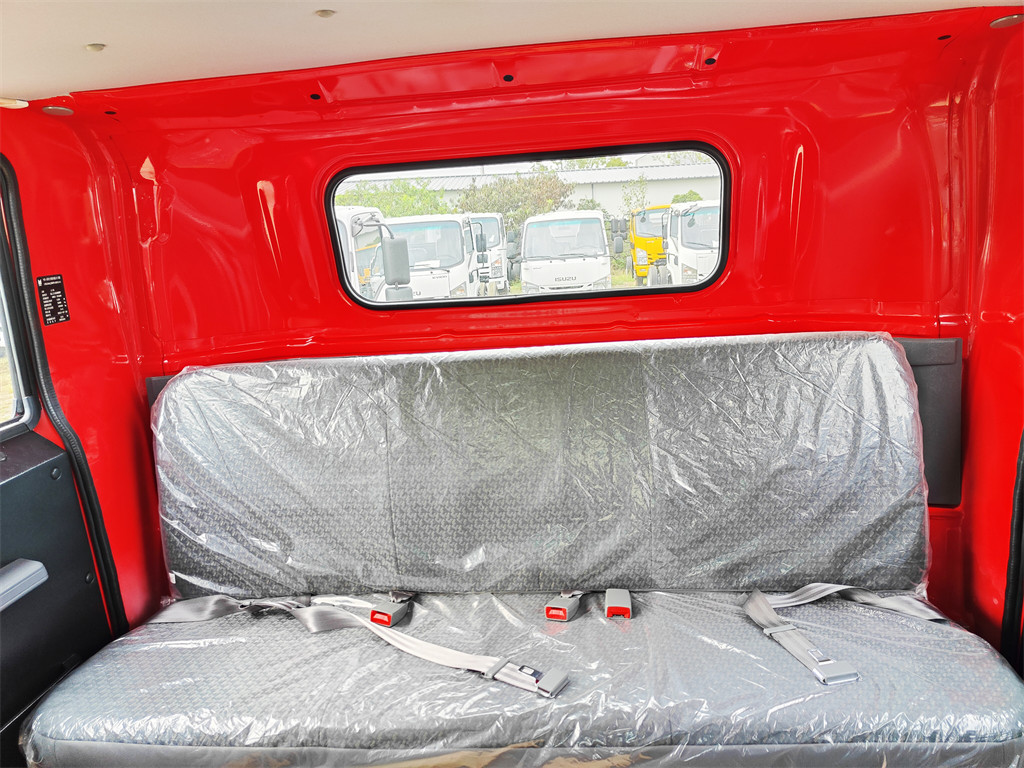

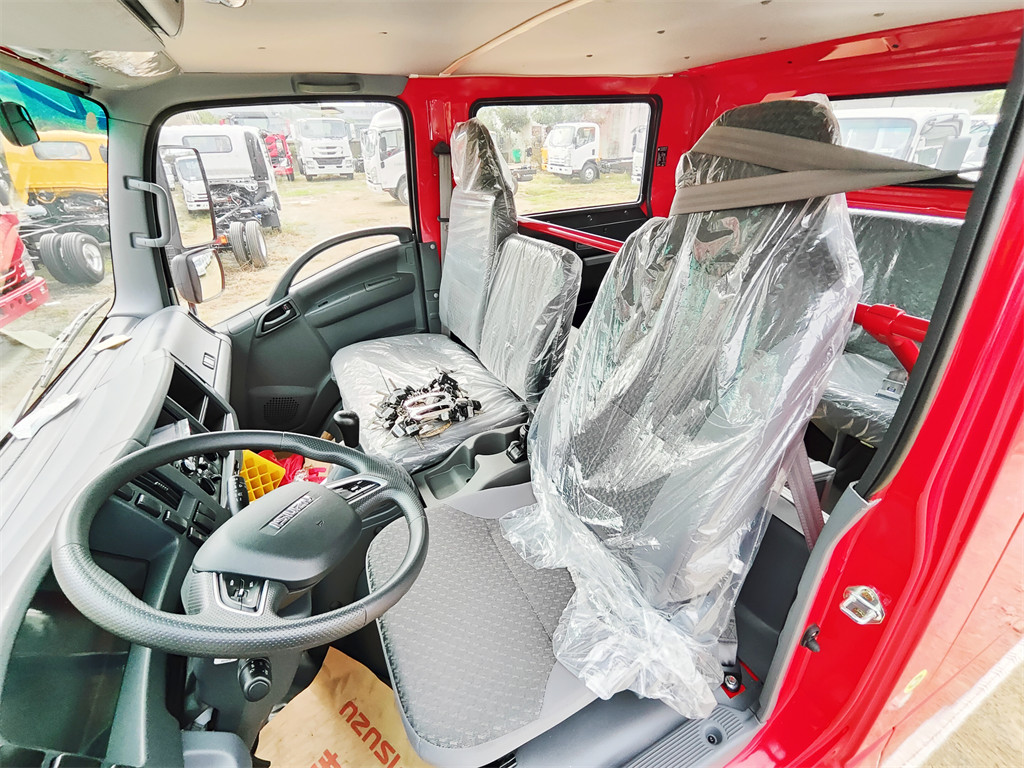

Number of Seats: |
3 |
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
8.25R20 |
|
|
Fuel Tank
|
Number: |
1 |
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Free Maintenance Battery |
|
|
FOB Shanghai Price: |
||
|
Exchange Rate: |
||
|
Valid Date: |
||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly；
Standard Tools for ISUZU NPR fire truck chassis
|
ITEM |
Description |
Specification |
Quantity |
|
1 |
Spanner |
17x22 |
1 |
|
2 |
Spanner |
12x14 |
1 |
|
3 |
Spanner |
8x10 |
1 |
|
4 |
Plier |
150 |
1 |
|
5 |
Adjustable Spanner |
200x24 |
1 |
|
6 |
Screwdriver |
|
1 |
|
7 |
Tire Removal Kit |
|
1 |
|
8 |
Tire Charging Kit |
|
1 |
|
9 |
Jack |
|
1 |
|
10 |
Jacking Handle |
|
1 |
|
11 |
Spare Tire Removal Kit |
|
1 |
|
12 |
Hand Pump Handle |
|
1 |
Brand new ISUZU N series truck chassis, to be mounted with 4KH1CN diesel engine, with engine power can be 98HP or 120HP, 4 Cylinders in line, turbo charging, inter cooling, high pressure common-rail diesel injection system, liquid-cooled engine. 4x2 or 4x4 truck drive model with front axle 2.5tons and rear axle 4.8tons. In cabin comfortable driving feeling with Air conditional equipped, also AM/FM radio and USD MP3 for video play. The truck can be mounted with ISUZU garbage compactor truck, Isuzu road sweeper truck, Isuzu sewage truck, Isuzu fire truck, Isuzu tanker trucks, etc.
