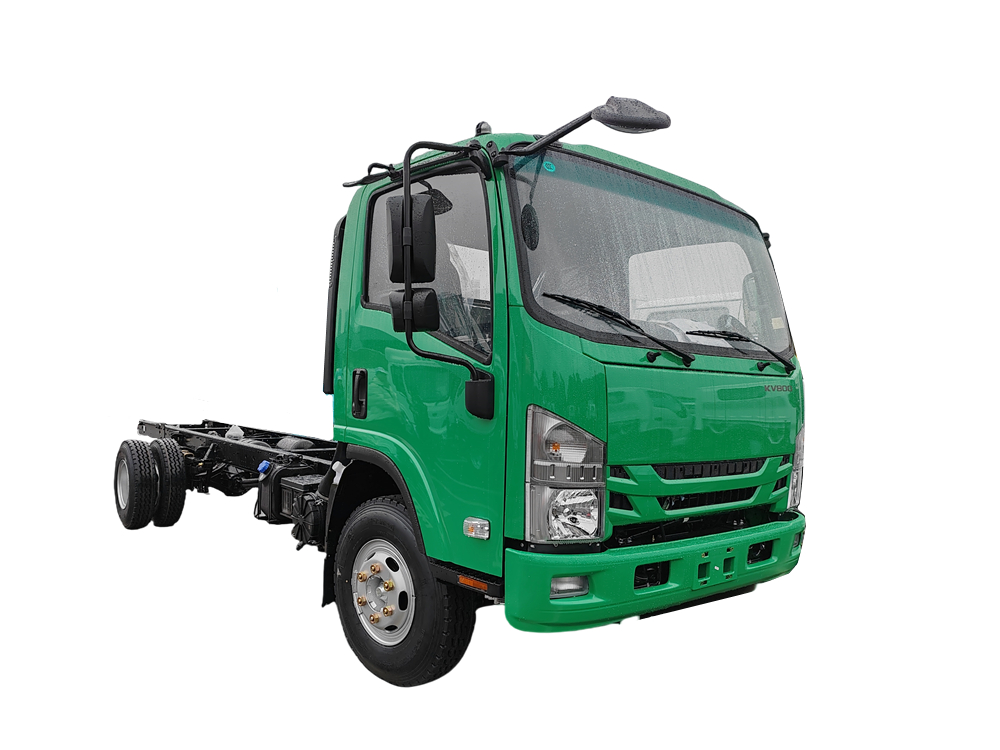

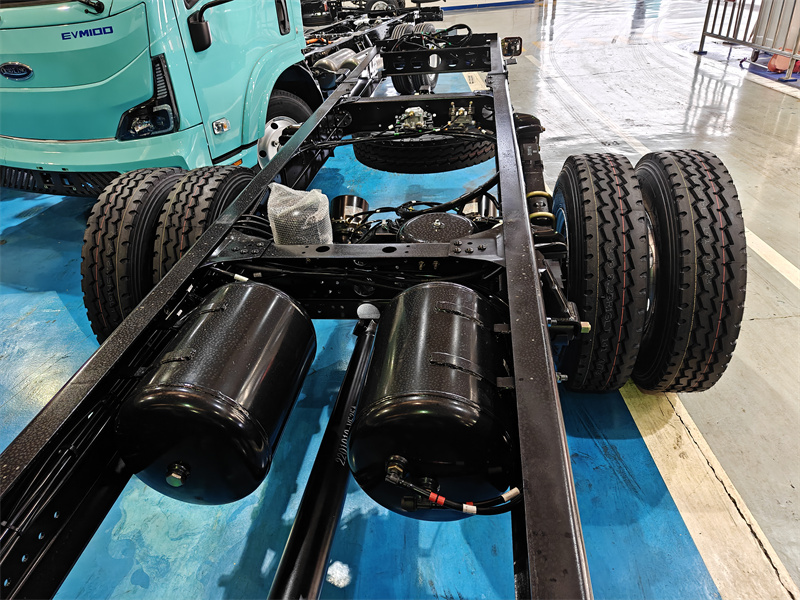

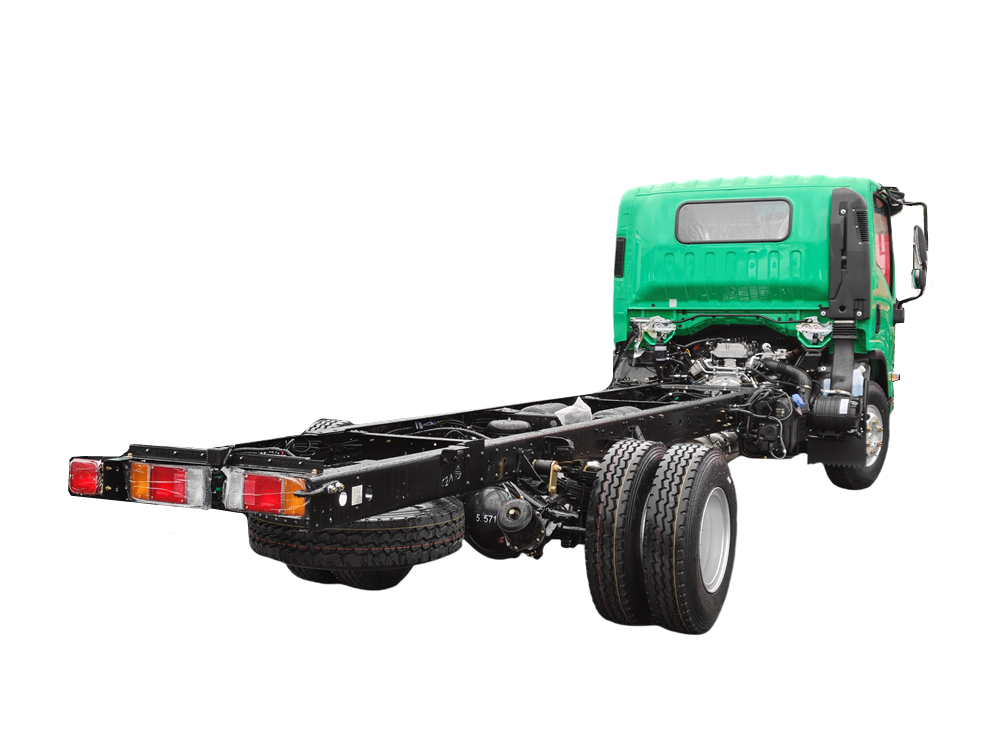

The Isuzu KV800 chassis features a 4475mm wheelbase, a gross vehicle weight of 10550kg, a curb weight of 3150kg, dimensions of 7830×2170×2370mm, a front axle ratio of 4.875, a rear axle ratio of 5.571, a 4/7 ton payload capacity, an Isuzu 4JZ1-TCG62 180HP engine, a MYY 6-speed transmission, a maximum speed of 110km/h, 8.25R20 tires, air conditioning, ABS, and a tilting cab.
Manufacturer:
Powerstar TrucksWork capacity:
7.4 tonsDimension:
7830 × 2170 × 2370 mmCabin type:
Isuzu KV800 cab,3 seats with A/CWheelbase:
4475 mmEngine power:
133kW /180HPEngine type:
ISUZU 4JZ1-TCG62Axle drive:
4x2Gear box:

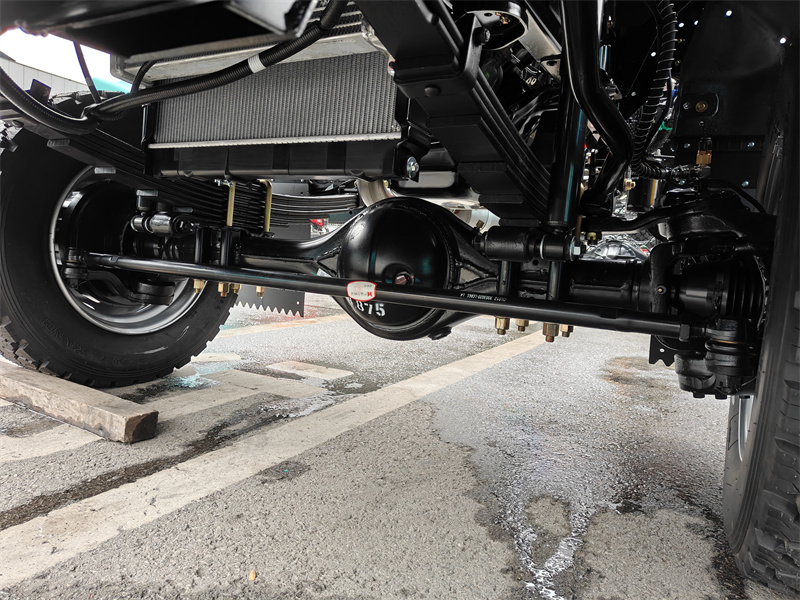

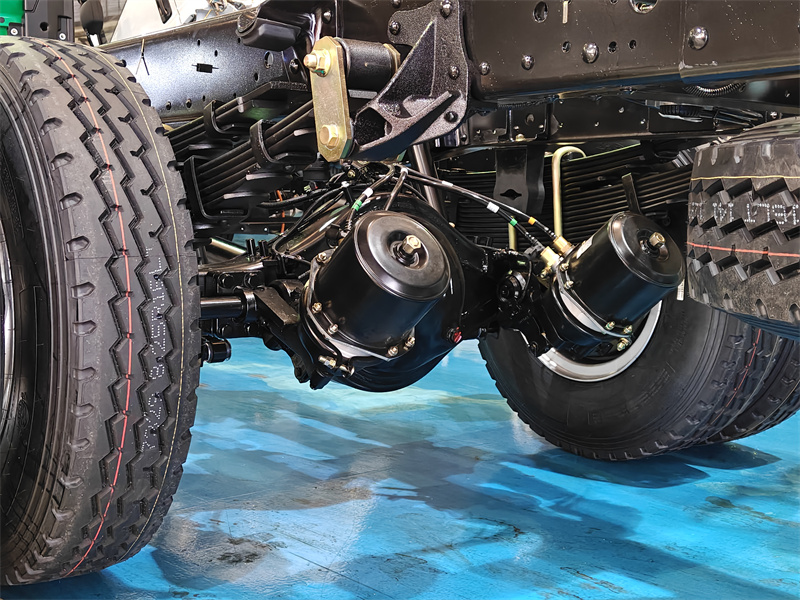

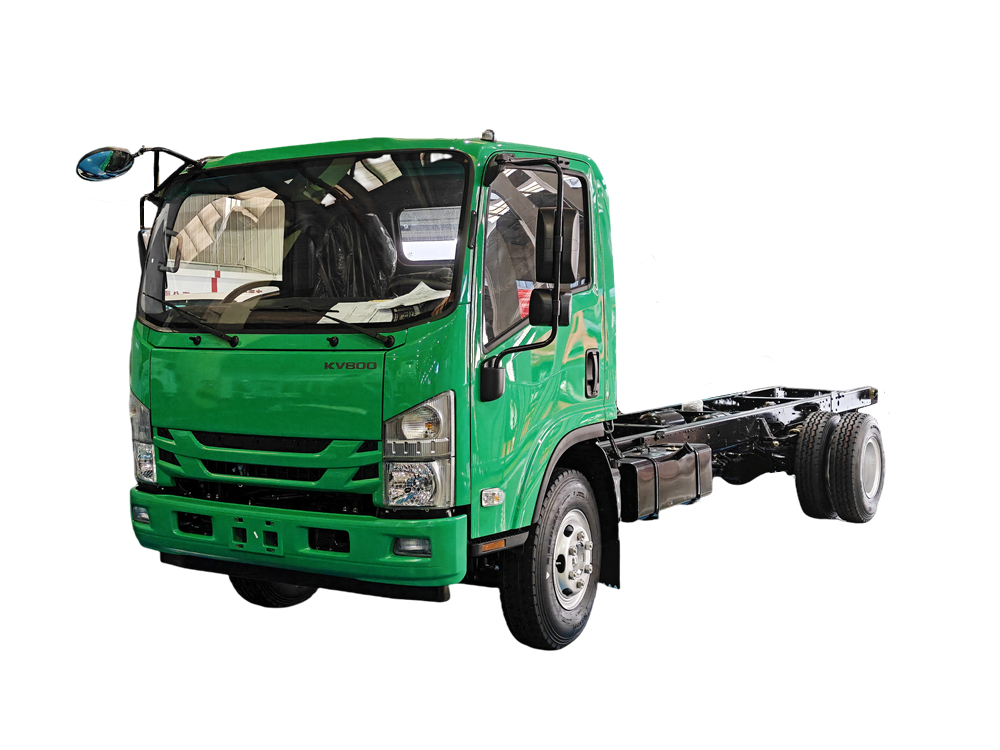

ISUZU MYY 6-speed,manualThe Isuzu KV800 light truck with 4JZ1 TCG62 engine is powered by a 3L 180HP 4JZ1 engine paired with a MYY 6-speed transmission, providing ample power. It features reinforced axles with a 4-ton front and 7-ton rear configuration, coupled with a high gear ratio of 4.875/5.571, offering strong traction and excellent load-bearing capacity. The chassis has a total mass of 10,550 kg and a curb weight of only 3,150 kg, demonstrating significant load-carrying potential. Its 4475mm wheelbase and well-organized modular frame design facilitate various specialized modifications.
▶ Features:
★ Isuzu 4x2 medium-duty type,perfect performance
★ Isuzu 4JZ1 180HP engine,MYY 6-speed transmission, super powerful;
★ 7.4T modified load-bearing capacity
★ Suit for various special trucks modifications.
▶ Product Parameters:
|
Isuzu KV800 chassis with 4JZ1 engine |
||
|
Vehicle Model: |
PT5100MAY |
|
|

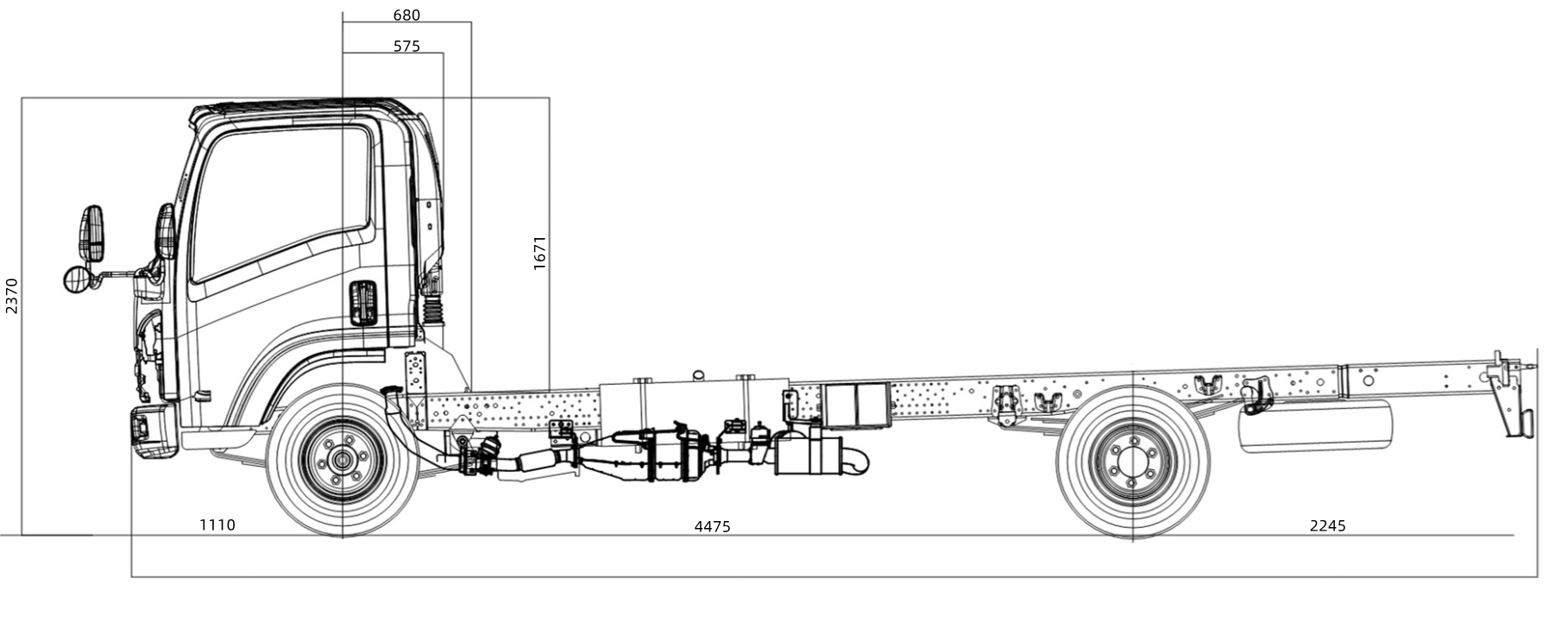

Dimensions and Parameters |
Overall Dimension(L x W x H) |
7830 × 2170 × 2370 mm |
|
Wheelbase: |
4475mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension: |
1110/2245mm |
|
|
Front Axle Speed Ratio: |
4.875 |
|
|
Rear Axle Speed Ratio: |
5.571 |
|
|
Weights and Capacities |
GVW: |
10550kg |
|
Curb Weight: |
3150kg |
|
|
Payload: |
7400kg |
|
|
Axle Loads: |
4000/7000kg |
|
|
Engine |
Engine Model: |
4JZ1-TCG62 |
|
Max output: |
133kW /180HP |
|
|
Torque |
510N.m |
|
|
Displacement: |
2999ml |
|
|
Transmission |
Transmission: |
MYY 6-speed,manual |
|
Cab |
Number of Seats: |
3 |
|
Brake |
Air brake |
|
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
8.25R20 14PR |
|
|
Max speed |
110km/h |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Cab Tilting Mechanism |
|
|
7 |
Free Maintenance Battery |
|
▶ Basic Information:
• Chassis Model: Isuzu KV800 (4475mm long wheelbase)
• GVW: 10550 kg
• Curb Weight: 3150 kg
• Rated Payload: Approx. 7400 kg
• Overall Dimensions (L×W×H): 7830 × 2170 × 2370 mm
• Front/Rear Axle: 4/7 tons

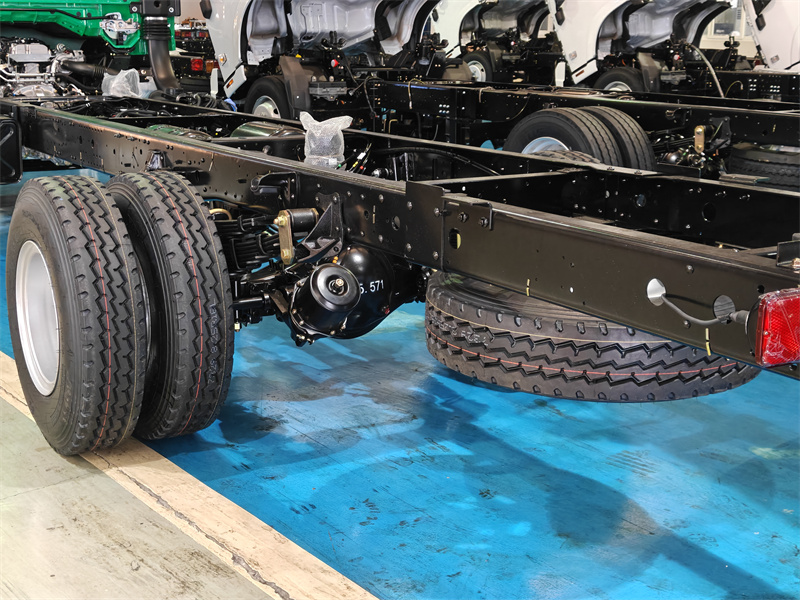

• Front/Rear Axle Ratio: 4.875/5.571
• Tires: 8.25R20 all-steel radial tires (Quantity: 6+1)
• Maximum Speed: 110 km/h
▶ Powertrain System:

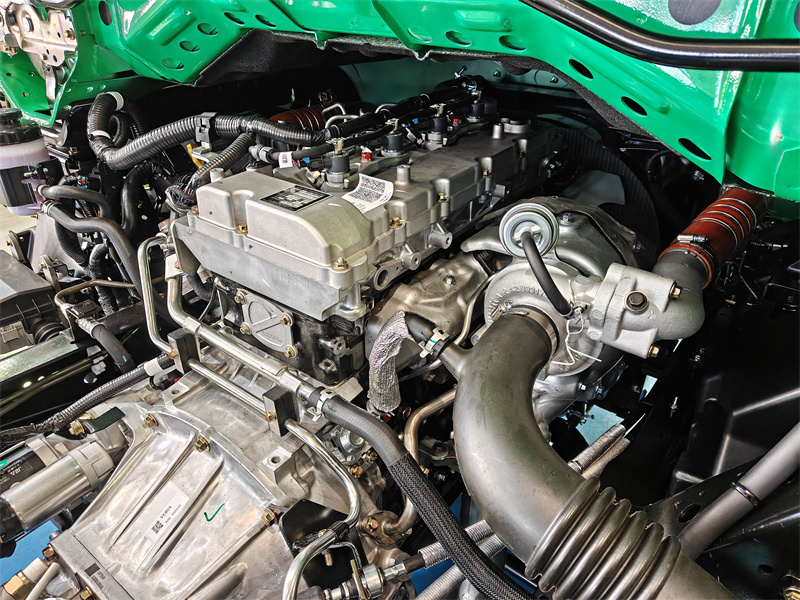

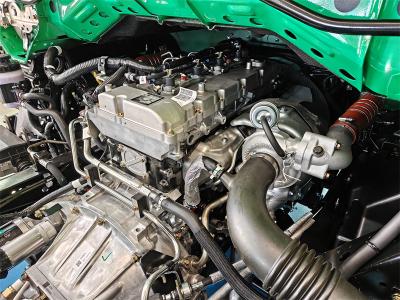

1. Engine: Isuzu 4JZ1-TCG62 Inline Four-Cylinder Diesel Engine
o Power: 180HP (133kW)
o Torque: 510N·m
o Technical Highlights: High-pressure common rail fuel injection, turbocharging and intercooling technology, high torque output at low speeds, excellent fuel economy.
2. Transmission: MYY 6-Speed Manual
o Fully synchronized design, smooth shifting, large first gear ratio, strong climbing ability; overdrive (6th gear) improves high-speed cruising efficiency.
▶ Safety and Comfort Features:
1. Braking System:
o Full-vehicle ABS anti-lock braking system, shortening braking distance, preventing skidding, and improving safety on wet and slippery roads.

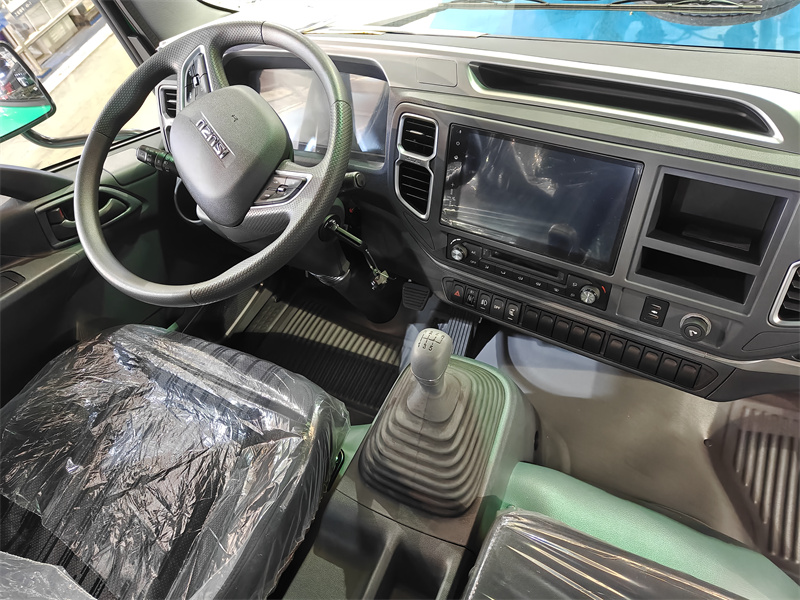

2. Cab:
o Tilting Mechanism: Hydraulically assisted tilting for easy engine and chassis maintenance.
o Air Conditioning System: Standard heating and cooling air conditioning to improve the driving environment and adapt to extreme weather conditions.
o Power Steering and Power Braking: Standard configuration for easy driving.
4. Wide Adaptability: A long wheelbase of 4475mm and a gross vehicle weight of 10550kg make it ideal for conversion into:

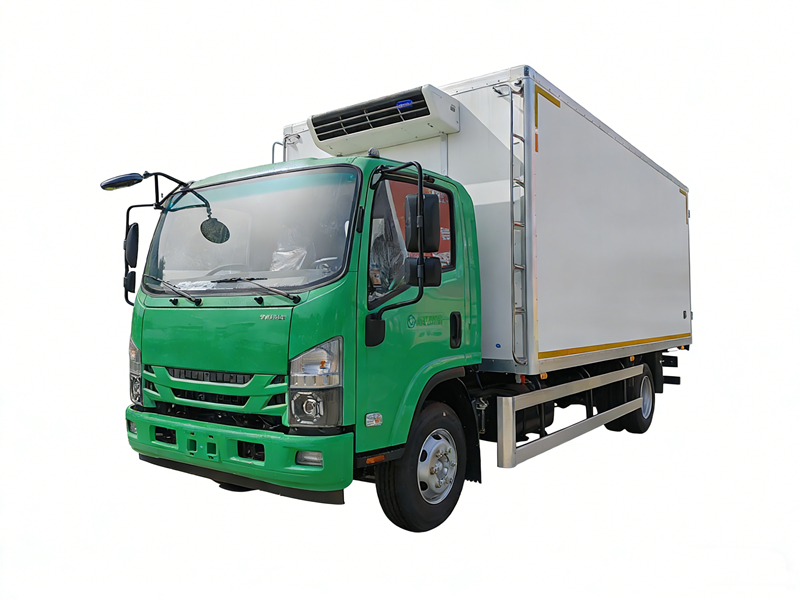

o Medium-sized vans/refrigerated trucks
o Dump trucks

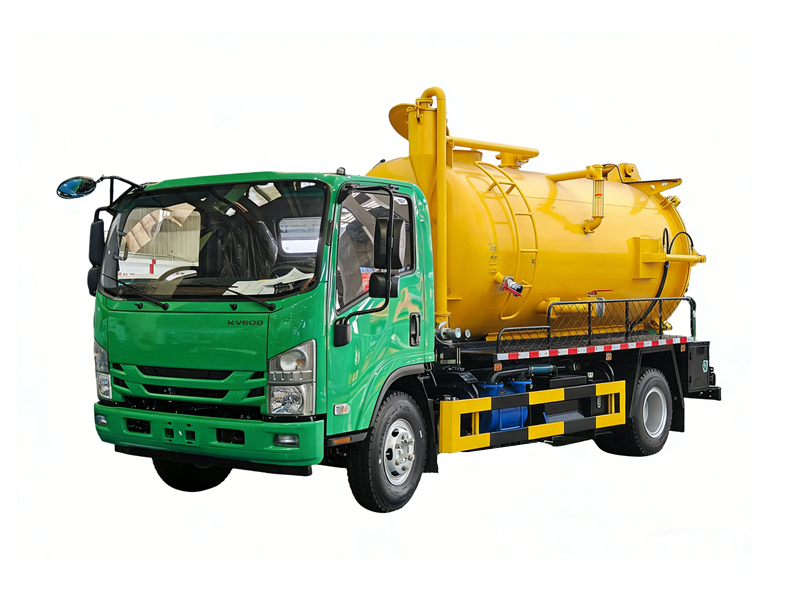

o Garbage compactor trucks, water trucks, cleaning and vacuum trucks
o Concrete mixer trucks

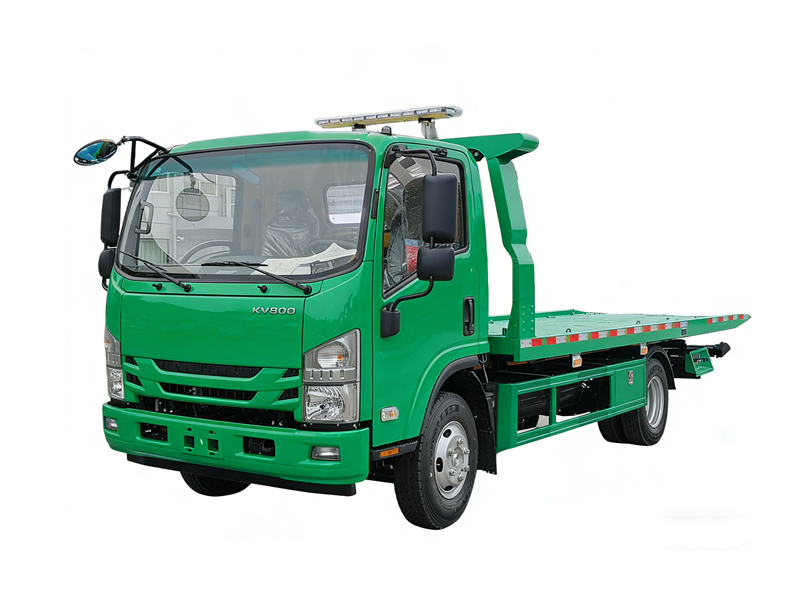

o Cranes trucks, aerial work platforms trucks, tow trucks
