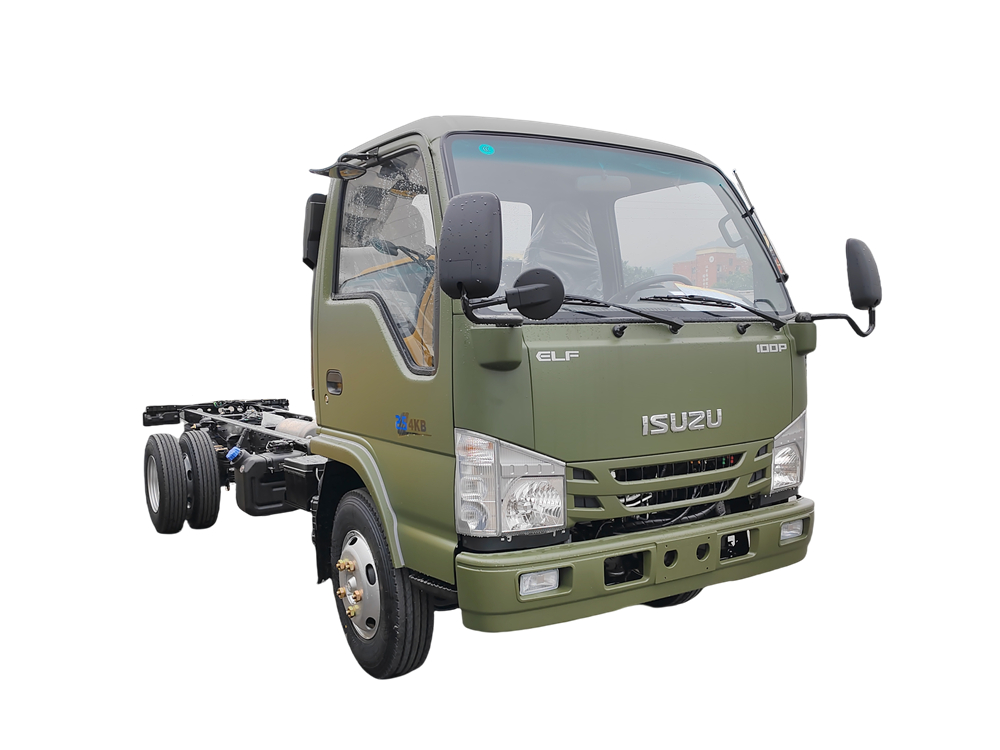

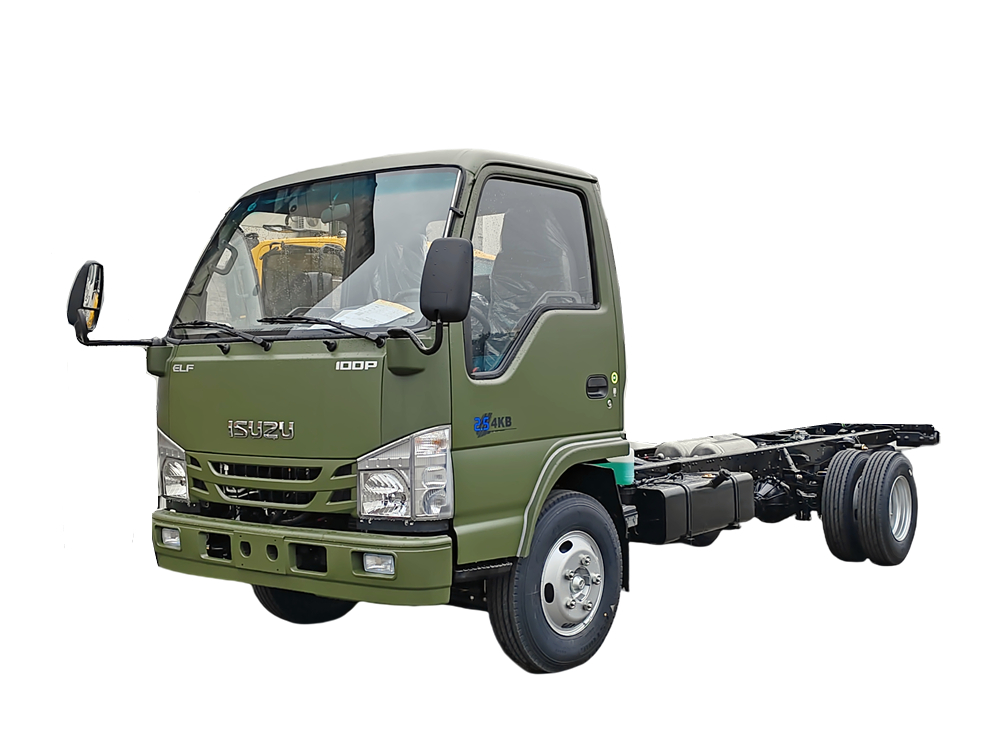

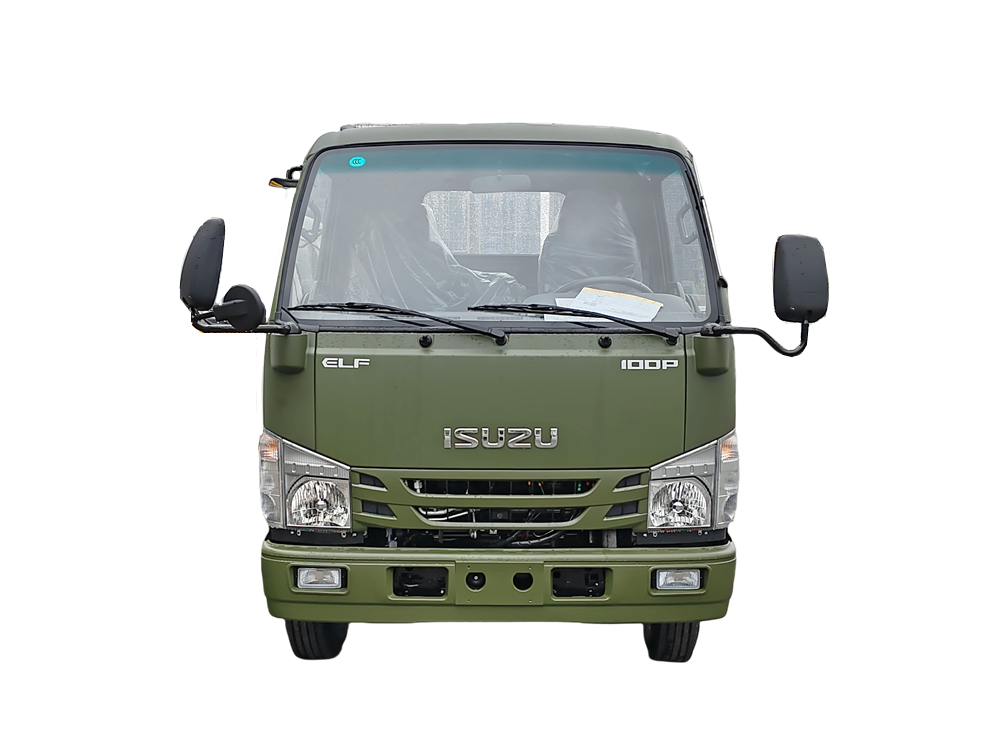

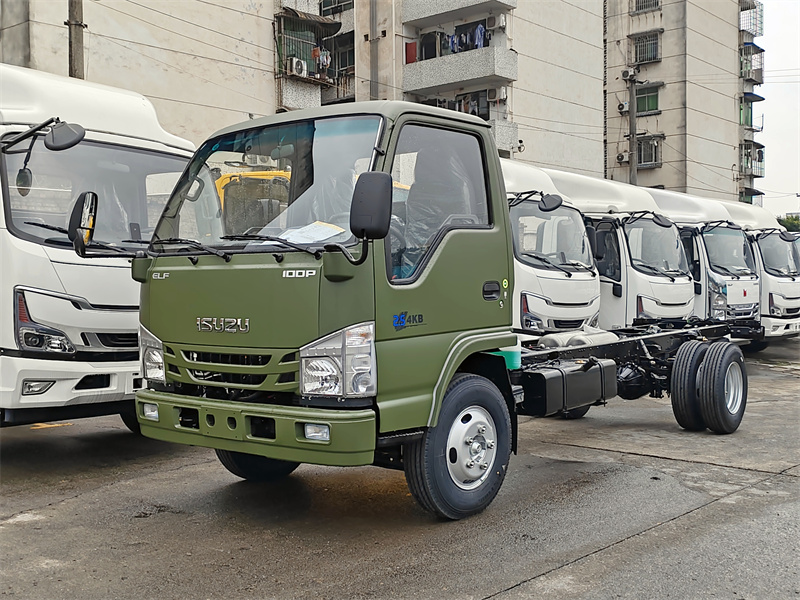

The new Isuzu 100P 5-ton truck chassis features a 3815mm wheelbase, an Isuzu 4KB1-TCG60 130HP engine, an MSB 5-speed transmission, a front/rear axle load capacity of 2580/4720kg, front/rear overhang of 1015/1835mm, a curb weight of 2200kg, a payload of 5 tons, and a maximum speed of 115km/h. It is suitable for modification into various light-duty special-purpose vehicles.
Manufacturer:
Powerstar TrucksWork capacity:
5 tonsDimension:
6665 × 1880 × 2200 mmCabin type:
Isuzu 100P cab,with A/CWheelbase:
3815 mmEngine power:
96Kw / 130HPEngine type:
Isuzu 4Kb1-tcg60Axle drive:
4x2Gear box:
Isuzu MSB 5-speed,manualThe ISUZU 4KB engine ELF 100P truck in discount features a reliable 130hp 4KB1 turbocharged diesel engine paired with a 5-speed manual transmission, delivering high efficiency. Its 3815mm wheelbase and optimized front and rear overhangs, combined with a robust 2580kg front axle and 4720kg rear axle load capacity, ensure a 5-ton effective payload and a max speed of 115km/h even with a curb weight of approximately 2200kg. The chassis assembly is robust and well-designed, with pre-installed standard modification interfaces, making it an ideal platform for converting various light-duty special-purpose vehicles (such as vans, municipal sanitation vehicles, and emergency rescue vehicles).
▶ Features:
★ Isuzu 100P 4x2 light type,perfect performance
★ Isuzu 4KB1 130HP engine, super powerful; reliable performance, no overhaul within 100,000 km.
★ Payload capacity 5 tons
★ Suitable for modification of various special vehicles
▶ Product Parameters:
|
Isuzu ELF 100P 4x2 chassis |
||
|
Vehicle Model: |
PT1070KAY |
|
|

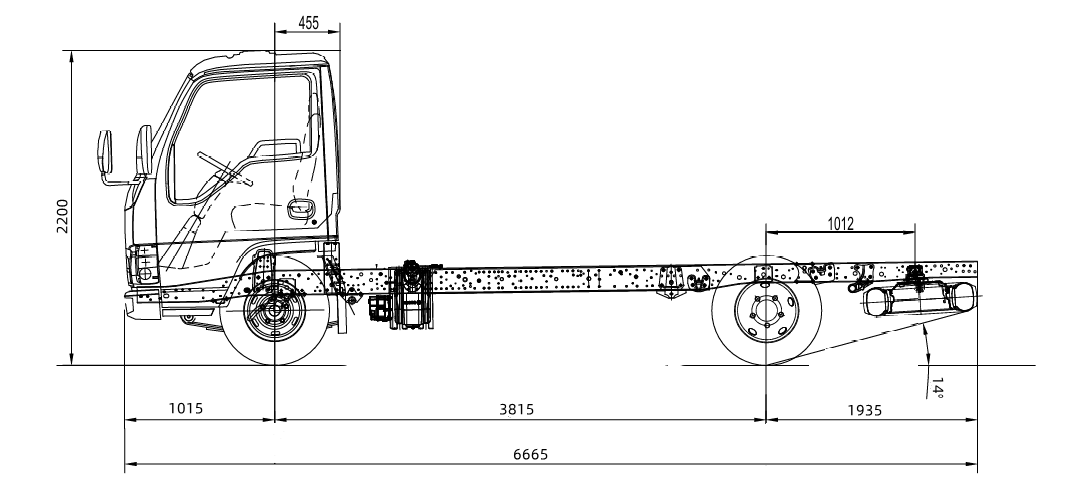

Dimensions and Parameters |
Overall Dimension(L x W x H) |
6665×1880×2200mm |
|
Wheelbase: |
3815mm |
|
|
Front/ Rear Wheel Distance: |
1504/1425mm |
|
|
Front/Rear Suspension: |
1015/1835mm |
|
|
Rear Axle Ratio: |
5.571 |
|
|
Leaf Spring: |
8/6+5 |
|
|
Weights and Capacities |
GVW: |
7300kg |
|
Curb Weight: |
2200kg |
|
|
Payload: |
5000kg |
|
|
Axle Loads: |
2580/4720kg |
|
|
Engine |
Engine Model: |
4KB1-TCG60 |
|
Max output: |
96Kw/130HP |
|
|
Rated speed |
2800rpm |
|
|
Max torque |
360N.m |
|
|
Max torque speed |
1400-2400rpm |
|
|
Displacement: |
2499ml |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Transmission: |
Isuzu MSB 5-speed,manual |
|

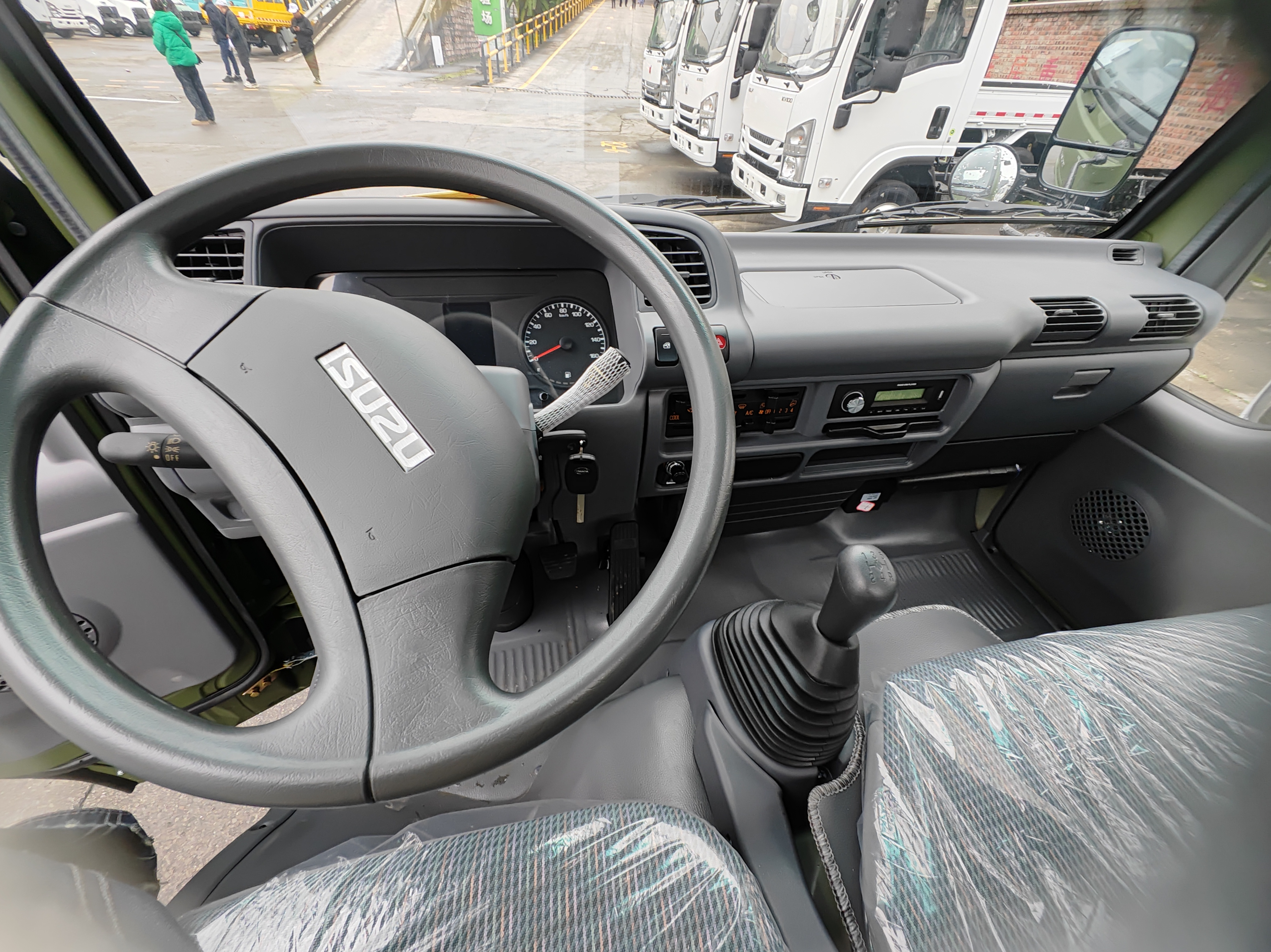

Cab |
Number of Seats: |
3 |
|
Brake |
Oil brake |
|
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
7.00R16LT 14PR |
|
|
Max speed |
115km/h |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Cab Tilting Mechanism |
|
|
7 |
Free Maintenance Battery |
|

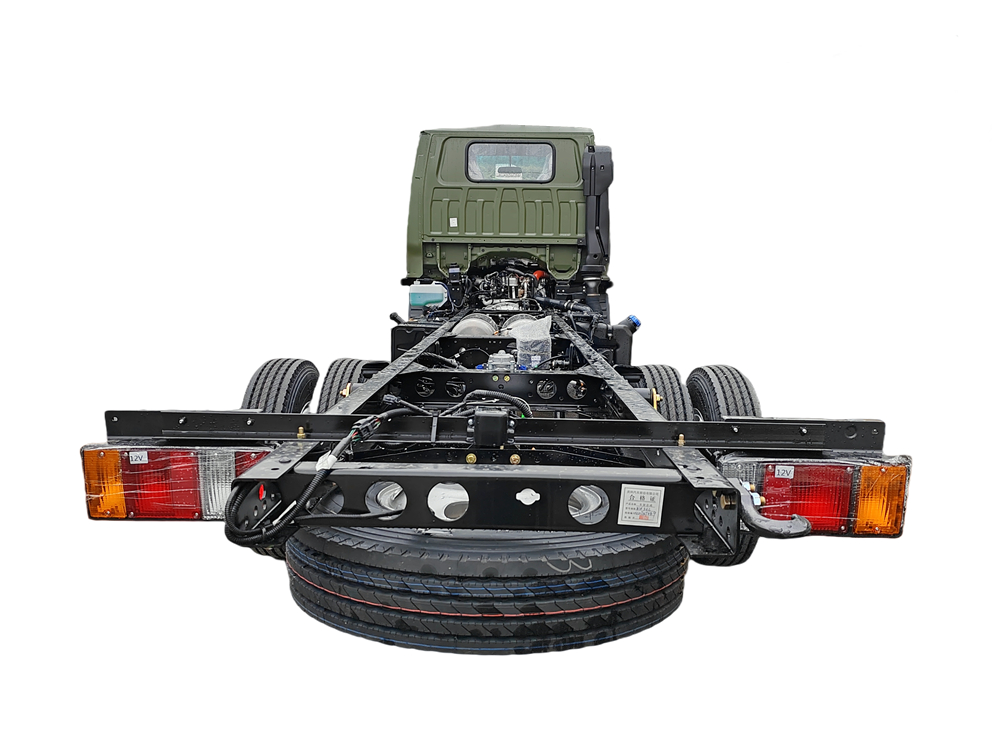

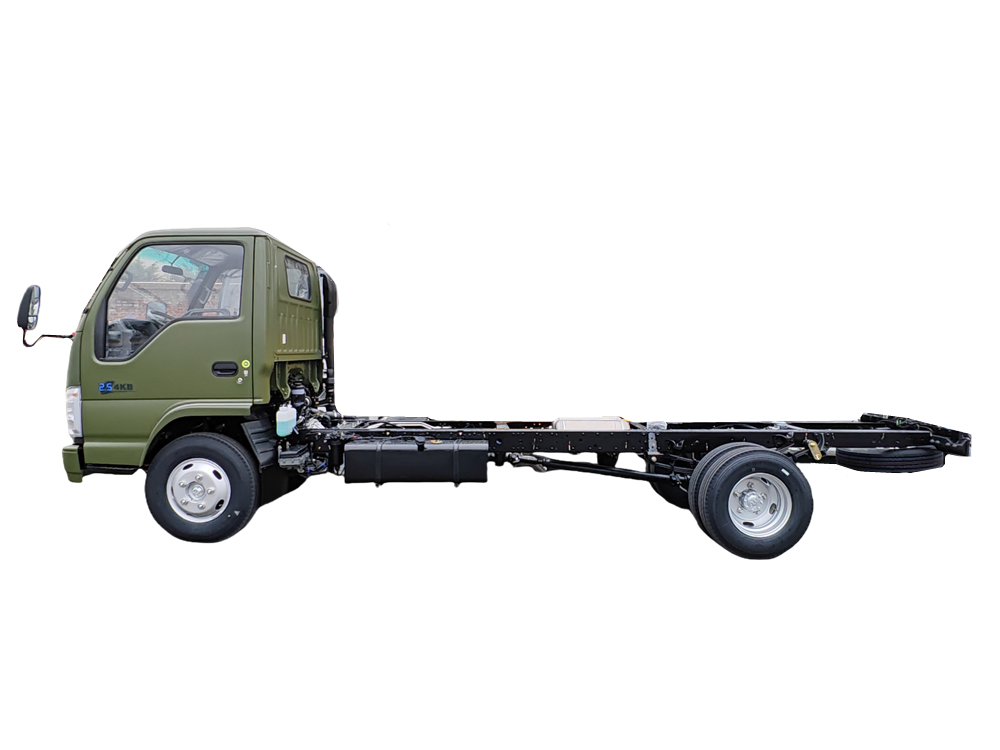

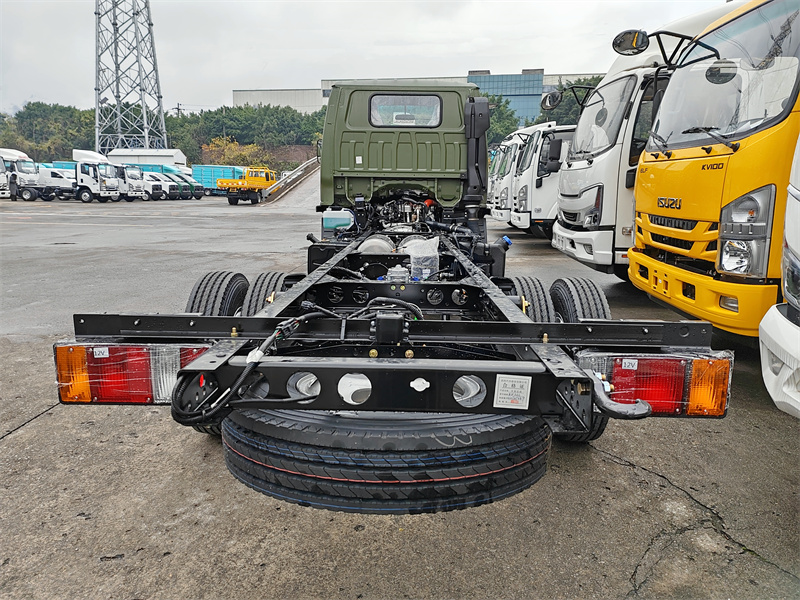

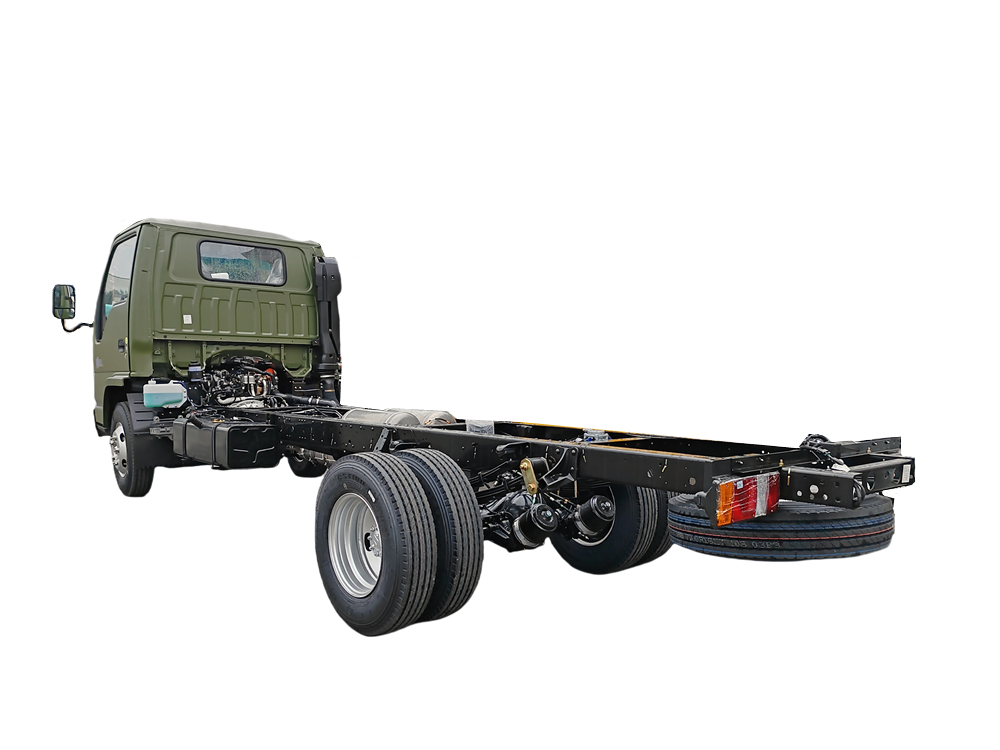

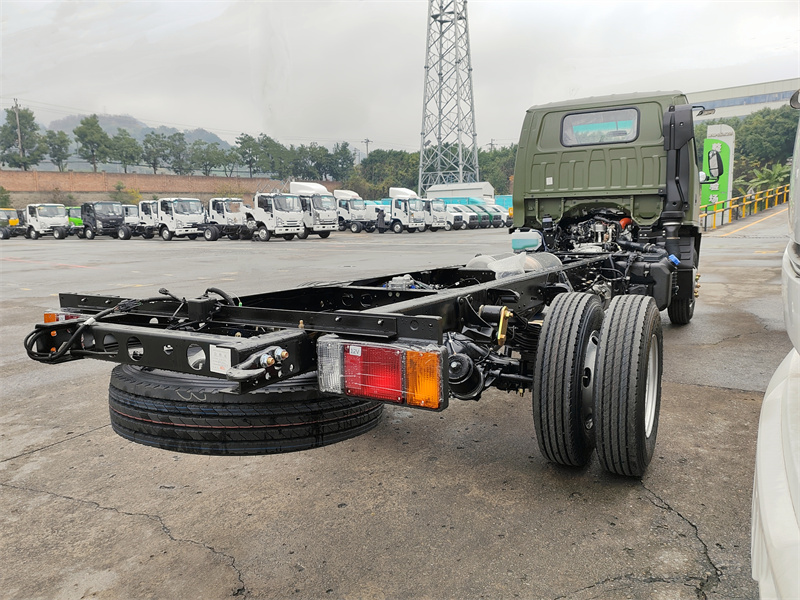

▶ Chassis System:

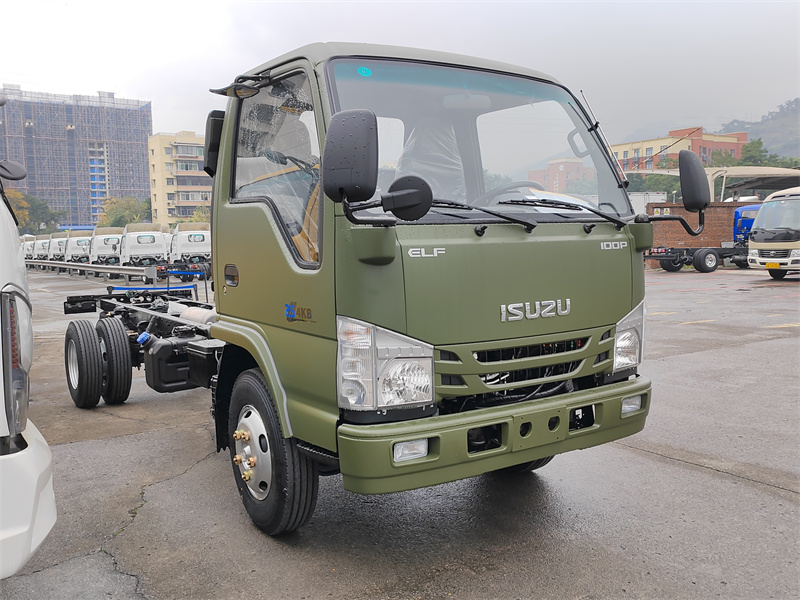

• Model: Isuzu 100P Single Cab Chassis
• Drive Type: 4x2 Rear-Wheel Driv
• Wheelbase: 3815mm
• Front/Rear Overhang: 1015mm / 1835mm
• Gross Vehicle Weight: 7300kg, Curb Weight: 2200kg

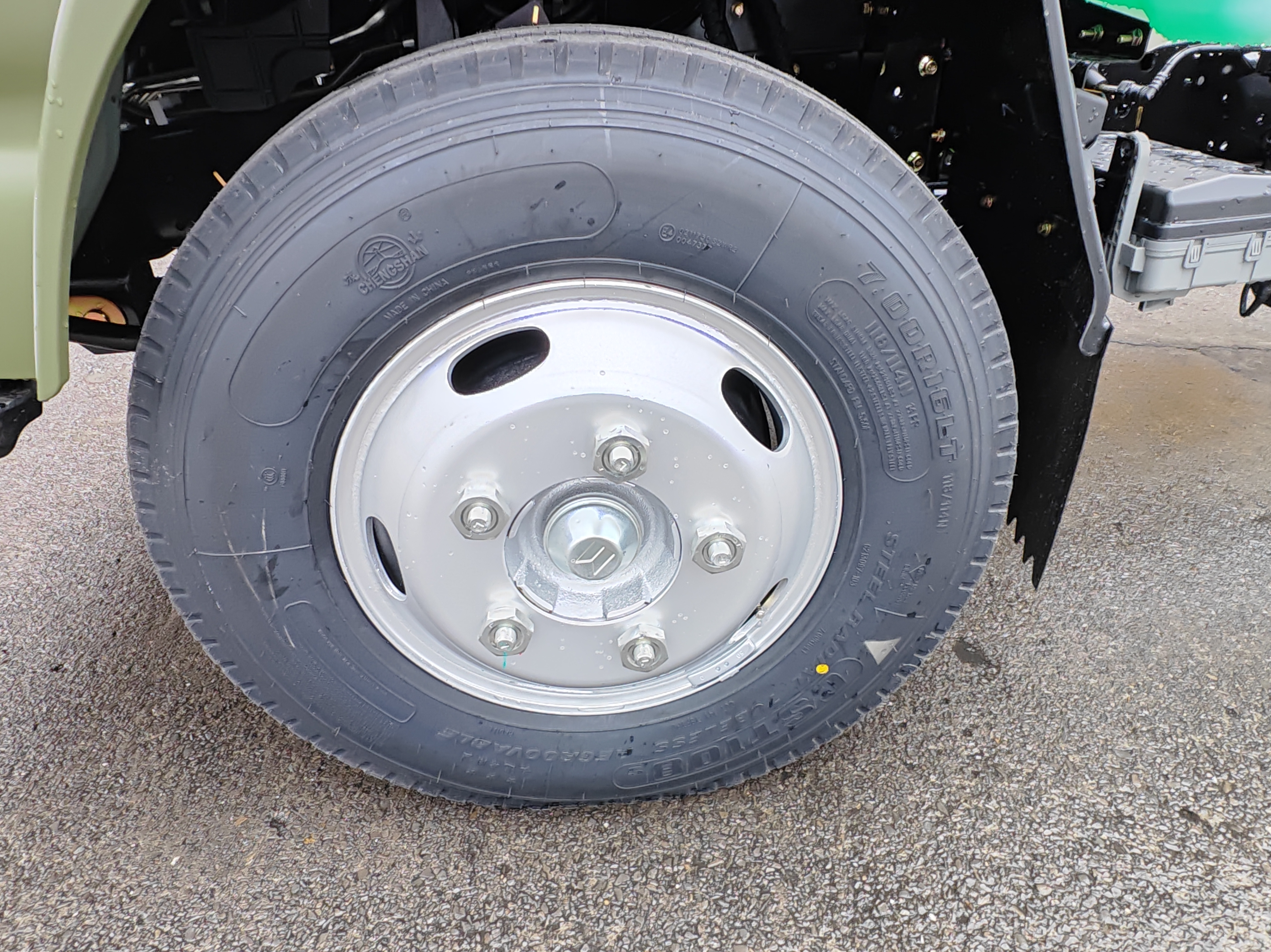

• Tire: 7.00R16LT 14PR
• Rear Axle Ratio: 5.571

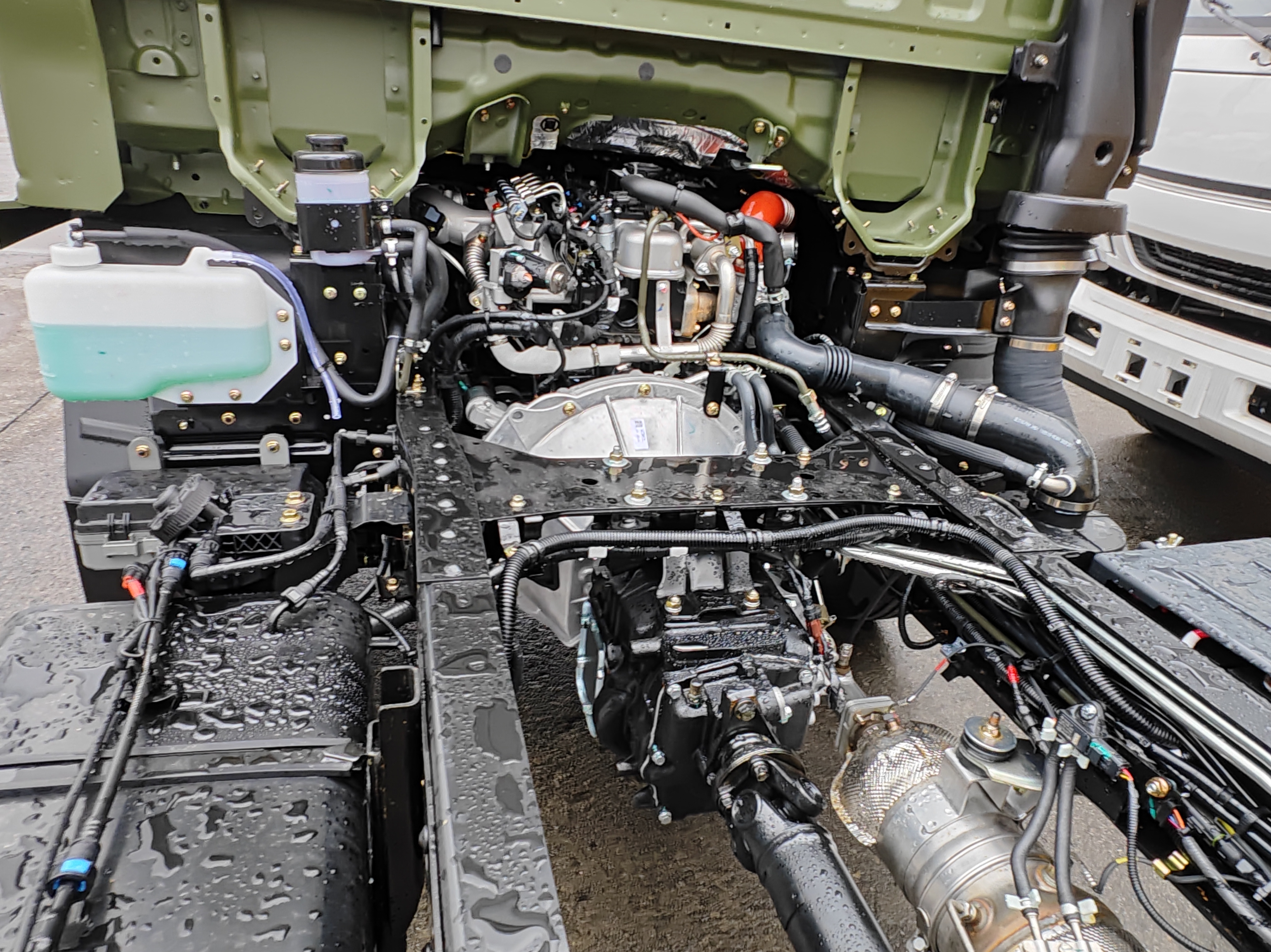

▶ Powertrain System:

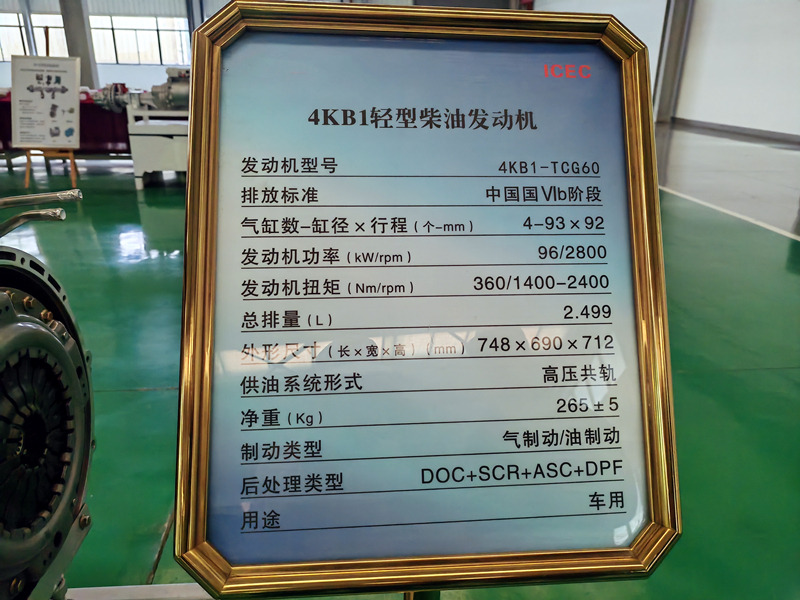

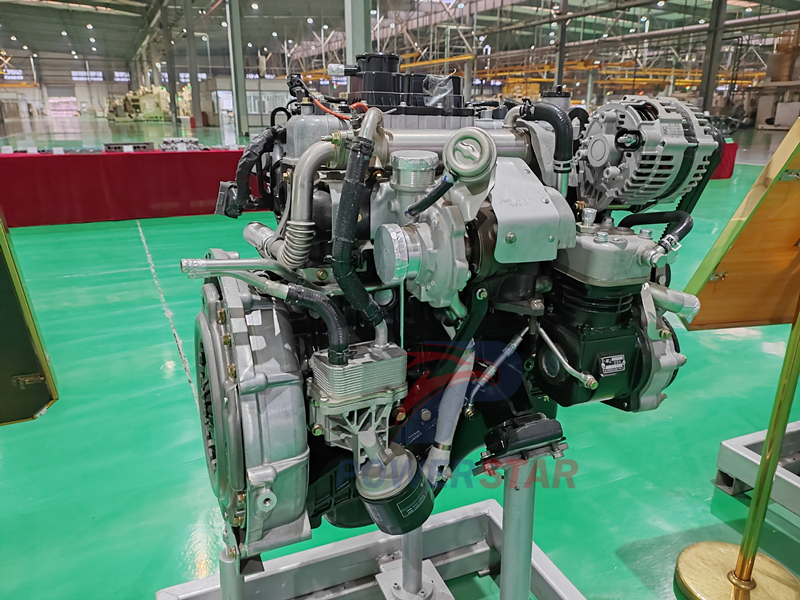

Heart: Isuzu 4KB1-TCG60 high-pressure common rail turbocharged diesel engine, with a maximum power output of 96kW (130 hp) and a peak torque of 290 N·m. This 2.5L engine is renowned for its excellent low-end torque and industry-recognized durability.

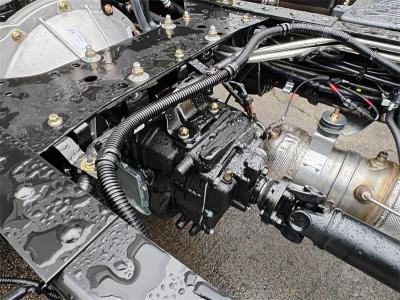

Transmission: MSB 5-speed manual transmission, a mature and well-matched system that offers crisp shifting and high transmission efficiency.
 |
 |
Isuzu 4KH1CN6LB engine

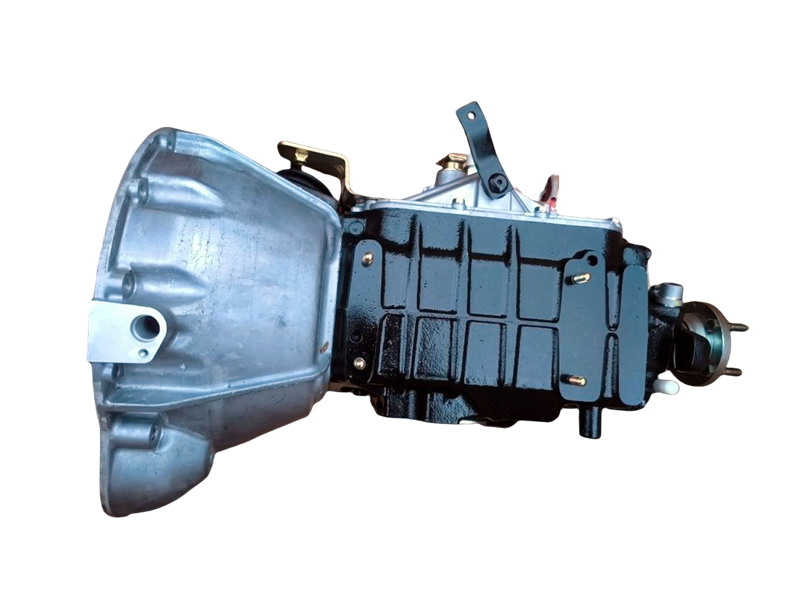

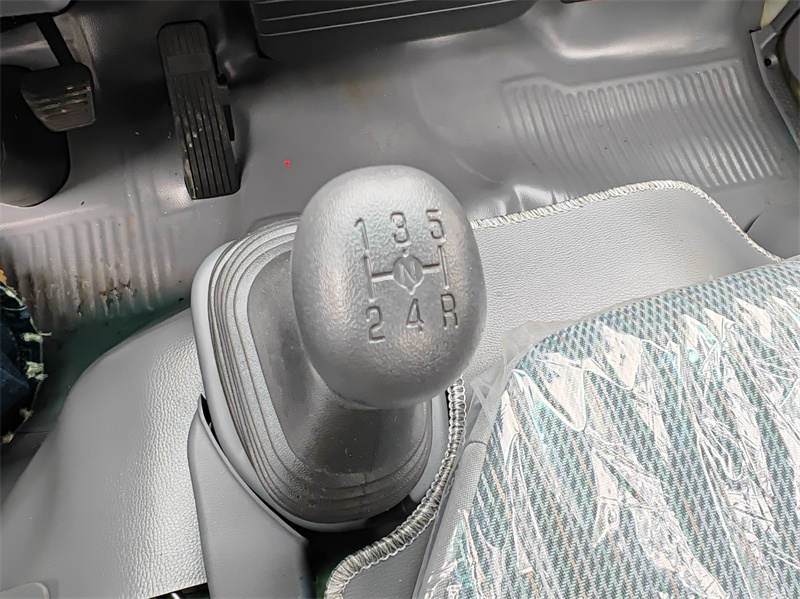

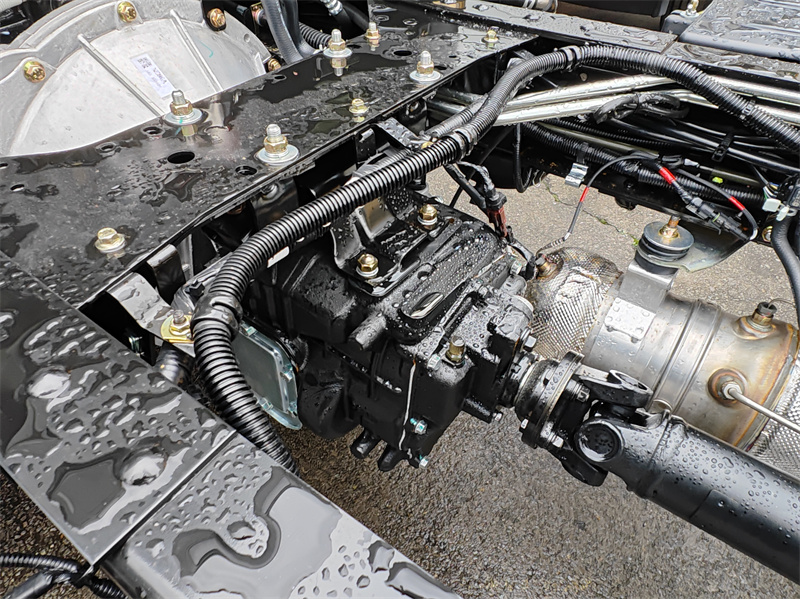

Isuzu MSB 5-speed transmission

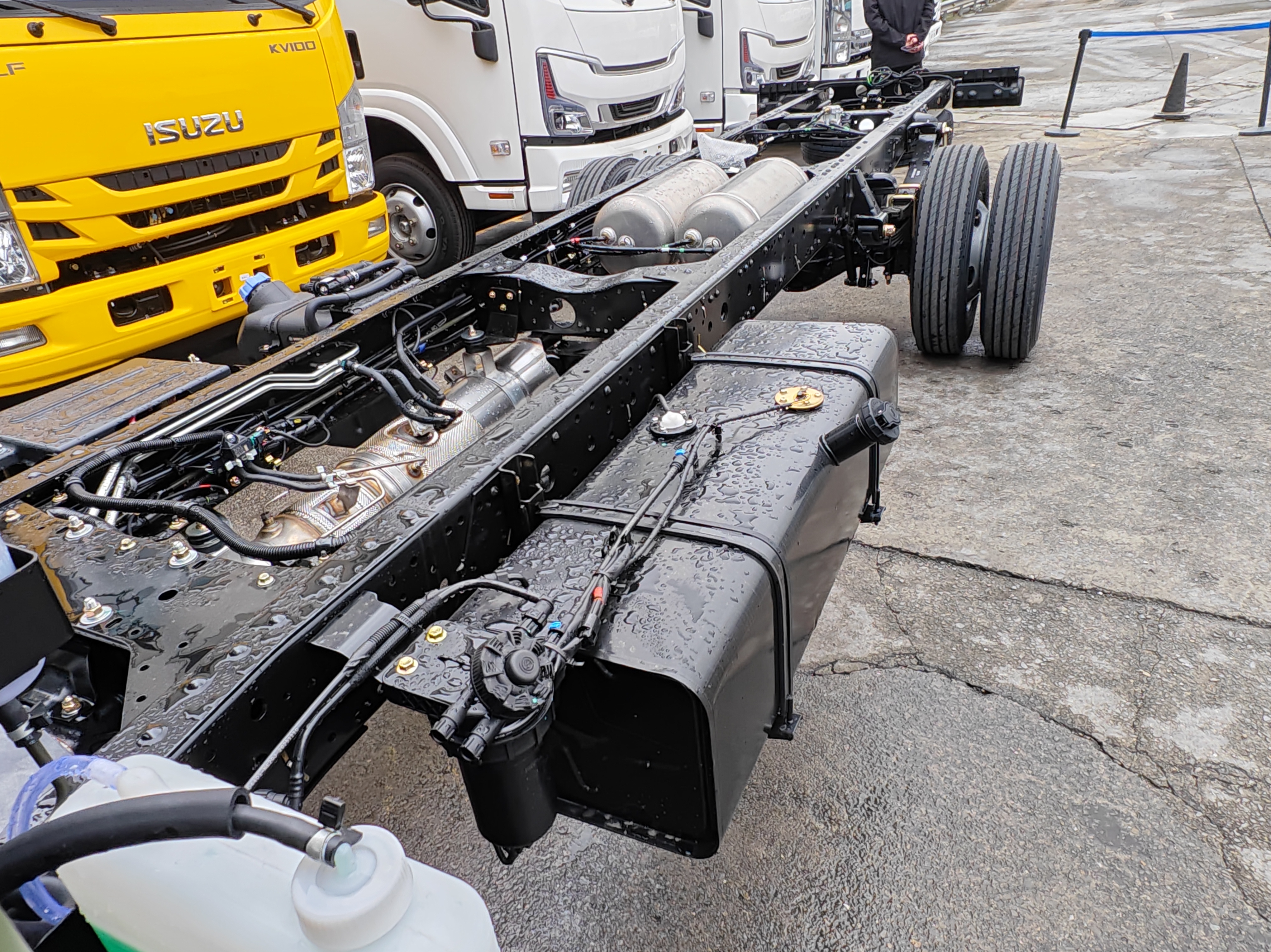

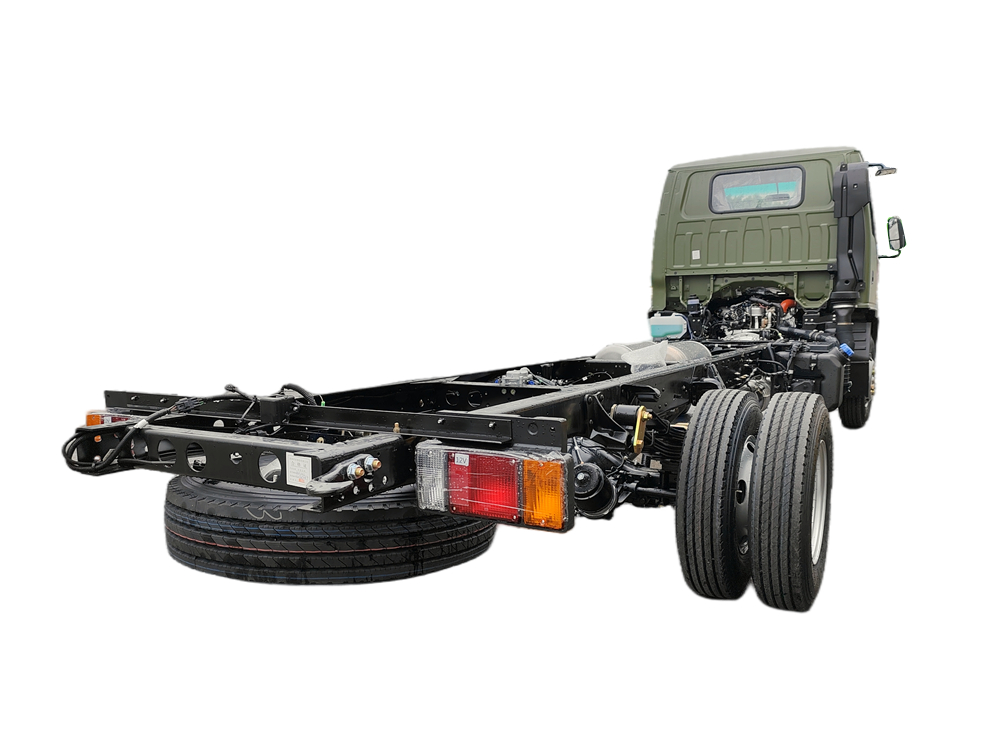

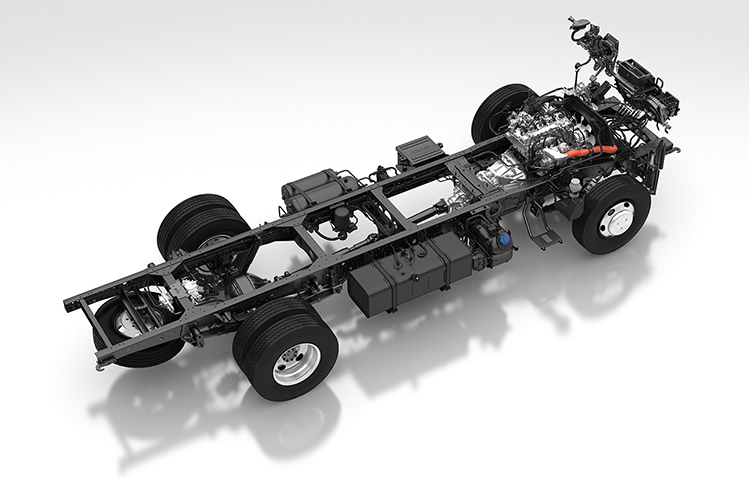

Frame
▶ Load Capacity and Driving Performance:

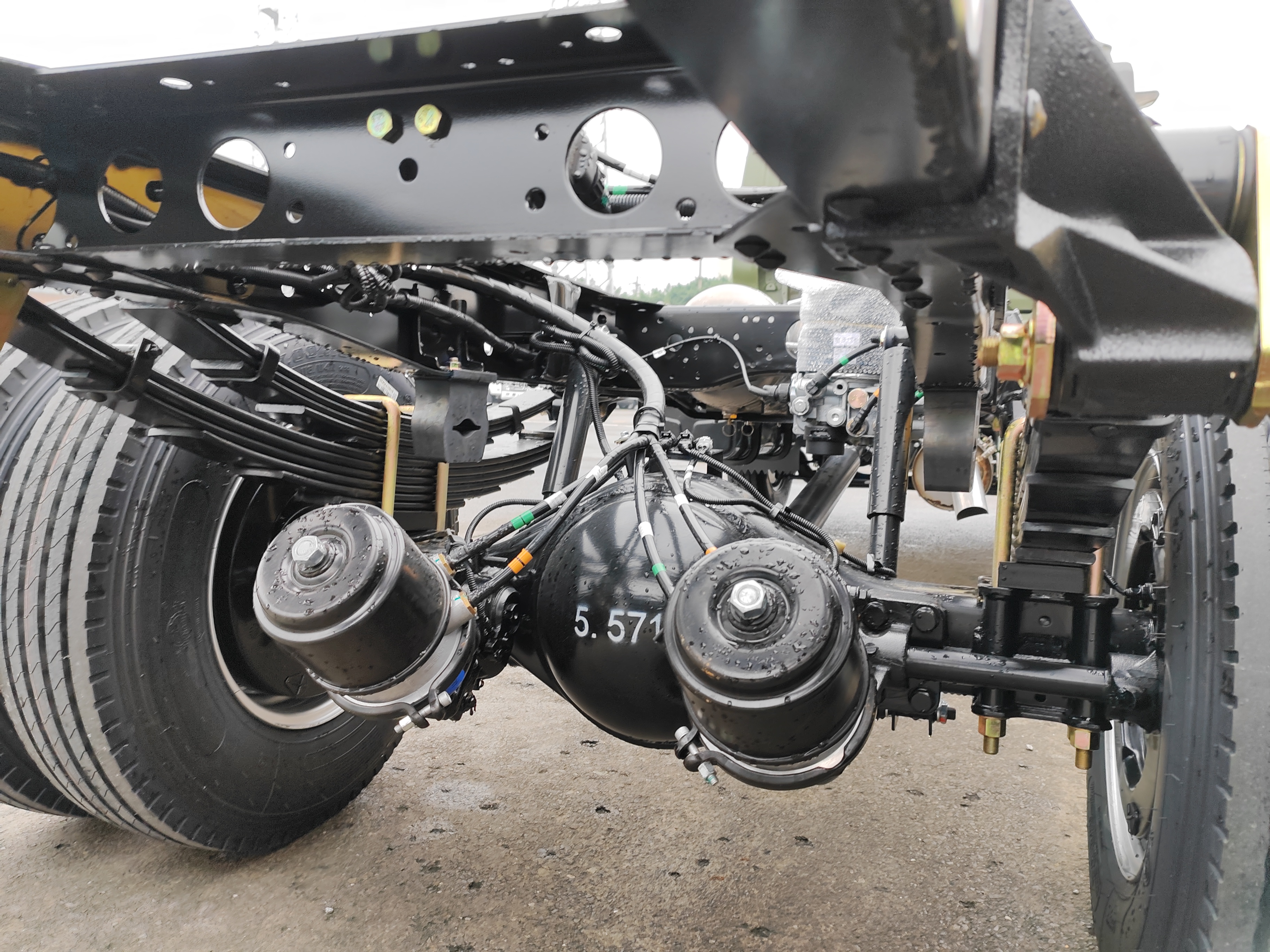

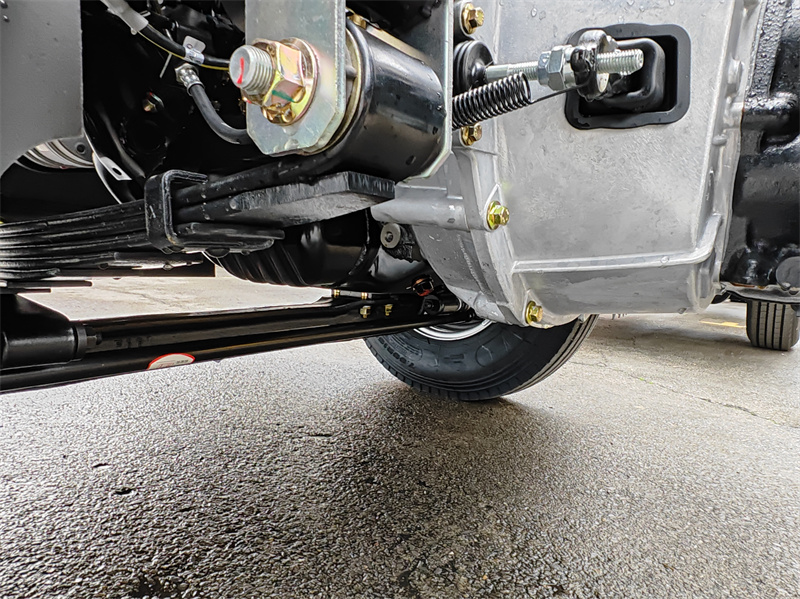

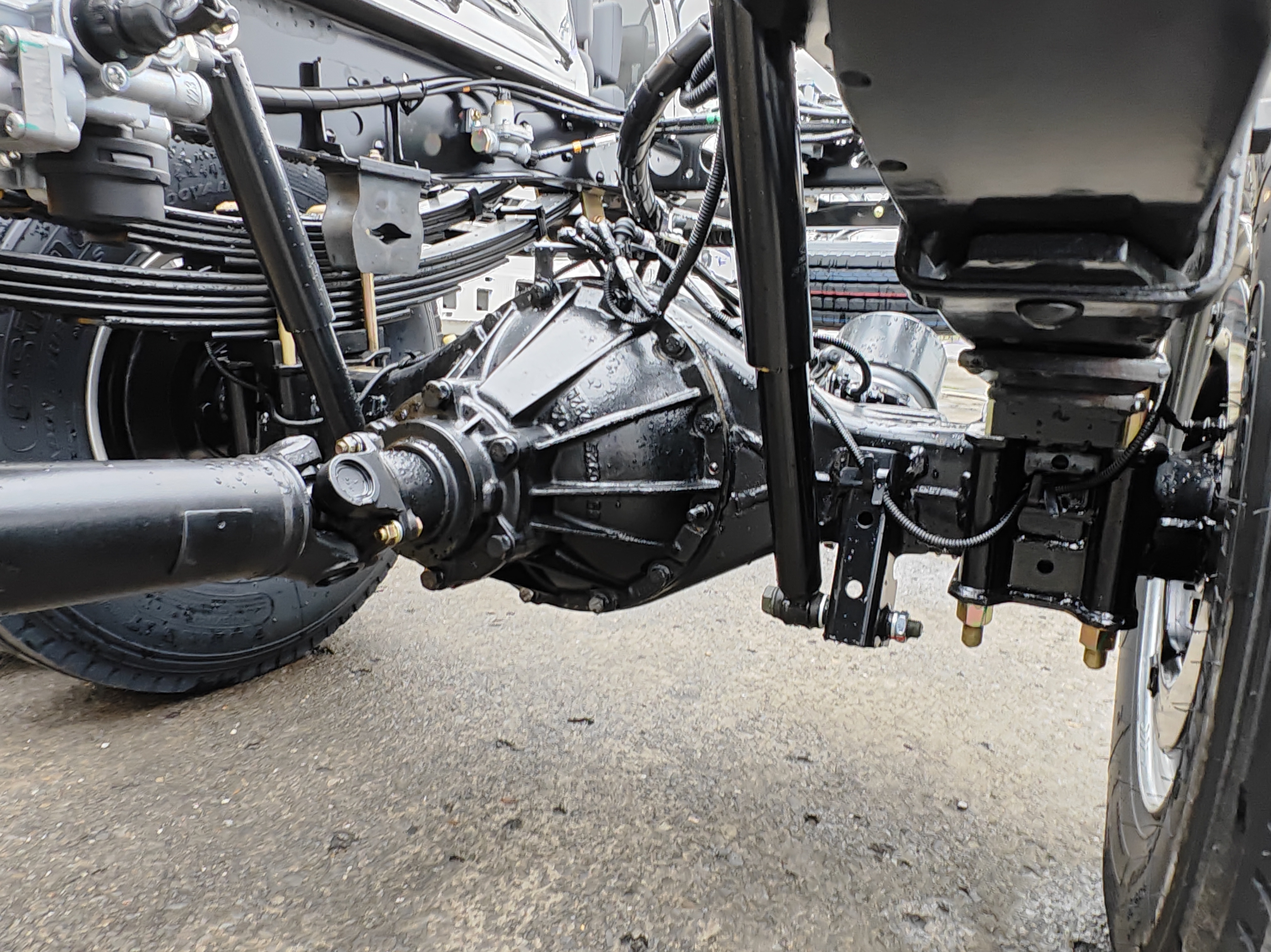

Load Foundation: Utilizes a combination of independent front suspension and multi-leaf springs (8/6+5) at the rear.
Load Capacity: The front axle is a 2.58-ton steering axle, and the rear axle is a 4.72-ton drive axle. The 5-ton load capacity provides ample weight allowance for the superstructure, allowing for the integration of more functional equipment by aftermarket modifications.
Performance: Top speed 115 km/h, paired with 7.00R16LT low rolling resistance tires, balancing high-speed cruising stability and fuel economy.
▶ Performance Advantages:
Highly Efficient and Reliable Powertrain: The Isuzu 4KB1-TCG60 engine paired with the MSB transmission delivers powerful performance.
Strong Modification Compatibility: A 3815mm wheelbase and multiple standardized interface options in the chassis provide ample space and strong modification compatibility.
Low Maintenance Costs: The superior performance of the Isuzu original chassis, along with the efficient powertrain coordination and lightweight chassis architecture, significantly reduces maintenance costs.
▶ Modification Adaptability:

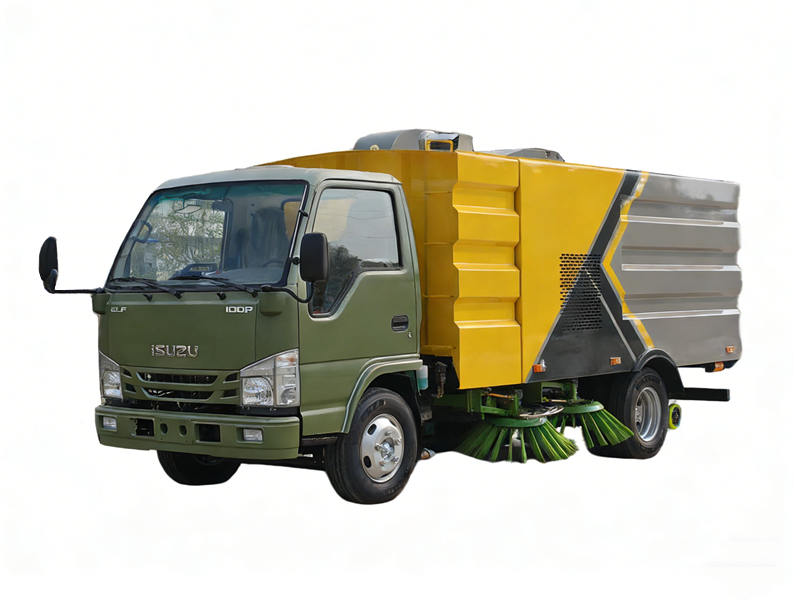

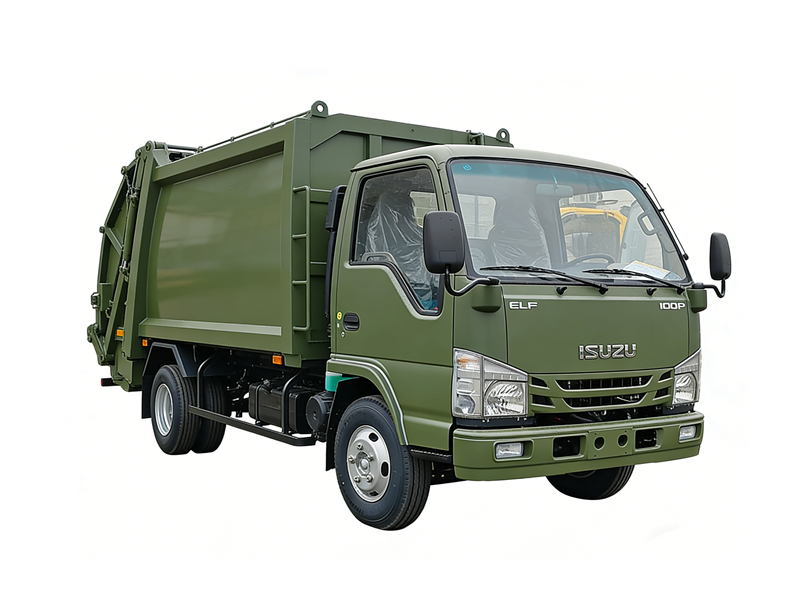

1. Municipal and Environmental Sanitation: Small water sprinkler trucks, road sweepers, sewage suction trucks, garbage trucks
2. Basic Freight Transport: Cargo van trucks, small refrigerated trucks, flatbed trucks

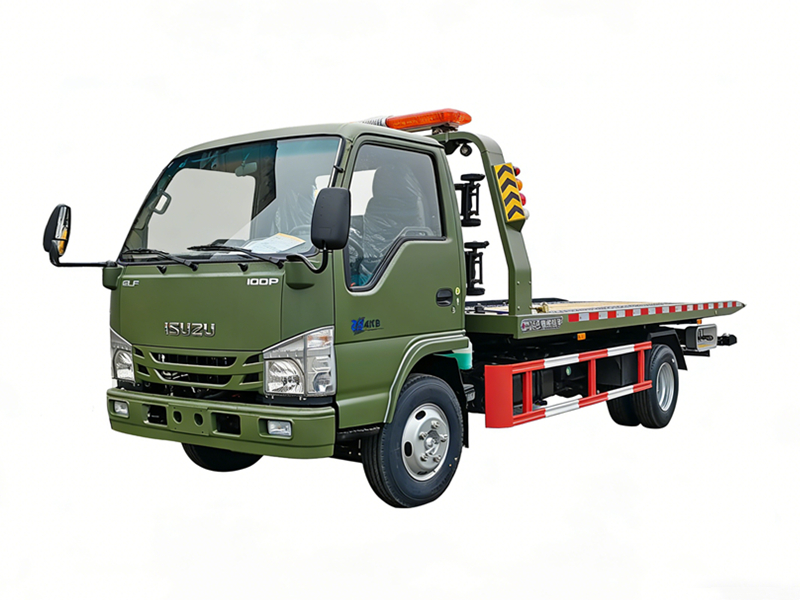

3. Engineering Vehicles: Dump trucks, truck-mounted cranes, tow trucks, aerial work platforms
4. Special Services: Emergency rescue vehicles, mobile repair vehicles, inspection vehicles, publicity vehicles, drainage vehicles, etc.
