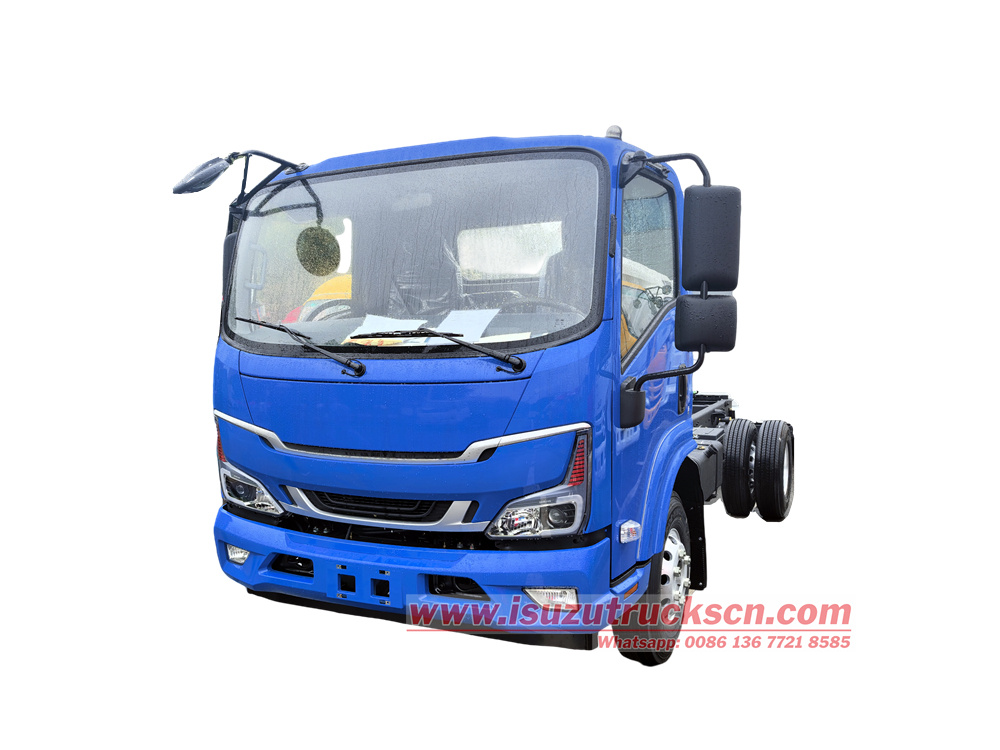

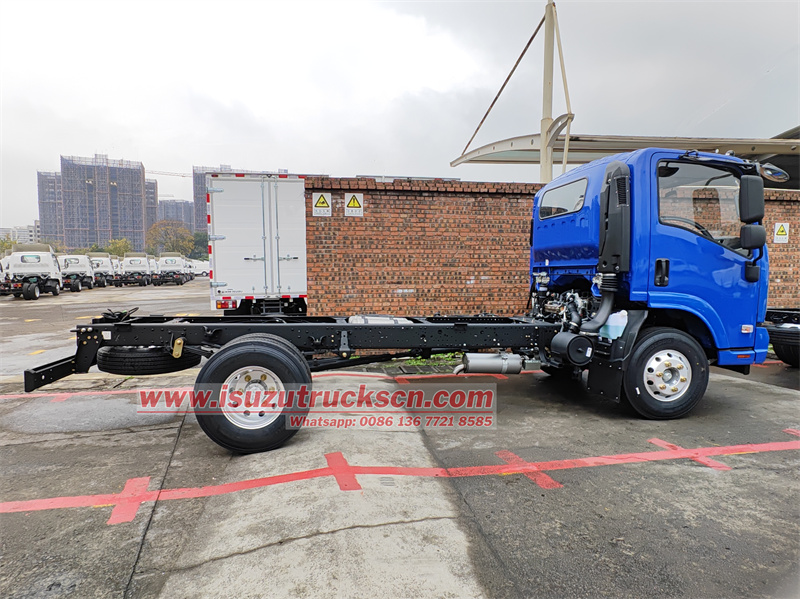

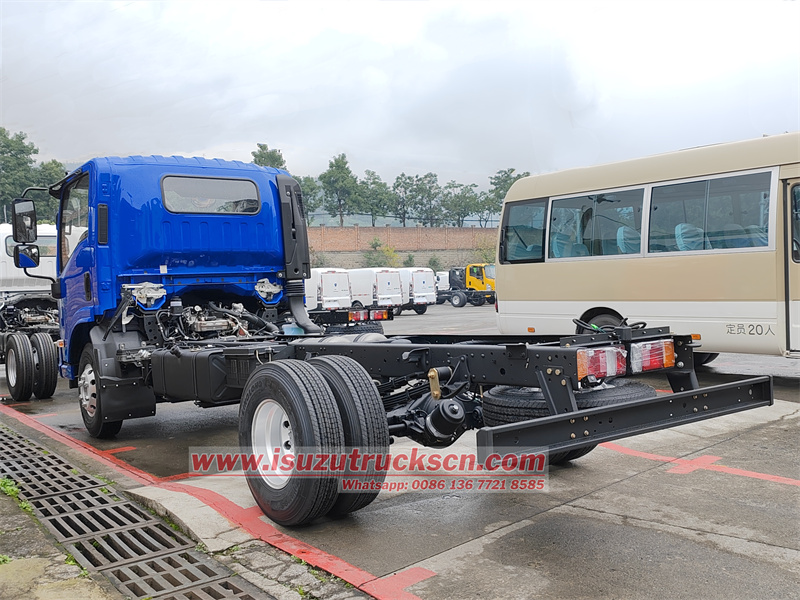

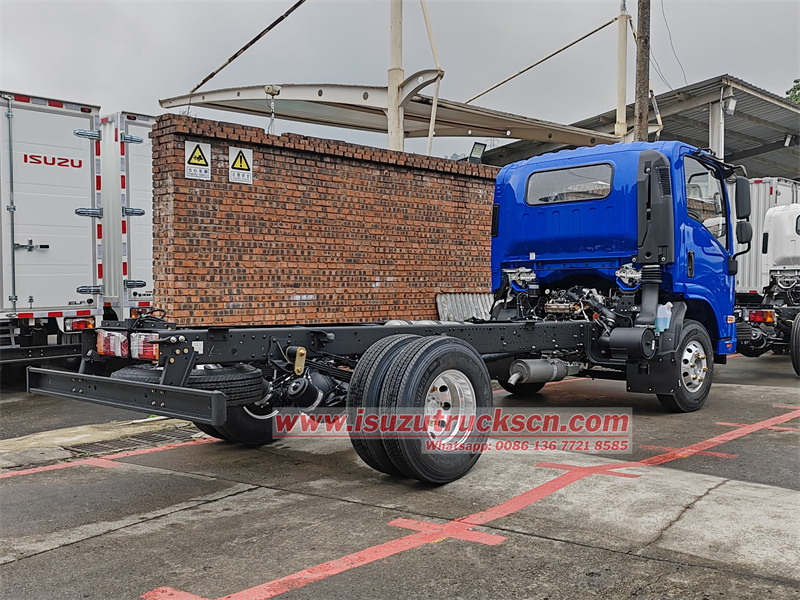

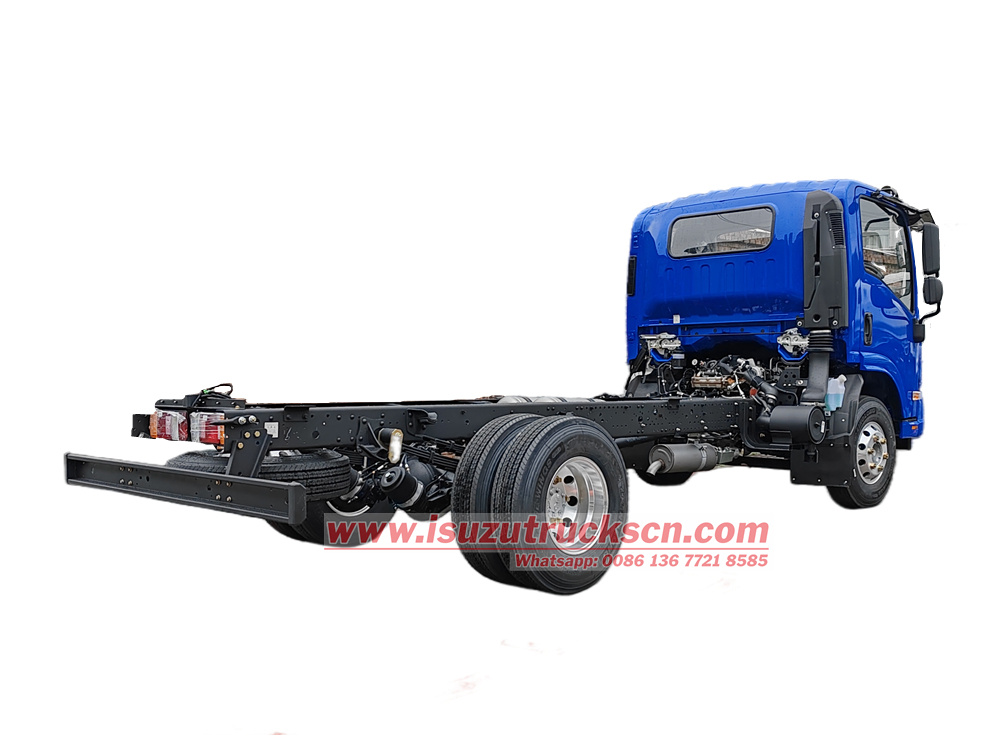

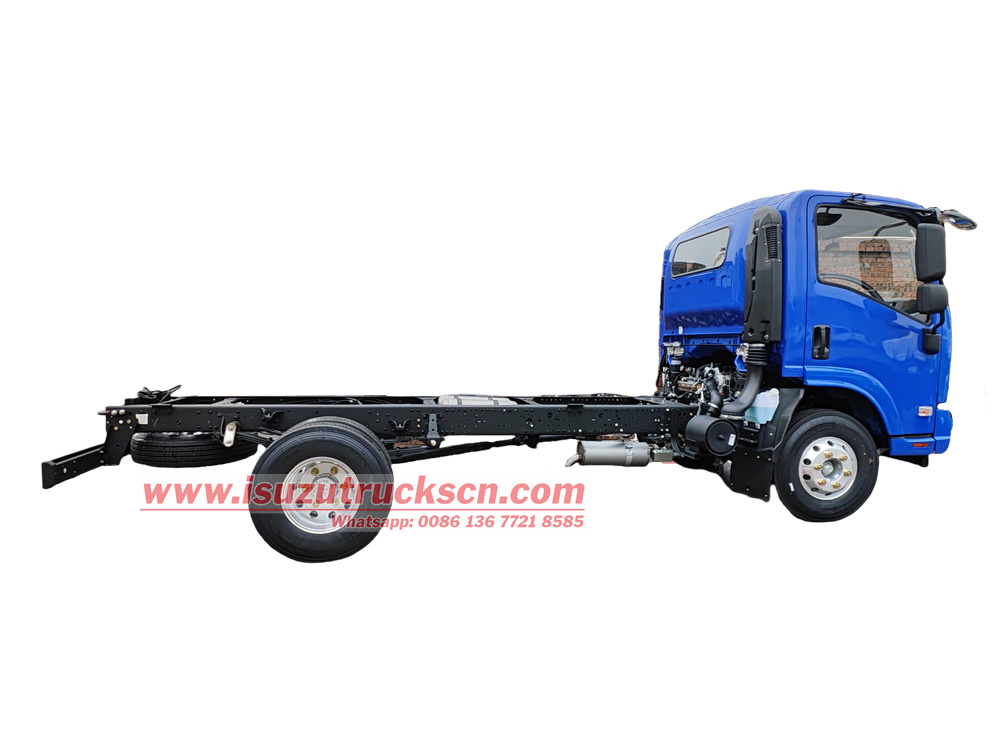

The Isuzu M100 chassis uses the new Isuzu M100 Telecom Purple-Blue chassis, with a 3365mm wheelbase, a gross vehicle weight of 8280kg, a curb weight of 2310kg, and is equipped with an Isuzu 4KH1CN6LB engine, MSB 5-speed transmission, air brakes, 7.50R16LT tires, a 100L fuel tank, a gear ratio of 6.142, and a maximum speed of 105km/h.
Manufacturer:
Powerstar TrucksWork capacity:
5 tonsDimension:
5995 × 2130 × 2440 mmCabin type:
Isuzu M100 cab,with A/CWheelbase:
3365 mmEngine power:
88Kw / 120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4x2Gear box:

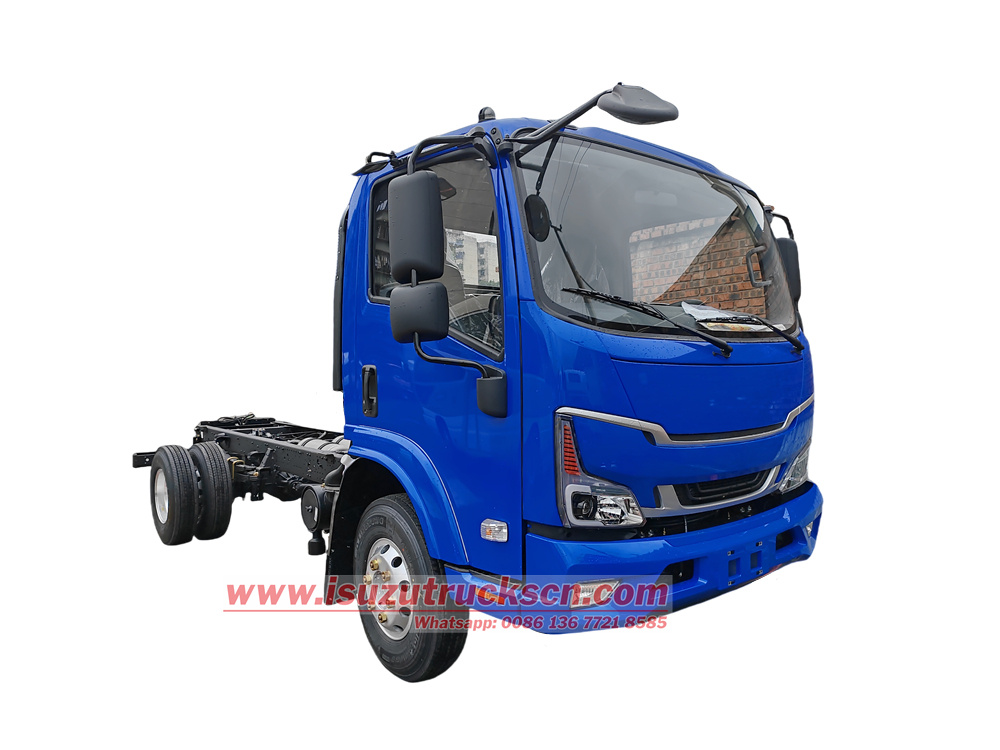

Isuzu MSB 5-speed,manualThe 2026 year Isuzu M100 truck in discount boasts significant advantages and immense modification potential. Positioned in the light truck market, it is powered by a 4KH1CN6LB Euro VI compliant engine, an MSB five-speed transmission, and a 6.142 high-ratio rear axle, forming a powertrain emphasizing low-speed, high-torque performance for robust power delivery during heavy-load starts and in challenging road conditions. The suspension and braking systems balance comfort and safety. A 3365mm wheelbase and a gross vehicle weight of 8280kg provide flexible and compliant modification options for the superstructure. Its distinctive purple-blue paint scheme caters to diverse needs across various industries, including logistics, municipal sanitation, engineering, and emergency rescue.
▶ Features:
★ Isuzu M100 4x2 light type,perfect performance
★ Isuzu 4KH1 120HP engine, super powerful; reliable performance, no overhaul within 100,000 km.
★ Payload capacity 5 tons
★ Suitable for modification of various special vehicles
▶ Product Parameters:
|
Isuzu M100 cargo truck chassis |
||
|
Vehicle Model: |
PT1080MAY |
|
|
Dimensions and Parameters |
Overall Dimension(L x W x H) |
5995×2130×2440mm |
|
Wheelbase: |
3365mm |
|
|
Front/ Rear Wheel Distance: |
1640/1655mm |
|
|
Front/Rear Suspension: |
1120/1510mm |
|
|
Rear Axle Ratio: |
6.142 |
|
|
Leaf Spring: |
6/6+6 |
|
|
Weights and Capacities |
GVW: |
8280kg |
|
Curb Weight: |
3110kg |
|
|
Payload: |
5800kg |
|
|
Axle Loads: |
3000/5280kg |
|
|
Engine |
Engine Model: |
4KH1CN6LB |
|
Max output: |
88Kw/120HP |
|
|
Torque |
290N·m |
|
|
Displacement: |
2999ml |
|
|
Transmission |
Transmission: |
Isuzu MSB 5-speed,manual |
|
Cab |
Number of Seats: |
2 |
|
Brake |
Air brake |
|
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
7.50R16LT 14PR |
|
|
Max speed |
105km/h |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Cab Tilting Mechanism |
|
|
7 |
Free Maintenance Battery |
|
▶ Chassis System:

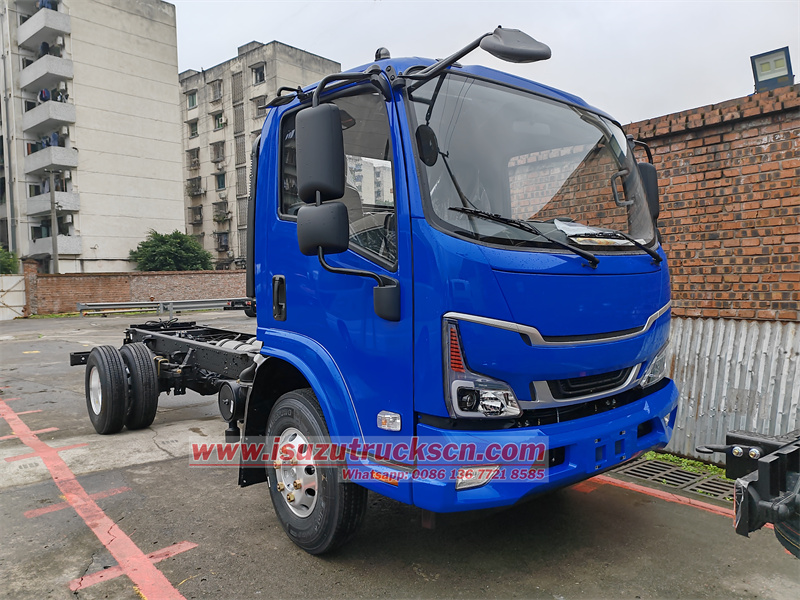

• Model: Isuzu M100 (New Telecom Purple-Blue Paint Chassis)
• Gross Vehicle Weight (GVW): 8,280 kg；Curb Weight: 2,310 kg；Payload: 5.8 tons
• Wheelbase: 3,365 mm
• Maximum Speed: 105 km/h
• Fuel Tank Capacity: 100L, providing a reasonable driving range to meet daily operational needs.
• Frame: High-strength steel ladder frame, ensuring load-bearing rigidity and torsional resistance, providing a stable foundation for various superstructures.

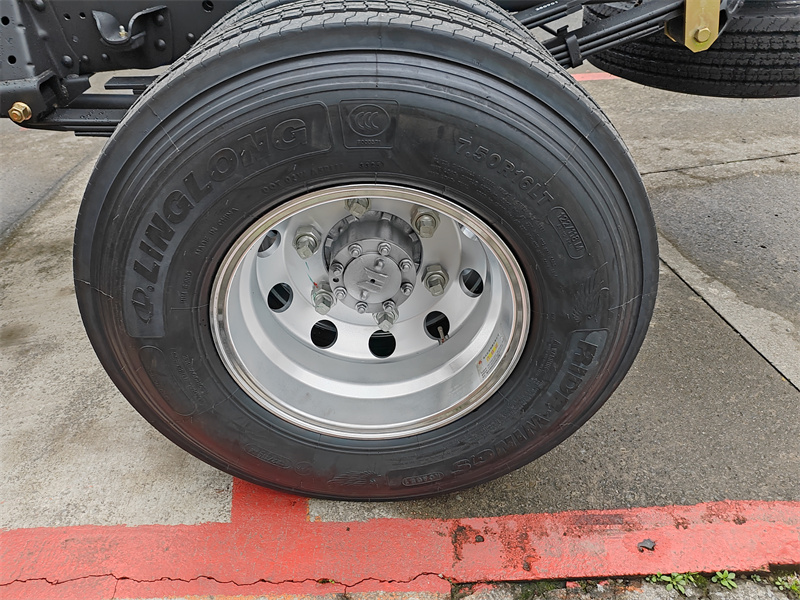

• Tires: 7.50R16LT Light-duty truck-specific radial tires, offering good load-bearing capacity and road adaptability.
▶ Powertrain System:

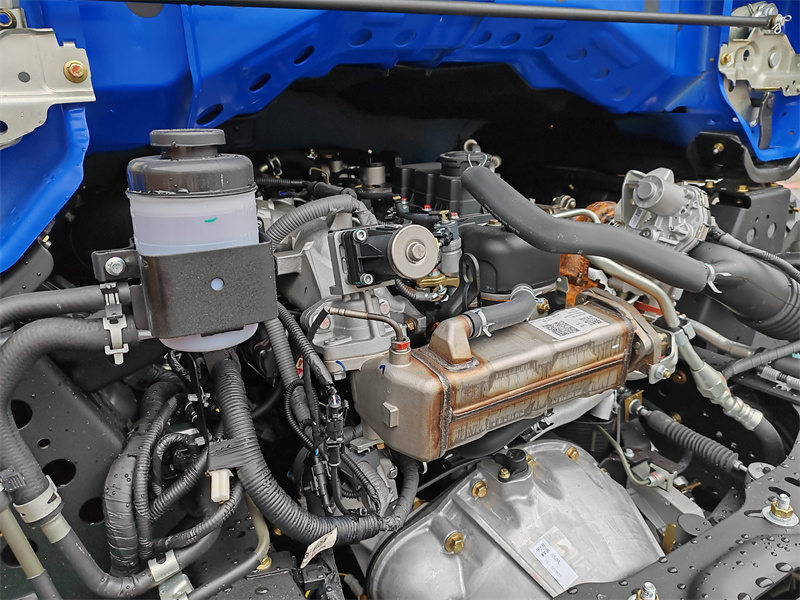

• Engine: Isuzu 4KH1CN6LB
o Type: Inline four-cylinder, water-cooled, turbocharged intercooled, high-pressure common rail diesel engine
o Displacement: 3.0L, Euro 6 emission standard
• Transmission: MSB 5-speed manual transmission
o Classic Isuzu transmission, smooth shifting, high transmission efficiency, mature matching with the engine, and convenient maintenance.

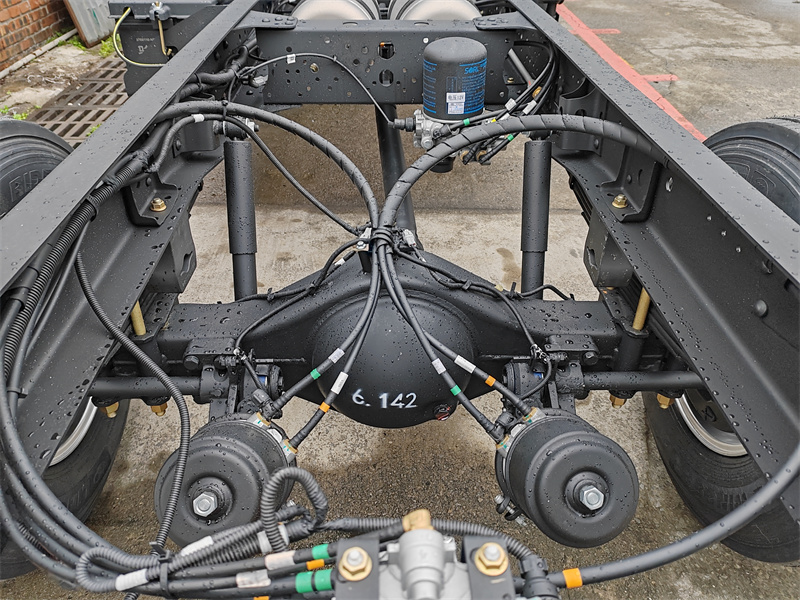

• Rear Axle Ratio: 6.142
o Features: The large gear ratio provides strong starting and climbing capabilities, especially suitable for heavy-load starts, mountain roads, or engineering operations requiring frequent starts and stops.

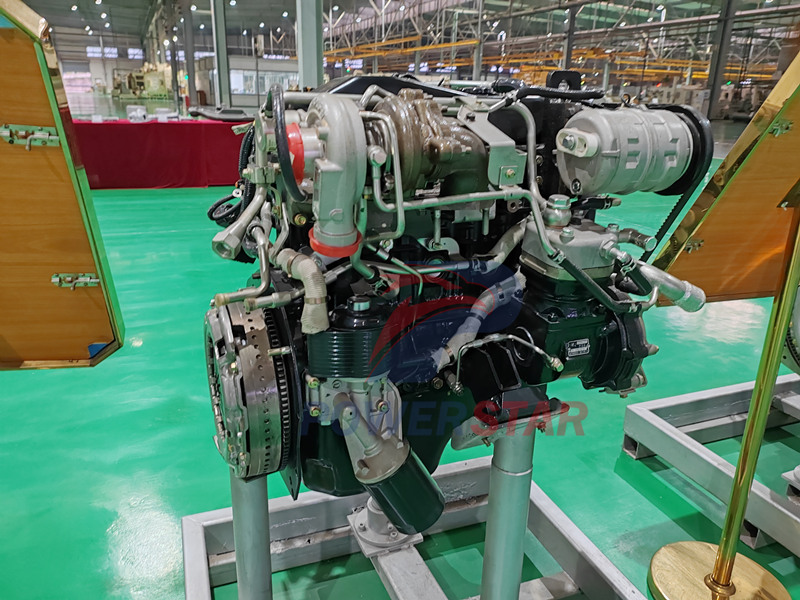

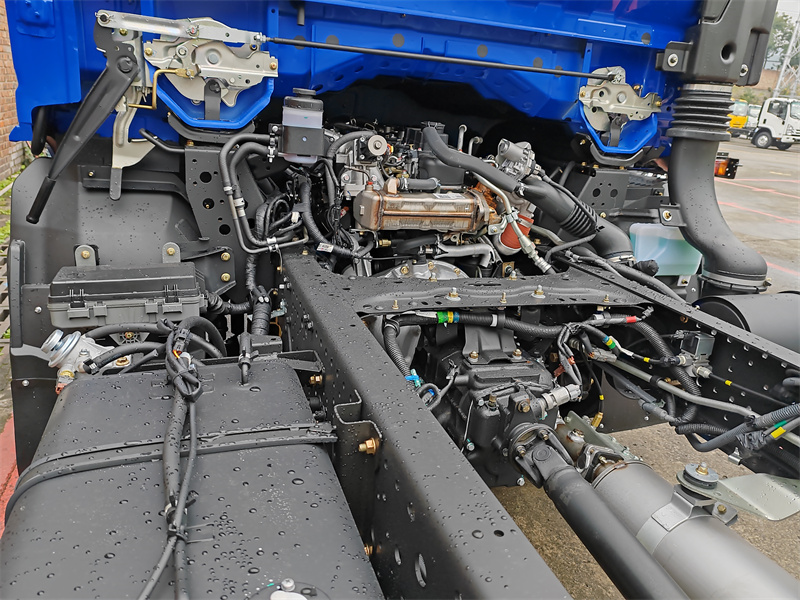

Isuzu 4KH1CN6LB engine

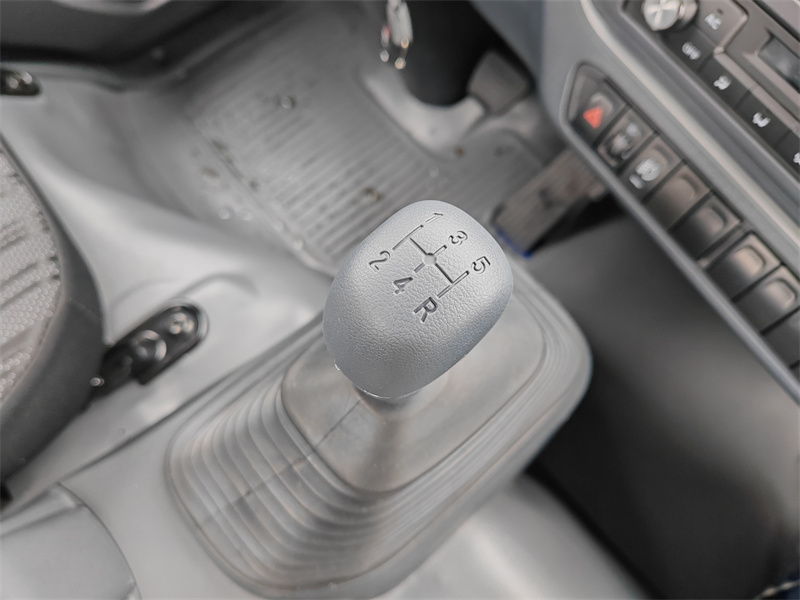

Isuzu MSB 5-speed transmission

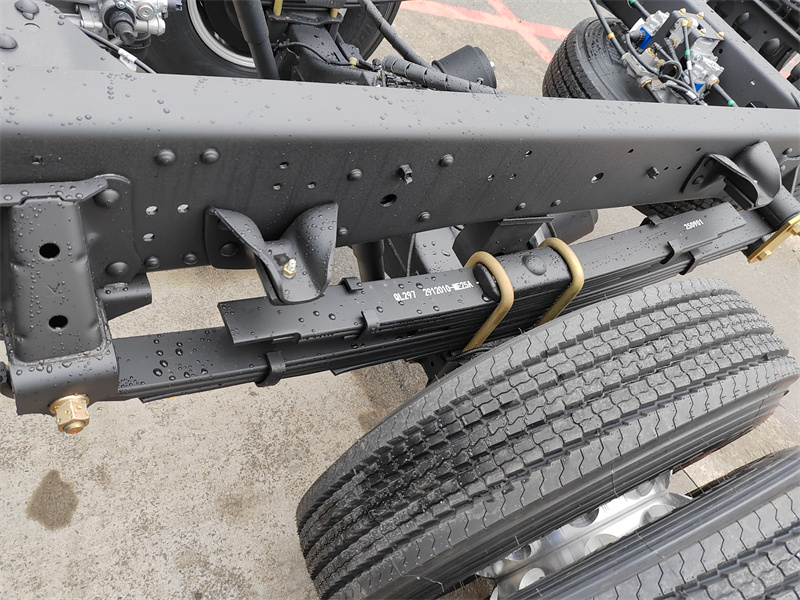

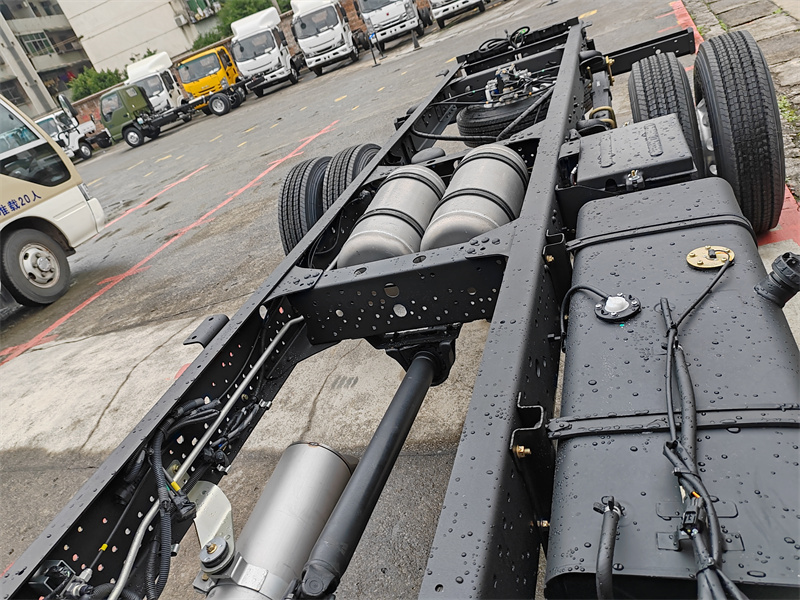

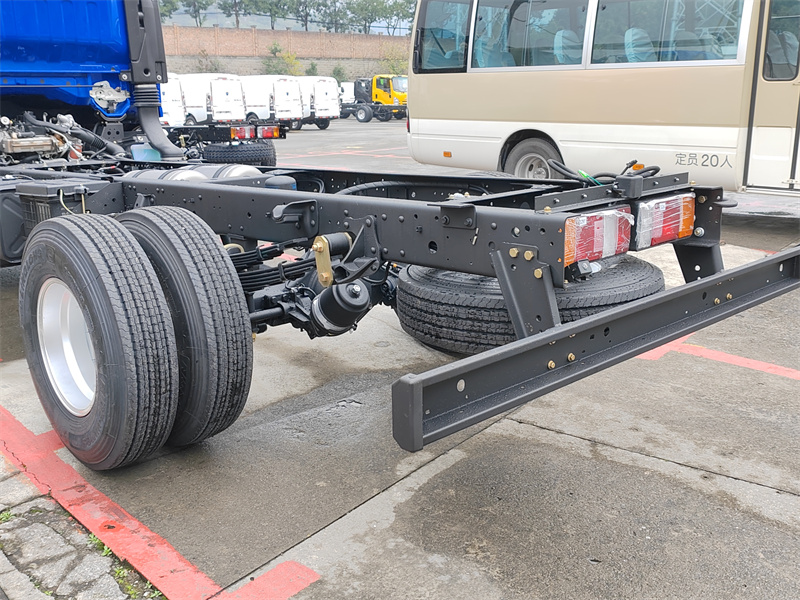

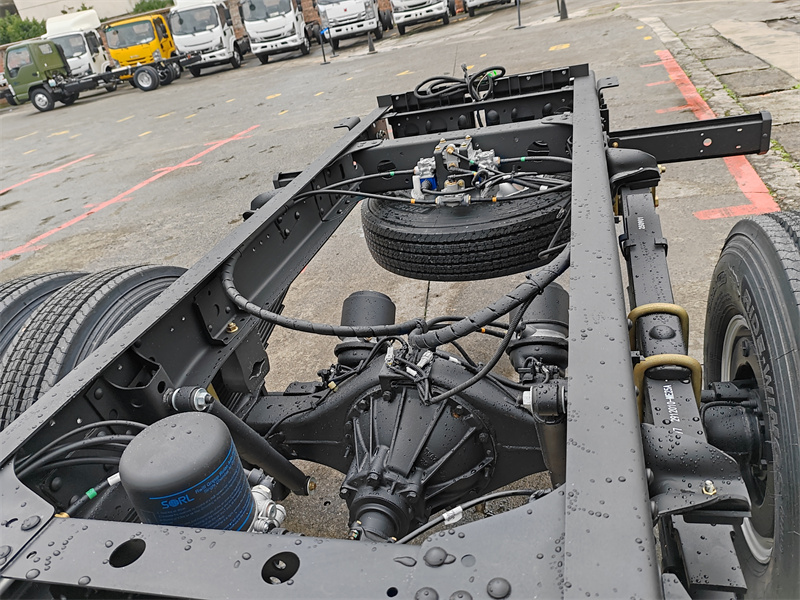

Frame
▶ Suspension and Braking System:
• Braking System: Air Brakes
o Utilizes air pressure braking, providing high braking torque, rapid response, and strong braking force. Especially suitable for frequent braking and heavy-load conditions, its safety and reliability are far superior to hydraulic brakes.
• Suspension System: Employs a combination of independent front suspension and leaf spring rear suspension.
▶ Modification Adaptability:
1. Municipal and Environmental Sanitation: Small water sprinkler trucks, road sweepers, sewage suction trucks, garbage trucks
2. Basic Freight Transport: Van trucks, small refrigerated trucks, flatbed trucks
3. Engineering Vehicles: Dump trucks, truck-mounted cranes, tow trucks, aerial work platform trucks
4. Special Services: Mobile repair vehicles, inspection vehicles, publicity vehicles, drainage vehicles, etc.
