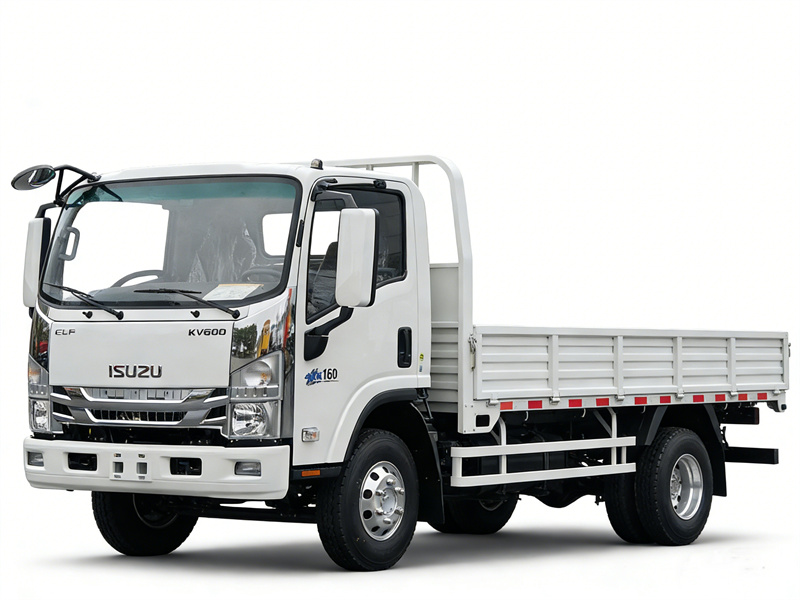

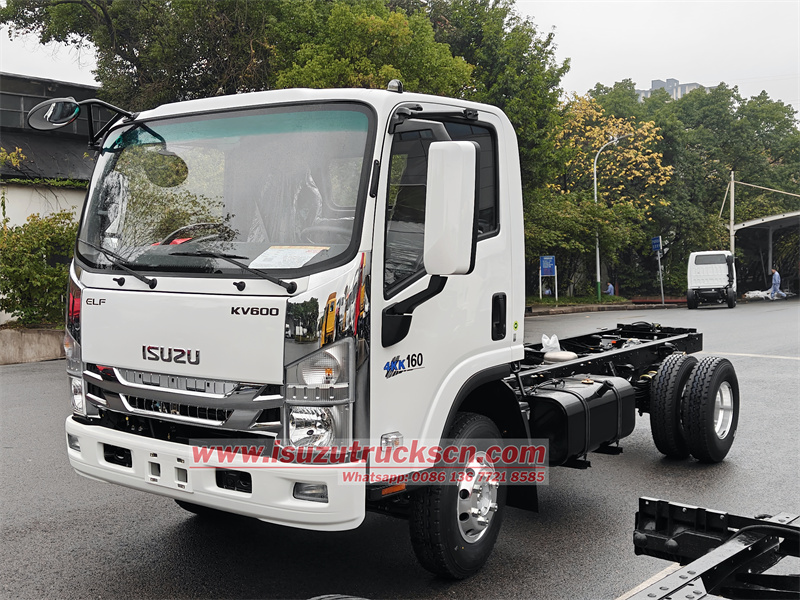

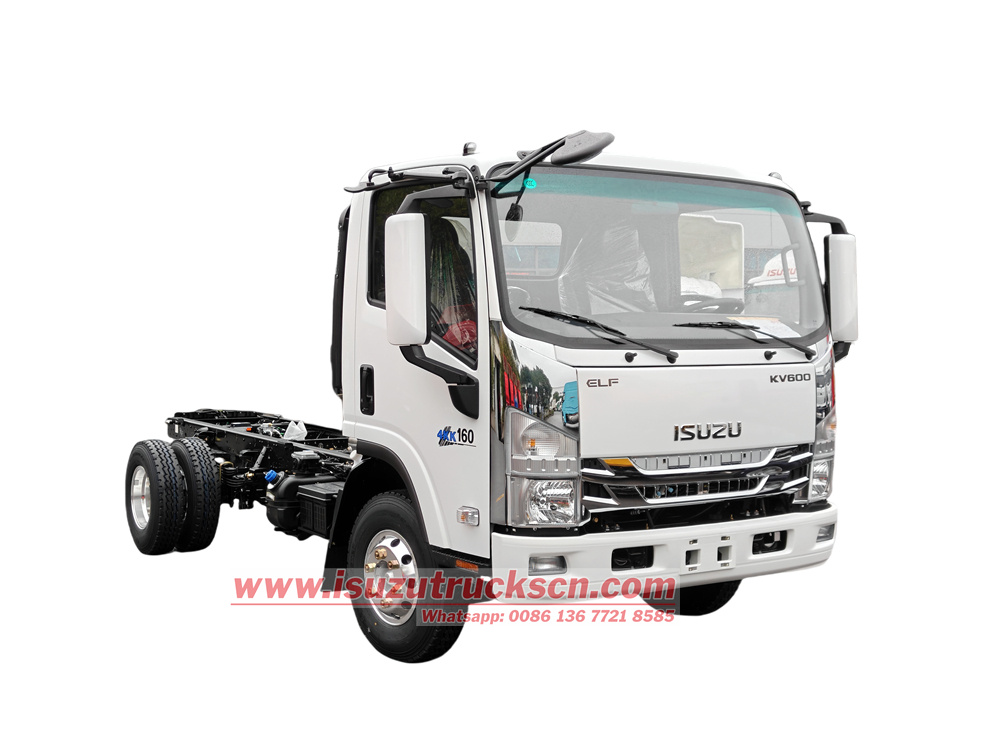

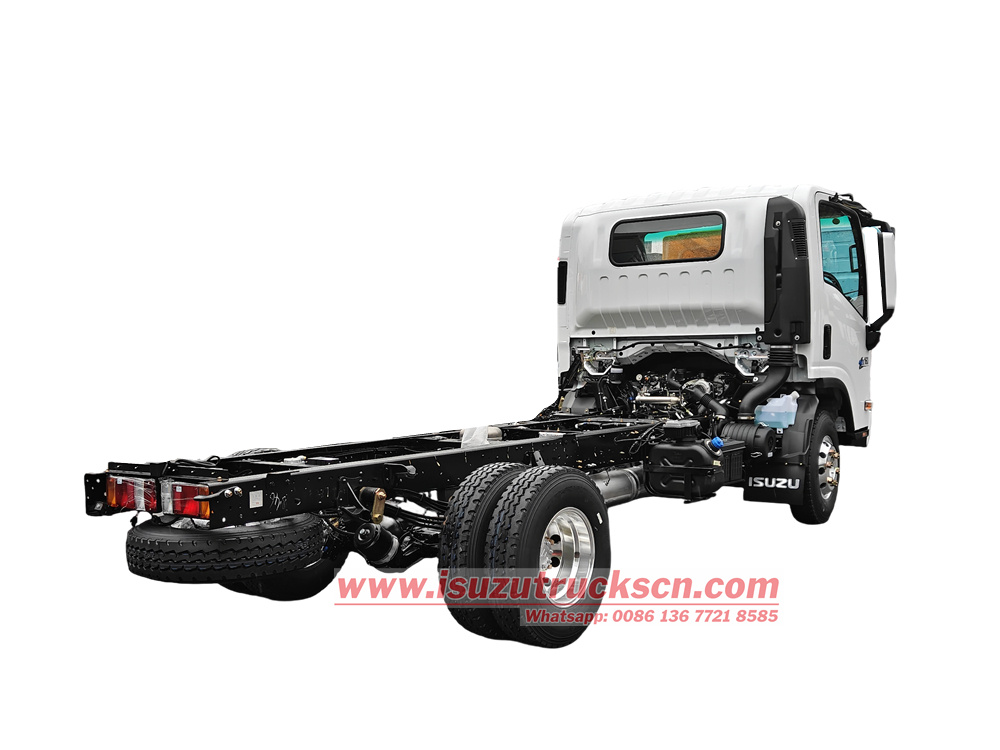

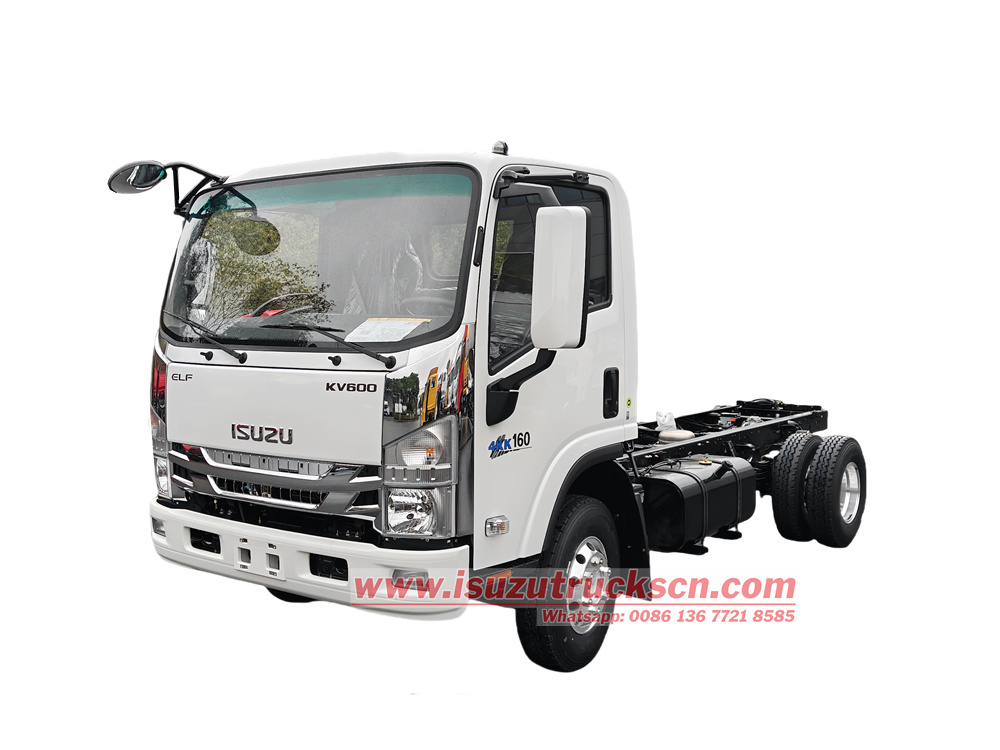

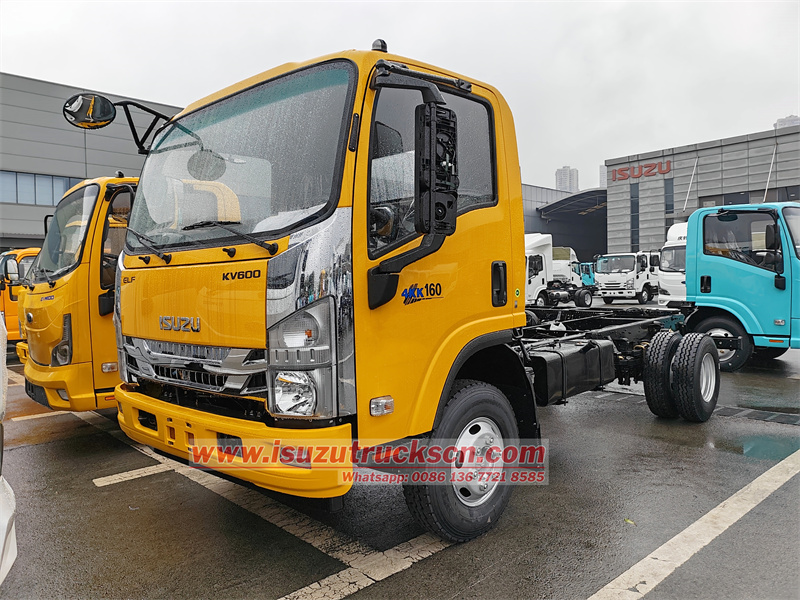

Discounted Isuzu KV600 cargo truck with AMT transmission

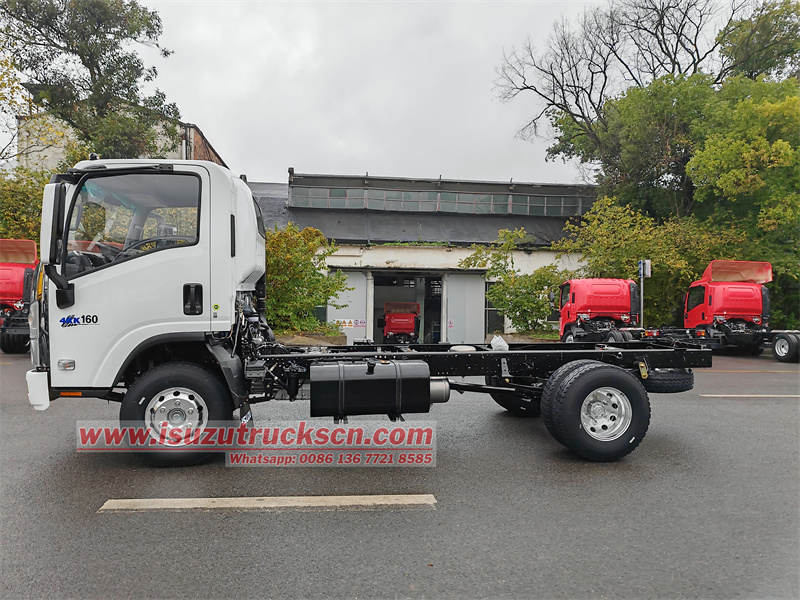

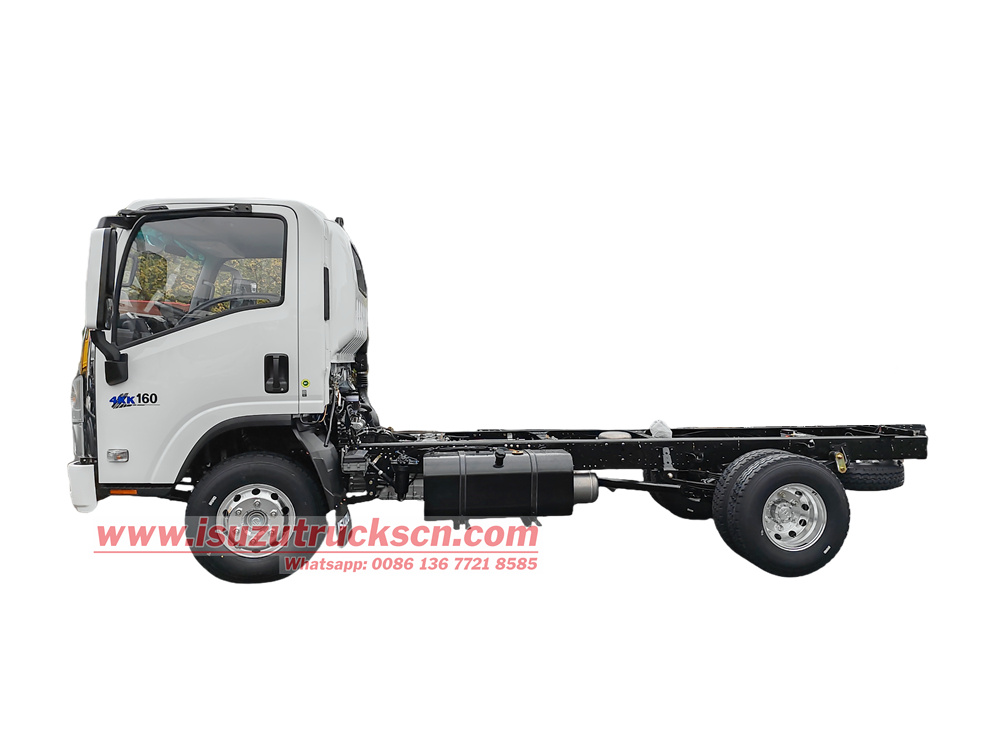

Isuzu KV600 automatic chassis, 3365mm wheelbase, 4x2 drive, 3 seats, 8-speed automatic transmission, Isuzu 4KK1N6HD 160HP engine, gross vehicle weight 8280kg, curb weight 2560kg, 7.50R16LT tires, maximum speed 105km/h.
MarketPrice:
$12000Manufacturer:
Powerstar TrucksWork capacity:
5.7 tonsDimension:
5875 × 2130 × 2350 mmCabin type:
Isuzu KV600 cab,with A/CWheelbase:
3365 mmEngine power:
160HP/118KWEngine type:
Isuzu 4KK1N6HDAxle drive:
4x2Gear box:
8AT Automatic transmissionThe Discounted Isuzu KV600 cargo truck with AMT transmission is a commercial platform designed for multi-functional modifications. With a 3365mm wheelbase and an 8-speed automatic transmission at its core, it is equipped with an ISUZU 4KK1N6HD 160HP diesel engine. Its flexible and diverse modifications make it widely applicable to vehicle modifications in logistics, sanitation, engineering, fire and rescue, and other fields.
▶ Features:
★ Isuzu KV600 type,Automatic transmission
★ Isuzu 4KK1 160HP engine
★ Payload capacity 5.7 tons
★ Suitable for modification of various special vehicles
▶ Product Parameters:
|

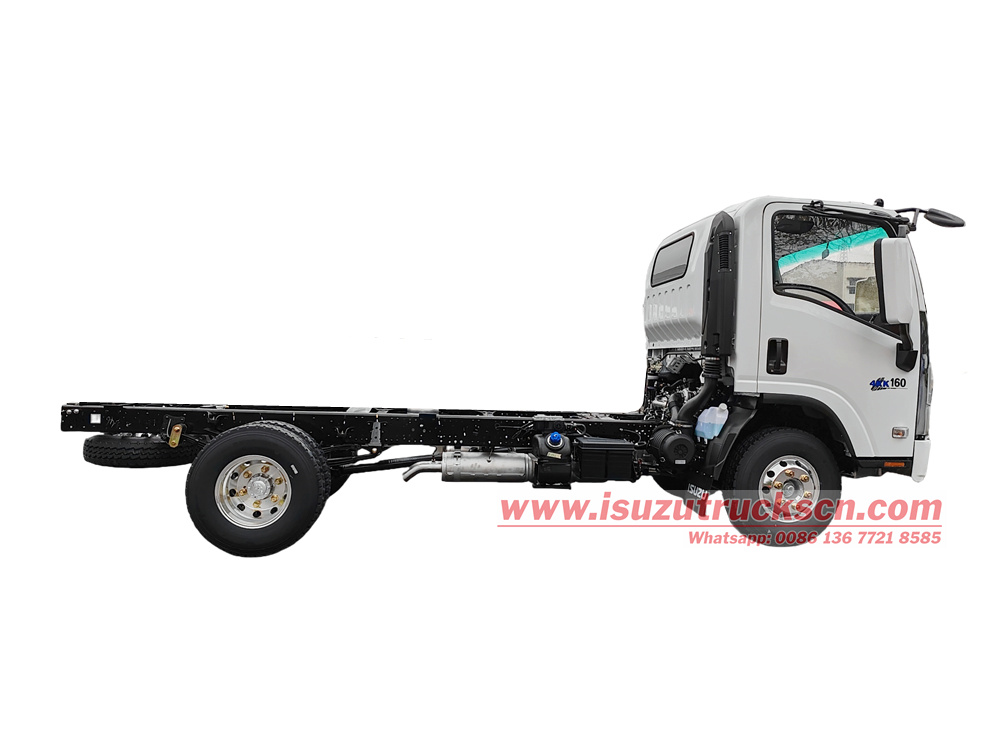

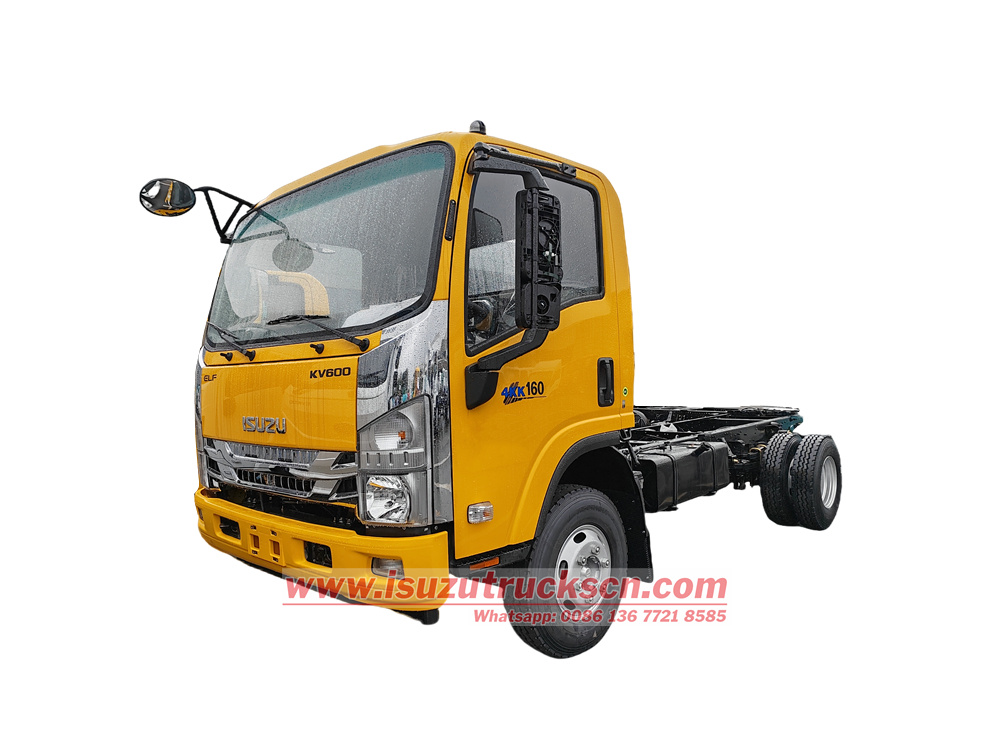

Isuzu KV600 automatic cargo truck chassis |
||
|
Vehicle Model: |
PT1080KAY |
|
|
Dimensions and Parameters |
Overall Dimension(L x W x H) |
5875×2130×2350mm |
|
Wheelbase: |
3365mm |
|
|
Front/ Rear Wheel Distance: |
1690/1655mm |
|
|
Front/Rear Suspension: |
1120/1390mm |
|
|
Rear Axle Ratio: |
5.375 |
|
|
Approach/Departure angle: |
23/19° |
|
|
Leaf Spring: |
3/3+3 |
|
|
Weights and Capacities |
GVW: |
8280kg |
|
Curb Weight: |
2560kg |
|
|
Payload: |
5720kg |
|
|
Axle Loads: |
3000/5280kg |
|
|
Engine |
Engine Model: |
4KK1N6HD |
|
Max output: |
118Kw/160hp |
|
|
Torque |
435N·m |
|
|
Displacement: |
2499ml |
|
|
Transmission |
Transmission: |
8AT Automatic |
|
Cab |
Number of Seats: |
3 |
|
Brake |
Air brake |
|
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
7.50R16LT 16PR |
|
|
Max speed |
105km/h |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
150L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Cab Tilting Mechanism |
|
|
7 |
Free Maintenance Battery |
|

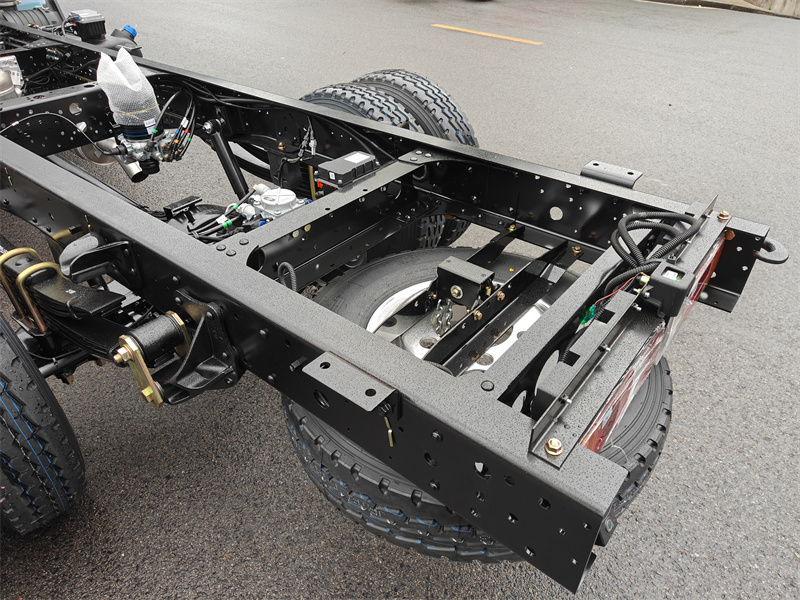

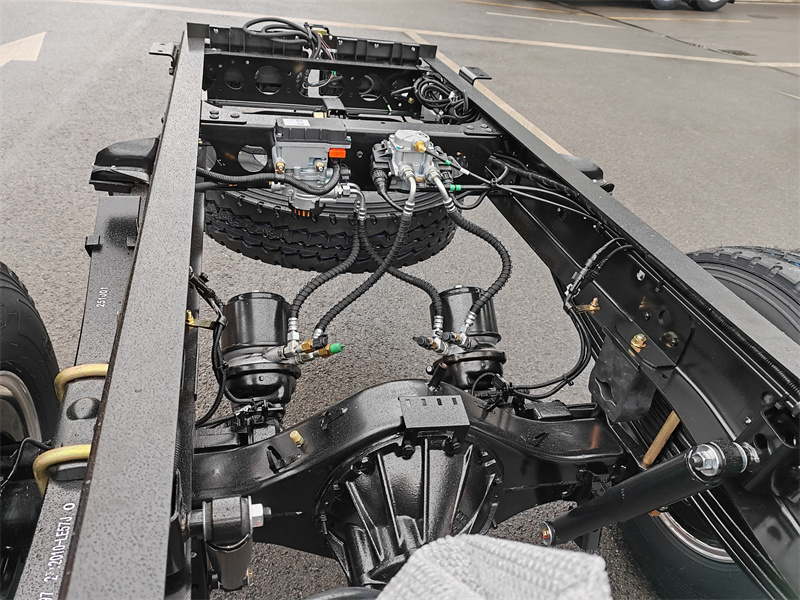

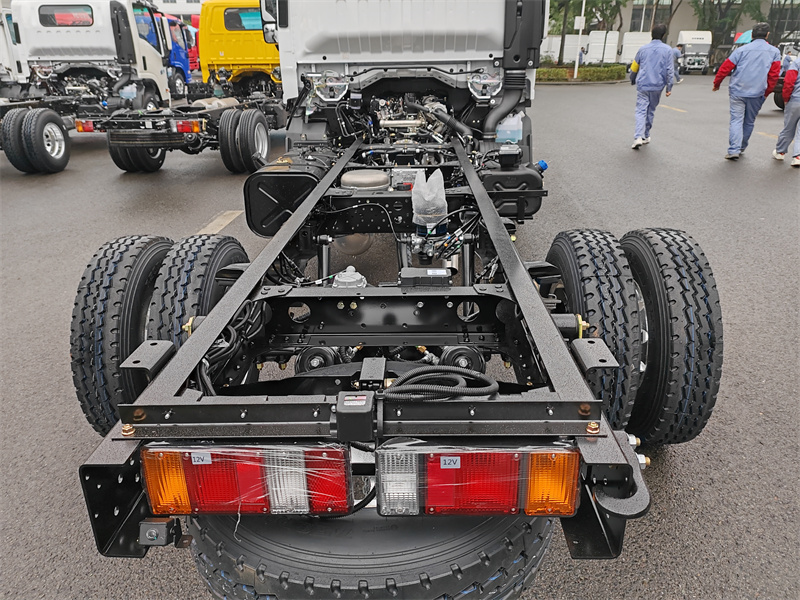

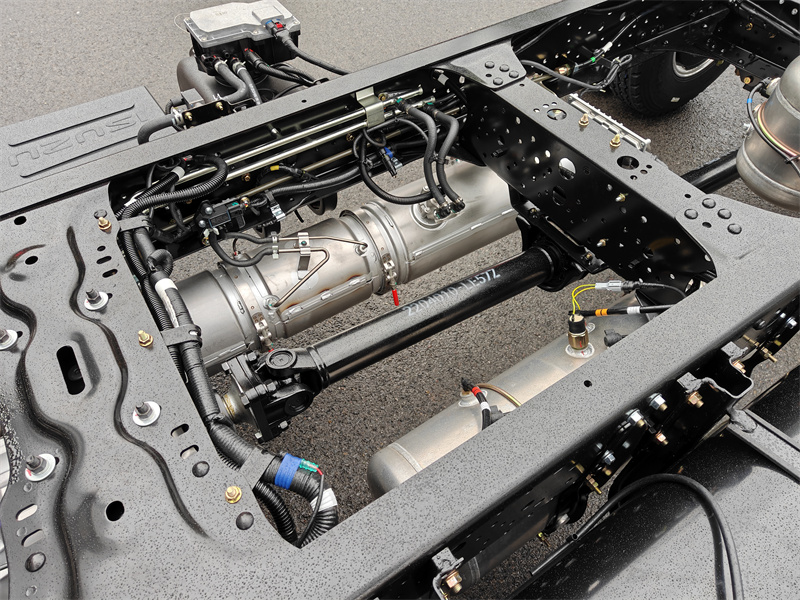

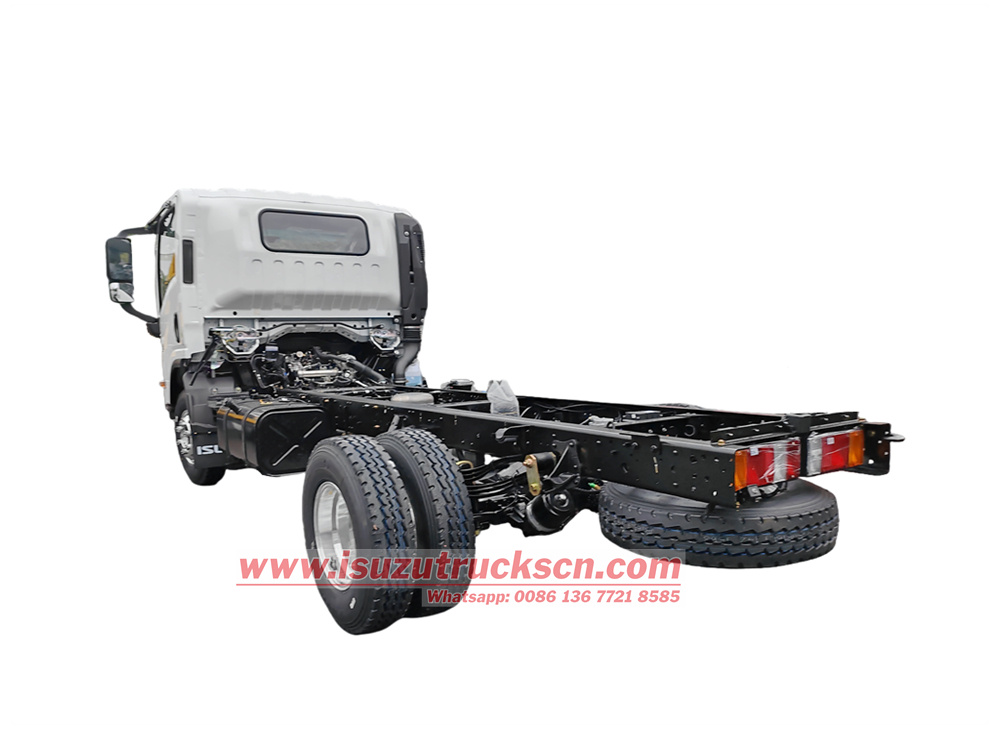

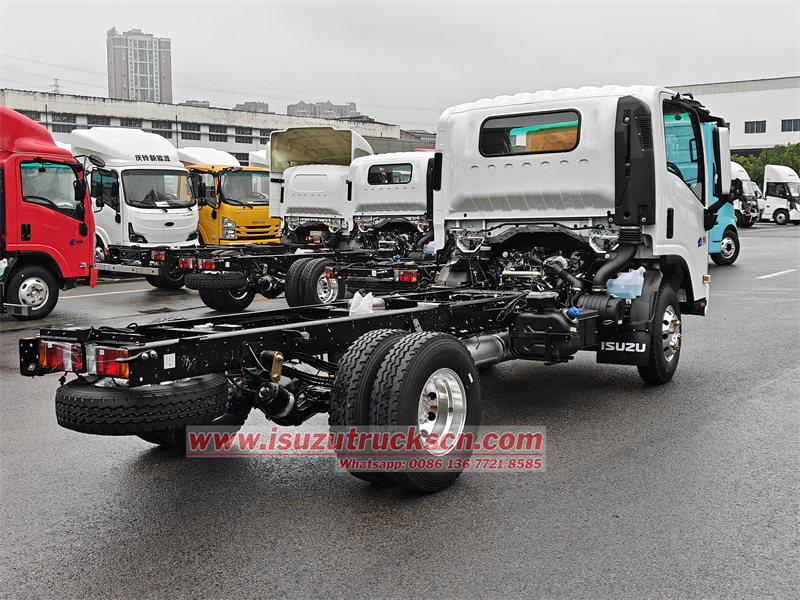

▶ Chassis System:
• Drive Type: 4x2 Rear-wheel Drive
• Wheelbase: 3365mm (Optimized design for both driving stability and modification potential)
• Seating Capacity: 3-seat standard cab
• Gross Vehicle Weight: 8280kg
• Curb Weight: 2560kg
• Payload Potential: Approximately 5720kg (Provides ample load margin for specialized equipment installation)
• Fuel Tank: 150L

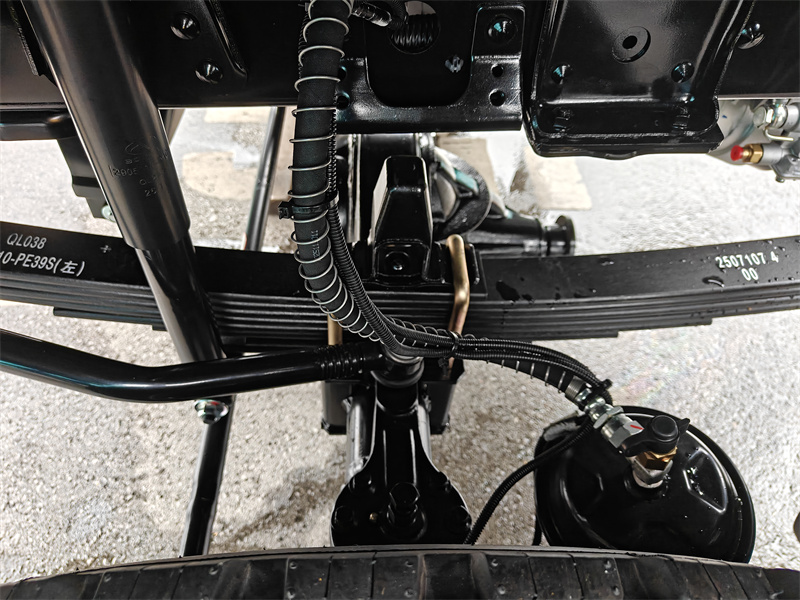

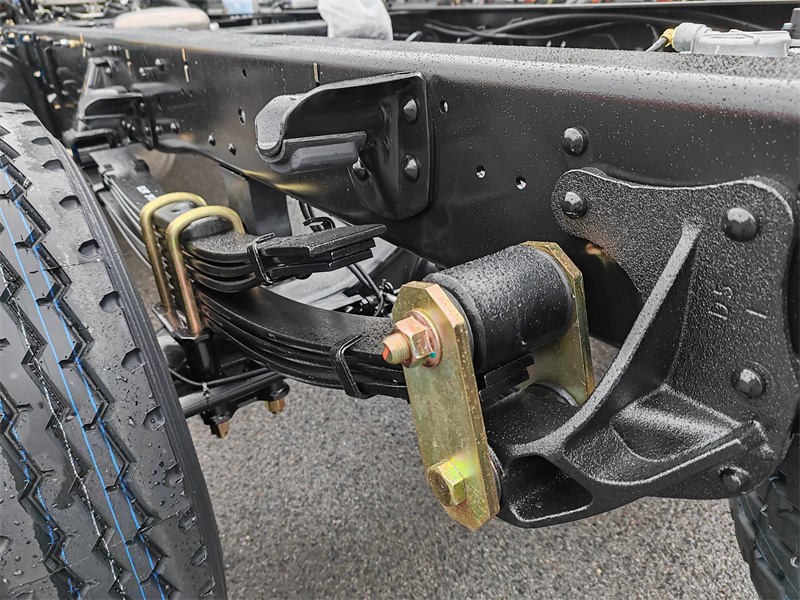

• Leaf Springs: 3/3+3
▶ Powertrain System:

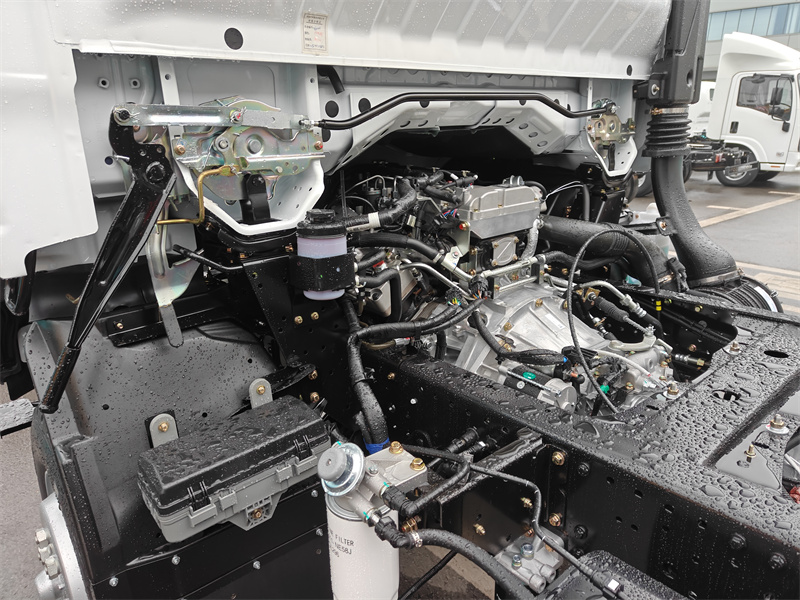

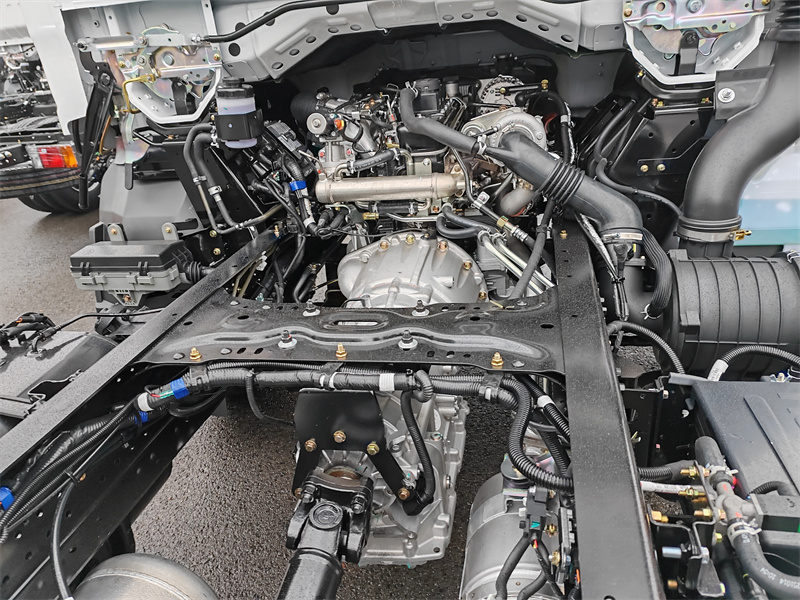

• Engine Model: Isuzu 4KK1N6HD Diesel Engine
• Maximum Power: 160 hp (118 kW), Inline 4-cylinder, High-Pressure Common Rail Fuel System, 2.5L Displacement

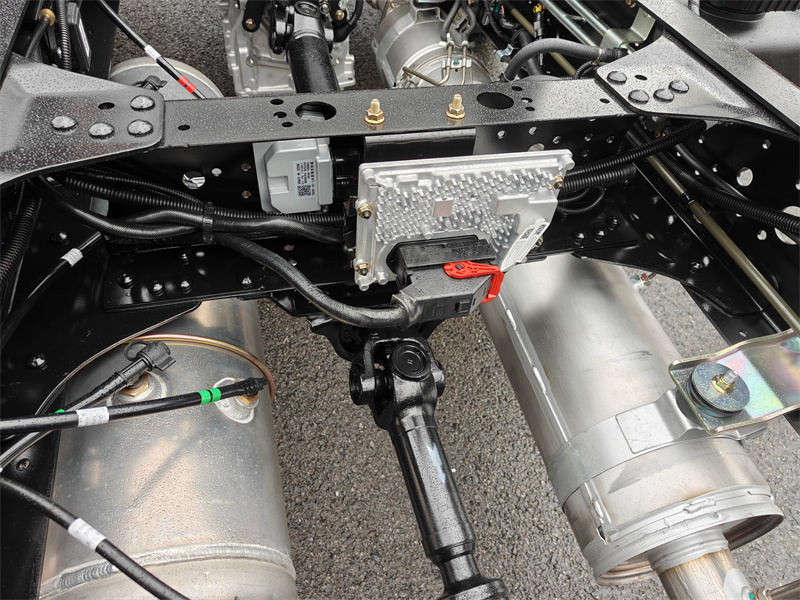

• Transmission: 8-speed Automatic Transmission
• Max Speed: 105 km/h

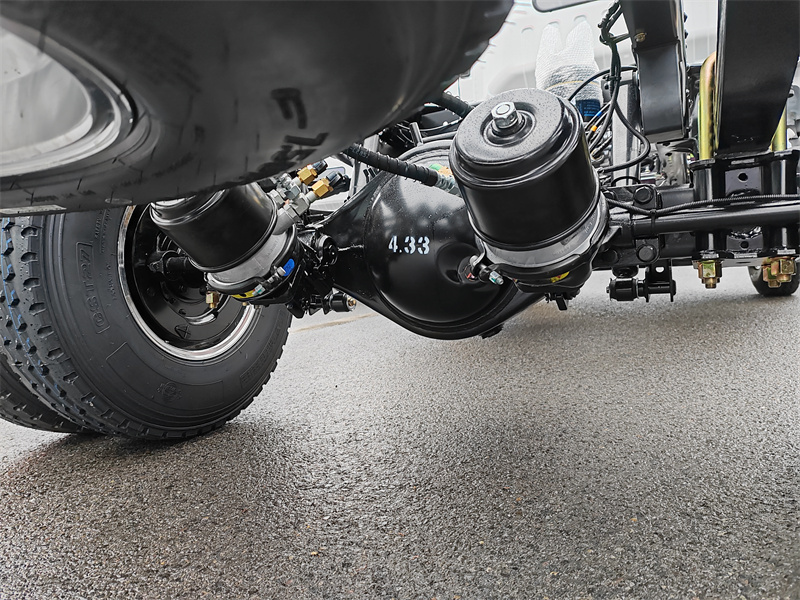

• Gear Ratio: 4.33
Tires and Brakes

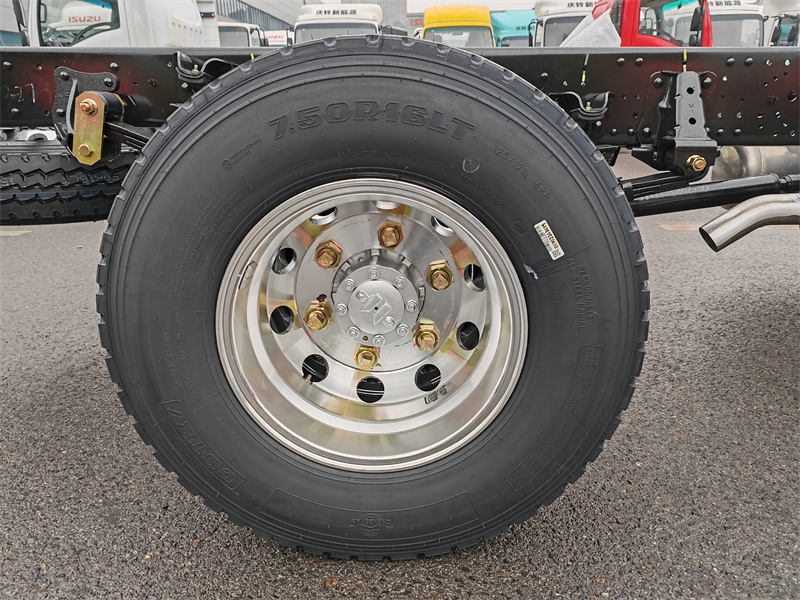

• 7.50R16LT tires: Suitable for heavy-duty applications.
• Braking system: Standard ABS+EBD, front disc and rear drum brakes, braking distance reduced by 15% compared to similar models.
▶ Core Advantages:
1. Excellent Adaptability to Modifications
• Large Load Capacity: Over 5.7 tons of effective load capacity provides ample space for the installation of various specialized equipment.
• Standardized Chassis Structure: Reserved interfaces for various modifications, simplifying the special vehicle modification process.
• Optimized Wheelbase: A suitable 3365mm wheelbase provides ample space for various light truck modifications.
2. Power and Handling Advantages

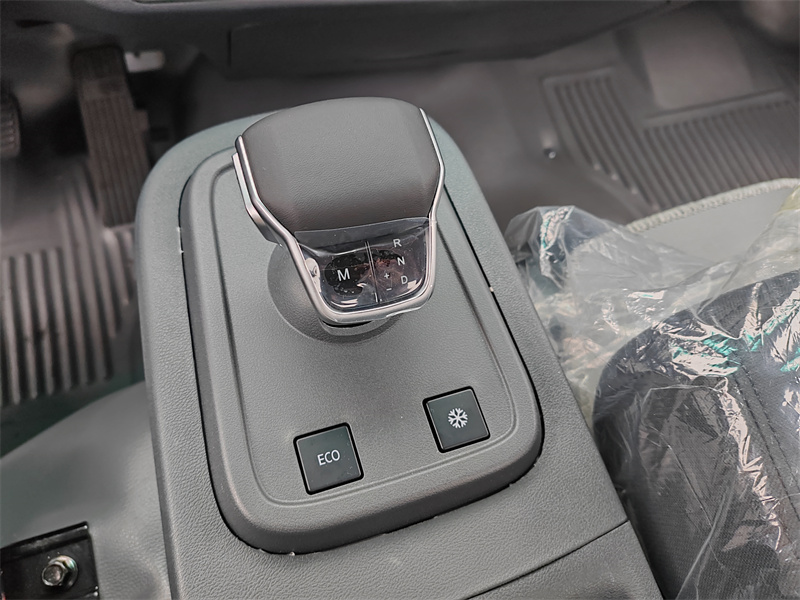

• 8AT Automatic Transmission: Smooth shifting and easy operation, especially suitable for frequent start-stop conditions in urban environments.
• Strong Power Output: The 160hp 4KK1 series engine provides ample torque to meet the needs of heavy-load starts and hill starts.
• Reasonable Speed Design: A top speed of 105km/h balances efficiency and safety.
▶ Applicable Modified Vehicles:
Logistics & Transportation
• Van Trucks: Urban delivery, cold chain transportation
• Flatbed Trucks: Building materials, equipment transportation
Municipal Engineering

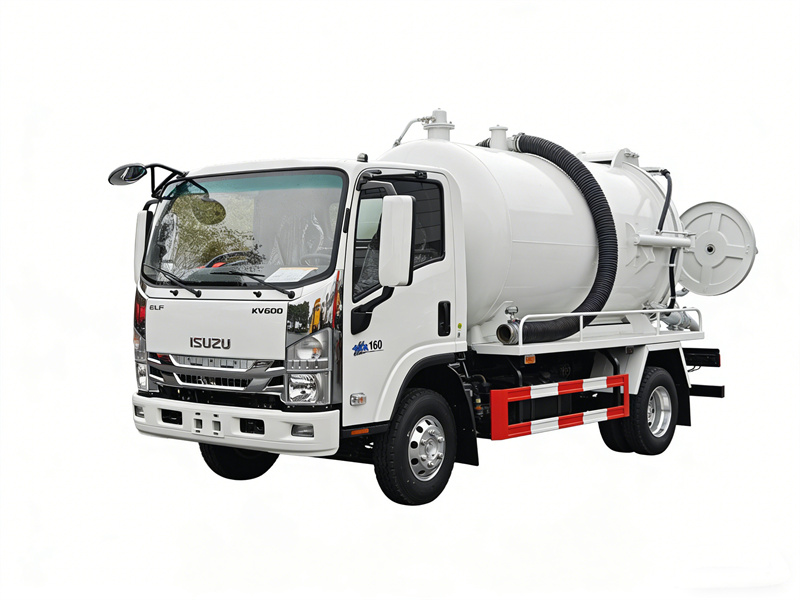

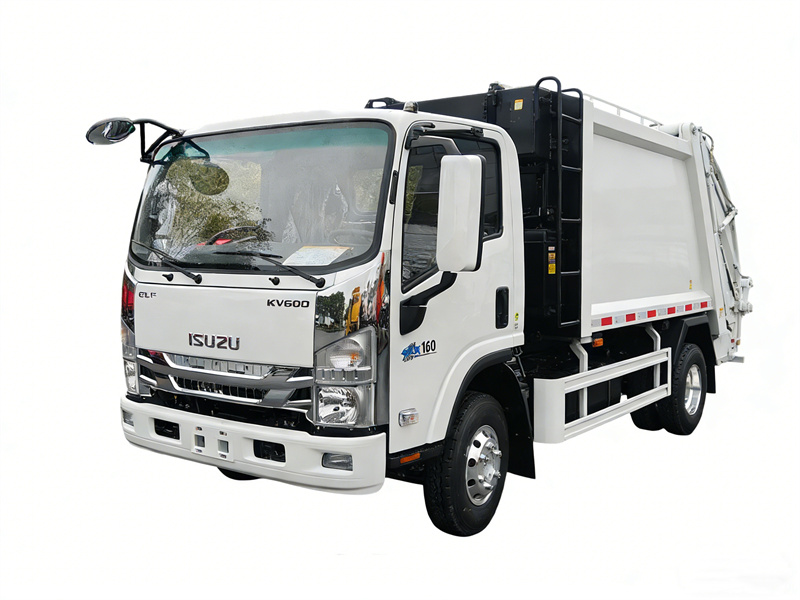

• Sanitation Vehicles: Garbage compactors, water trucks, sewage suction trucks

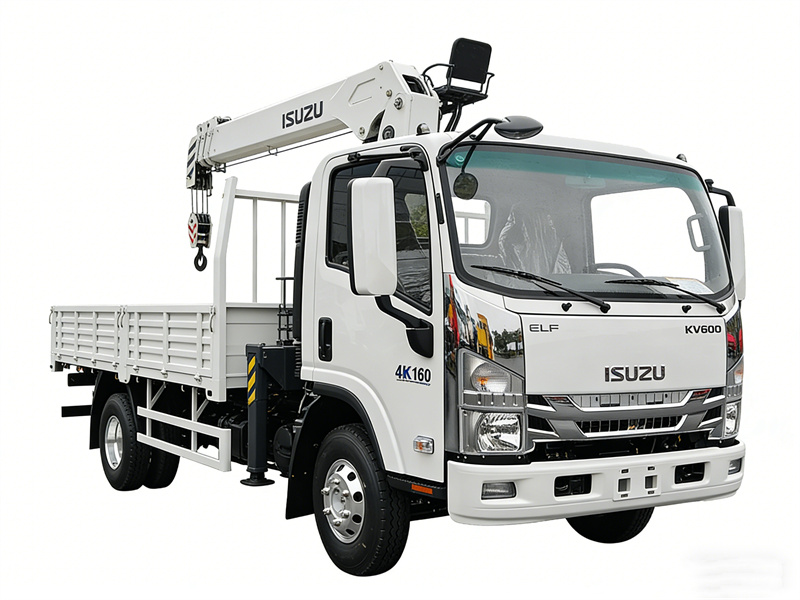

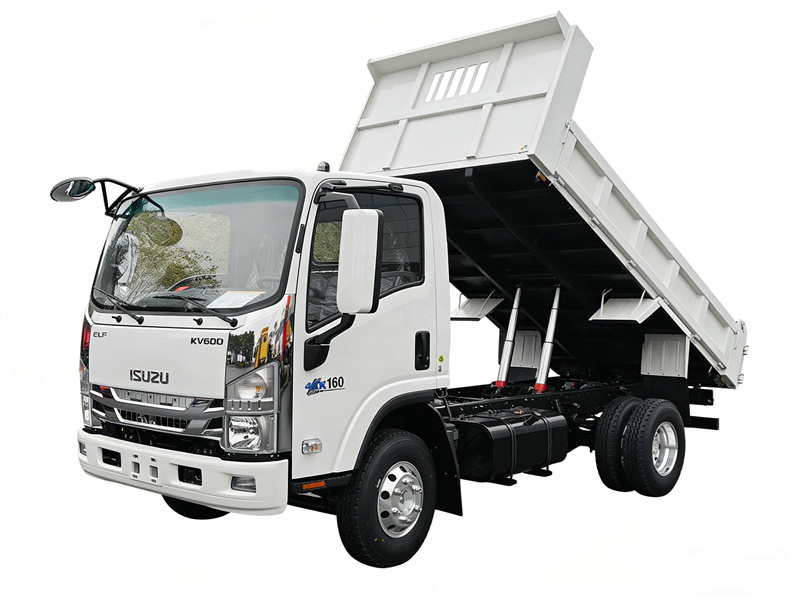

• Engineering Vehicles: Aerial work platforms under 16 meters, dump trucks, truck-mounted cranes
Service & Support
• Roadside Assistance Vehicles: Roadside assistance for disabled vehicles
• Mobile Service Vehicles: Equipment repair and testing vehicles
• Fire Trucks: Firefighting and rescue vehicles for municipal fire departments
