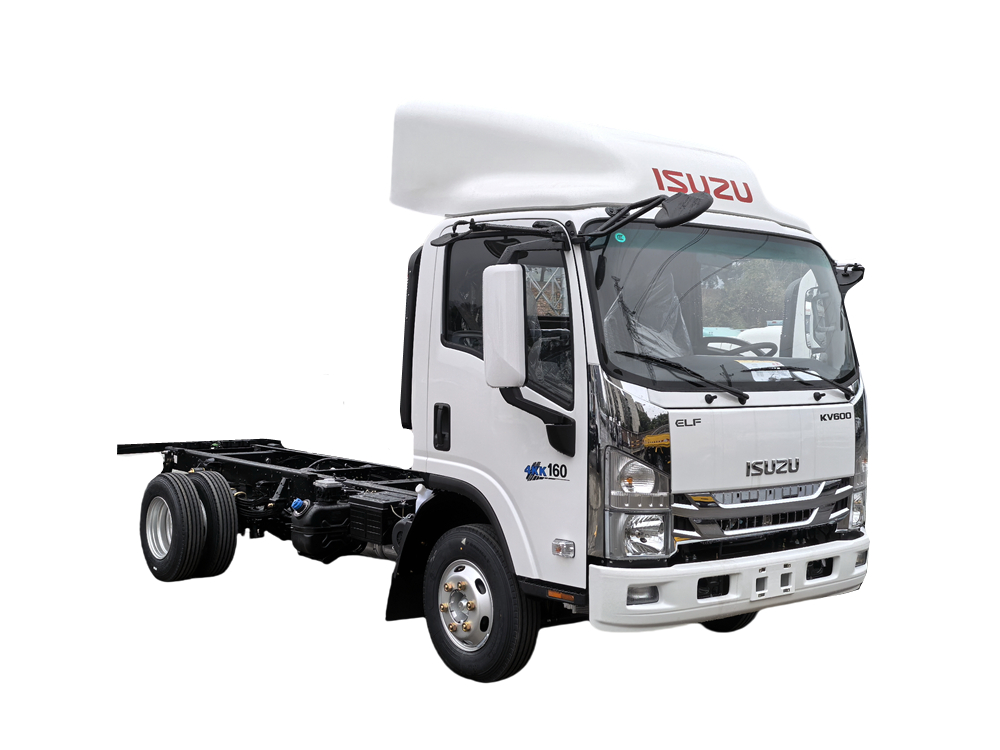

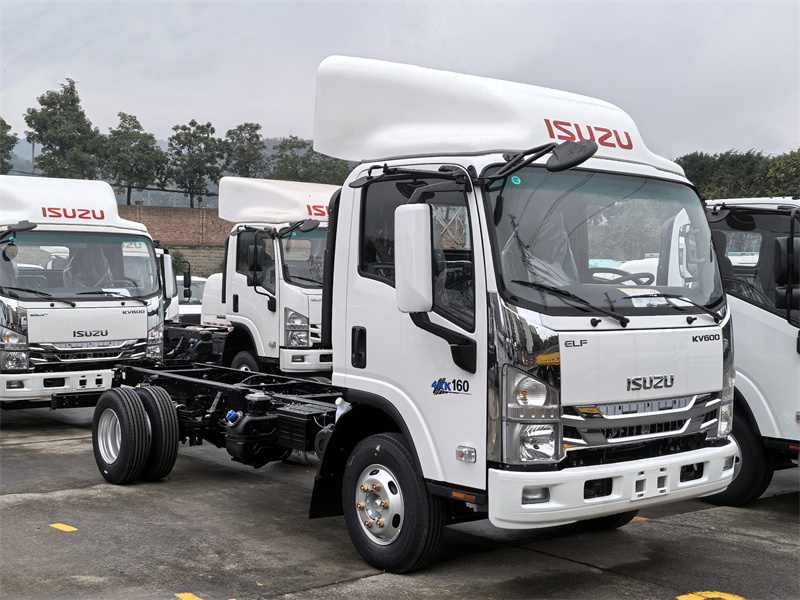

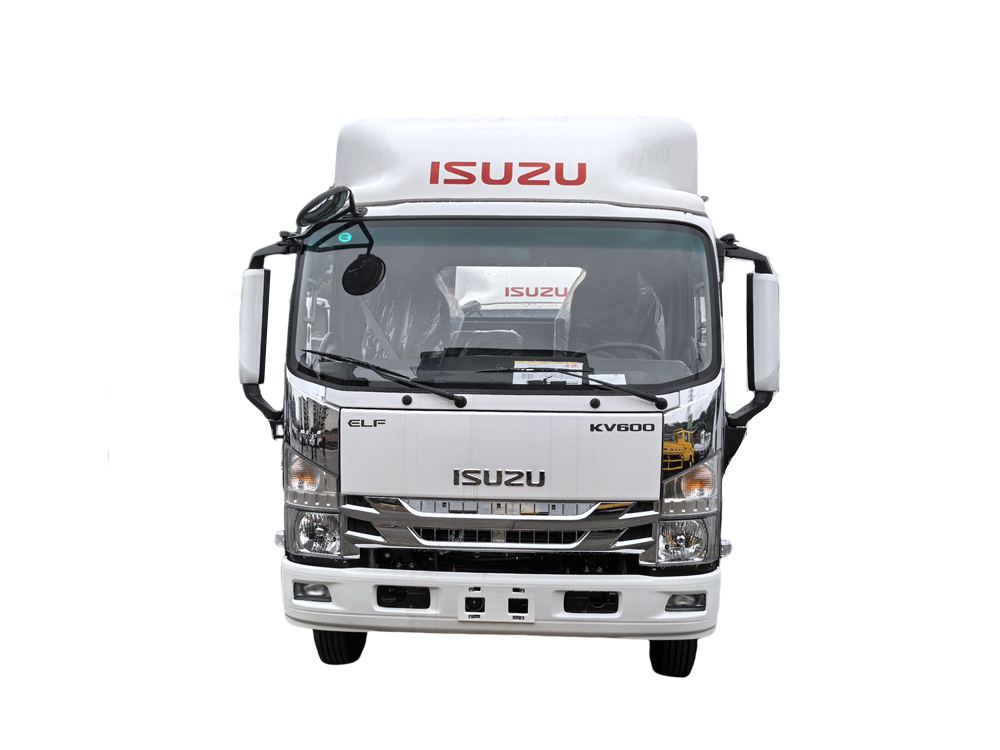

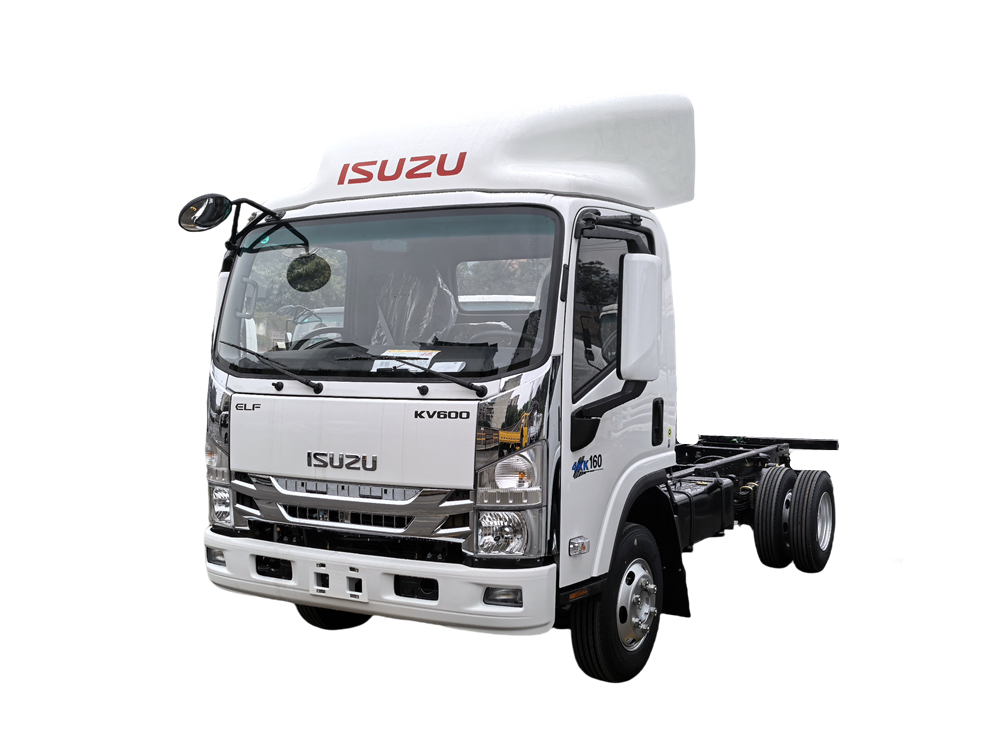

The Isuzu KV600 chassis features a 3365mm wheelbase and is equipped with an Isuzu 4KK1N6HD 160hp engine, a MYY 6-speed transmission, chassis dimensions of 5995×2200×2400mm, a gross vehicle weight of 4495kg, a curb weight of 2565kg, and a maximum speed of 115km/h. It is suitable for conversion into light trucks.
Manufacturer:
Powerstar TrucksWork capacity:
1.8 tonsDimension:
5995 × 2200 × 2400 mmCabin type:
Isuzu KV600 cab,with A/CWheelbase:
3365 mmEngine power:
160HP/118KWEngine type:
Isuzu 4KK1N6HDAxle drive:
4x2Gear box:
Isuzu MYY-6Z transmission,manual
▶ Features:
★ Isuzu KV600 type,perfect performance
★ Isuzu 4KK1 160HP engine, MYY 6-speed gearbox,super powerful;
★ Payload capacity 1.8 tons
★ Suitable for modification of various special vehicles
▶ Product Parameters:
|
Vehicle Model: |
QL1043MVHAY |
|
|
Dimensions and Parameters |
Overall Dimension(L x W x H) |
5995 × 2200 × 2400 mm |
|
Wheelbase: |
3365mm |
|
|
Front/ Rear Wheel Distance: |
1685/1655mm |
|
|
Front/Rear Suspension: |
1120/1510mm |
|
|
Rear Axle Ratio: |
5.375 |
|
|
Approach/Departure angle: |
19/16° |
|
|
Weights and Capacities |
GVW: |
4495kg |
|
Curb Weight: |
2565kg |
|
|
Payload: |
1735kg |
|
|
Axle Loads: |
1750/2745kg |
|
|
Engine |
Engine Model: |
4KK1N6HD |
|
Max output: |
118Kw/160hp |
|
|
Torque |
435N·m |
|
|
Displacement: |
2499ml |
|
|
Transmission |
Transmission: |
ISUZU MYY 6Z-speed,manual |
|
Cab |
Number of Seats: |
3 |
|
Brake |
Air brake |
|
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
7.00R16LT 8PR |
|
|
Max speed |
115km/h |
|
|

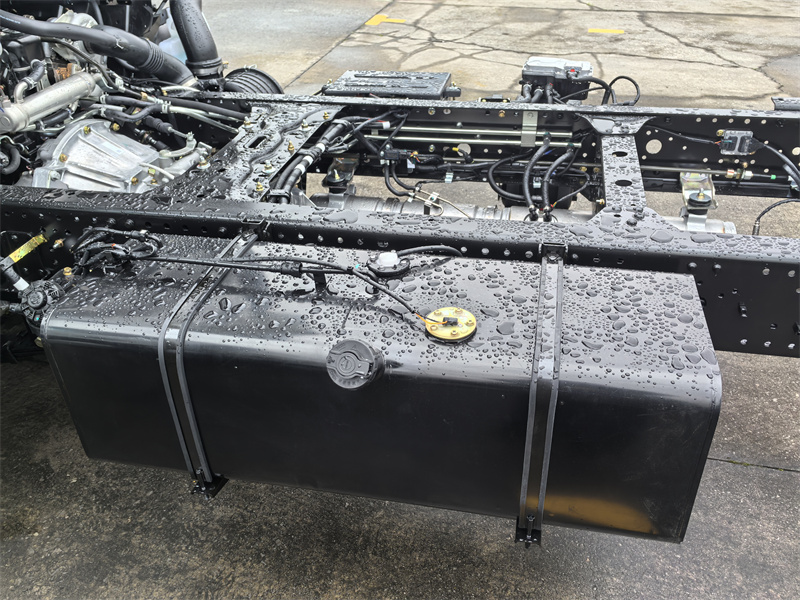

Fuel Tank |
Number: |
1 |
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Cab Tilting Mechanism |
|
|
7 |
Free Maintenance Battery |
|
▶ Chassis System:

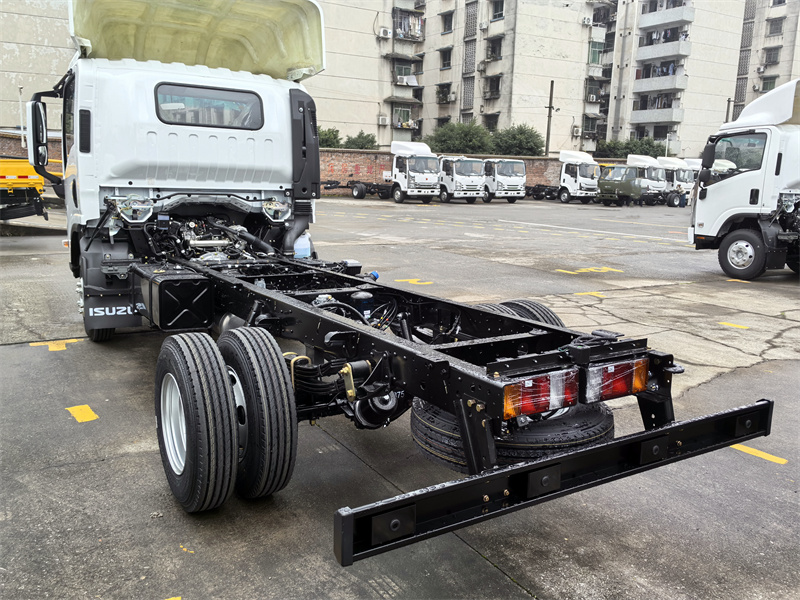

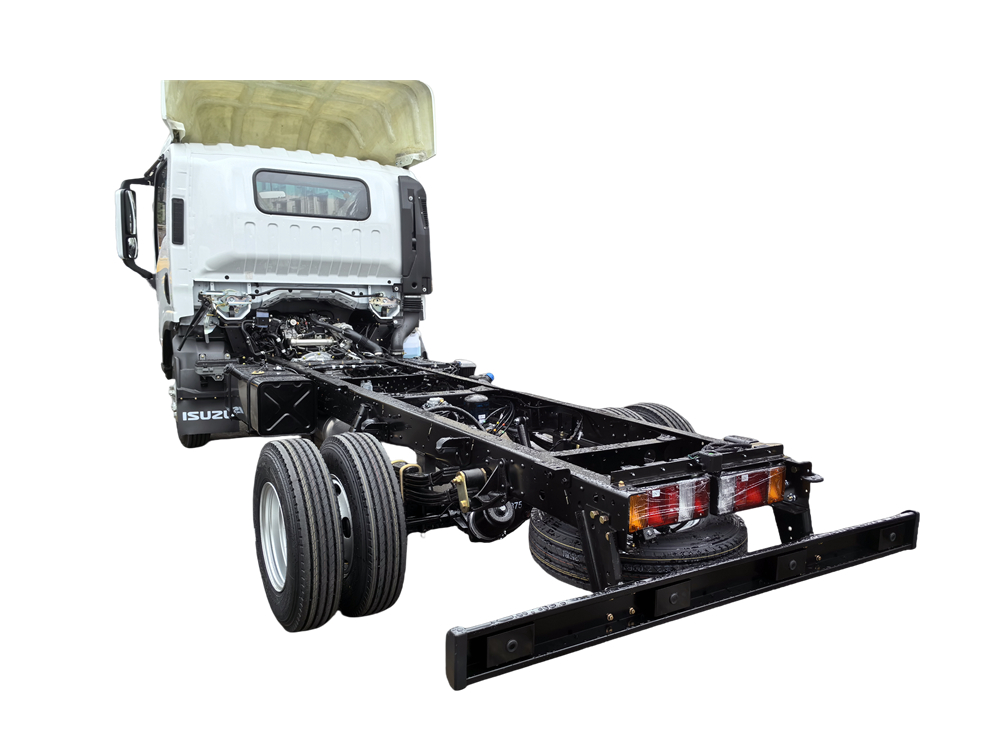

◆ Positioning: Light truck chassis, primarily targeting urban logistics, short-haul transportation, and special-purpose vehicle modification markets
◆ Wheelbase: 3365mm
◆ Chassis Dimensions: 5995×2200×2400mm
◆ Front/Rear Overhang: 1120/1510mm (Optimized rear axle load distribution)
◆ Weight Parameters:
• Gross Vehicle Weight: 4495kg
• Curb Weight: 2565kg
• Rated Payload: 1735kg (Meets mainstream urban delivery needs)
◆ Maximum Speed: 115km/h (High-efficiency transportation, suitable for intercity expressway scenarios)

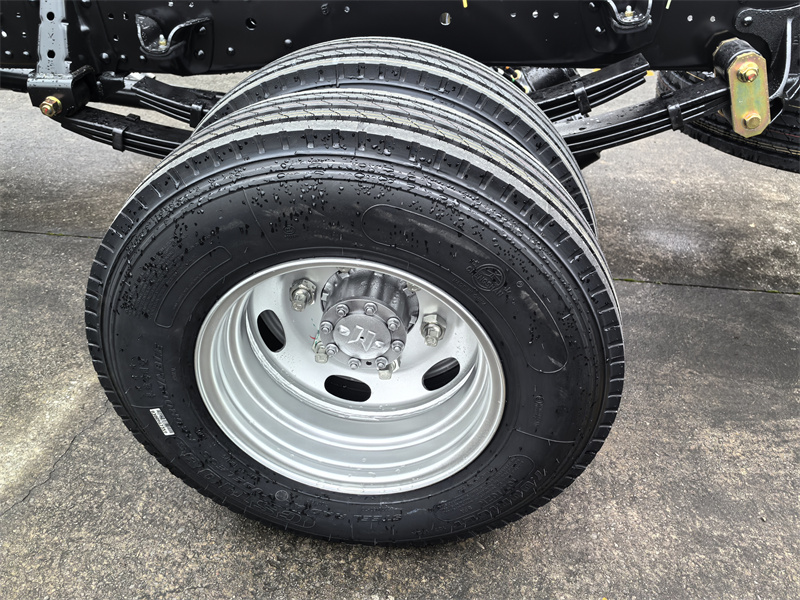

◆ Tires: 7.00R16LT, 6+1
▶ Powertrain System:
◆ Engine: Isuzu 4KK1N6HD
• Displacement: 2.499L (Inline four-cylinder turbocharged intercooled diesel engine)
• Power: 160 hp (118 kW)
• Torque: 435 N·m/1500-2200 rpm
• Technical Highlights:
Employs a high-pressure common rail fuel injection system, providing strong low-speed torque output, suitable for frequent start-stop conditions.Excellent fuel economy (combined fuel consumption 10.44 L/100km).
◆ Transmission: MYY 6-speed manual transmission, with a transmission efficiency of up to 98%, light shifting feel, and proven reliability in the market.
▶ Axles and Braking System:
1. Axles: Front and rear axle load capacities 1750/2745kg
* Front axle: I-beam non-independent suspension (high load capacity, easy maintenance)

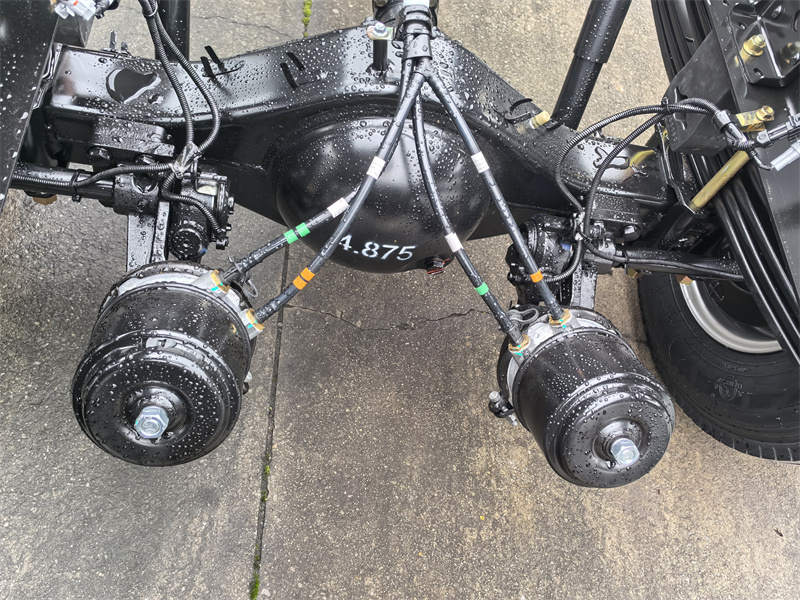

* Rear axle: Single-stage reduction axle (gear ratio 4.875, balancing climbing and high-speed performance)

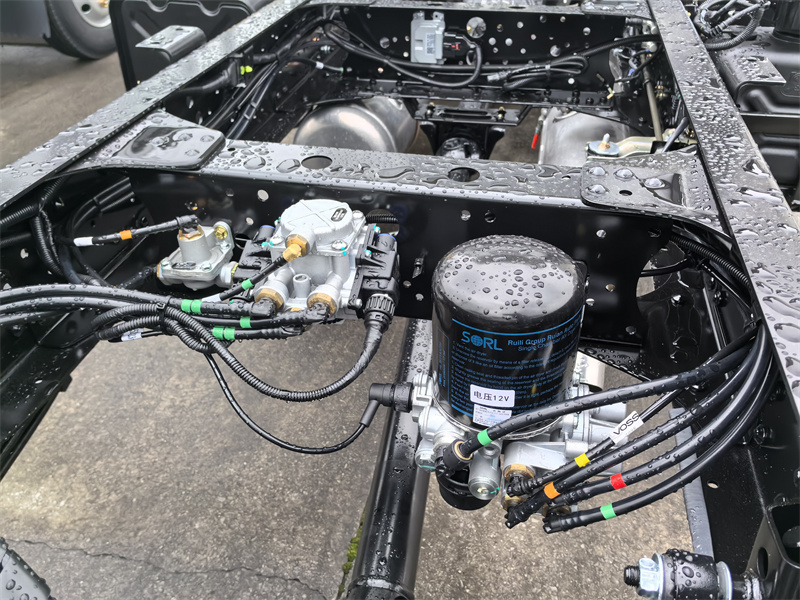

2. Braking System: Front disc and rear drum brakes, standard ABS anti-lock braking system

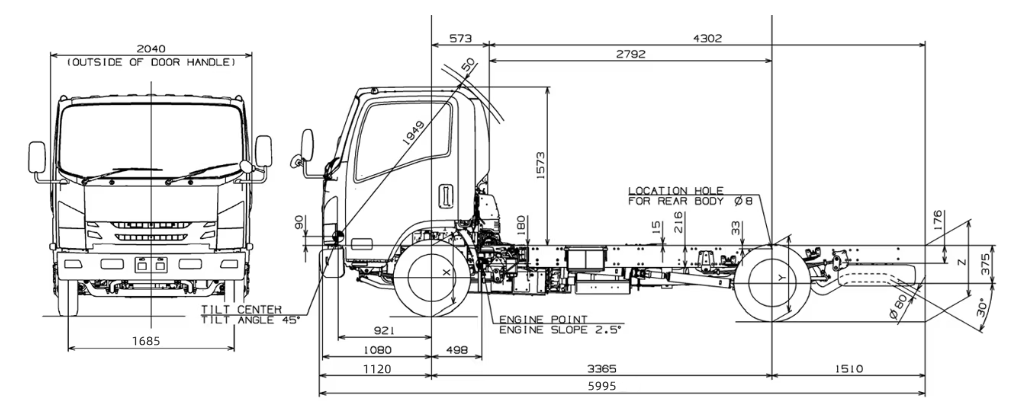

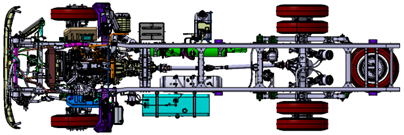

Technical drawing of Isuzu KV series light truck chassis
 |
 |

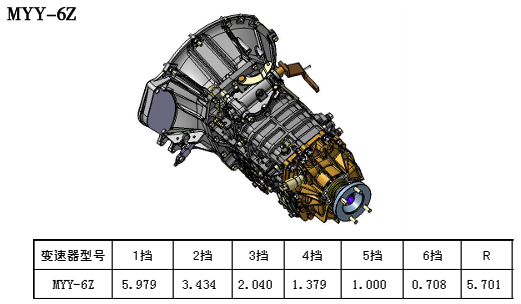

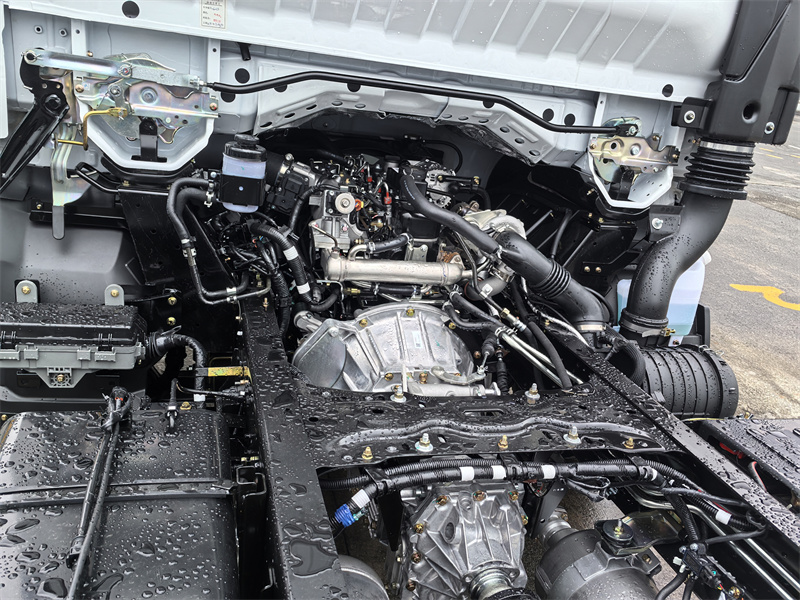

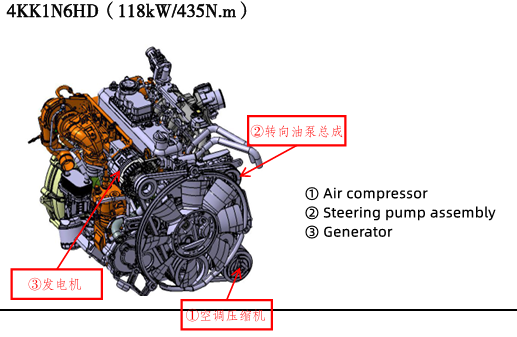

ISUZU 4KK1N6HD engine ISUZU MYY-6Z transmission
 |
 |

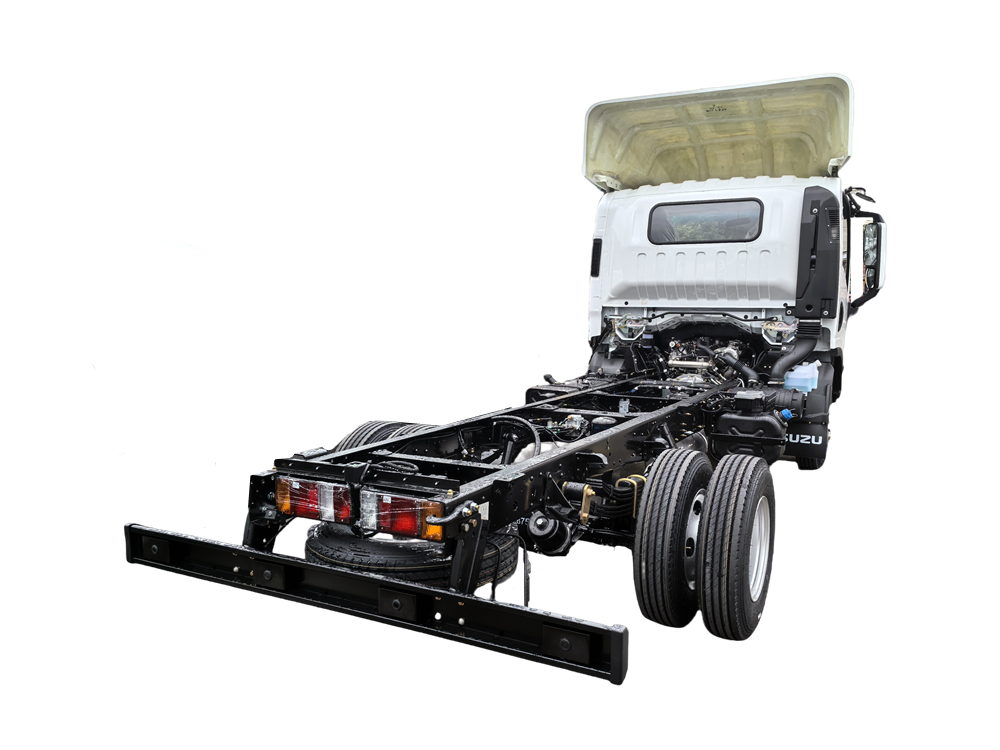

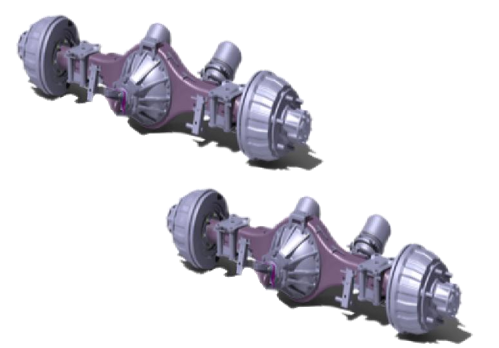

Drive axle：speed ratio 4.33、4.875、5.571 Frame
▶ Chassis Design Advantages:
1. Lightweight Structure: High-strength steel frame
2. Modification Adaptability:

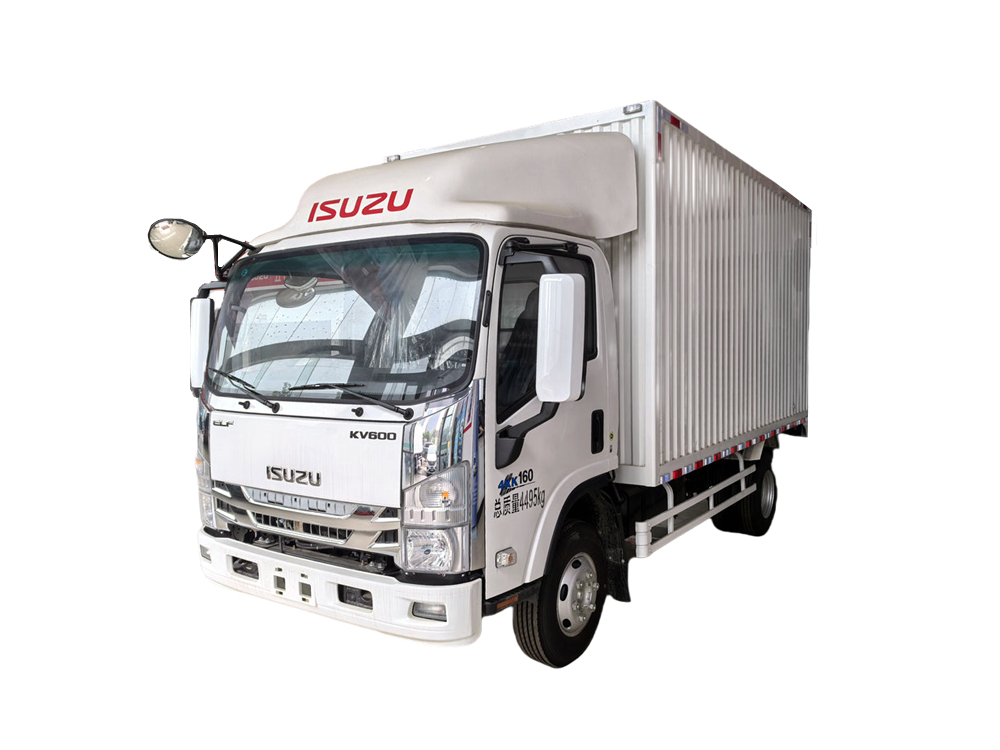

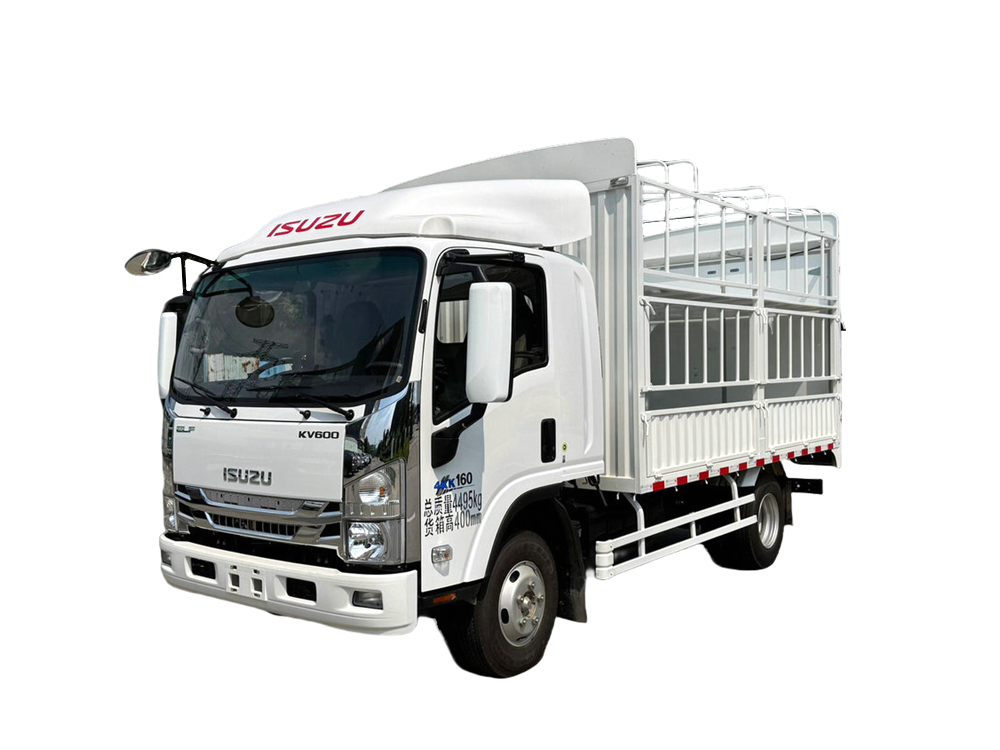

Cargo Box Modification: Supports flatbed, stake, and box-type cargo boxes
Special Purpose Vehicle Modification: Equipped with a power take-off (PTO) interface, suitable for refrigerated trucks, tow trucks, maintenance service vehicles, etc.
