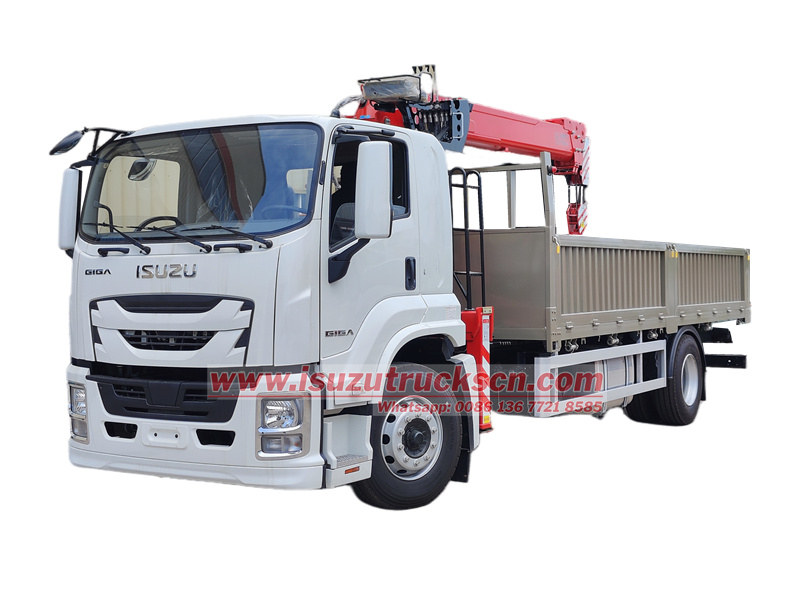

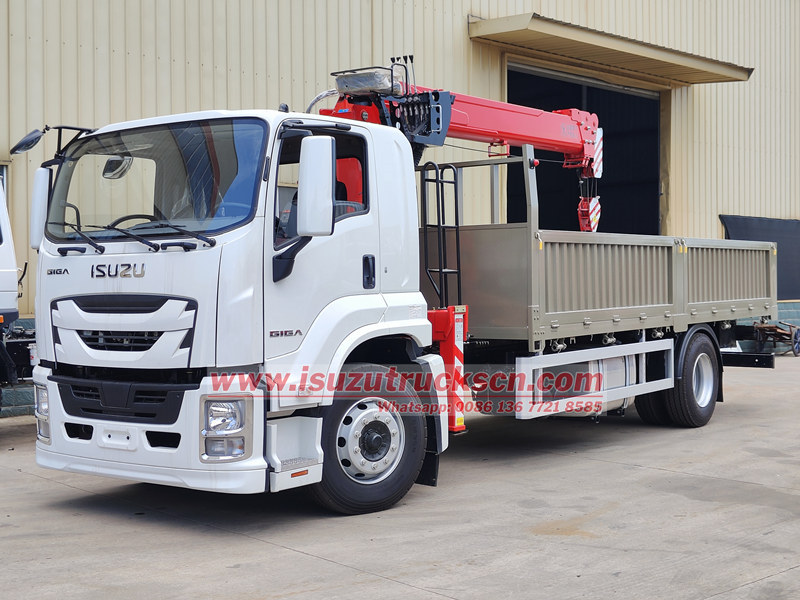

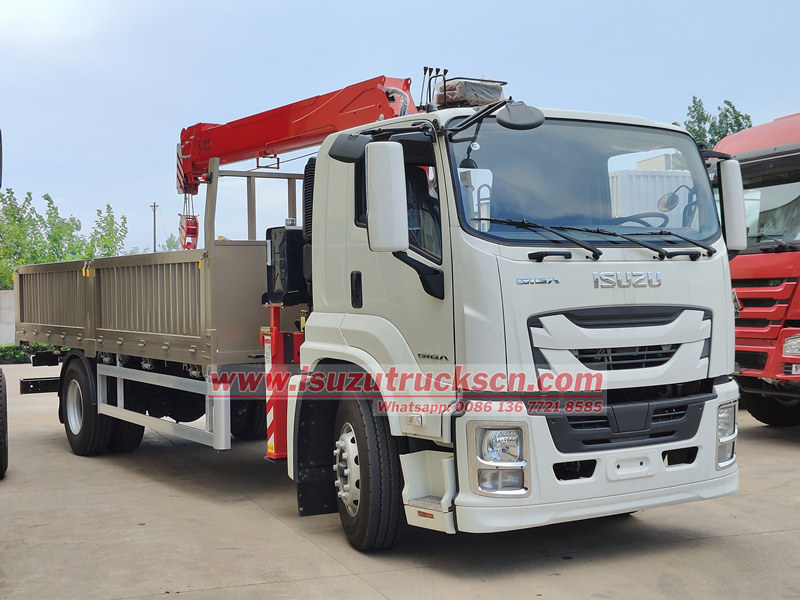

The ISUZU FTR 6.3-ton Truck-Mounted Crane is a highly efficient and versatile engineering transport vehicle, equipped with a 4HK1-TCG60 turbocharged diesel engine that complies with Euro 6 emission standards, delivering robust power while remaining environmentally friendly. It features an SQ-6.3 hydraulic truck-mounted crane with a maximum lifting capacity of 6,300 kg, a working radius of 11.6 meters, and 360° full rotation, making it suitable for various lifting operations. The vehicle is built on the ISUZU GIGA 4X chassis with a 4,500 mm wheelbase, ensuring excellent stability. The cargo box measures 5,600 × 2,500 × 600 mm, offering outstanding load-bearing capacity. The cabin is equipped with air conditioning, power windows, and other comfort features, balancing efficient operation with a pleasant driving experience, making it an ideal choice for industries such as logistics and construction.
Manufacturer:
POWERSTARWork capacity:
6.3 tonDimension:
8800×2500×3650 mmCabin type:
ISUZU GIGA 4XWheelbase:
4500 mmEngine power:
205 HPEngine type:
4HK1-TCG60Axle drive:
4×2, left hand driveGear box:
MLD 6-speed,manualRemarks:
Palfinger, UNIC crane is optionalThe ISUZU FTR 6.3-ton Truck-Mounted Crane is a mid-sized engineering vehicle that combines powerful performance, flexible handling, and high-efficiency loading, designed for logistics transport, construction site operations, and heavy equipment handling. The chassis adopts the new ISUZU GIGA 4X cab with a 4x2 drivetrain, ensuring adaptability to both urban roads and rough terrains. The vehicle dimensions are 8,800 × 2,500 × 3,650 mm, with a compact design suitable for confined worksites, while the 4,500 mm wheelbase enhances driving stability. With a gross vehicle weight (GVW) of 18,000 kg and axle load distribution of 6,500 kg (front) / 11,500 kg (rear), it effortlessly meets heavy cargo transport demands.

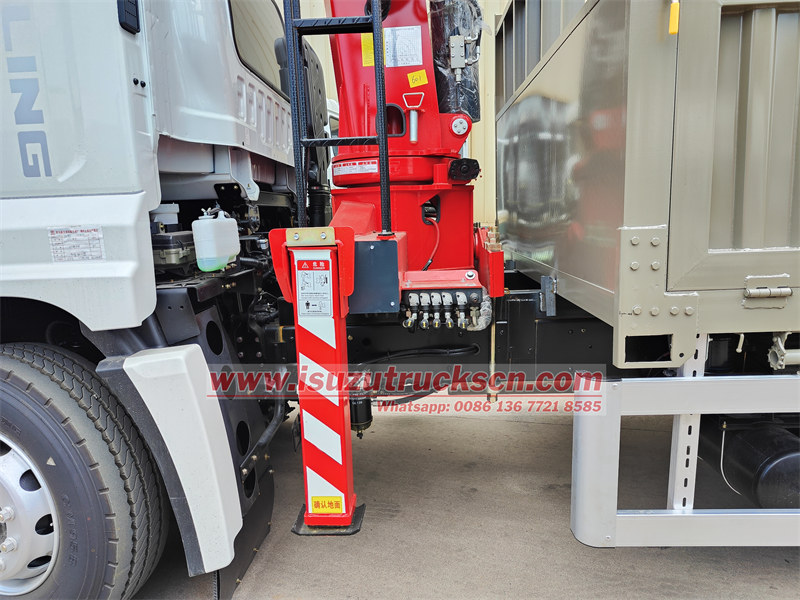

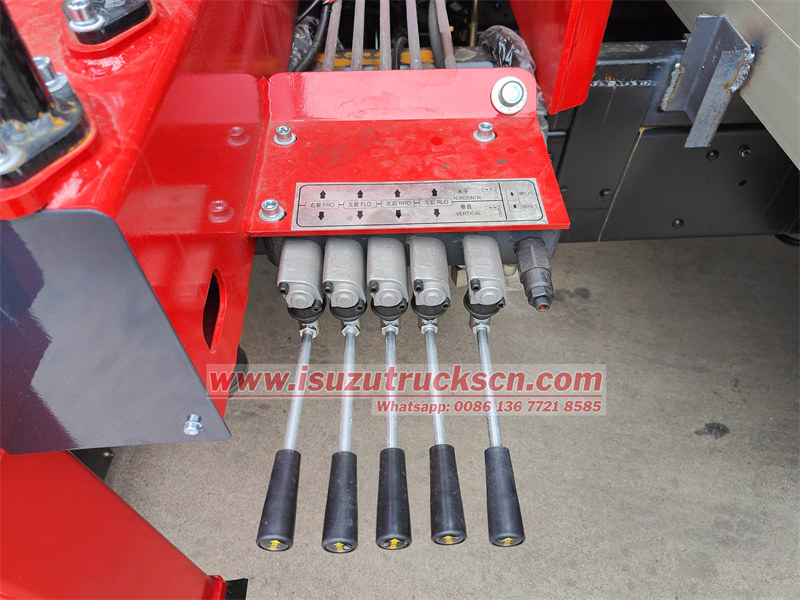

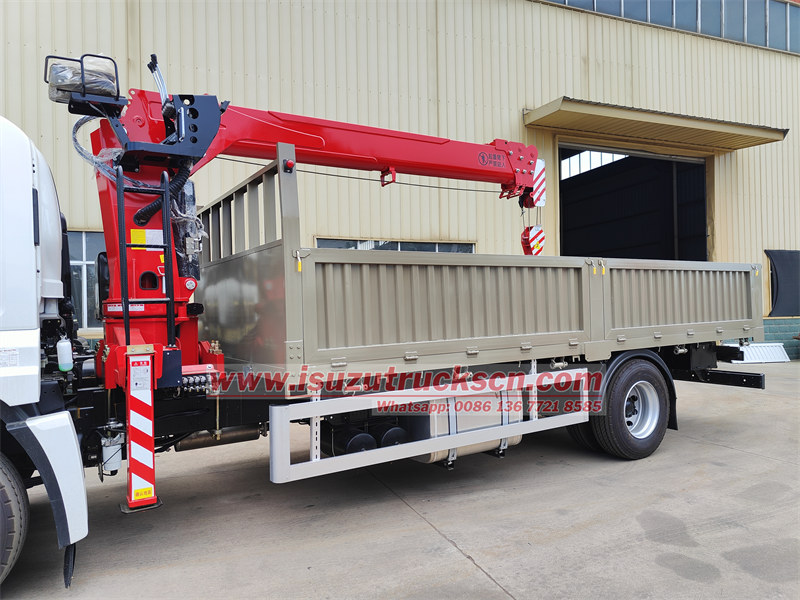

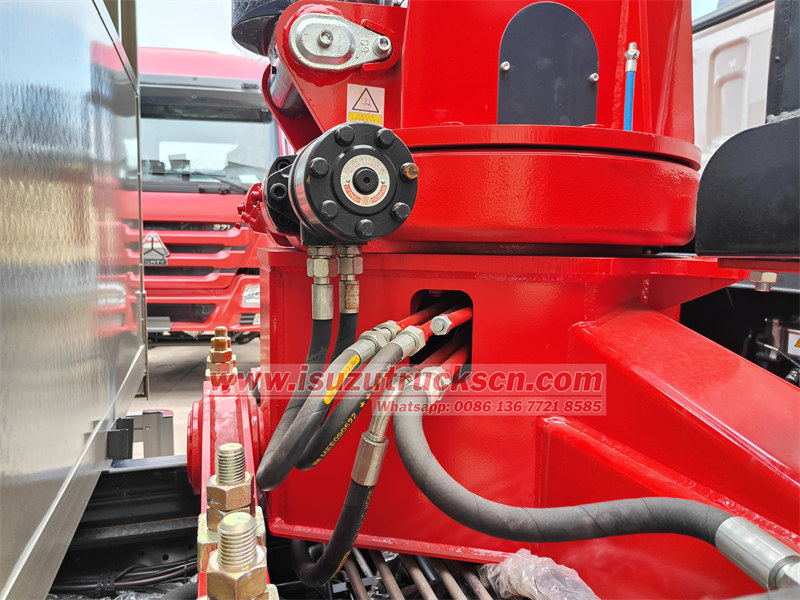

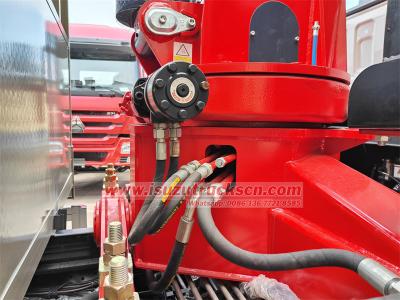

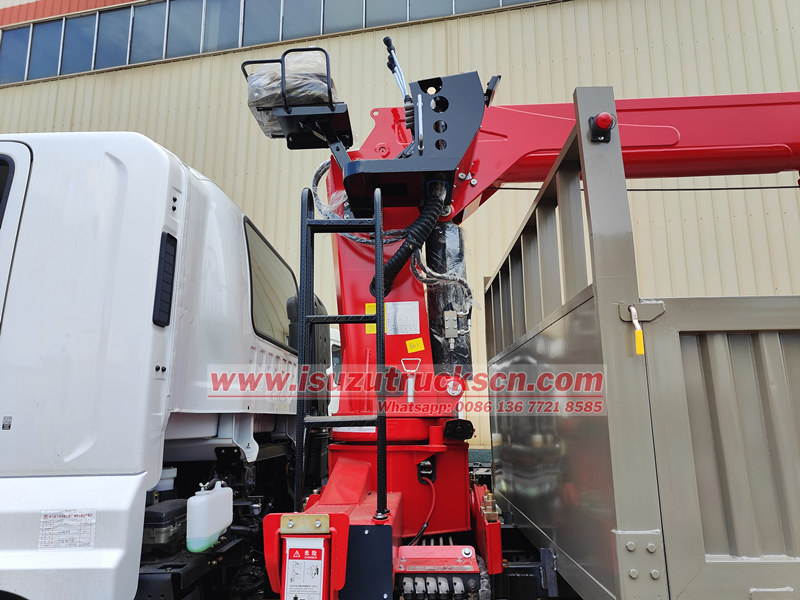

The SQ-6.3 crane is the core highlight of this ISUZU FTR boom crane truck, featuring a maximum lifting torque of 157 kN·m and a rated load capacity of 6,300 kg, covering most medium-duty lifting needs. Its four-section telescopic boom achieves an impressive lifting height of 13.8 meters and a working radius of 11.6 meters, supporting 360° full rotation—ideal for high-altitude installations or lifting in tight spaces. The hydraulic system is powered by a 50 L/min high-flow pump with a working pressure of 23 MPa, ensuring smooth and stable operation, while the hydraulic outriggers with an adjustable span of 2,280–5,000 mm further enhance operational safety.

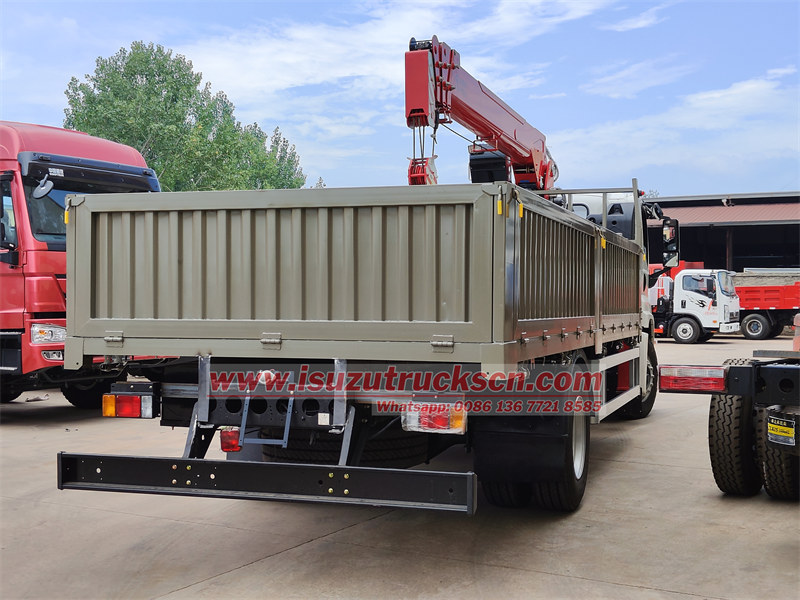

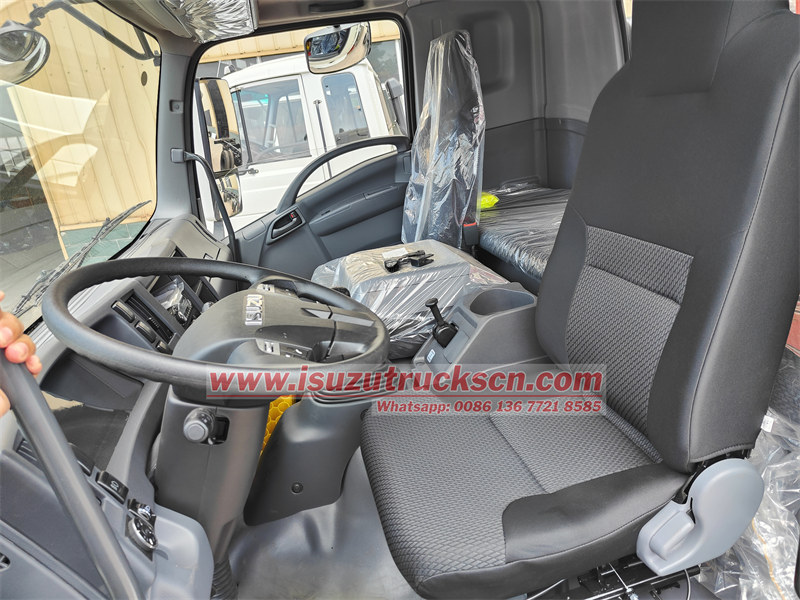

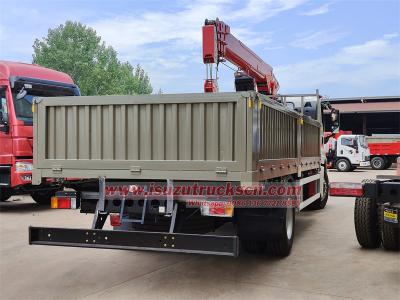

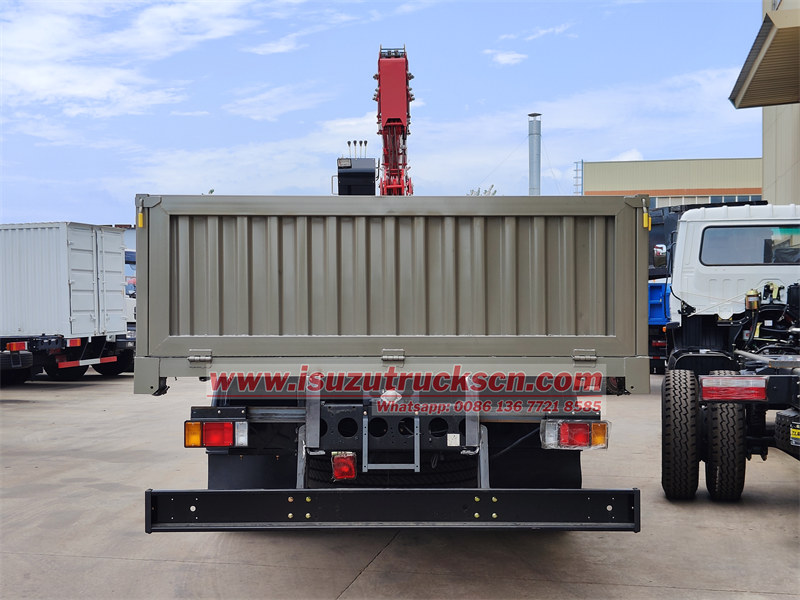

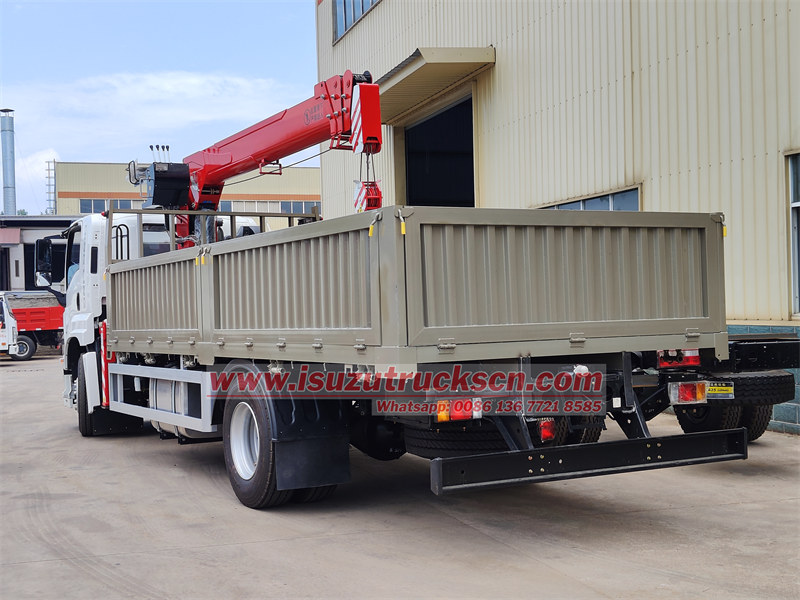

The cargo box and cabin design of the ISUZU FTR utility truck with crane prioritize practicality and comfort. The 5,600 × 2,500 × 600 mm carbon steel cargo box is reinforced with 3 mm side panels and a 4 mm floor, ensuring exceptional durability. The cabin is equipped with a multi-function LCD instrument panel, power windows, central locking, and an air conditioning system, while the 2+1 seating layout (including a sleeper berth) provides a comfortable environment for long-distance driving. Additionally, the 200L large-capacity fuel tank and 90L hydraulic oil tank minimize the need for frequent refueling, making it suitable for extended continuous operations.
With the reliability of the ISUZU chassis and the high efficiency of the SQ-6.3 crane, the ISUZU FTR crane lorry is an ideal choice for industries such as construction, logistics, and municipal services. Its modular design allows users to customize the cargo box or crane configuration based on their needs. Whether for single heavy lifting tasks or high-frequency logistics transport, this model delivers low energy consumption and high stability, creating greater value for users.
● OEM customized service, print your company logo
● China best Isuzu boom crane truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
Product Specifications
|
Vehicle Specifications |
||
|
Chassis brand |
ISUZU FTR |
|
|
Cabin |
Driving type |
4x2, Left hand drive |
|
Model |
ISUZU GIGA 4X |
|
|
Seats |
2 seats + one sleeper |
|
|
Configuration |
A/C, multi-function LCD instrument, central locking, electric doors and windows, multi-function steering wheel |
|
|
Overall Dimensions |
Overall size (L x W x H) |
8800x2500x3650 mm |
|
Wheelbase |
4500 mm |
|
|
Weight in KGS |
GVW |
18000 kg |
|
Tare weight |
12100 kg |
|
|
Front axle loading capacity |
6500 kg |
|
|
Rear axles loading capacity |
11500 kg |
|
|
Engine |
Type |
Diesel, 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Model |
4HK1-TCG60 |
|
|
Horse Power |
205HP (151kw) |
|
|
Displacement |
5193 ml |
|
|
Emission standard |
Euro 6 |
|
|
Rated speed |
2600 rpm |
|
|
Max. torque |
647 N.m |
|
|
Max Speed |
89 km/h |
|
|
Gearbox |
MLD, manual gearbox with 6 forwards & 1 reverse |
|
|
Tire |
295/80R22.5 tubeless tire, 7 pieces including one spare tire |
|
|
Front/rear wheel track |
1960/1855 mm |
|
|
Fuel tank |
200 liters |
|
|
Crane Specifications |
||
|
Model |
SQ-6.3 |
|
|
Max Lifting moment |
157Kn.m |
|
|
Max. Lifting capacity |
6300 kg |
|
|
Max Lifting Height |
13.8m |
|
|
Working Radius |
11.6m |
|
|
Boom Section |
4 |
|
|
Rotation Angle |
360°All Rotation |
|
|
Working Pressure |
23 mpa |
|
|
Rated Oil Flow |
50 L/min |
|
|
Oil tank Capacity |
90L |
|
|
Winch type |
Hydraulic |
|
|
Swing type |
Planetary gear reduction. |
|
|
Outrigger |
Adjustable, Hydraulic operating. |
|
|
Outrigger Span |
2280-5000mm |
|
|
Cargo Box Specifications |
||
|
Size |
5600×2500×600 mm |
|
|
Material |
Carbon steel |
|
|
Thickness |
Side walls: 3mm; floor: 4mm |
|

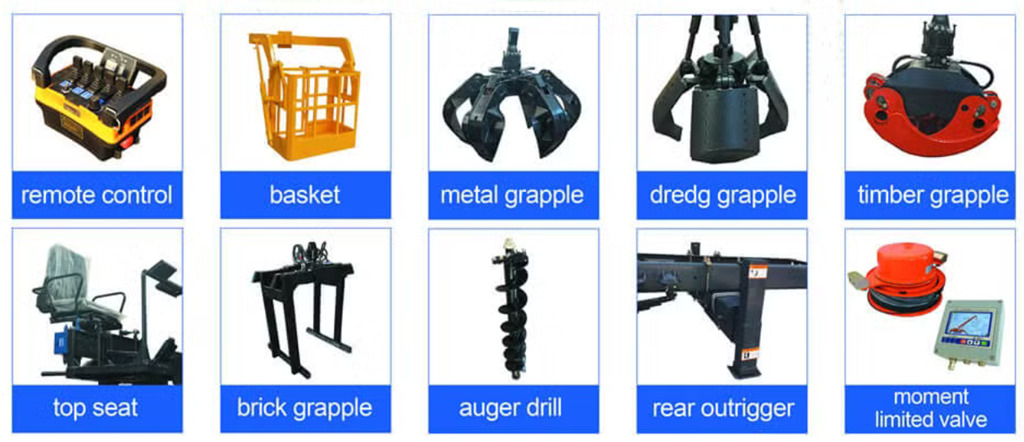

Optional Configurations
