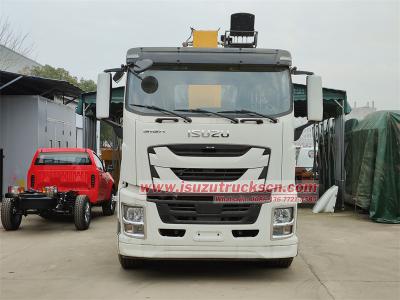

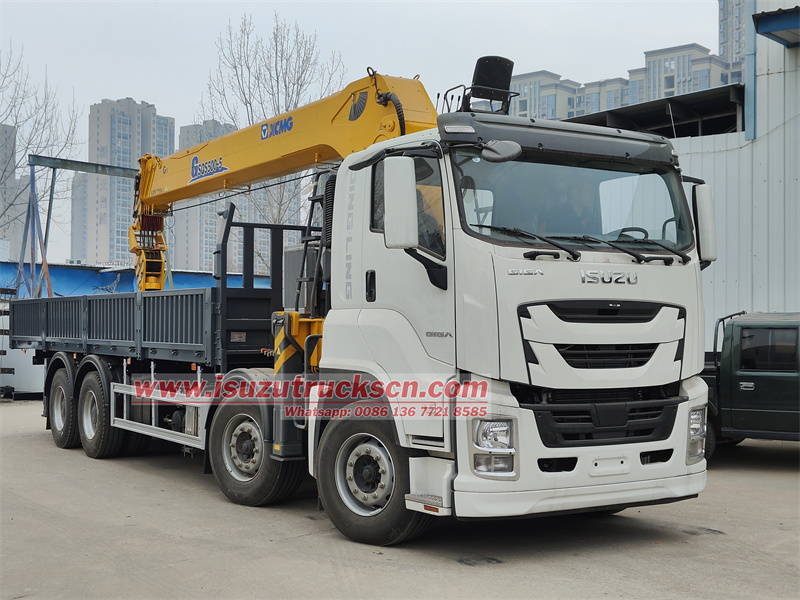

The Isuzu GIGA 8X4 20 ton truck mounted crane is modified on the basis of Isuzu GIGA 8X4 chassis, 2 seats and a sleeper, 2100+4325+1370mm wheelbase, equipped with Isuzu 6WG1-TCG62 520HP engine, Fast 12-speed gearbox, the upper body is a XCMG QSQS500-5 5-section straight boom crane, maximum lifting weight 20 tons, maximum lifting height 25 meters, arm length 23.7 meters, maximum lifting torque 520kN·m, 360-degree rotation, carbon steel cargo box is 7200×2350×550mm, 2 H-shaped hydraulic outriggers installed at the crane slewing mechanism, the outrigger span 2436~8396mm, the boom and outriggers are controlled by manual hydraulic operating levers on both sides of the crane and manual operating levers at the high-altitude operation point to control the horizontal and vertical extension and retraction of the outriggers, extension and retraction of the boom, amplitude change, lifting and lowering of the hook, crane rotation and other operations.
Manufacturer:
Powerstar TrucksWork capacity:
20tonsDimension:
11980x2500x3980mmCabin type:
Isuzu VC66 8x4 chassis,2 seats with a sleeperWheelbase:
2100+4325+1370mmEngine power:
382KW/520HPEngine type:
Isuzu 6WG1-TCG62Axle drive:
8x4,LHDGear box:
FAST 12 speed, 12 forward gears, 2 reverse gearsRemarks:

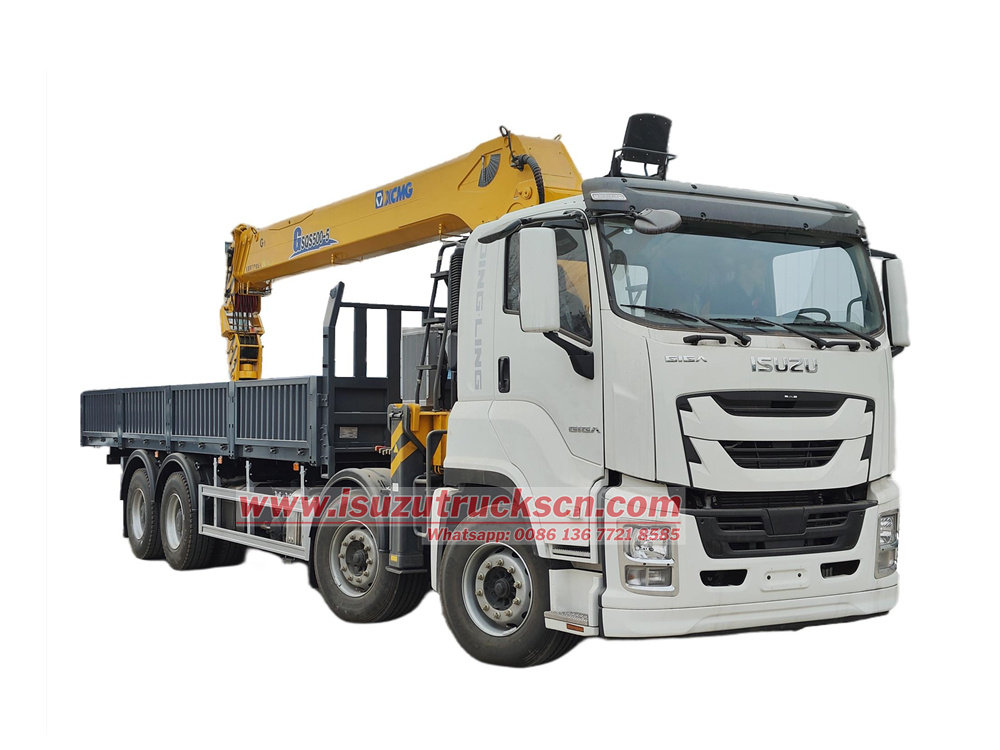

Equipped with XCMG GSQS500-5 boom craneIn the field of engineering transportation and heavy lifting operations, a crane truck with excellent performance is undoubtedly a key equipment to improve work efficiency and ensure operation safety. With the collaborative innovation of its three modules of chassis, power and lifting system,the Isuzu 8x4 truck mounted XCMG 20T crane has become an "efficiency weapon" in scenes such as municipal engineering, bridge construction, mining, and emergency rescue. It is modified based on the Isuzu GIGA 8X4 chassis. The chassis is solid and reliable. It is equipped with an Isuzu 520HP engine and an XCMG 5-section straight boom crane. The maximum lifting weight is 20 tons, the lifting height is 25 meters, and it can rotate 360 degrees and has a wide operating range. The 7200×2350×550mm carbon steel cargo box is spacious and can be loaded. The H-type hydraulic outrigger has an adjustable span to provide stable support for lifting. The manual hydraulic operating lever controls the movement of the boom and outriggers, easy to operate.
● Professional sales team which will help you to choose suitable truck.
● 30 years experience on boom crane truck designing
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome
● 24 months long guarantee time assurance
|

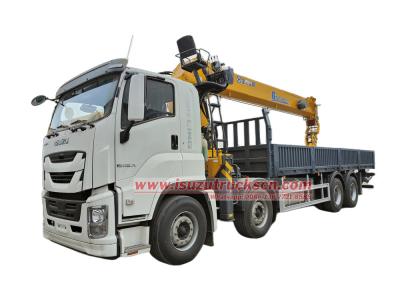

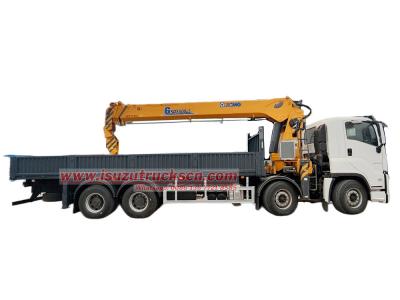

ISUZU GIGA 8x4 20tons boom crane truck |
|||
|
General Technical Parameters |
|||
|
Overall Dimension |
11980x2500x3980mm |
||
|
Gross Vehicle Weight |
44000(Kg) |
||
|
Curb Weight |
18500(Kg) |
||
|
Chassis Specification |
|||
|
Chassis Brand |
Isuzu |
||
|
Drive model |
8x4,LHD |
||
|
Cabin |
Isuzu VC66 8x4 chassis,2 seats with a sleeper, Left Hand Driving, with air conditional |
||
|
Engine |
Model |
4-stroke direct injection, 6-cylinder in-line with water cooling, inter-cooling, EGR |
|
|
Type |
Isuzu 6WG1-TCG62 |
||
|
Power |
382KW/520HP |
||
|
Emission standard |
EURO 6 |
||
|
Displacement |
15681ml |
||
|
Rated speed |
1800rpm |
||
|
Max torque |
2250N.m |
||
|
Max torque speed |
900-1300rpm |
||
|
Fuel type |
Diesel |
||
|
Gearbox |
FAST 12 speed, 12 forward gears, 2 reverse gears |
||
|
Brake System |
Air brake |
||
|
Wheel Base |
2100+4325+1370mm |
||
|
Front/Rear Axle Loading |
9000/9000/13000/13000Kg |
||
|
Tire |
385/65R22.5 / 315/80R22.5,12+1pcs |
||
|
Max Driving Speed |
89km/h |
||
|
Superstructure Specification |
|||
|
Cargo Body |
Dimension |
7200*2350*550mm |
|
|
Material |
Q235 carbon steel |
||
|
Cargo Thickness |
Side 3mm, Bottom 4mm |
||
|
Working System |
Boom Type |
Straight 5-Arm telescopic boom |
|
|
Crane |
Crane Brand |

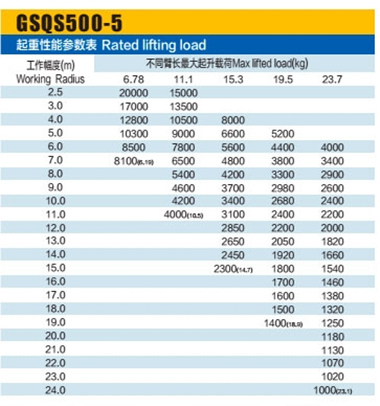

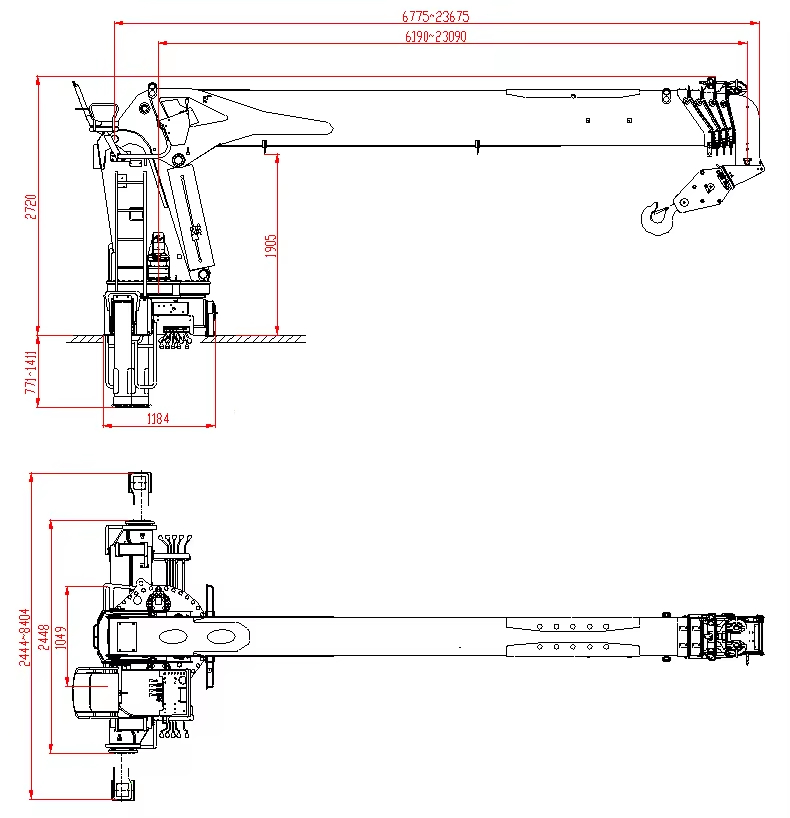

XCMG GSQS500-5 |
|
|
Max Lifting Moment |
520kN·m |
||
|
Max extension length |
23.7m |
||
|
Max Lifting Capacity |
20tons |
||
|
Max lifting height |
25m |
||
|
Rotation angle |
360° |
||
|
Installation space |
1400mm |
||
|
Recommented power |
60kw |
||
|
Maximum working pressure |
28Mpa |
||
|
Recommended flow rate |
80+50L/min |
||
|
Crane weight |
7600kg |
||
|
Oil tank capacity |
270L |
||
|
Leg |
Leg type |
H type |
|
|
Leg Span |
2436~8396mm |
||

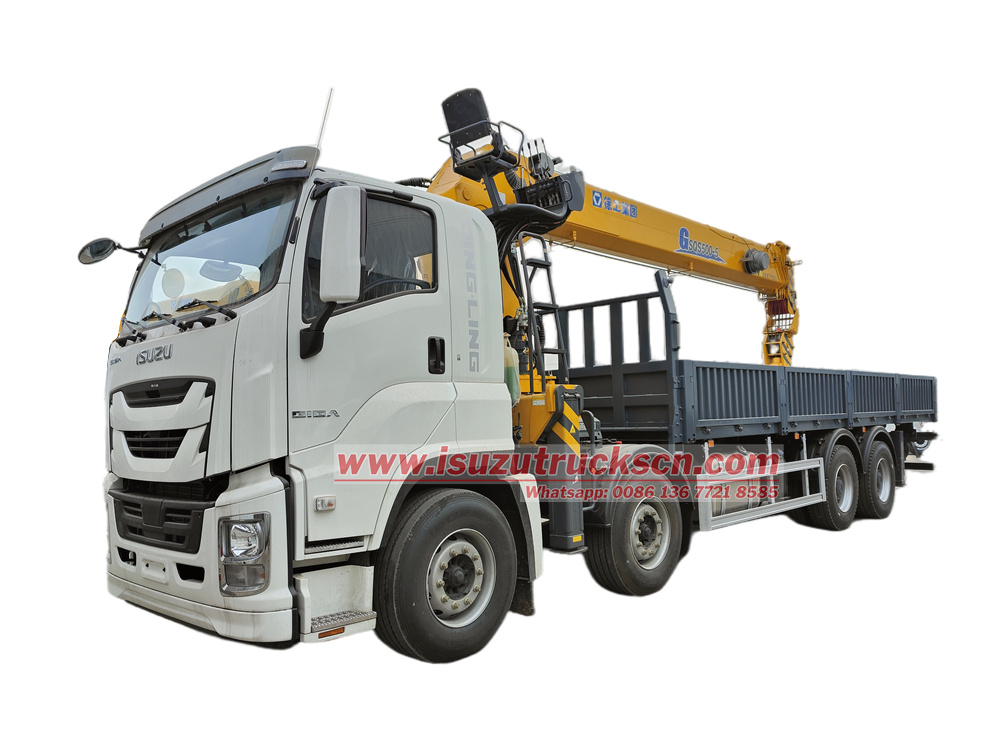

★ Chassis configuration: high-horsepower drive and stable load
● Chassis and wheelbase optimization:
Adopting 8×4 drive form, total mass 44 tons, wheelbase layout 2100+4325+1370mm, taking into account steering flexibility and load balance.
● Tire and suspension system:
Large-size tires of 385/65R22.5 on the front axle and 315/80R22.5 on the rear axle provide excellent contact area and grip, reducing the risk of slipping; the multi-axis balanced suspension system disperses the heavy pressure and protects the stability of the chassis.
● Power core:
Isuzu GIGA 8X4 chassis is equipped with a classic 6WG1-TCG62 inline six-cylinder diesel engine with a displacement of 15.681 liters, a maximum power of 520 horsepower, and a peak torque of up to 2250N·m (@1800rpm). This engine adopts high-pressure common rail fuel injection and turbocharged intercooling technology, taking into account low fuel consumption and high reliability, meeting the National VI emission standards, and adapting to the continuous operation requirements under complex working conditions.
● Transmission system
The transmission system is matched with Fast's 12-speed manual transmission, which has dense gear ratios and a multi-axis drive design to achieve smooth heavy-load starting and slope escape capabilities. The chassis wheelbase is 2100+4325+1370mm, taking into account steering flexibility and longitudinal stability; the 8×4 drive form (front two-axle steering and rear double-axle weight bearing) ensures anti-overturning performance during 20-ton lifting operations.

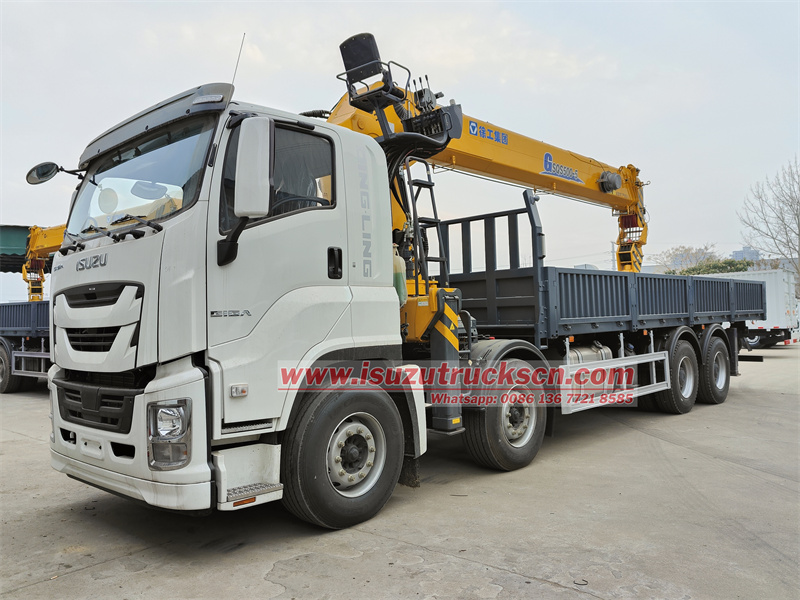

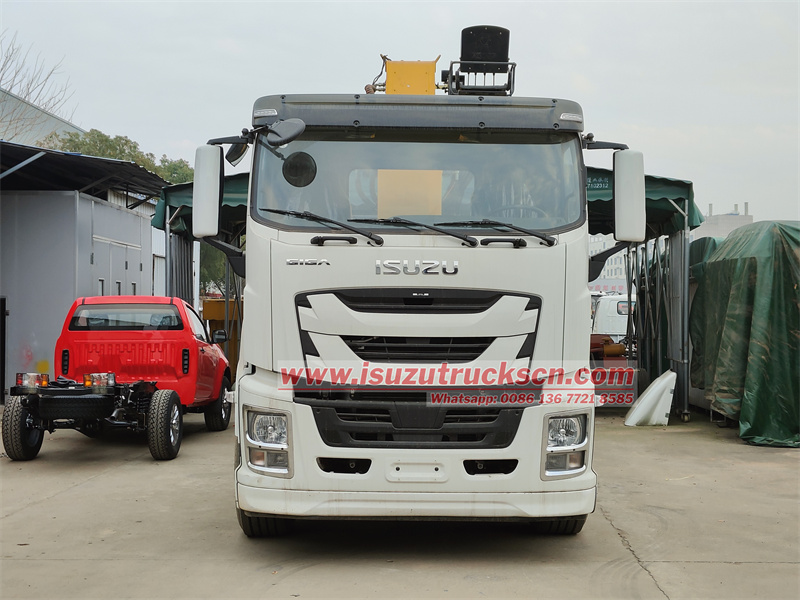

● Cab
The ISUZU GIGA 8x4 20tons boom crane truck cab is a 2 seats + sleeper layout to meet the driver's rest needs during long-distance transportation. Isuzu's cab has excellent sealing and sound insulation performance, and is standardly equipped with a multi-function steering wheel, LCD instrument and air conditioning system to improve the comfort of long-term operations.

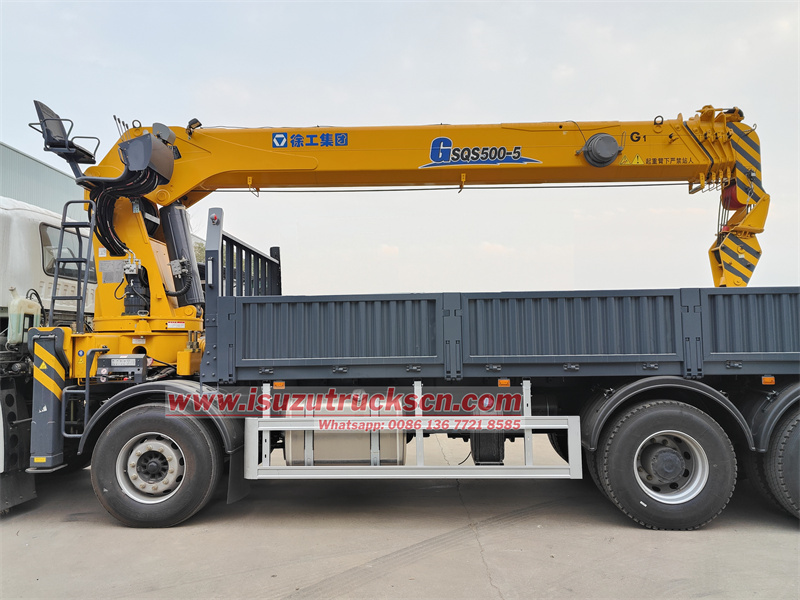

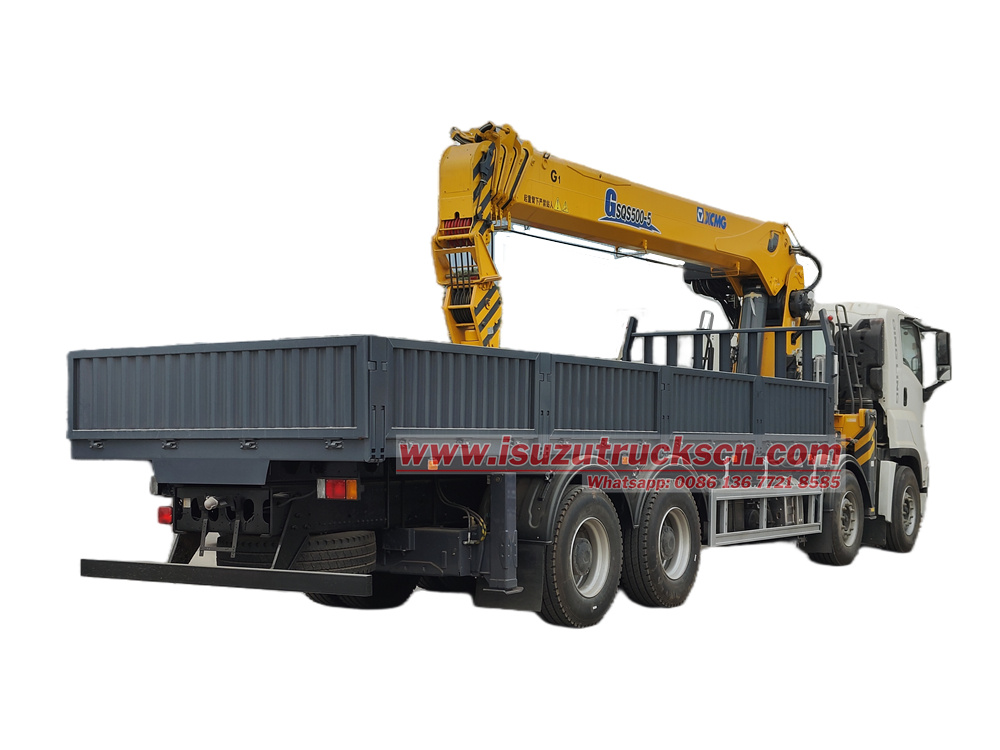

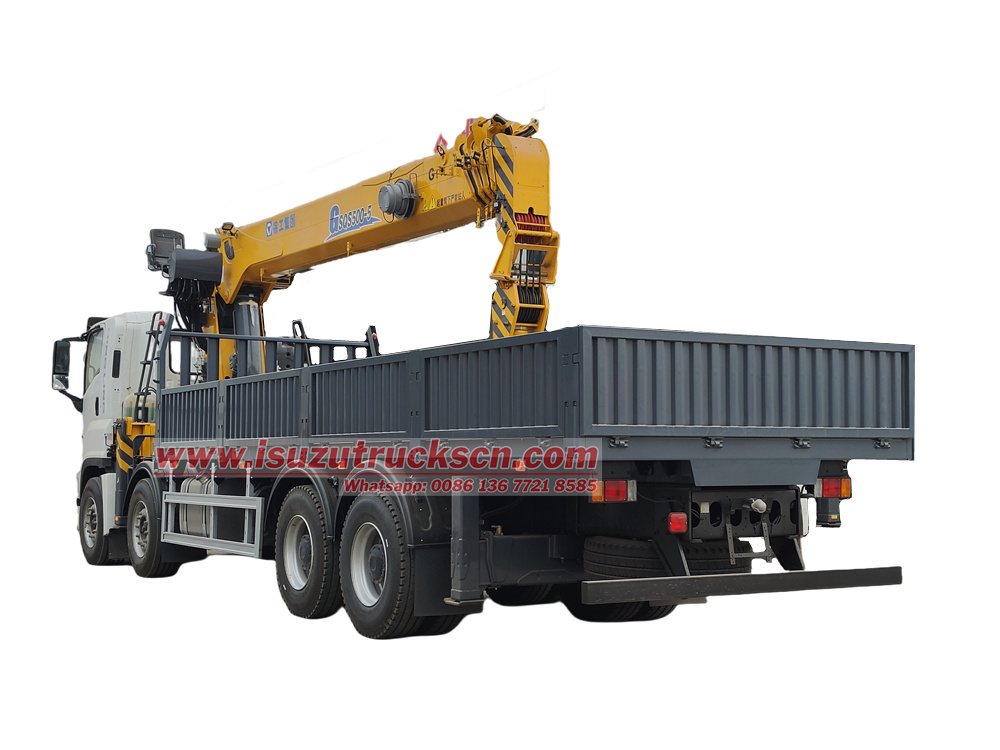

★ Lifting system: XCMG GSQS500-5 straight boom crane's hard-core strength
XCMG's new generation G series straight boom crane, enhanced synchronous telescopic mechanism, stronger load-bearing telescopic capacity and higher efficiency; independently developed confluence proportional control system, good micro-movement, smooth compound movement, more comfortable control; automatic hook retraction to achieve easy and efficient operation, ensure driving safety; optional auxiliary hook, working bucket, remote control and torque limiting system, etc., more convenient function expansion.

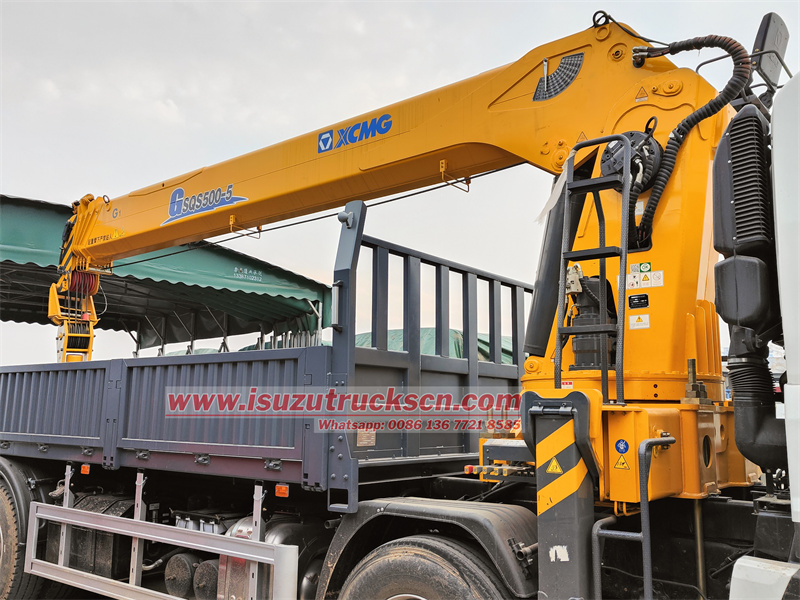

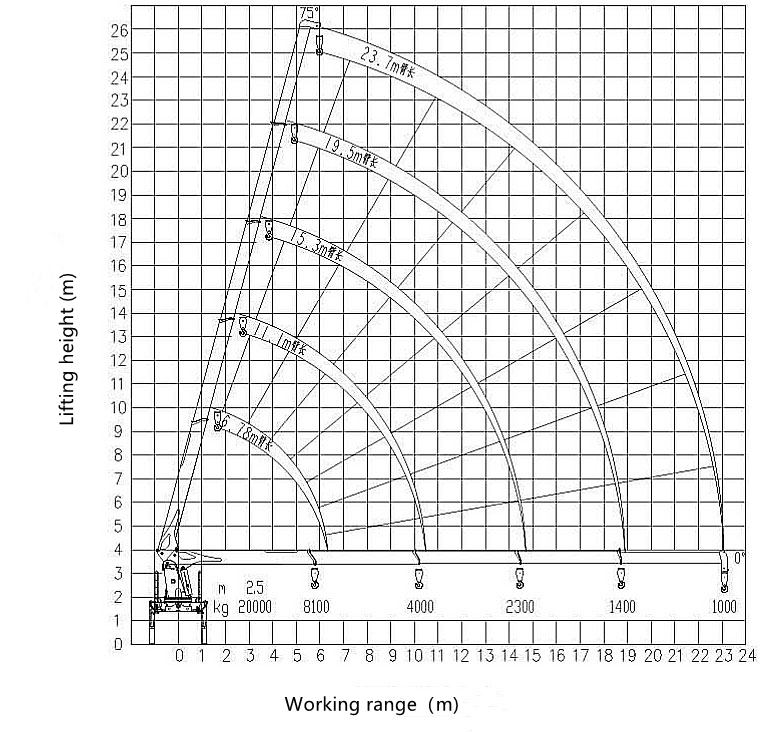

● Five-section synchronous telescopic boom: 23.7m operating radius and 520kN·m lifting torque
Lifting efficiency: maximum lifting weight 20 tons, maximum working radius 23.7 meters, lifting height up to 25 meters, maximum lifting torque 520kN·m. The boom is welded with high-strength steel plates, and the cross-section is an optimized U-shaped structure, which strikes a balance between lightness and torsion resistance. The five-section telescopic arm is deployed synchronously through the hydraulic cylinder (hydraulic system with a recommended flow rate of 80+50L/min), with smooth movement and precise positioning, covering various scenarios such as high-altitude installation and equipment lifting.
Operation and control: The crane supports 360° full rotation, which is independently controlled by the manual hydraulic joysticks on both sides behind the cab and the high-altitude operating levers, including leg extension and extension, boom amplitude change, hook head lifting and rotation. The operating valve group integrates pressure protection function to avoid overload risks. The slewing mechanism adopts cross roller bearings, which have low rotation resistance and impact resistance, and are suitable for frequent reversing operations.
Outrigger system: H-type hydraulic outriggers are equipped on both sides of the chassis, and the span can be adjusted between 2436~8396mm. Folding pads are installed at the end of the outriggers to disperse the ground pressure. The horizontal and vertical cylinders are controlled by manual valves to achieve rapid leveling, adapting to different ground conditions such as soft soil and asphalt.

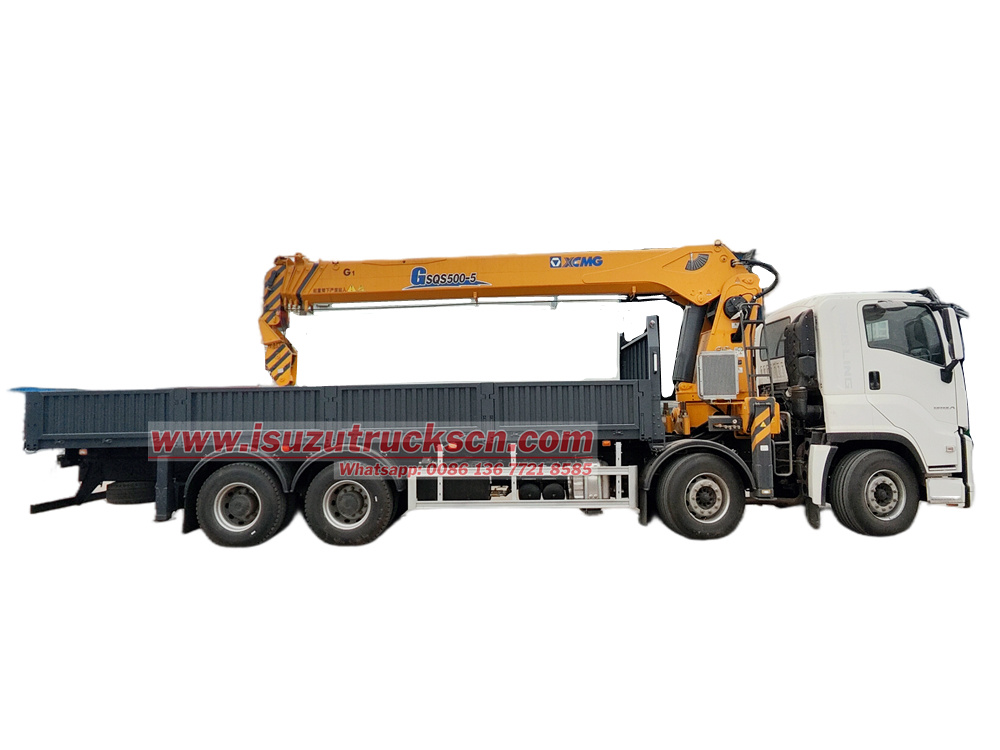

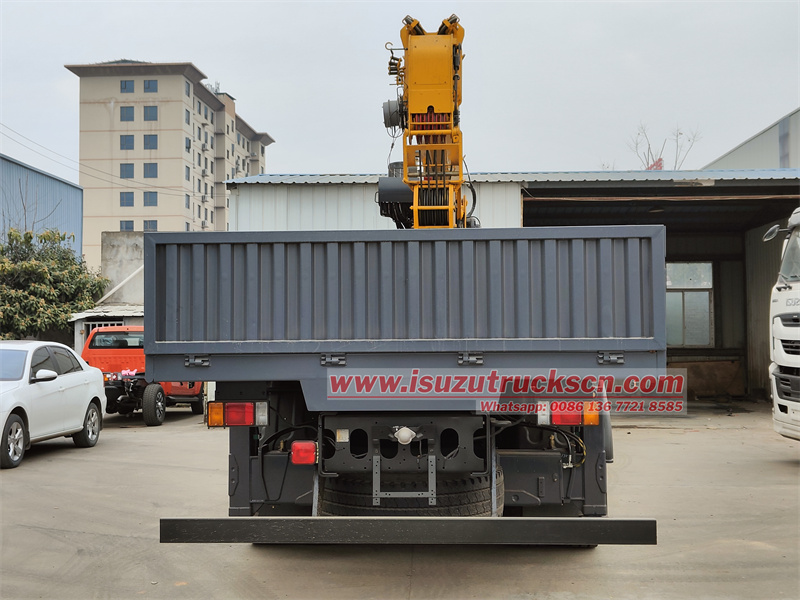

● Cargo box and detailed design
The carbon steel cargo box measures 7200×2350×550mm, the bottom plate is made of 5mm patterned anti-skid steel plate, and the side plate is removable to expand the loading and unloading space. The center of gravity of the cargo box and the crane layout is optimized to ensure that the load on the front and rear axles is reasonably distributed during driving.
Safety configurations include hook limiters, torque limiters, and interlocking devices for outriggers that are not deployed, which monitor the operating status in real time and prompt risks through alarms.
● The advantages of XCMG GSQS500-5 crane are:
1. Enhanced lifting capacity: The XCMG GSQS500-5 crane has a greater lifting capacity, can handle heavier goods or equipment, and provide more efficient lifting work.
2. Strong stability: The crane is equipped with multiple safety protection devices, including intelligent limit devices, emergency stop and fault self-diagnosis systems to ensure safety and stability during operation.
3. High flexibility: The GSQS500-5 crane has a variety of working modes and operating methods, which can adapt to various complex lifting conditions and construction site requirements and improve work efficiency.
4. Easy operation: The crane adopts a humanized design, equipped with a touch screen control system and an intelligent monitoring system, making operation easier and more convenient.
5. High efficiency and energy saving: The GSQS500-5 crane adopts advanced energy-saving technology and an intelligent energy management system, which can reduce energy consumption and operating costs and improve work efficiency.
6. Low noise: The crane adopts noise reduction technology and sound insulation materials to reduce noise pollution during work.
