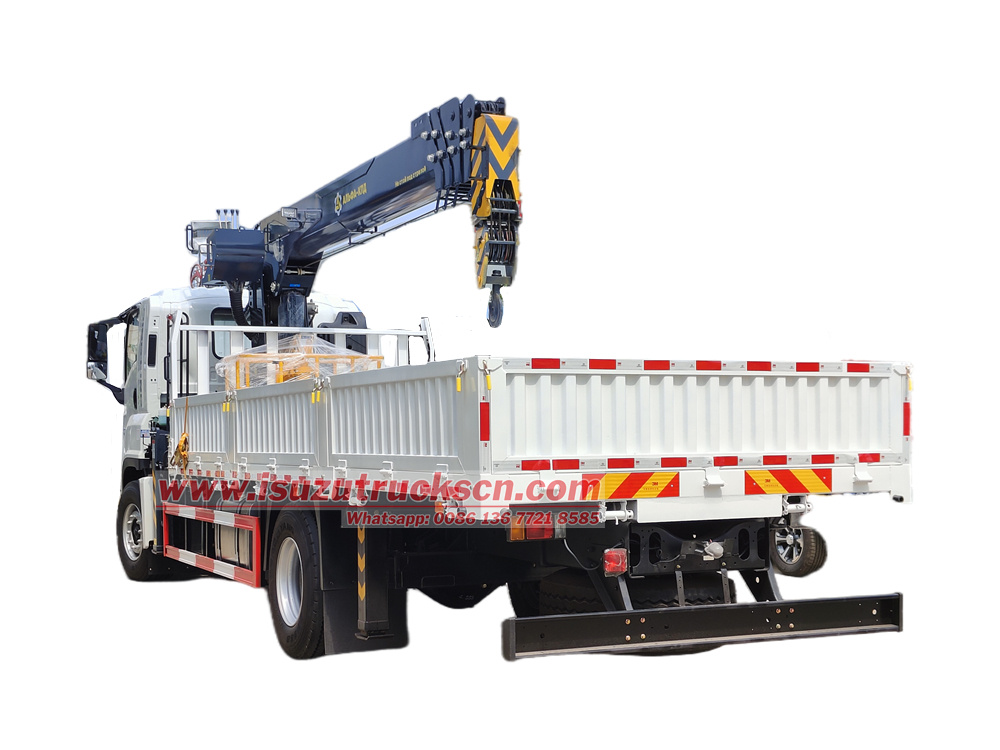

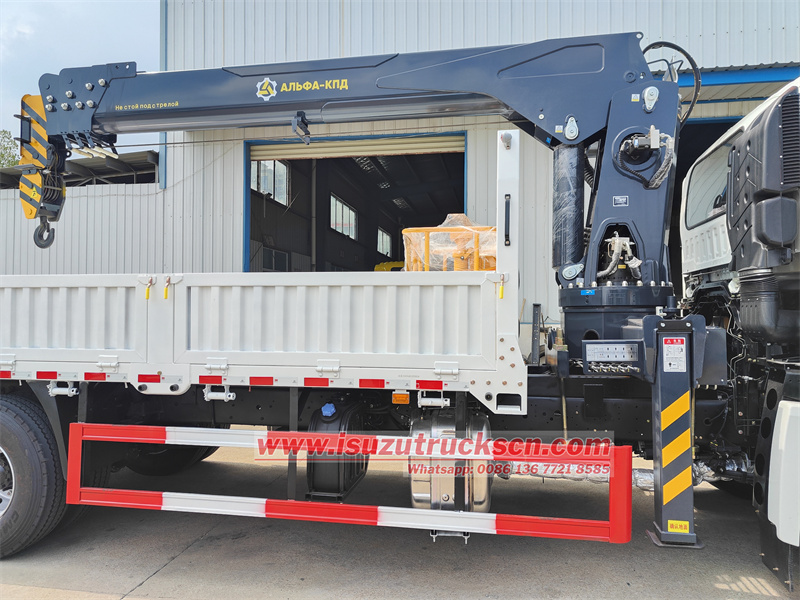

The Isuzu 8-ton truck with crane is modified on the Isuzu FVR GIGA 5X chassis, with a 4500mm wheelbase, equipped with a powerful 6HK1-TCG61 240 horsepower engine, matched with Fast 8-speed gearbox, and mounted on a SQ-8 synchronous telescopic boom crane with a 5-section boom design, a 8 tons loading capacity, a18m max lifting height, and a 360° rotation. It has a hanging basket at the hook and 4 hydraulic outriggers. The cargo box size is 5500×2350×550mm, with a side 4mm and bottom 5mm steel plate thickness. The vehicle crane and hydraulic outriggers are controlled by the ground aerial operating platform and the 2 sets manual hydraulic operating levers at the rotating mechanism to three operating positions.
Manufacturer:
Powerstar TrucksWork capacity:
8tonsDimension:
8350x2480x3650mmCabin type:
Isuzu FVR 5X chassis,2 seats with a sleeper, with A/CWheelbase:
4500mmEngine power:
176KW/240HPEngine type:
Isuzu 6HK1-TCG61Axle drive:
4x2,LHDGear box:
FAST 8 speed, 8 forward gears, 1 reverse gearsRemarks:

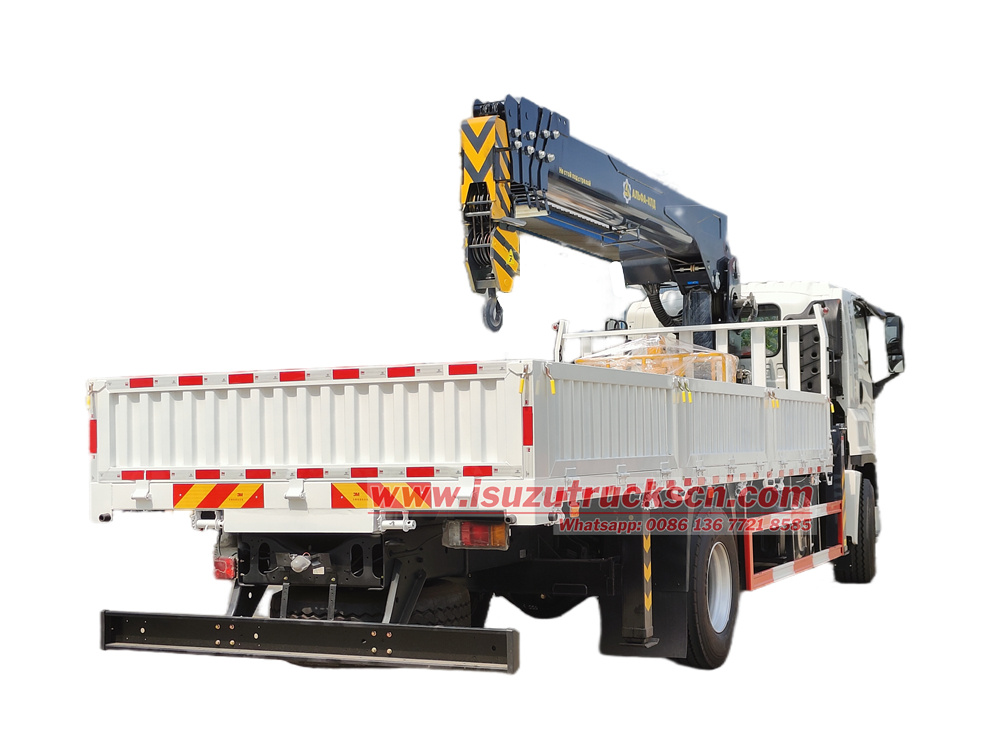

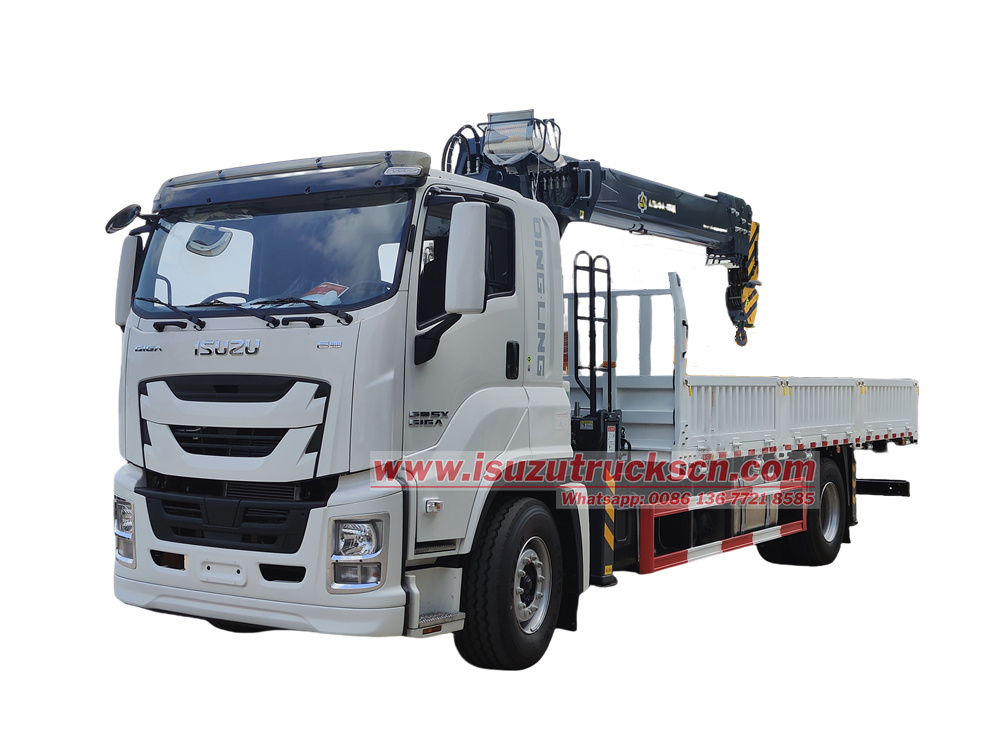

Equipped with SQ-8 5-section boom craneThe Isuzu FVR truck mounted hydraulic crane is an outstanding engineering equipment. In terms of power, it is equipped with a 6HK1 - TCG61 240-horsepower engine and a Fast 8-speed gearbox, delivering strong power and smooth gear shifting. The upper structure is fitted with an SQ – 8 5-section synchronous telescopic boom crane, with a maximum load capacity of 8 tons and a lifting height of up to 18 meters. It can rotate 360° and is also equipped with a work basket at the rear. The four hydraulic outriggers enhance operational stability. Through the aerial operation platform and the manual hydraulic operating levers on the ground, precise control can be exercised over the crane's extension/retraction, luffing, rotation, hook lifting/dropping, as well as the horizontal and vertical extension/retraction of the hydraulic outriggers. It has a wide range of applications and can play an efficient role in fields such as construction engineering, logistics and transportation, and municipal engineering, making it a reliable assistant for engineering operations.
● Professional sales team which will help you to choose suitable truck.
● 30 years experience on boom crane truck designing
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome
● 24 months long guarantee time assurance
|

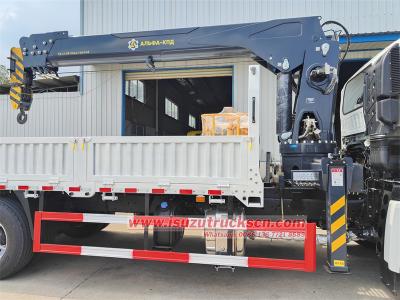

ISUZU FVR 8T boom crane truck |
|||
|
General Technical Parameters |
|||
|
Overall Dimension |
8350x2480x3650mm |
||
|
Gross Vehicle Weight |
18000(Kg) |
||
|
Curb Weight |
9800(Kg) |
||
|
Chassis Specification |
|||
|
Chassis Brand |
Isuzu |
||
|
Drive model |
4x2,LHD |
||
|
Cabin |
Isuzu FVR 5X chassis,2 seats with a sleeper, Left Hand Driving, with air conditional |
||
|
Engine |
Model |
4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR |
|
|
Type |
Isuzu 6HK1-TCG61 |
||
|
Power |
176KW/240HP |
||
|
Emission standard |
EURO 6 |
||
|
Displacement |
7780ml |
||
|
Max torque |
850N.m |
||
|
Fuel type |
Diesel |
||
|
Gearbox |
FAST 8 speed, 8 forward gears, 1 reverse gears |
||
|
Brake System |
Air brake |
||
|
Wheel Base |
4500mm |
||
|
Front/Rear Axle Loading |
6500/11500Kg |
||
|
Tire |
295/80R22.5, 6+1 pcs |
||
|
Max Driving Speed |
95km/h |
||
|
Superstructure Specification |
|||
|
Cargo Body |
Dimension |
5500*2350*550mm |
|
|
Material |
Q235 carbon steel |
||
|
Cargo Thickness |
Side 3mm, Bottom 4mm |
||
|
Working System |
Boom Type |
Straight 5-Arm telescopic boom |
|
|
Crane |
Crane Brand |
SQ-8 |
|
|
Max Lifting Moment |
20T·M |
||
|
Max extension length |
16.5m |
||
|
Max Lifting Capacity |
8000kg |
||
|
Max lifting height |
18m |
||
|
Rotation angle |
360° |
||
|
Installation space |
1200mm |
||
|
Maximum working pressure |
27Mpa |
||
|
Recommended flow rate |
55L/min |
||
|
Crane weight |
3250kg |
||
|
Oil tank capacity |
160L |
||
|
Leg |
Leg type |
H type |
|
|
Leg Span |
4500mm |
||
★ Chassis configuration: Isuzu FVR GIGA 5X hard-core foundation

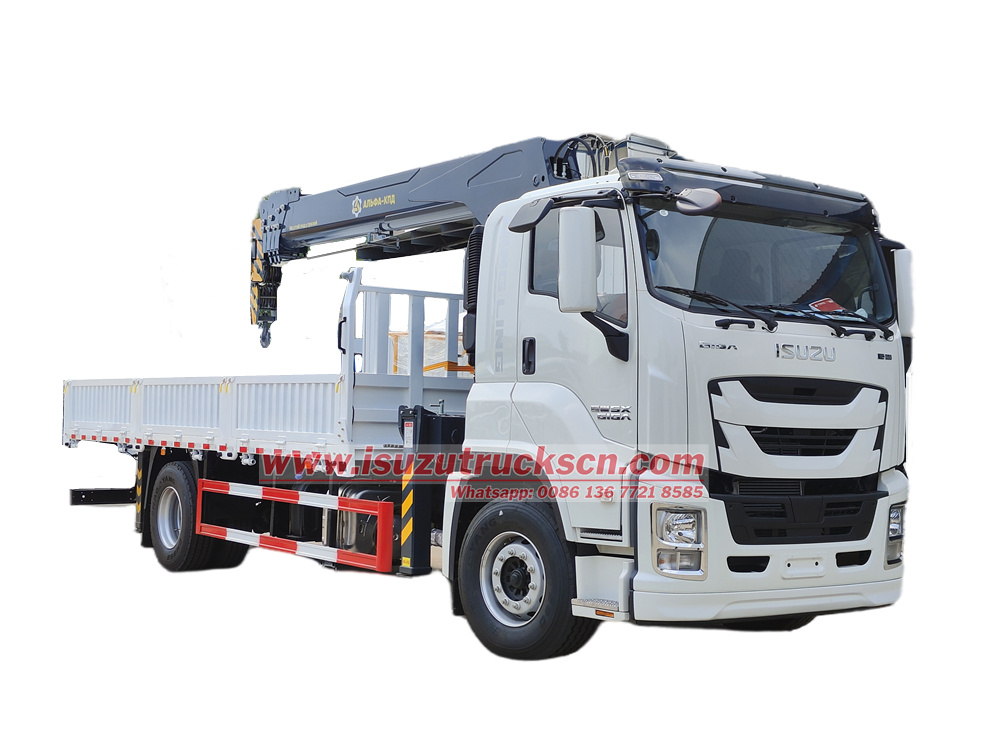

Isuzu 8-ton truck mounted crane is based on Isuzu FVR GIGA 5X Class II chassis and is optimized for heavy-duty operations. Its 4500mm long wheelbase design takes into account driving stability and turning flexibility, and is suitable for narrow road conditions in urban lanes or construction sites. The power is equipped with a 6HK1-TCG61 inline six-cylinder diesel engine with a displacement of 7.79L, a maximum power of 240 horsepower (176kW), and a peak torque of 850N·m. The low-speed and high-torque characteristics ensure strong power when starting and climbing with heavy loads. It is matched with Fast's 8-speed manual transmission, with dense gear ratios, smooth gear shifting, excellent fuel economy, and stronger adaptability to complex road conditions.

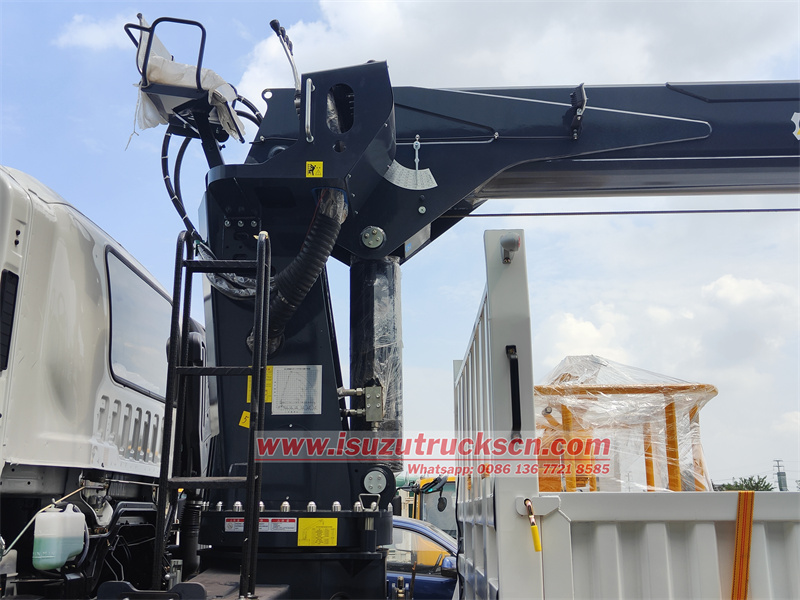

★ Upper loading crane: SQ-8 synchronous telescopic boom crane is accurate and efficient
The SQ-8 crane adopts a five-section U-shaped arm synchronous telescopic design, 360° full rotation without dead angle operation, and a wide coverage range.

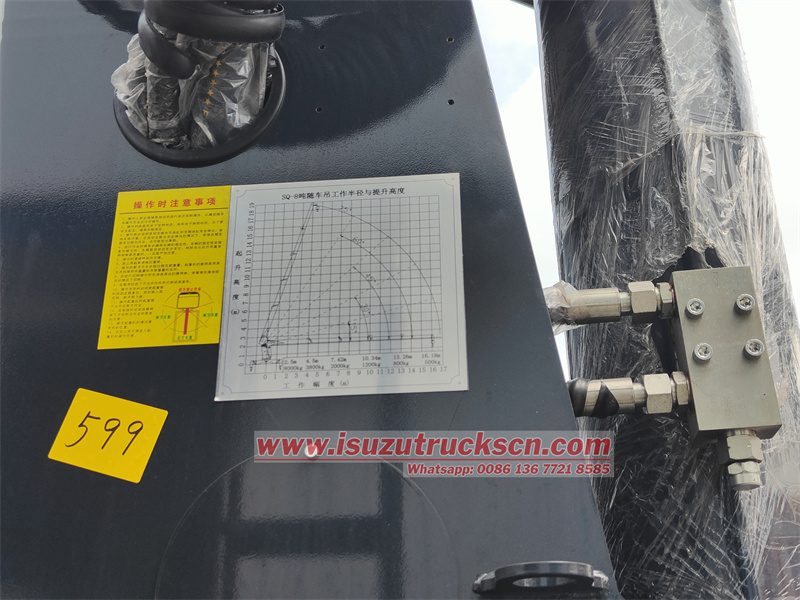

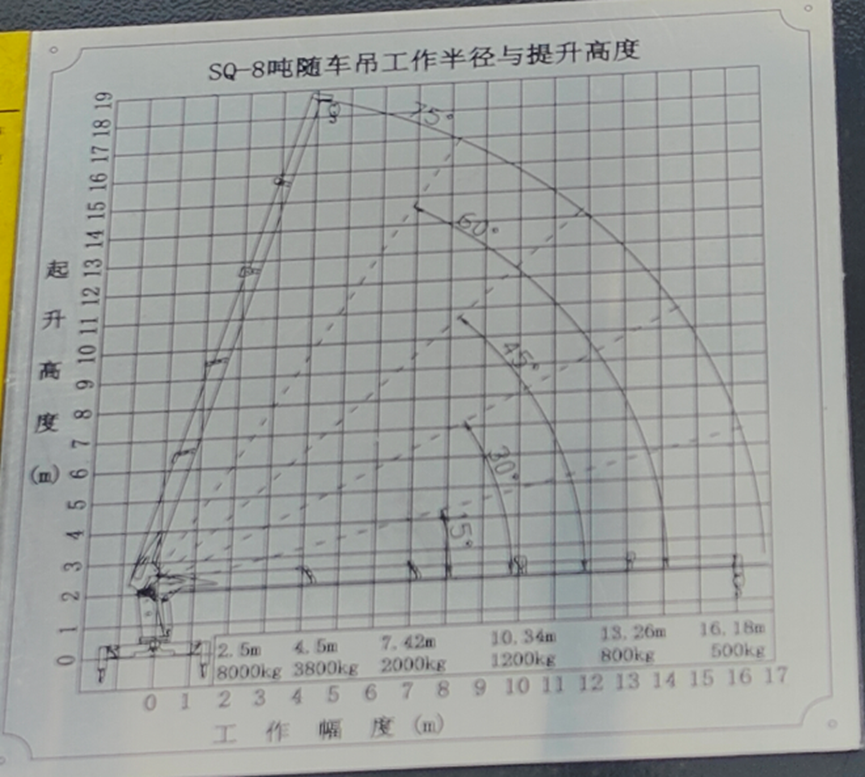

• Maximum load 8 tons: When working at close range (working radius 2.5 meters), 8 tons of cargo can be hoisted, and the load gradually decreases as the amplitude increases (such as 500kg at a radius of 16.18 meters). The full-extended arm is 16.2 meters long and the maximum lifting height is 18 meters (including the arm elevation angle)
• Hydraulic system: independent hydraulic pump oil supply, pressure 27MPa, equipped with a two-way balance valve to prevent the arm from accidentally sliding down.

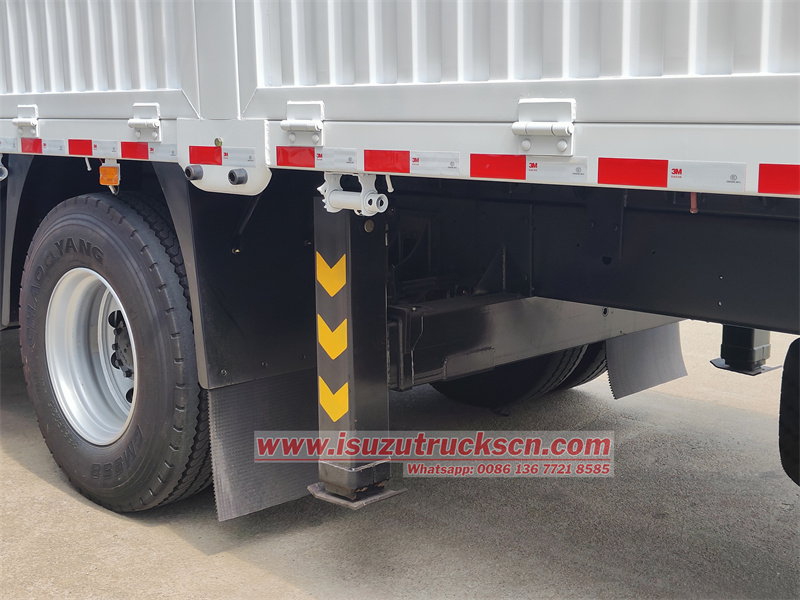

• Hydraulic outriggers: 4 H-shaped outriggers (2 front and 2 rear), a single outrigger span of 4.5 meters, can be retracted horizontally and vertically, providing strong support for hoisting. The outriggers are equipped with two-way hydraulic locks to ensure that there is no risk of soft legs during operation.
• Basket: The vehicle is equipped with a movable basket that can carry a load of 200kg for high-altitude maintenance or installation operations. The basket uses a non-slip floor, is equipped with guardrails, and is installed movably, so it can be placed in the cargo box when not in use.
• Intelligent protection: The crane has a built-in torque limiter, which automatically alarms and cuts off the action when overloaded; the hook is equipped with an anti-unhooking device as standard.

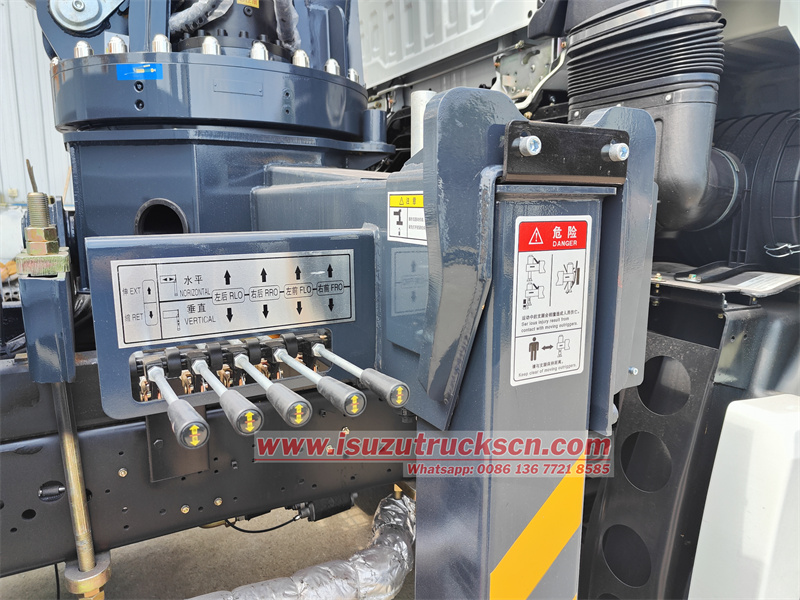

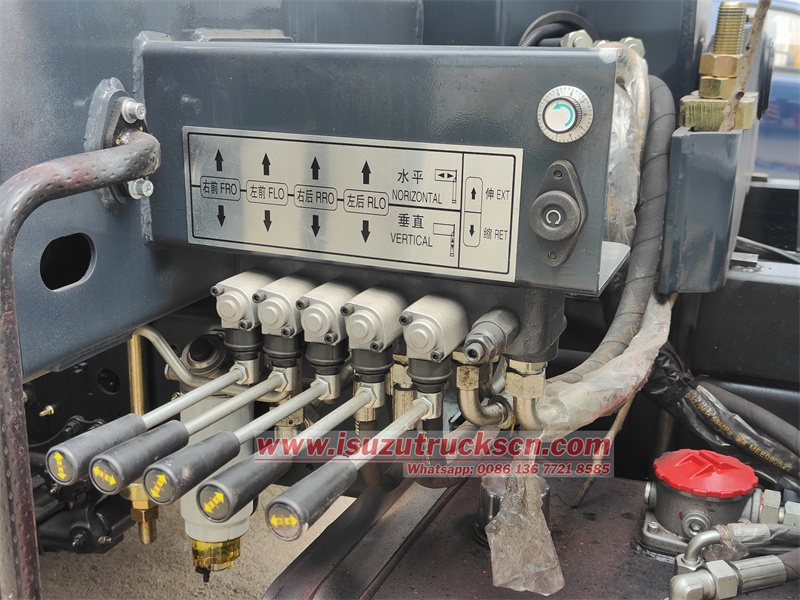

• Operation mode: It supports dual modes of the cab aerial operating platform and the manual hydraulic joysticks on both sides of the ground. It can be operated through the aerial operating platform on the ground, which is convenient for operators to remotely control in a relatively safe and comfortable position; it can also be operated using manual hydraulic operating levers on both sides of the ground crane. This operation method is more intuitive and flexible, which is convenient for operators to make timely adjustments according to the on-site conditions. Through these operation methods, the crane extension/retraction, luffing, rotation, hook lifting/dropping, as well as the horizontal and vertical extension/retraction of the hydraulic outriggers.

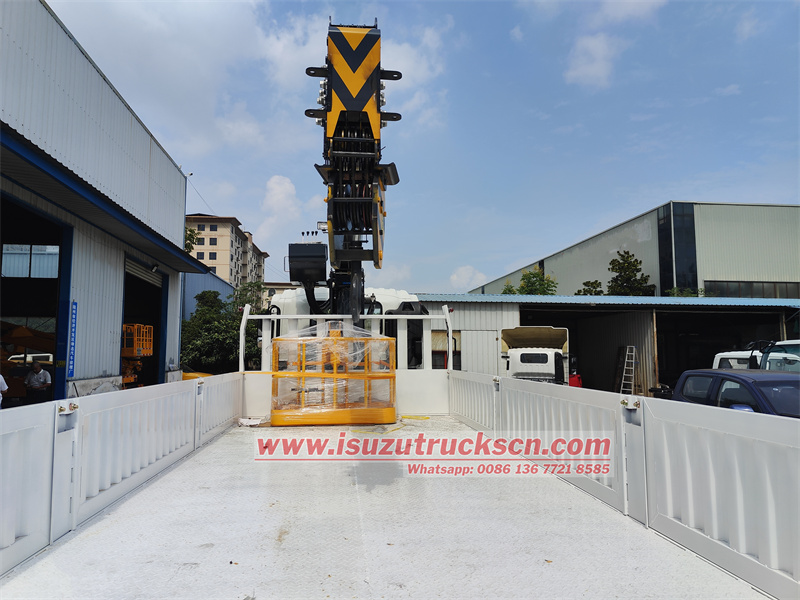

★ Cargo box:

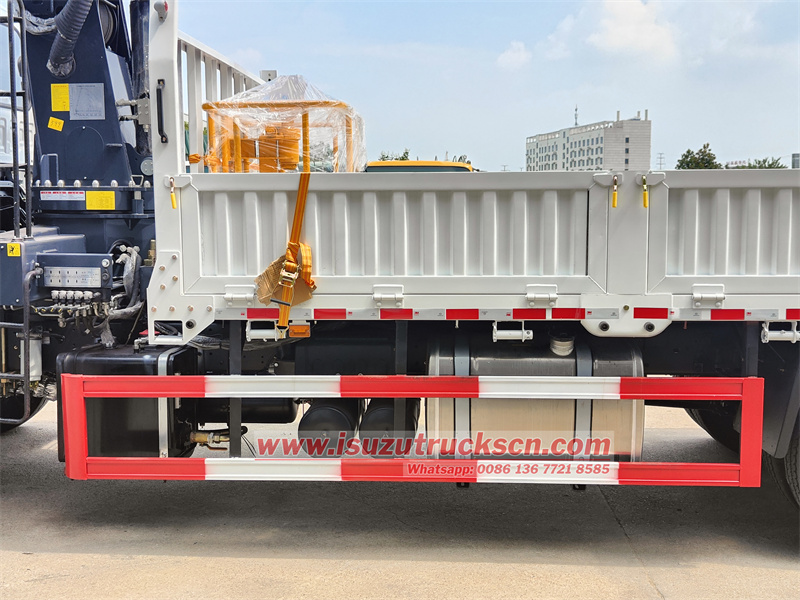

High-strength structural cargo box design: size 5500×2350×550mm, 5mm bottom plate, 4mm side plate high-strength steel plate, internal welded reinforcement ribs, which not only ensure the strength and durability of the cargo box, but also meet the transportation needs of different goods. Whether it is heavy equipment or bulk cargo, it can be placed safely and stably in the cargo box.
★ Application scenarios: "all-round player" from municipal to mining
• Municipal engineering: hoisting street lamp poles, pruning street trees, tree transplanting, efficiency is better than "artificial Spider-Man".
• Mining: hoisting ore, repairing equipment, powerful and durable.
• Emergency rescue: after adding a hanging basket, it becomes a "high-altitude fire truck" to save people in danger.
• Cargo transportation: It can load heavy equipment for cargo transportation and has hoisting function.
