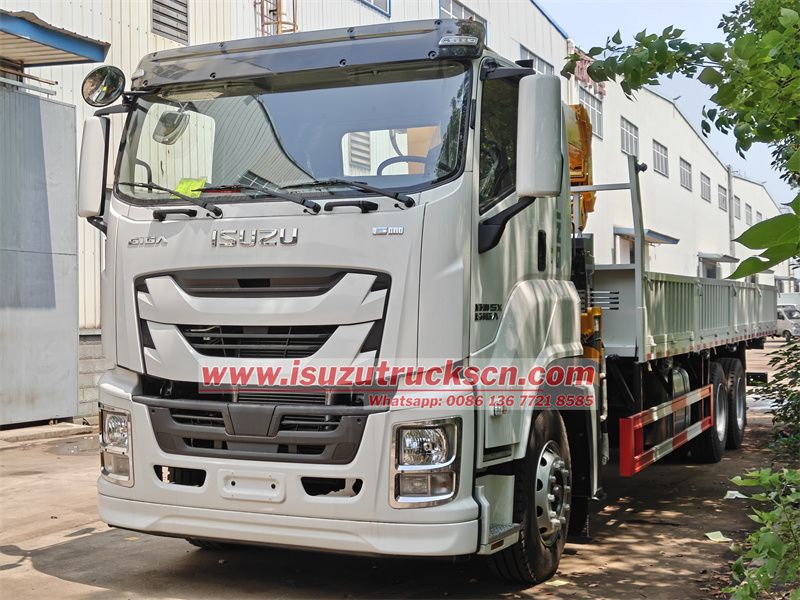

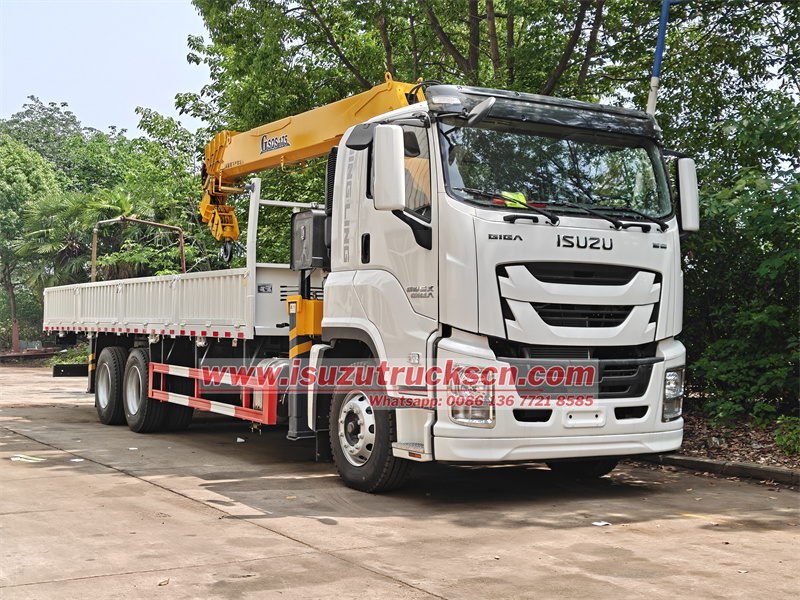

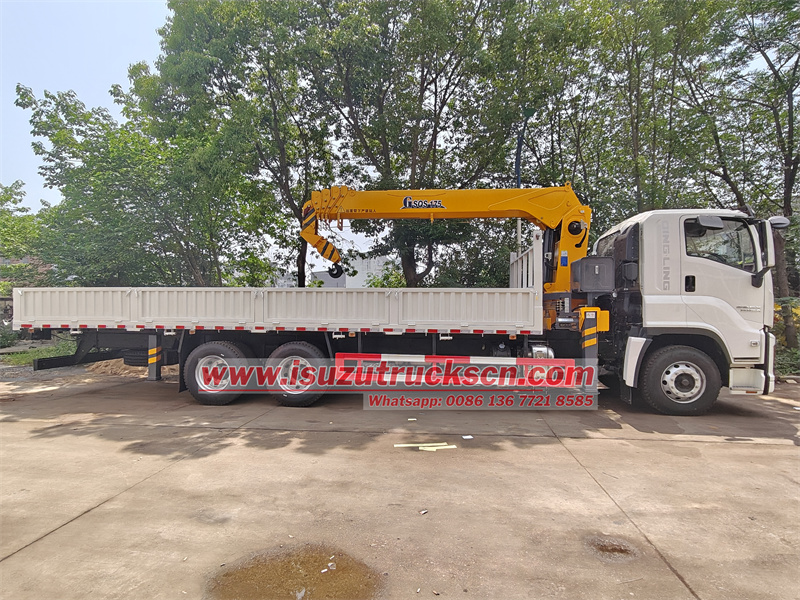

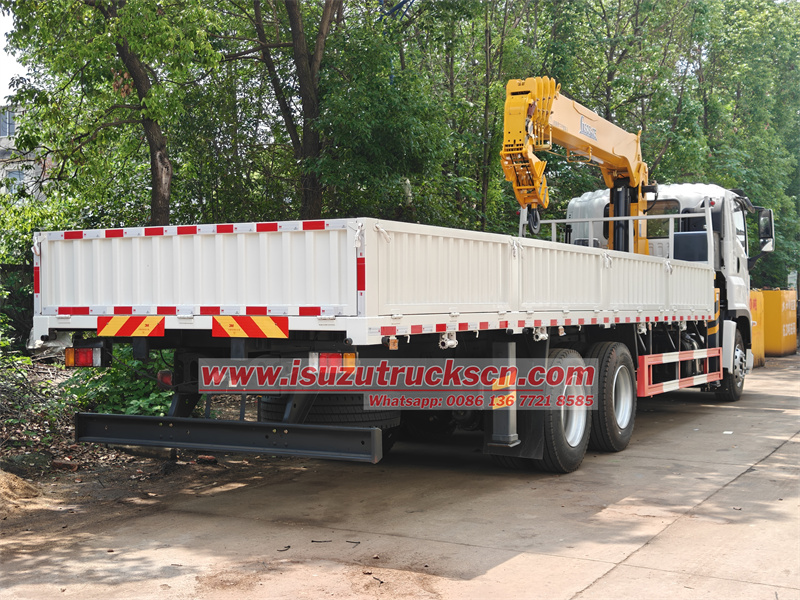

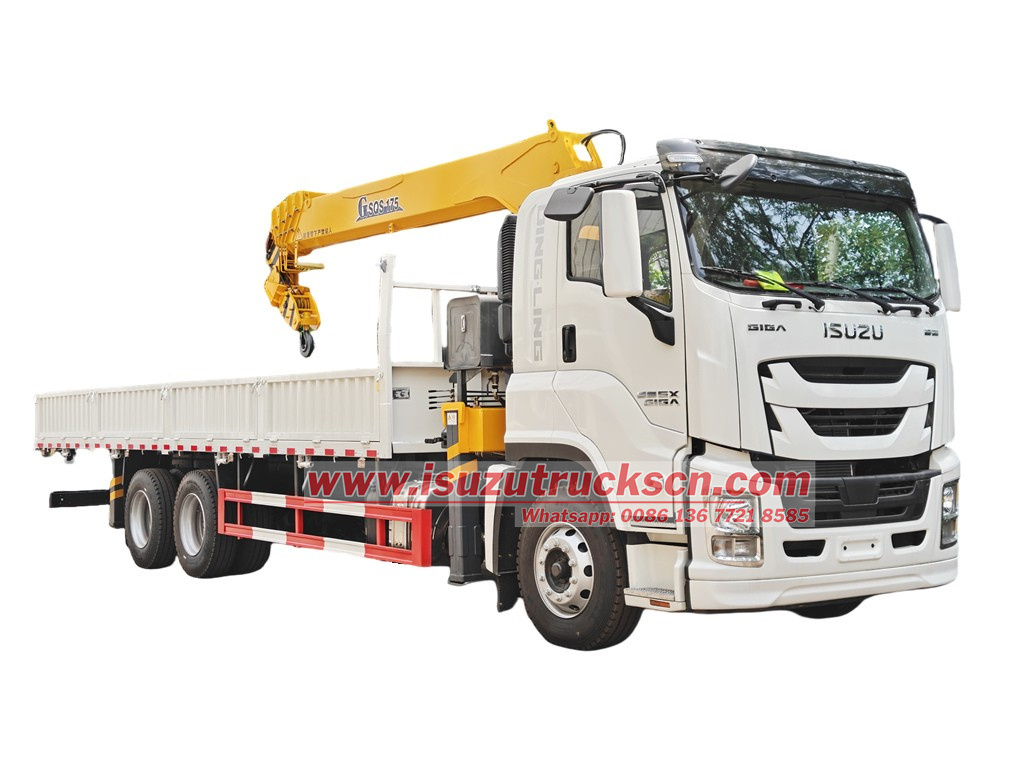

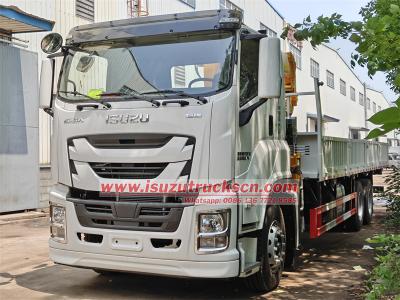

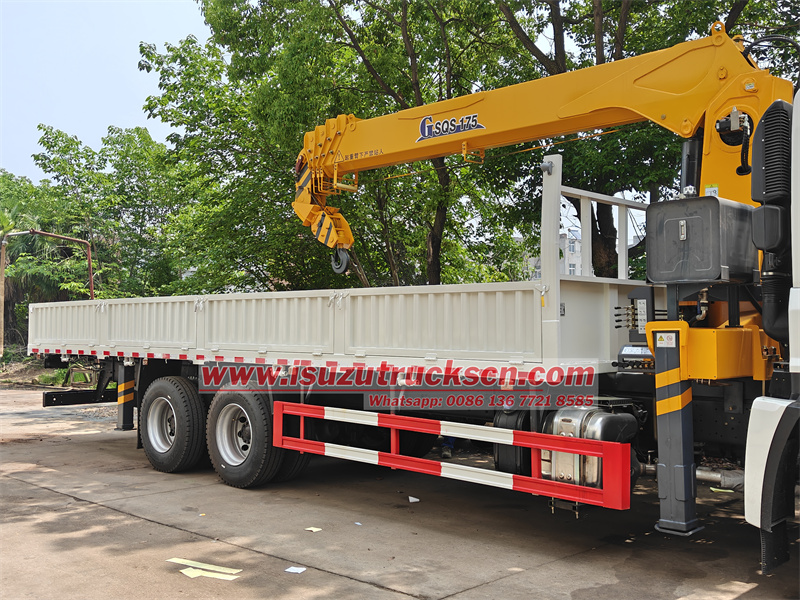

Brand newly designed Isuzu GIGA 5X left hand drive boom crane truck is modified on the Isuzu FVZ GIGA 6x4 chassis, 4650+1370mm wheelbase, half-row cab with sleeper, equipped with Isuzu 6HK1-TCG60 300HP Euro VI diesel engine, Fast 9-speed gearbox, the upper dropside cargo box is with sides 3mm and bottom 5mm thickness, dropside cargo body size 7500x2450x550mm size, equipped with SQS175 straight boom crane, with max lifting weight 7000kg, 18.5m max lifting height, 16.3 meters max working radius, painting and logos 100% customized.
Manufacturer:
Powerstar TrucksWork capacity:
7000 kgDimension:
12000×2550×3800mmCabin type:
Isuzu FVZ GIGA 5X LHD, Half row with sleeperWheelbase:
4650+1370mmEngine power:
221KW/300HPEngine type:
Isuzu 6HK1-TCG60Axle drive:
6x4, LHDGear box:
FAST 9-speed,manualRemarks:
Customized to equipped with HIAB, PALFINGER, XCMG boom craneISUZU 6×4 GIGA truck mounted crane transporter is a multi-functional special vehicle modified from the Japanese technology Isuzu GIGA heavy truck chassis, integrating heavy-duty transportation and hydraulic lifting functions. ISUZU GIGA 5X truck loader crane transporter is essentially a heavy-duty platform with integrated special functions. Isuzu Mobile Crane Truck is based on the reliability of Isuzu 6HK1 diesel engine truck chassis and meets diversified operation needs by adapting different lifting mechanisms. Its core value lies in balancing transportation efficiency and on-site lifting capabilities, especially suitable for scenes such as building materials transportation and emergency rescue.

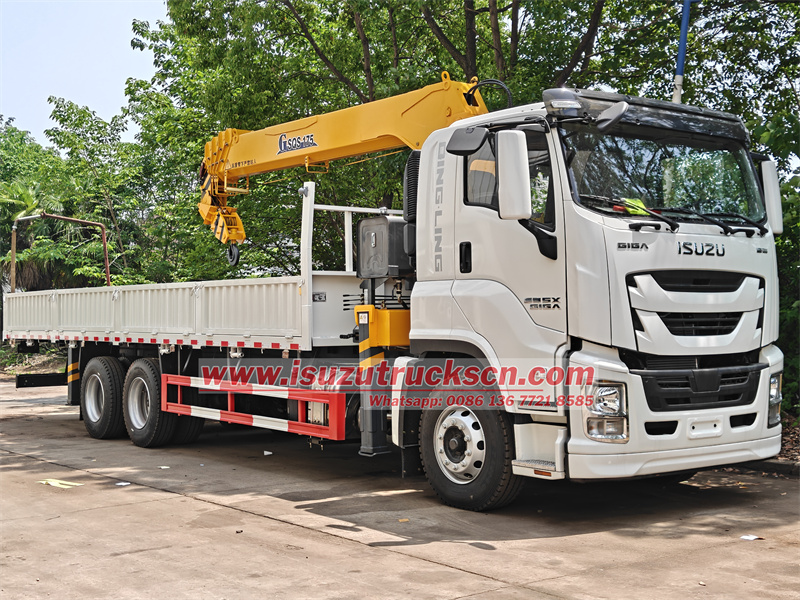

ISUZU GIGA 5X boom crane mounted dropside cargo truck, referred to a truck mounted crane, which is a device that uses a hydraulic lifting and telescopic system to achieve the lifting, rotation, and hoisting of heavy goods. It is usually installed on a truck. Isuzu lorry crane is generally composed of truck chassis, full dropside cargo compartment, power take-off (PTO) device and crane. The advantages of truck-mounted crane are good mobility, rapid transfer, integration of lifting and transportation functions, improving resource utilization, and much cheaper than truck crane. Isuzu hydraulic truck crane can be loaded with various kinds of grabbing tools, such as wood grab bucket, hanging basket, brick clamp, drilling tool, etc., to realize multi-scenario operation.
● China best Isuzu boom crane truck factory
● 30 years experience on straight arm crane truck designing
● Be designed according to your requirements
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
| ISUZU GIGA SQS175 model 7tons dropside cargo truck with crane | |||||||
| ISUZU GIGA 5X Truck Chassis | |||||||
| Overall Dimension | 12000×2550×3800 (mm) | ||||||
| Gross Vehicle Weight | 25000(Kg) | ||||||
| Curb Weight | 14200(Kg) | ||||||
| Chassis Brand | ISUZU | ||||||
| Drive model | 6*4 | ||||||
| Cabin | Double, Left Hand Driving, with air conditional | ||||||
| Number of Passengers | 3 | ||||||
| Engine | Model | 6HK1-TCG60, 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR | |||||
| Power | 220KW/300HP | ||||||
| Emission standard | EURO 6 | ||||||
| Displacement | 7790 (ml) | ||||||
| Fuel type | Diesel | ||||||
| Wheel Base | 4650+1370 mm | ||||||
| Tire | 295/80R22.5 | ||||||
| Front/Rear Axle Loading | 6300/13000+13000(Kg) | ||||||
| Gearbox | FAST 9Forwards & 1Reverse | ||||||
| Approach/Departure Angle | 23/12(°) | ||||||
| Brake System | Air break | ||||||
| Overhang | 1250/3545(mm) | ||||||
| Max Driving Speed | 90(km/h) | ||||||
| Upperstructure Specification | |||||||
| Cargo Body | Dimension | 7500×2450×550(mm) | |||||
| Material | Q235 carbon steel | ||||||
| Cargo Thickness | Side 3 mm, Bottom 5mm | ||||||
| Boom Type | Straight 4-Arm telescopic boom | ||||||
| Working System | Crane | Crane Brand | SQS175 model | ||||
| Range of Sprayer | 16.3 m | ||||||
| Max Lifting Moment | 17.5(T.M) | ||||||
| Max Lifting Capacity | 7000(kg) | ||||||
| Max lifting height | 18.5(m) | ||||||
| Rotation angle | 360(°) | ||||||
| Installation space | 1150(mm) | ||||||
| Oil tank capacity | 400(L) | ||||||
| Leg | Leg type | H type | |||||
| Leg Span | 2.28-5.9(m) | ||||||
| Hydraulic system | Pressure | 18(M pa) | |||||
| Capacity | 70(L) | ||||||

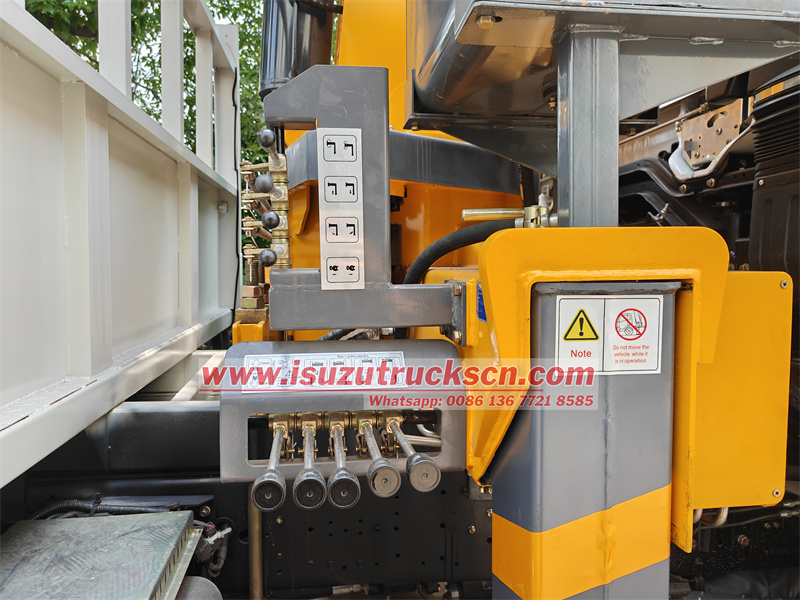

| Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. | ||||||
| Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. | ||||||

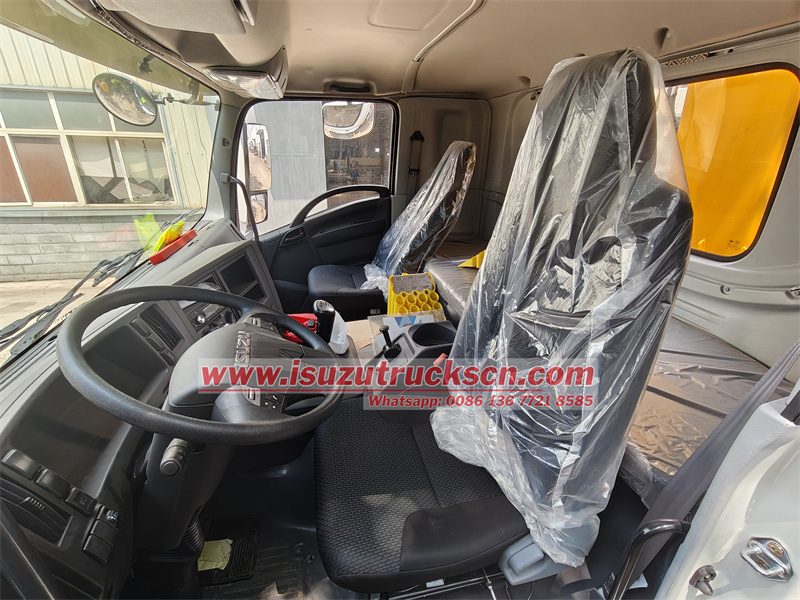

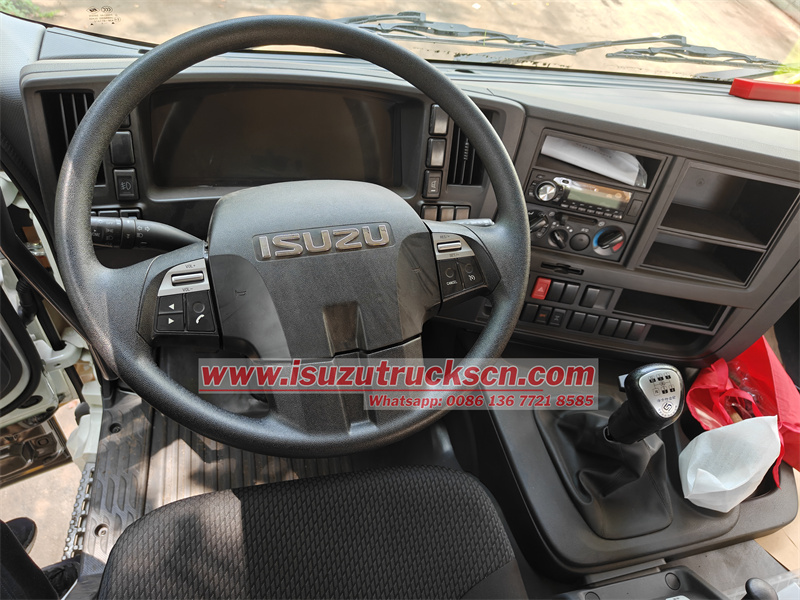

The Isuzu FVZ GIGA 6x4 chassis is the core load-bearing platform of the Isuzu dropside cargo truck mounted crane. Its 4650+1370mm dual-stage wheelbase design takes into account steering flexibility and stability. Turck mounted with the Isuzu 6HK1-TCG60 inline six-cylinder diesel engine, which meets the Euro VI emission standards, with a peak power of 300HP (221kW) and emission 7790cc, also matched with Fast 9-speed manual transmission. The low-speed gear ratio is optimized to adapt to heavy-load starting and ramp conditions. The maximum speed limit is 100km/h, balancing efficiency and safety. below showing and advanced cabin of the Isuzu FVZ boom crane truck.

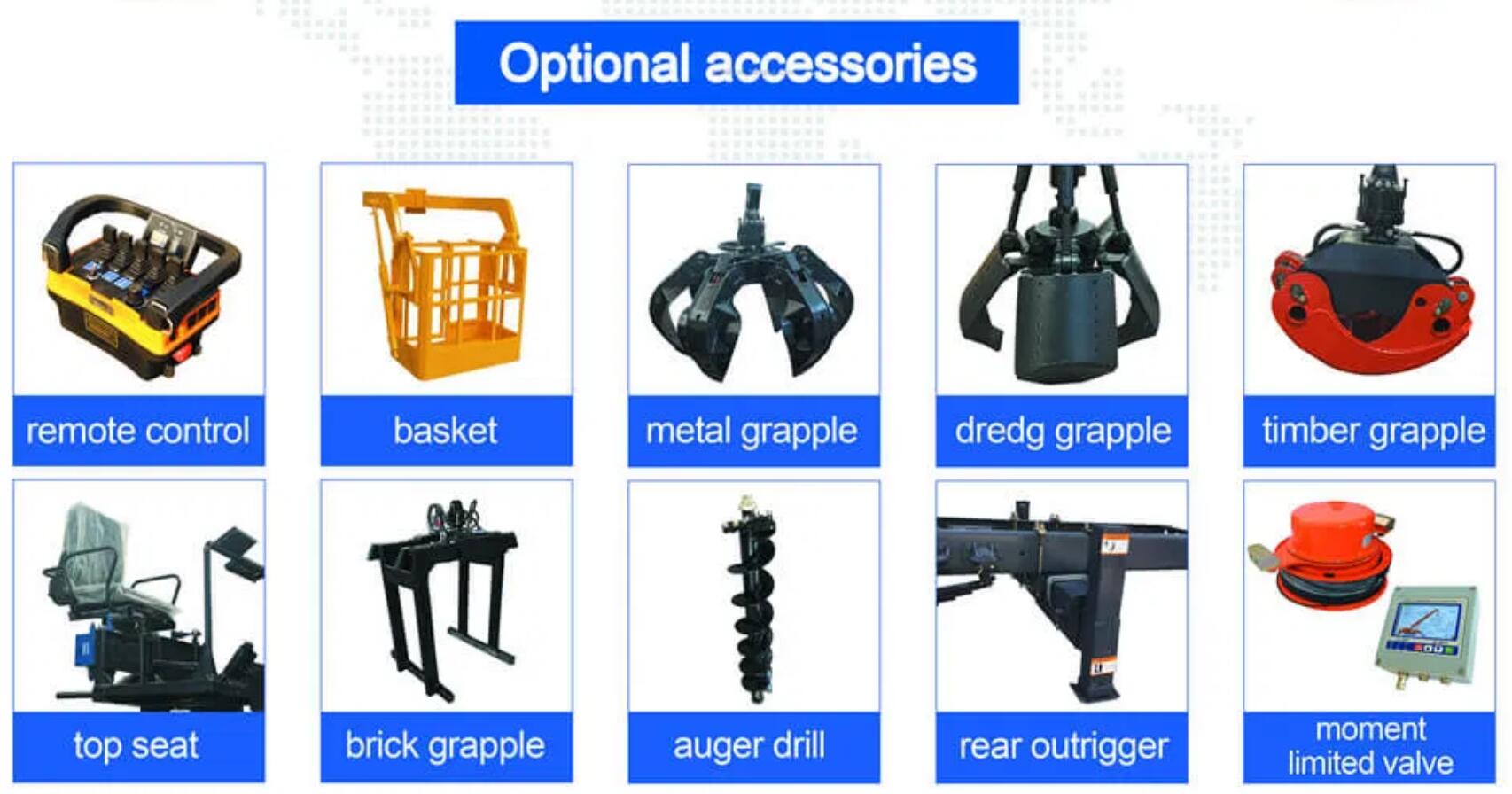

Crane Tonnage Selection: Isuzu Truck mounted cranes are available in various tonnages like 2t, 3.2t, 5t, 6.3t, 8t, 10t, 12t, 16t, and 20t. Choose the crane tonnage based on your actual work needs. For instance, heavy-duty cranes are needed on construction sites for handling heavy materials, while lighter ones may work for decoration jobs. And POWERSTAR trucks produced and designed lorry crane truck can be matched with different accessories to realize all functions:
Chassis Tonnage Selection: The ISUZU chassis, foundation of boom truck cranes, has crucial tonnage selection. Its tonnage links to truck capacity for various needs, including ISUZU 100P, 600P, KV100, KV600, 700P, ELF, NPR, NQR for light capacity range from 2tons to 6.3tons. And ISUZU FTR, FRR, FVR,FSR, FVZ, GIGA 4X,GIGA 5X, GIGA VC66 heavy duty capacity range from 5tons to 20tons. Selection must consider crane weight, cargo box weight, and actual load requirements to ensure adequate capacity.
Reasonable Matching: Crane tonnage should align with chassis capacity to prevent overloading, ensuring vehicle safety and performance.
Boom Length: Boom length impacts crane capacity, so consider its relationship with lifting capacity when selecting crane and chassis.
Working Environment: Crane and chassis selection should adapt to specific work environments, e.g., stronger chassis for uneven roads.
Chassis Carrying Capacity: When selecting a crane, the carrying capacity of the chassis needs to be considered to avoid damaging the chassis due to an overly heavy crane.
Vehicle Weight: The weight of the vehicle itself also affects the lifting capacity of the crane. Therefore, when calculating the maximum cargo capacity, the vehicle weight and driver's weight need to be subtracted.
