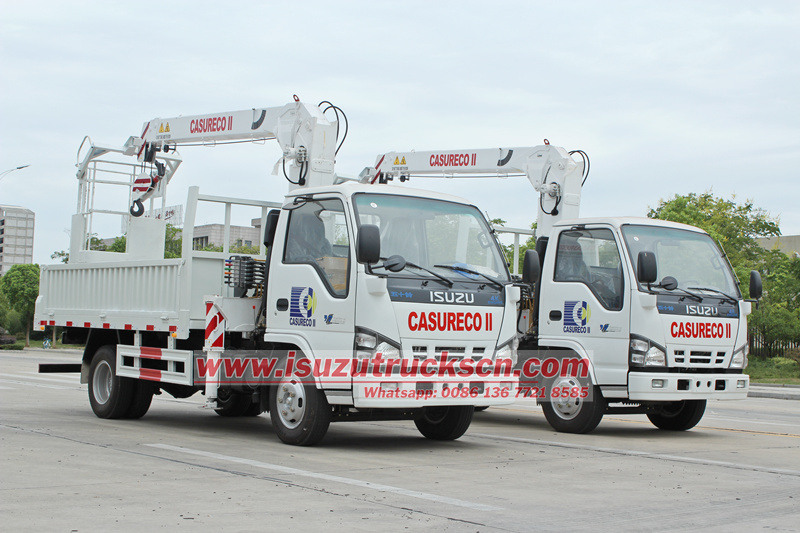

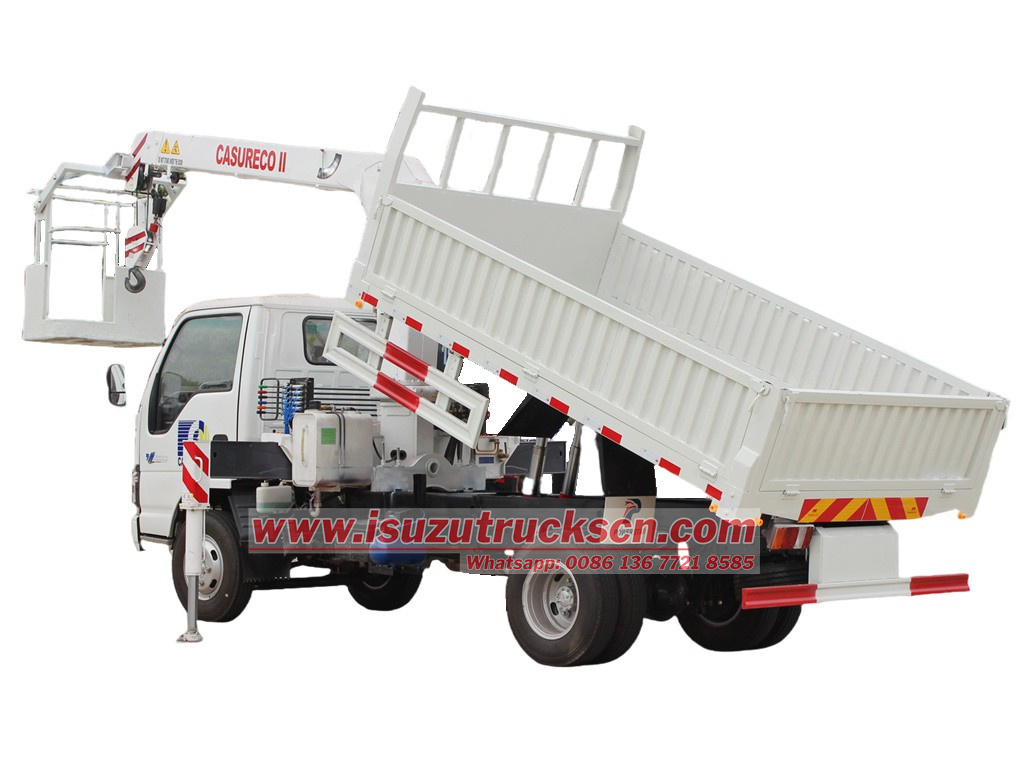

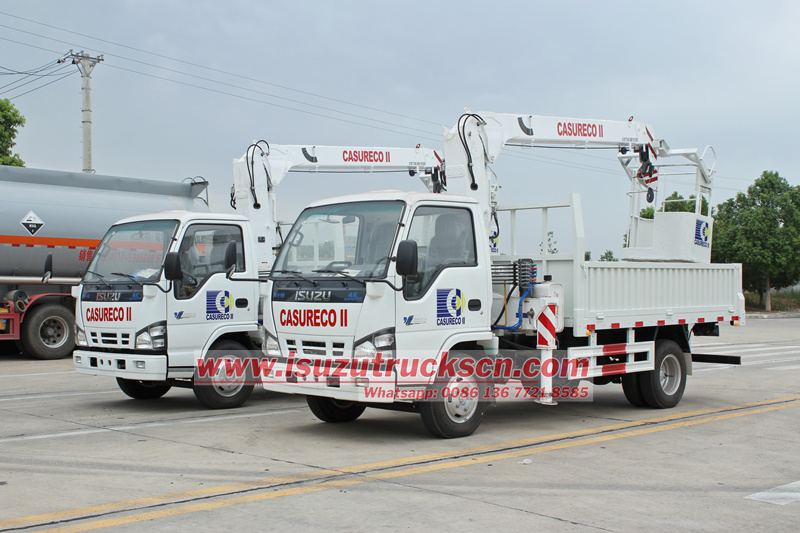

Philippines Isuzu hydraulic boom truck with basket

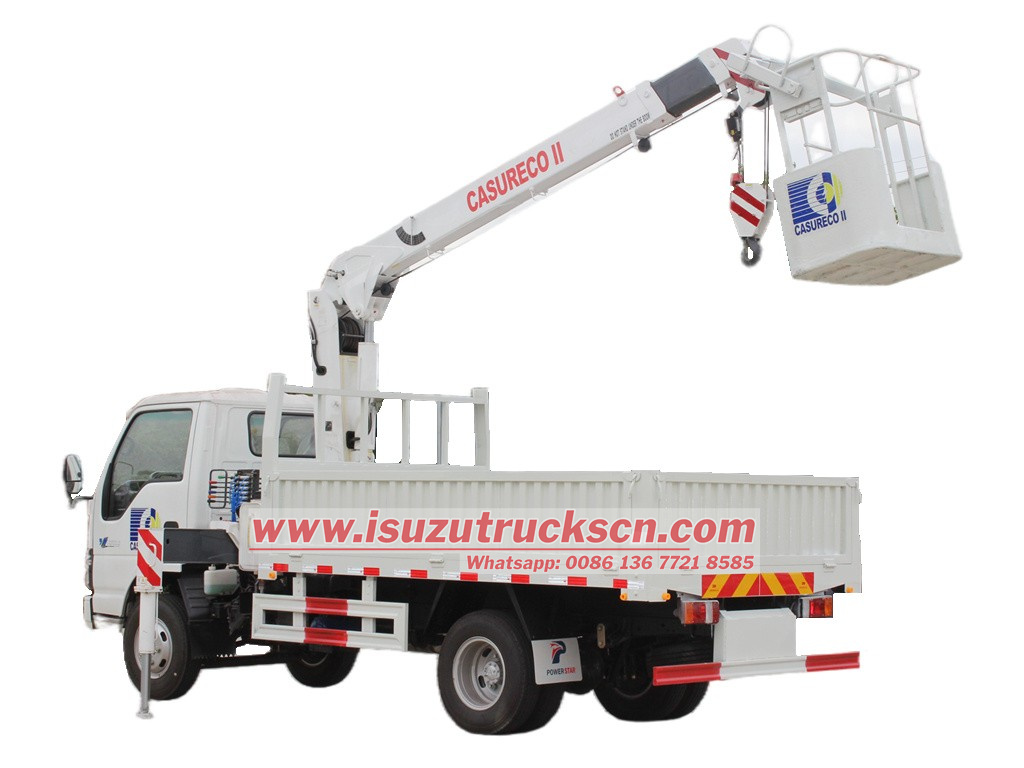

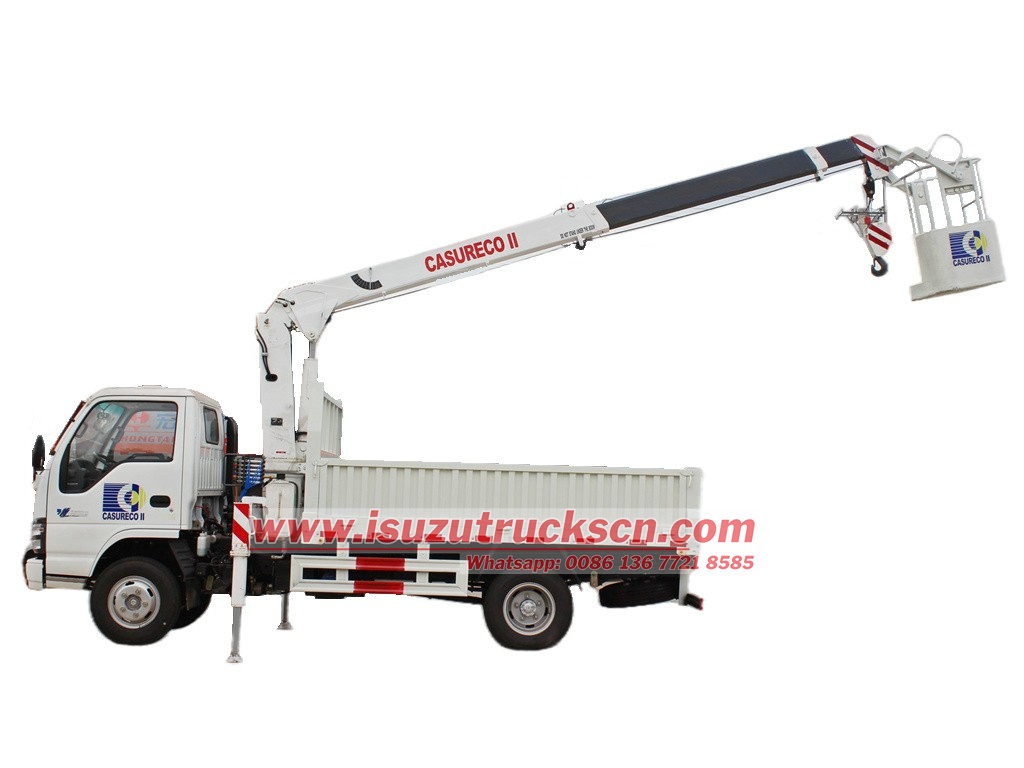

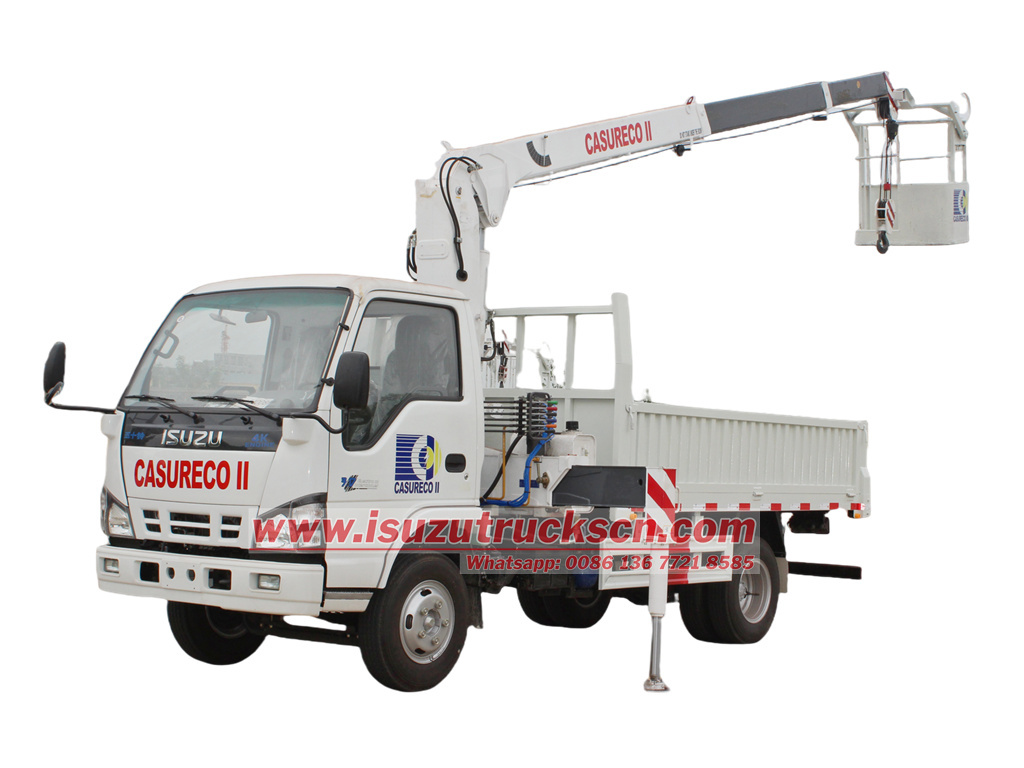

Isuzu NKR 600P truck mounted 3.2Tons XCMG boom crane with basket, which is special truck modified on the basis of Isuzu chassis, 3360mm wheelbase, Isuzu 4KH1CN6LB diesel engine, with 120HP engine and 2999cc emssion, meet international EURO 6 emission standard. Isuzu MSB 5-speed gearbox for convenient driving, upper loading box size 3500x2150x500mm, side 3mm bottom plate 4mm thickness, mounted with hydraulic cylinder for lifting. The crane is XCMG SQS68 model telescopic boom crane, manual hydraulic operating levers on both sides control the extension/retraction of the outriggers, extension/retraction and rotation of the boom, also mounted with basket for convenient operation and high altitude working.
Manufacturer:
Powerstar TrucksWork capacity:
3.2tonsDimension:
6850×2350×3050 mmCabin type:

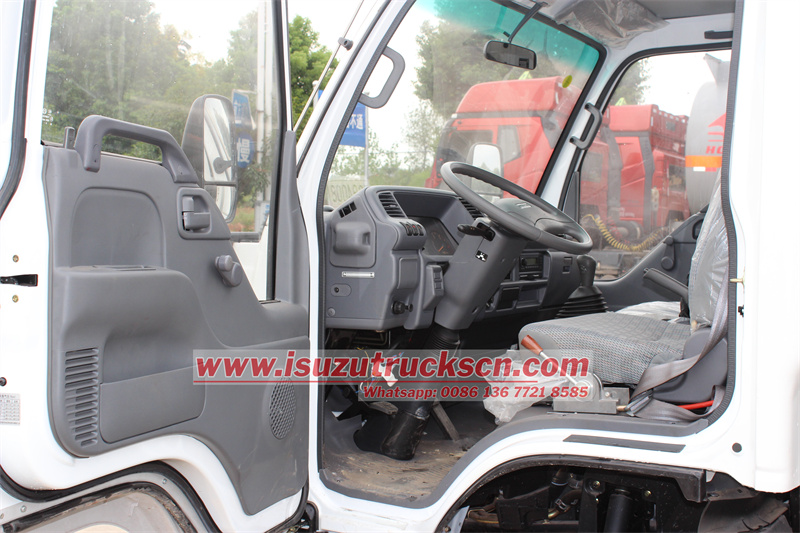

Isuzu NKR 600P cabin,with AC and RadioWheelbase:
3360mmEngine power:
88KW/120HPEngine type:
ISUZU 4KH1CN6LBAxle drive:
4x2Gear box:
Isuzu MSB 5-speed,manualRemarks:
Optional to be equipped with Palfinger or POWERSTAR craneBrand newly designed Philippines Isuzu hydraulic boom truck with basket is a multifunctional engineering vehicle that integrates lifting, transportation, and aerial work functions. It is build based on ISUZU 600P classical truck chassis, same cabin as Japanese ISUZU NKR cabin. Isuzu crane truck with basket equipped with an Isuzu 4KH1CN6LB diesel engine, 88KW / 120HP engine power and emission can be 2999cc, meet international EURO 6 standard emssion requirement. Also we can originaly customized to remove the matched DPF and ADBlue device to make truck working as EURO 4, which can efficiently meet the Philippines local requirement. and Isuzu lorry truck with crane basket equipped with ISUZU MSB 5-speed gearbox, matched well with ISUZU 4KH1 diesel engine, offering strong power and low fuel consumption.

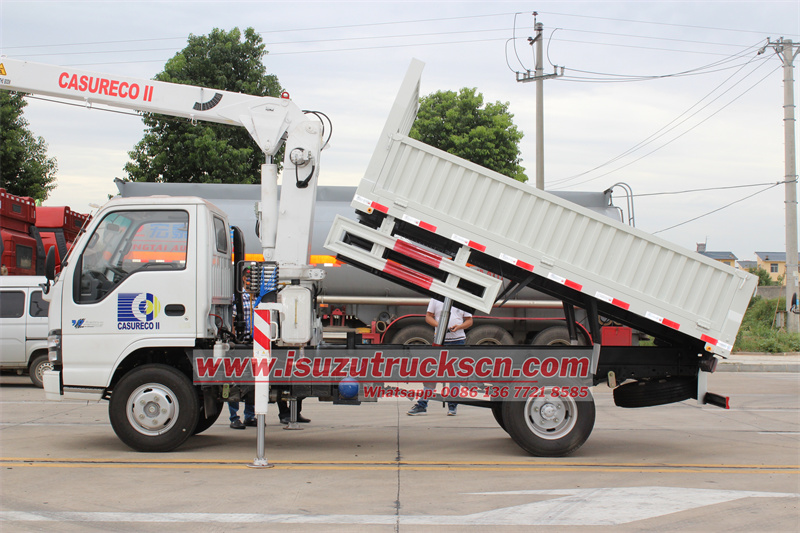

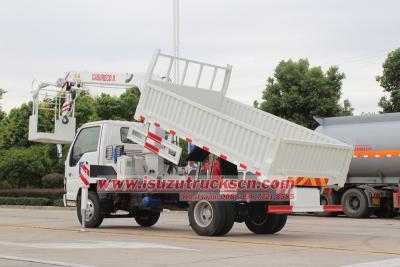

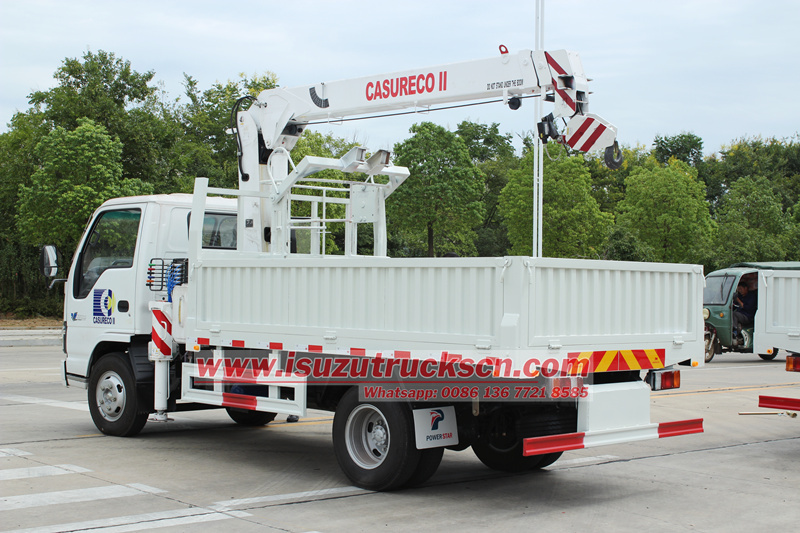

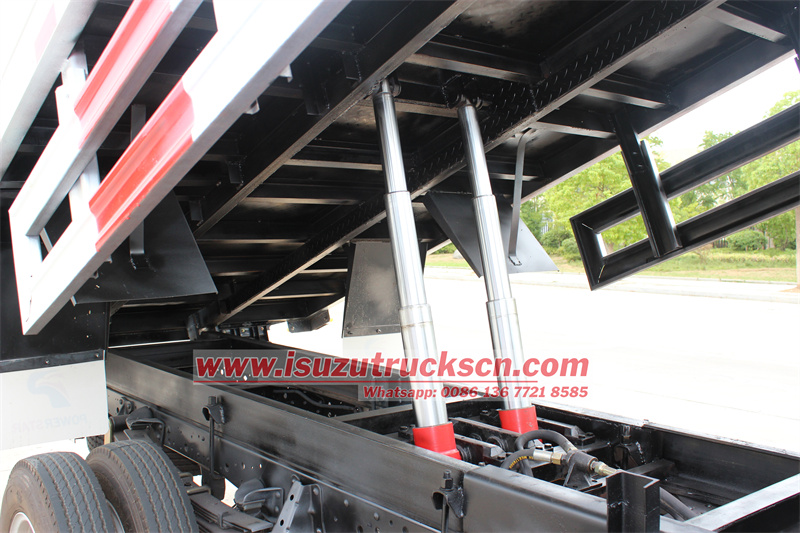

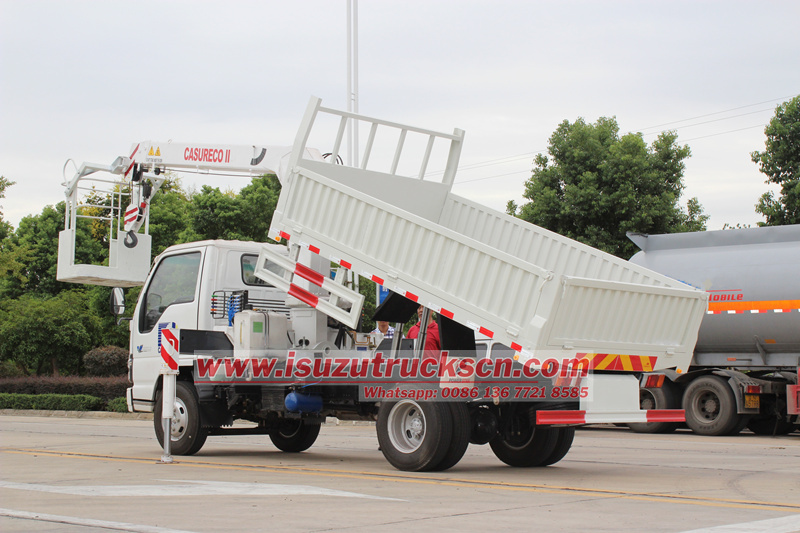

The Isuzu loader crane mounted dropside cargo with large size and is sturdy and durable, size can be 3500x2150x550mm, meeting daily transportation needs. Moreover, the dropside cargo body equipped with two hydraulic cylinders, which can be lifting up and falling down automatically, very convenient for operation. This Isuzu crane truck with bucket is fitted with a XCMG SQS68 telescopic boom crane. It has a maximum lifting capacity of 3.2 tons, a lifting height of 9.5 meters, and a working radius of 7.5 meters. It can rotate 360° full-circle, ensuring flexible operation. The crane is hydraulically driven and controlled by manual hydraulic operation levers on both sides. also customized to be equipped with remote control box, very easy and convenient for operation. The ISUZU boom crane basket truck is suitable for various scenarios such as logistics loading and unloading, construction projects, and municipal engineering. It can both transport goods and perform lifting operations, serving multiple purposes with a single vehicle, making it economical and practical.
● 30 years experience on Boom truck crane designing
● Crane brand: Palfinger, UNIC, HIAB, XCMG or Local brand
● Stiff boom crane or Knuckle boom crane
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome
| ISUZU Boom Crane Truck with Basket Technical parameter of chassis | |||
| Chassis Model | ISUZU NKR | Dimension(LxWxH) | 6850x2350x3050mm |
| body dimension(LxWxH) |
3500x2150x500mm | Driving type | 4x2, optional 4x4 |
| GVW | 7300kg | Rated loading capacity | 4,000kg |
| Curb weight | 4250kg | Cabin | 3 seats,with A/C |
| Engine |
Type | Isuzu engine | |
| Rated Power | 88kw/120HP | ||
| Fuel type | Diesel oil | ||
| Emission standard | Euro 5 | ||
| Special Requirement | Customized remove the DPF and ADBlue to make working as EURO 4 | ||
| Max speed | 100(km/h) | Approach/departure angle | 30/24° |
| Front suspension | 1690mm | Rear suspension | 1655mm |
| Loading of front axles | 2500kgs | Loading of rear axles | 4800kgs |
| Wheel base | 3360mm | Gearbox | MSB 5 forwarder & 1 reverse |
| Tyre | 7.00R16 | Tyre number | 6+1(spare tyre) |
| Color and printing | Can according to customer's requests | ||
| Technical parameter of crane(3.2T ) | |||
| CRANE Model | SQS68 | Max Lifting Capacity(kg) | 3200 |
| Lifting Height(m) | 9.5 | ||
| Max Lifting Moment(T.M) | 6.8 | Recommend Powe(kw) | 14 |
| Max Oil Flow of Hydraulic System(L/min) | 25 | Max Pressure of Hydraulic System(MPa) | 20 |
| Oil Tank Capacit(L) | 30 | Rotation Angle | all Rotation |
| Crane Weight(kg) | 3300 | Installation Space(mm) | 850 |

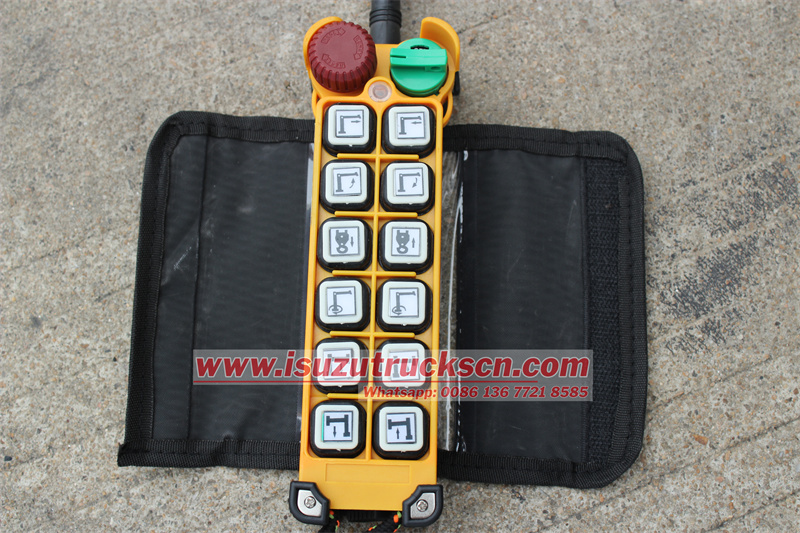

| Remote control | Customized remote control box for boom crane usage | ||
| Dropside Cargo Body | Customized 3500x2150x500mm with dumper body | ||
Isuzu crane mounted dropside cargo truck also called truck mounted crane, truck with crane,lorry mounted crane, truck mounted boom lift, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic boom crane: 2T, 3.2T, 4T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25T.
Knuckle boom crane: 1T, 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25T.
Crane Brand: XCMG, Palfinger, HIAB, POWERSTAR, etc.

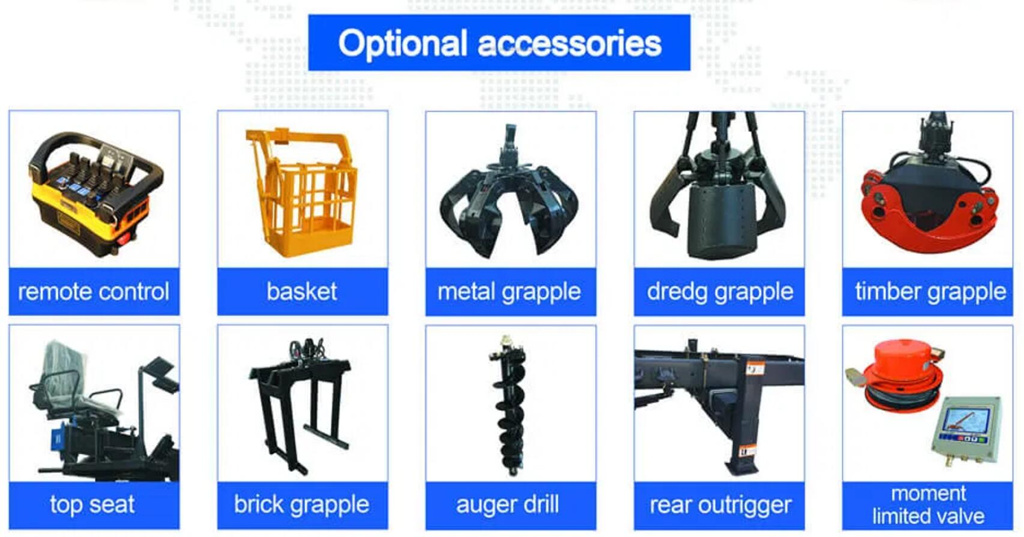

Optional Equipment: details as below
 |
 |
 |
 |

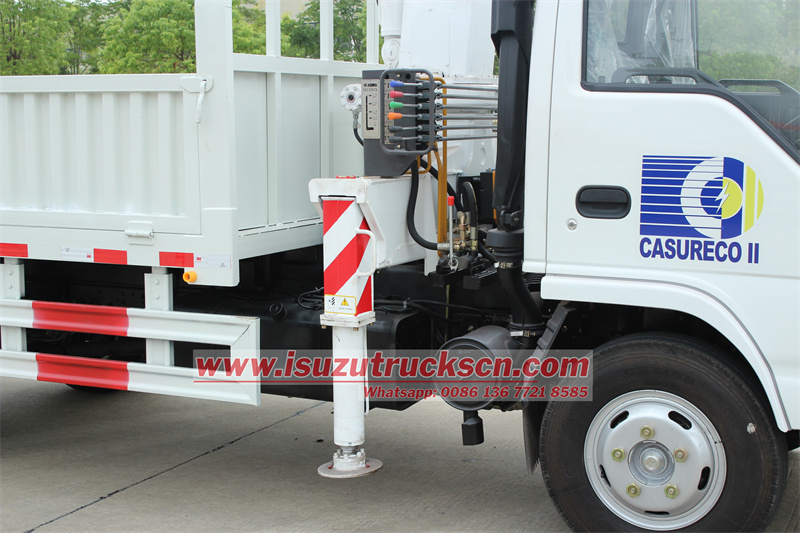

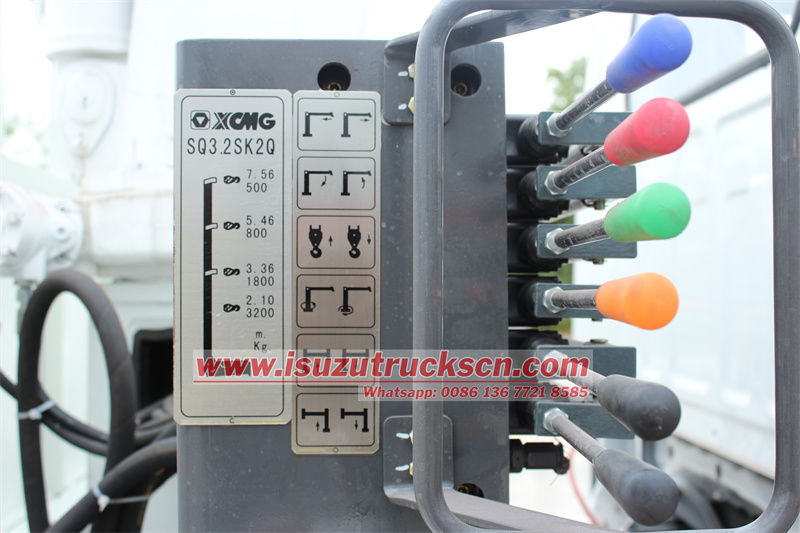

When the operator issues an instruction through the manual hydraulic operating levers on both sides, the hydraulic system responds quickly. The hydraulic pump converts mechanical energy into hydraulic energy, and the high-pressure oil is transported to each actuator through the pipeline. In terms of outrigger operation, the hydraulic oil pushes the outrigger cylinder piston rod to extend and retract, which stably supports the entire vehicle and ensures the stability of the vehicle body during lifting operations. When the boom is extended and retracted, the hydraulic oil enters the boom cylinder, pushing each section of the boom to extend or retract in turn, realizing flexible adjustment of the operating radius. The slewing mechanism is driven by a hydraulic motor, which allows the boom to fully rotate 360° and accurately locate the lifting target. The extension and retraction of the hook is also controlled by the hydraulic system, and the lifting and lowering of the heavy object are achieved through the wire rope winch mechanism. During the whole process, the various components work closely together, and the operator accurately controls every movement through the operating lever to efficiently complete the lifting task. And the remote control box equipped for convenient operation, all make the truck an ideal boom crane for daily usage.
