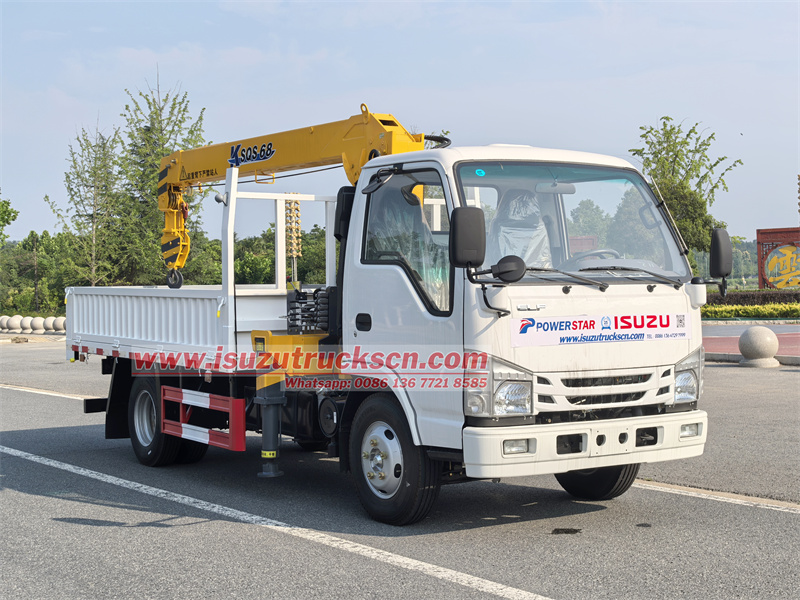

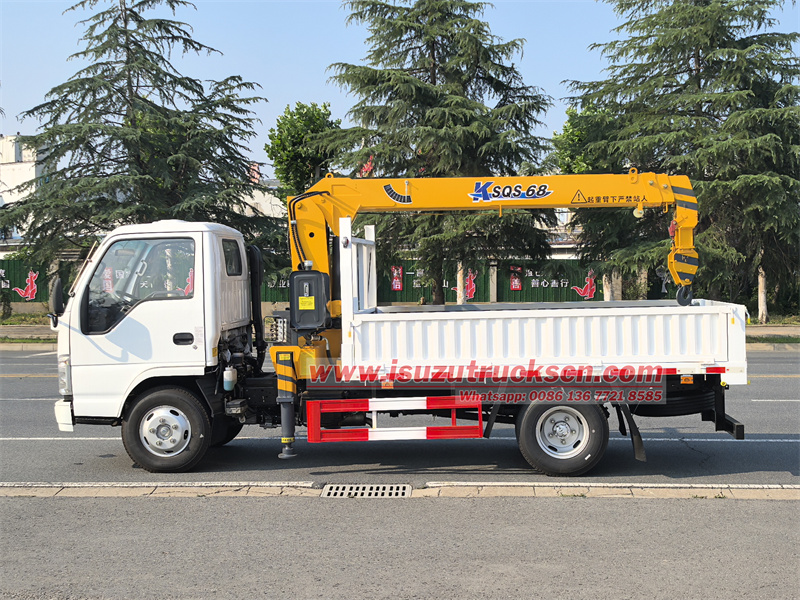

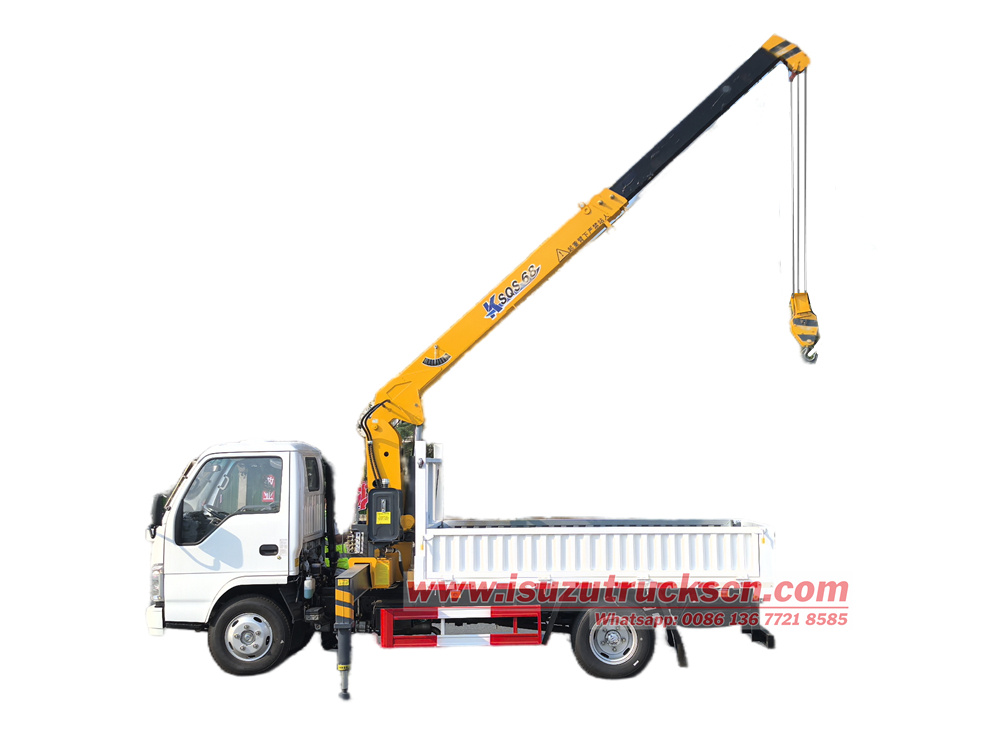

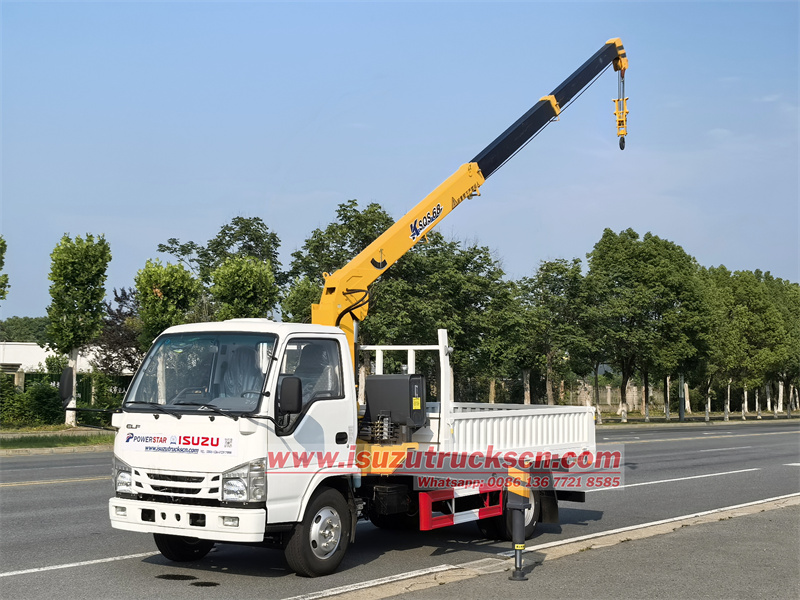

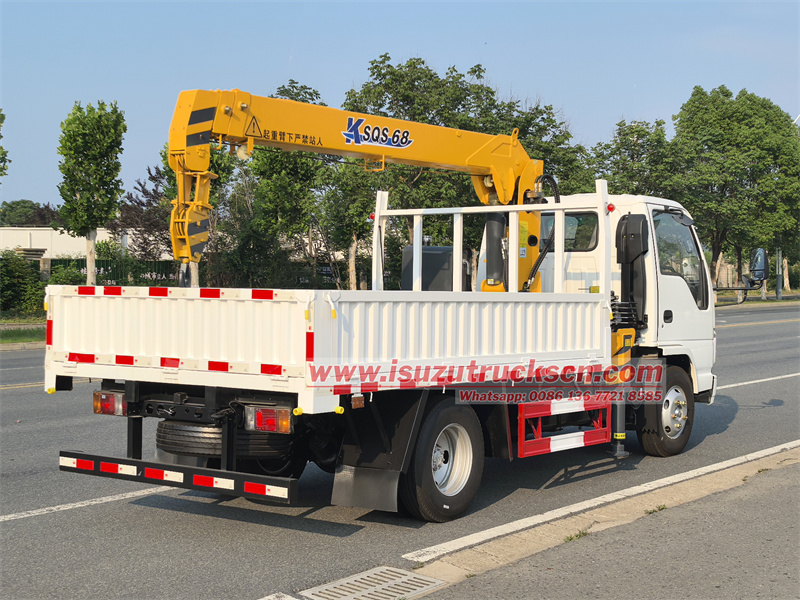

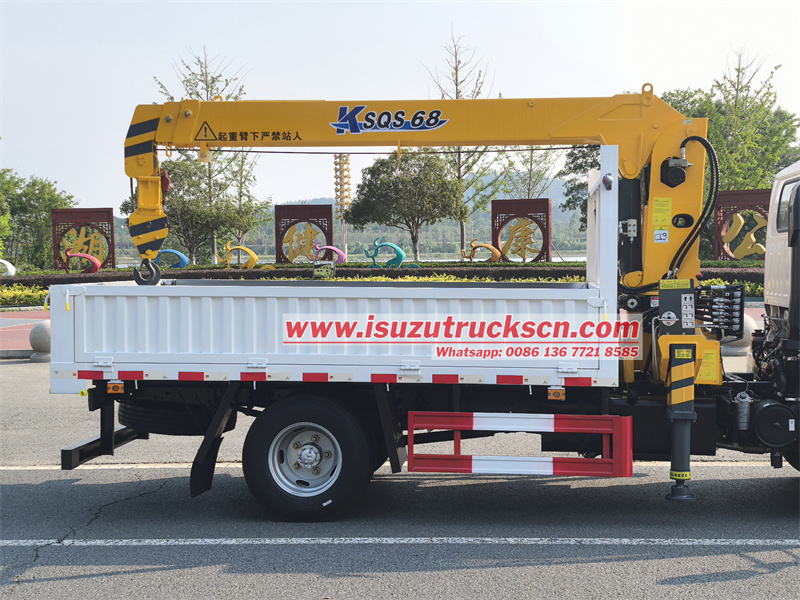

The Isuzu 100P 3.2 ton truck mounted crane is modified on Isuzu 100P chassis, 3360mm wheelbase, equipped with Isuzu 4KH1CN6LB 120HP engine, Isuzu MSB 5-speed gearbox, 3500x2000x450mm carbon steel cargo box, POWERSTAR KSQS68-3 3-section straight arm crane, maximum lifting torque 6.72t·m, maximum lifting weight 3.2 tons, maximum lifting height 9.5m, maximum working radius 7.5m, 360-degree full rotation, hydraulic outriggers, operating levers on both sides to control the extension, lifting, rotation of the crane, extension and retraction of the outriggers, lifting and lowering of the hook and other operations.
Manufacturer:
Powerstar TrucksWork capacity:
3.2tonsDimension:
5850×2100×2550 mmCabin type:
Isuzu ELF 100P cabin, with air conditionalWheelbase:
3360mmEngine power:
88KW/120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4x2,LHDGear box:
Isuzu MSB 5-speed,manualRemarks:

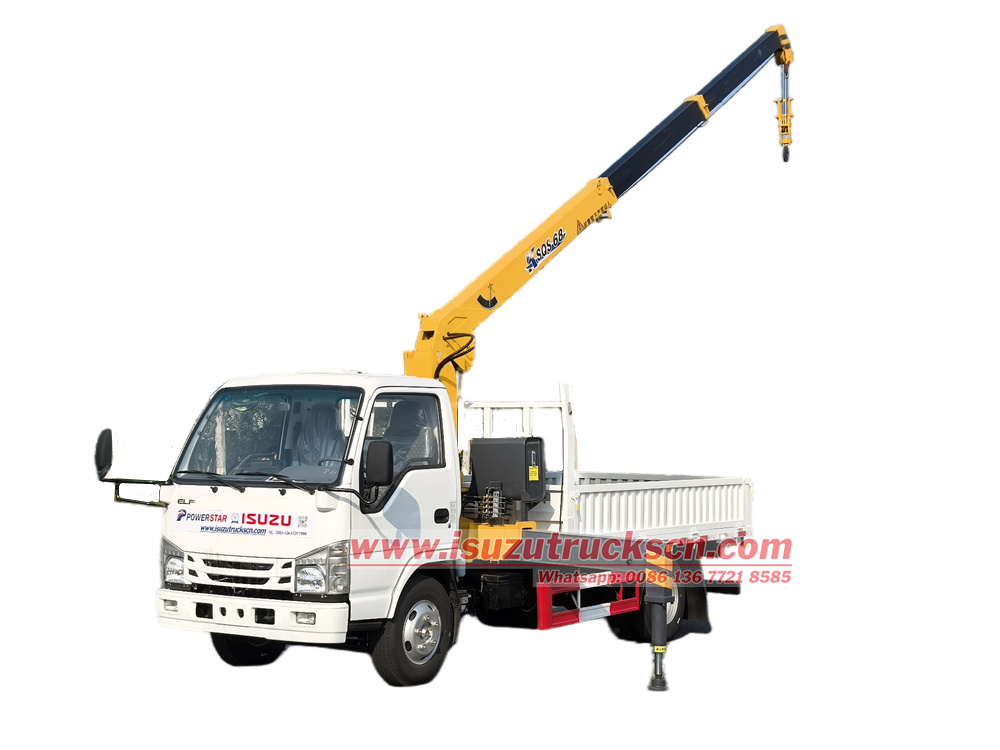

4X4,RHD drive type avaiablePalau 3 Ton Lorry crane Isuzu is an efficient engineering vehicle that integrates transportation and lifting functions. It is equipped with Isuzu 100P special chassis and 3360mm short wheelbase. Equipped with 120HP Isuzu 4KH1 engine and MSB 5-speed gearbox, it is powerful and fuel-efficient, ensuring reliable driving under complex road conditions. The 3.5-meter carbon steel cargo box has a strong carrying capacity and can transport all kinds of goods, while the POWERSTAR KSQS68-3 three-section straight boom crane provides a maximum lifting weight of 3.2 tons, a lifting height of 9.5 meters and a 360-degree full rotation function to meet multi-angle lifting needs. The hydraulic outriggers and the integrated operating levers on both sides further enhance the safety and convenience of operation. The vehicle is widely used in urban infrastructure, logistics transportation, emergency rescue, agricultural and forestry operations, and advertising installation.
● China best Isuzu boom crane truck factory
● Crane brand: Palfinger, UNIC, HIAB, XCMG or Local brand
● Stiff boom crane or Knuckle boom crane
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
*ISUZU ELF 100P 3.2Tons Boom Crane Truck
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Isuzu crane mounted dropside cargo truck also called truck mounted crane, truck with crane,lorry mounted crane, truck mounted boom lift, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic boom crane: 2T, 3.2T, 4T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25T.
Knuckle boom crane: 1T, 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25T.
Crane Brand: XCMG, Palfinger, HIAB, POWERSTAR, etc.
» Ⅱ.Product Parameter for Isuzu 100P 3.2tons boom crane truck:
|
ISUZU ELF 3.2tons Boom Crane Truck |
||
|
General Technical Parameters |
||
|
Overall Dimension |
5850×2100×2550 mm |
|
|
Gross Vehicle Weight |
7300Kg |
|
|
Curb Weight |
4250Kg |
|
|
Chassis Specification |
||
|
Chassis Brand |
ISUZU |
|
|
Drive model |
4x2 |
|
|
Cabin |
Isuzu ELF 100P cabin, Left Hand Driving, with air conditional |
|
|
Number of Passengers |
2 |
|
|
Engine |
Style |
4-stroke direct injection, 4-cylinder in-line with water cooling, inter-cooling, EGR |
|
Model |
Isuzu 4KH1CN6LB |
|
|
Power |
88KW/120HP |
|
|
Emission standard |
EURO 6 |
|
|
Displacement |
2999ml |
|
|
Max torque |
290N.m |
|
|
Fuel type |
Diesel |
|
|
Gearbox |
Isuzu MSB 5-speed,manual |
|
|
Brake System |
OiL brake |
|
|
Wheel Base |
3360mm |
|
|
Front/Rear Axle Loading |
2580/4750Kg |
|
|
Tire |
700R16 |
|
|
Max Driving Speed |
115km/h |
|
|
Upper structure Specification |
||
|
Cargo Body |
Dimension |
3500 x 2000 x 450 mm |
|
Material |
Q235 carbon steel |
|
|
Cargo Thickness |
Side 3mm, Bottom 4mm |
|
|
Working System |
Boom Type |
Straight 3-Arm telescopic boom |
| Boom Model |
POWERSTAR KSQS68-3 |
|
|
Max Lifting Moment |
6.72t·m |
|
|
Max Lifting Capacity |
3200kg |
|
|
Max lifting height |
9.5m |
|
|
Rotation angle |
360° ALL Rotation |
|
|
Installation space |
680mm |
|
|
Max working radius |
7.5m |
|
|
Hydraulic system flow |
20L/min |
|
|
Crane weight |
1600kg |
|
|

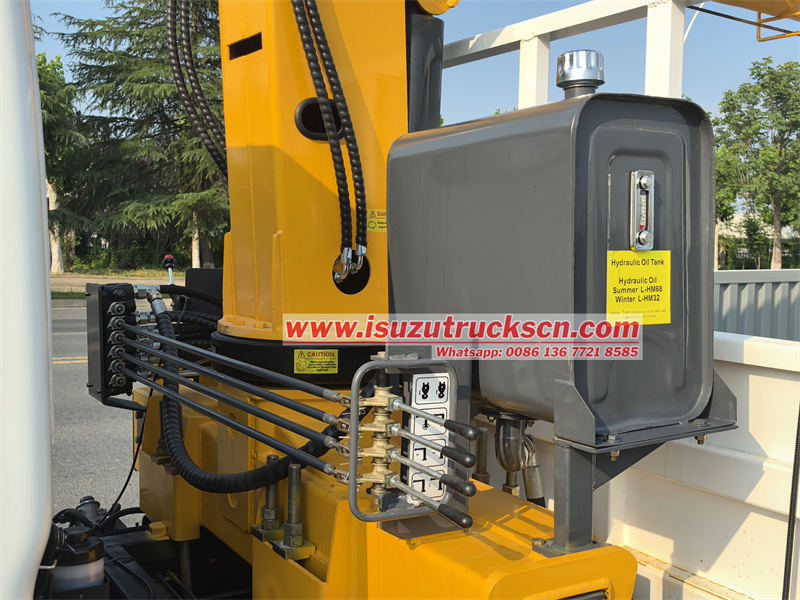

Oil tank capacity |
60L |
|
|
Other Configuration |
Control system in 2 side; 3.2T arm, etc. |
|
« Ⅲ.Product Details & Advantages
As the core equipment for small and medium-sized engineering operations, the Isuzu 100P 3.2-ton cargo truck mounted crane has become an ideal choice for urban logistics, municipal maintenance and engineering repair scenarios with its lightweight design, efficient power and precise control.
Power and transmission system
Equipped with an Isuzu 4KH1CN6LB high-pressure common rail diesel engine, 120 horsepower output and 290N.m peak torque, matched with an MSB 5-speed gearbox, it achieves a balance between power response and fuel economy. The 3360mm wheelbase design takes into account both turning radius and driving stability, and the passability of narrow urban roads is improved by 20%.
Lifting system performance

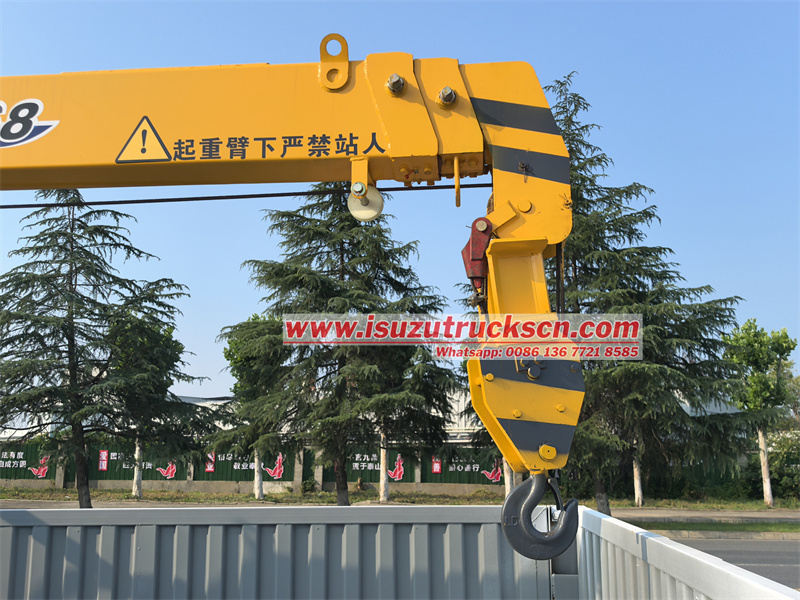

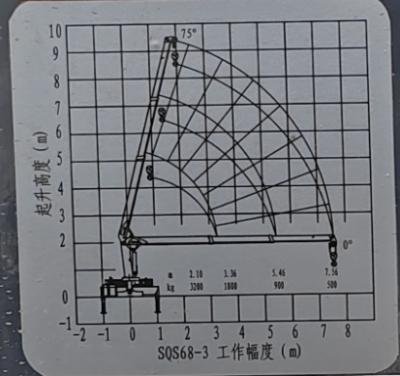

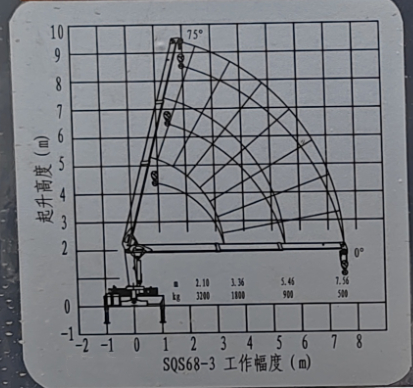

• Equipped with a POWERSTAR KSQS68-3 three-section straight arm crane, the maximum lifting torque is 6.72t·m, the maximum lifting weight is 3.2 tons, the lifting height is 9.5 meters, and the working radius covers 7.5 meters.
• Supports 360-degree full rotation operation, no dead angle coverage, and adapts to multi-angle lifting needs.

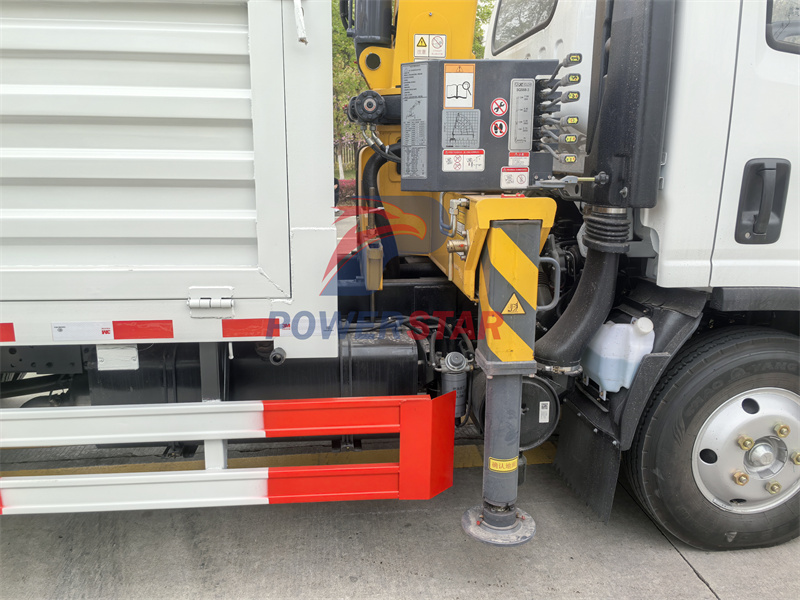

• Hydraulic outrigger design provides stable support to ensure safe and reliable lifting process.
Convenient operation

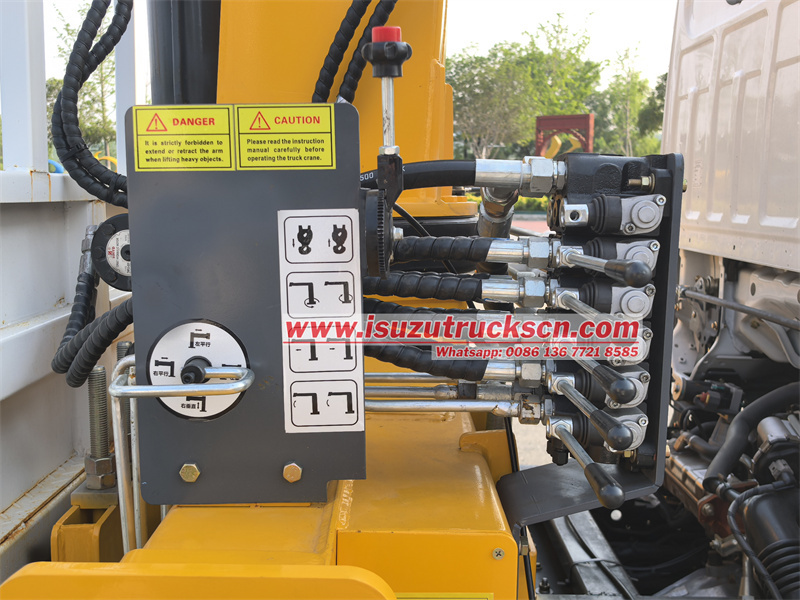

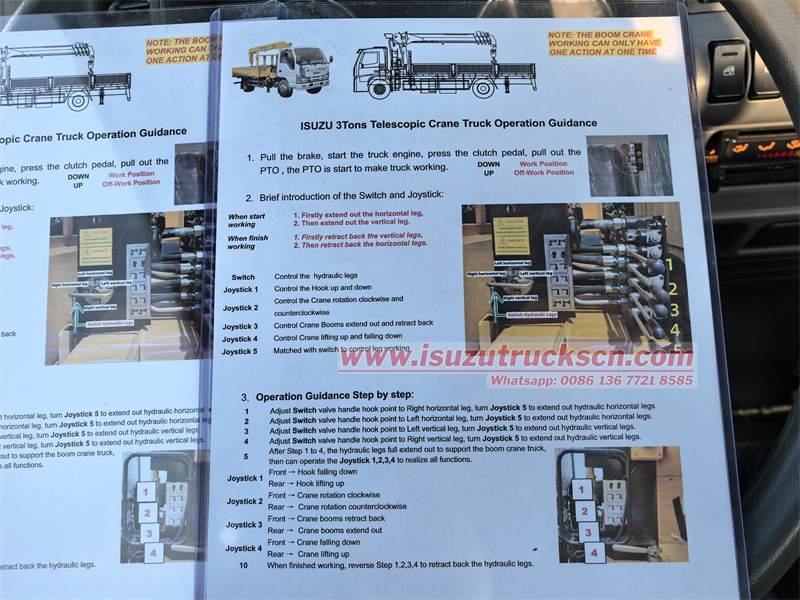

• Integrated operating levers on both sides control all functions such as boom extension, lifting, rotation, outrigger adjustment, hook lifting, etc., with sensitive response and precise operation.
Cargo box configuration
• Adopts 3500x2000x450mm high-strength carbon steel cargo box with strong bearing capacity and outstanding corrosion resistance to meet the needs of diversified cargo transportation.
• The cargo box structure is optimized and the weight distribution is reasonable, taking into account both load and vehicle controllability.
Safety and reliability
Standard dual overload protection system (hydraulic system overflow valve, hydraulic balance valve, outrigger locking device, height limiter, torque limiter), real-time monitoring of load data.
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» IⅤ.Factory Testing:

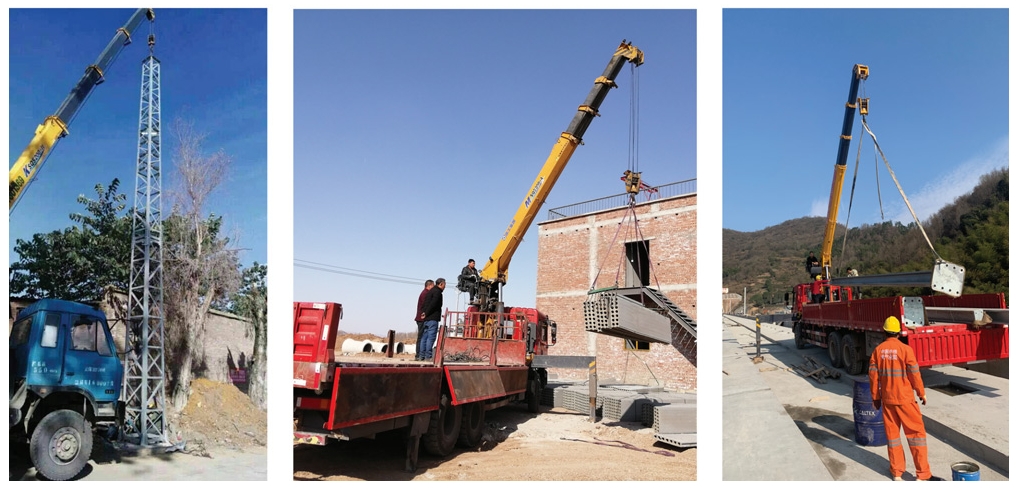

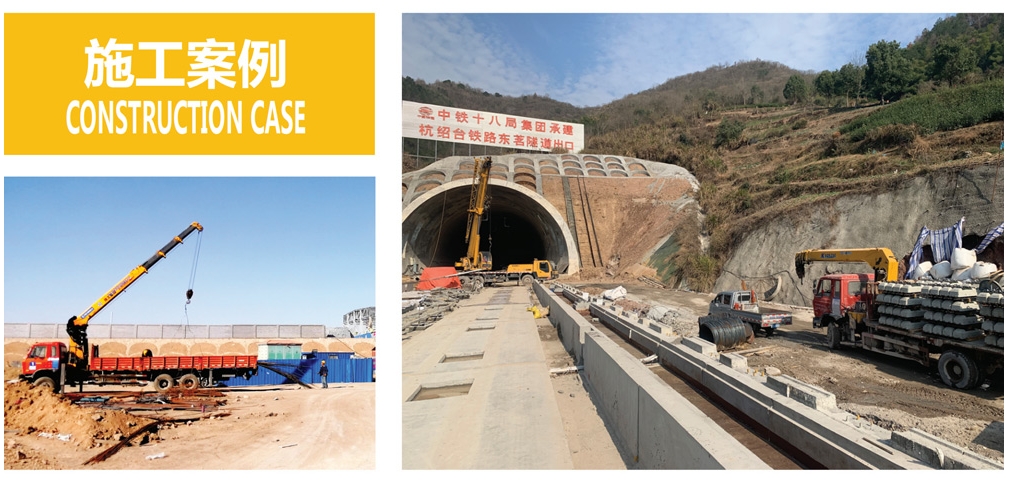

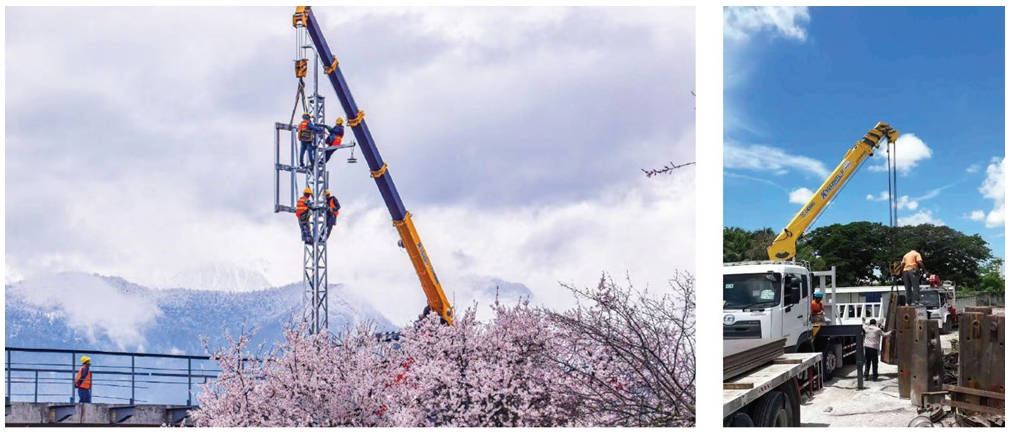

» Ⅴ.Construction Cases:
