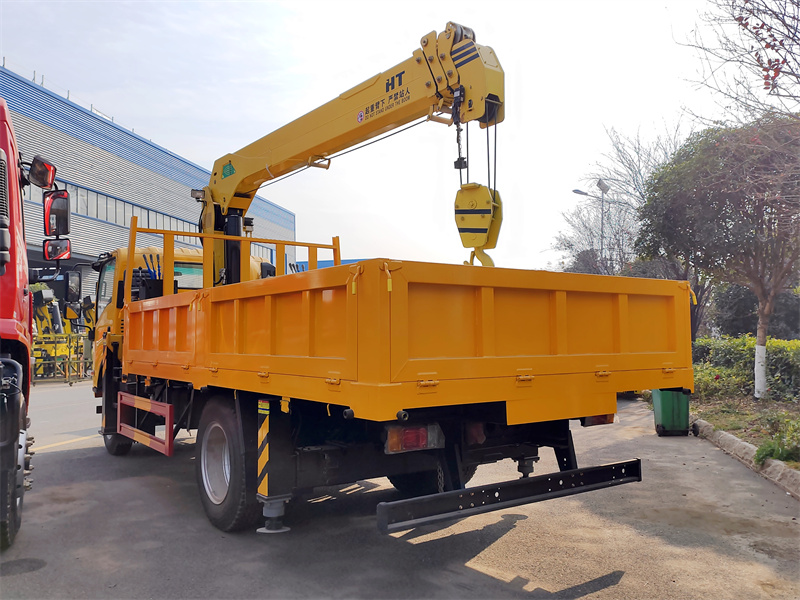

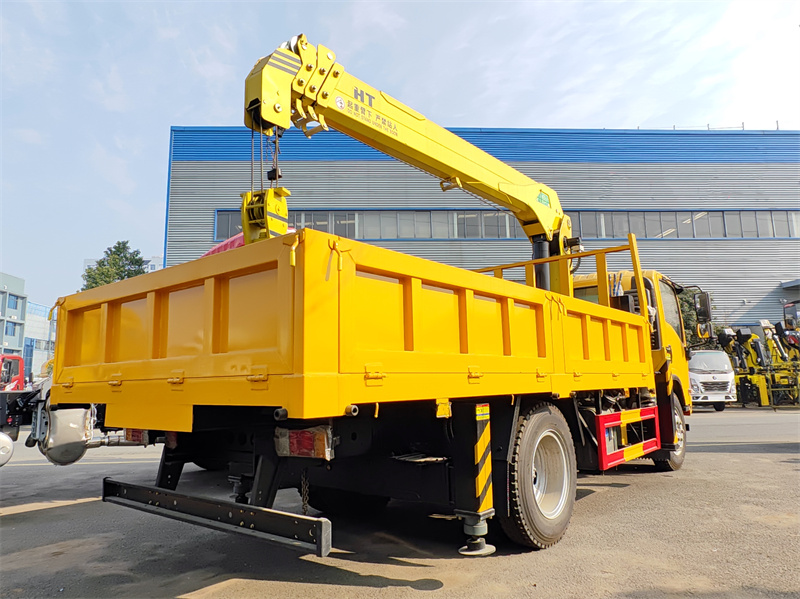

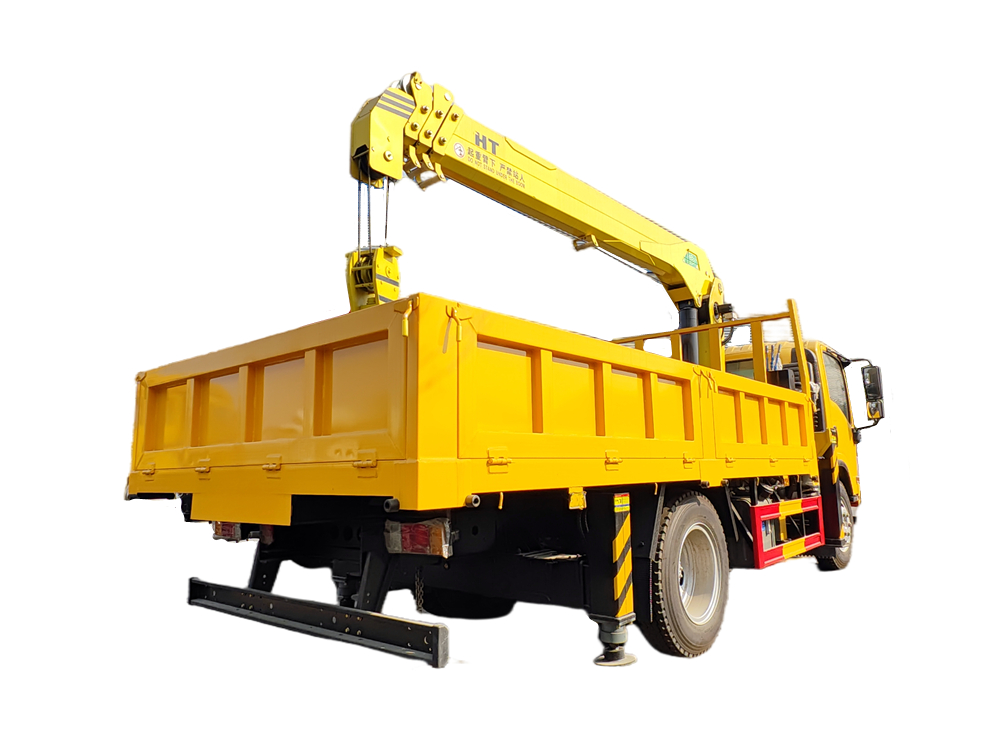

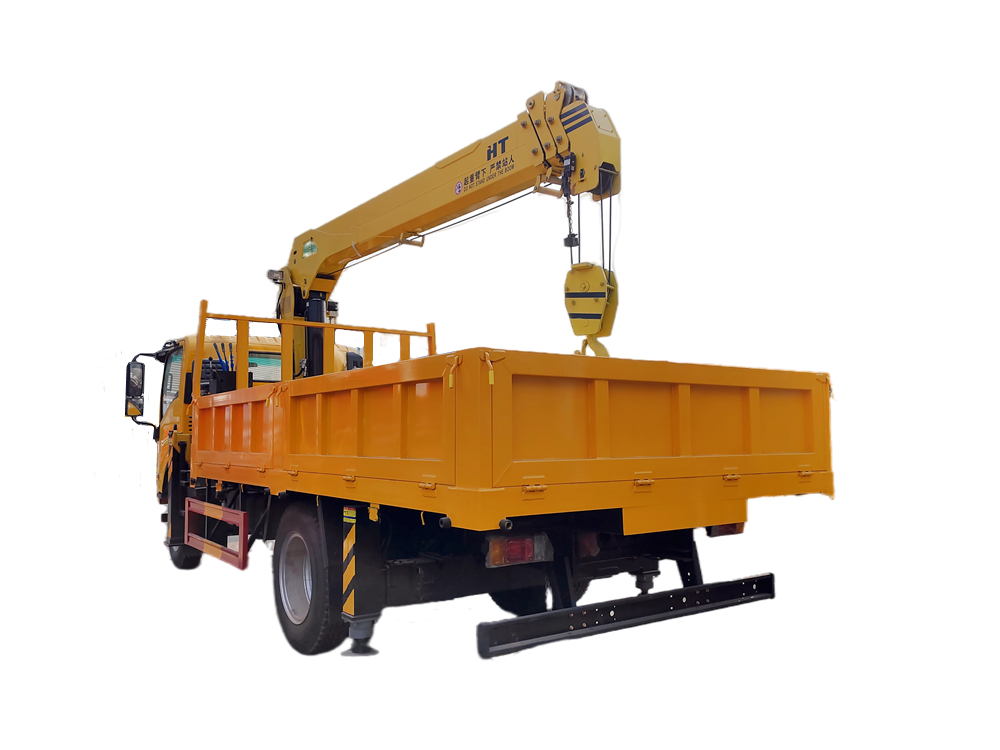

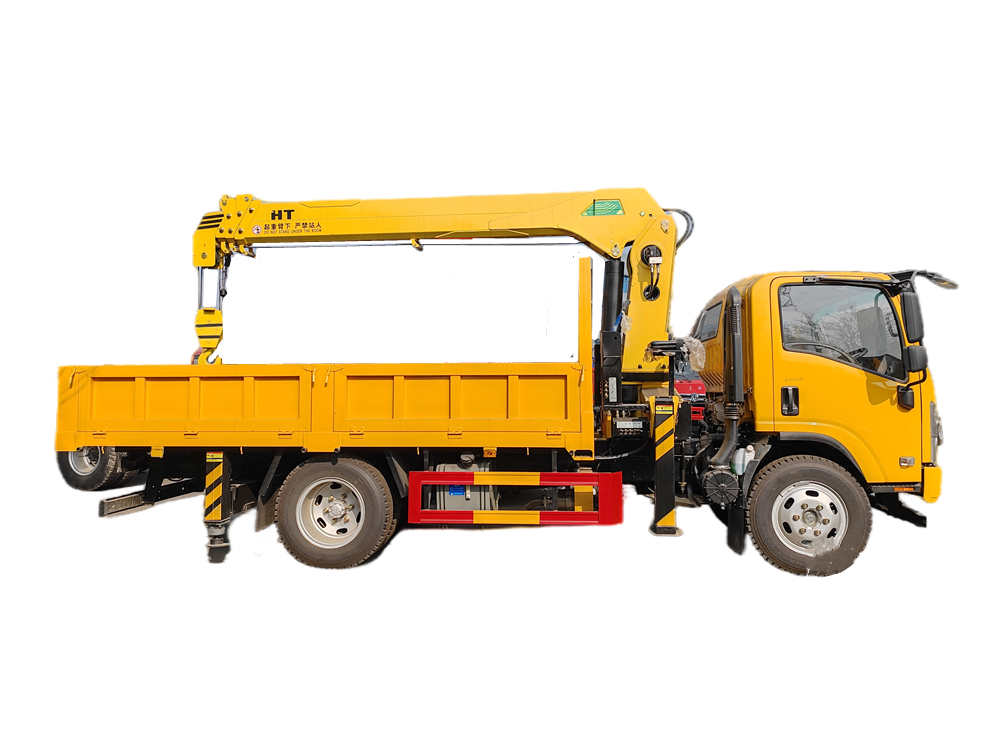

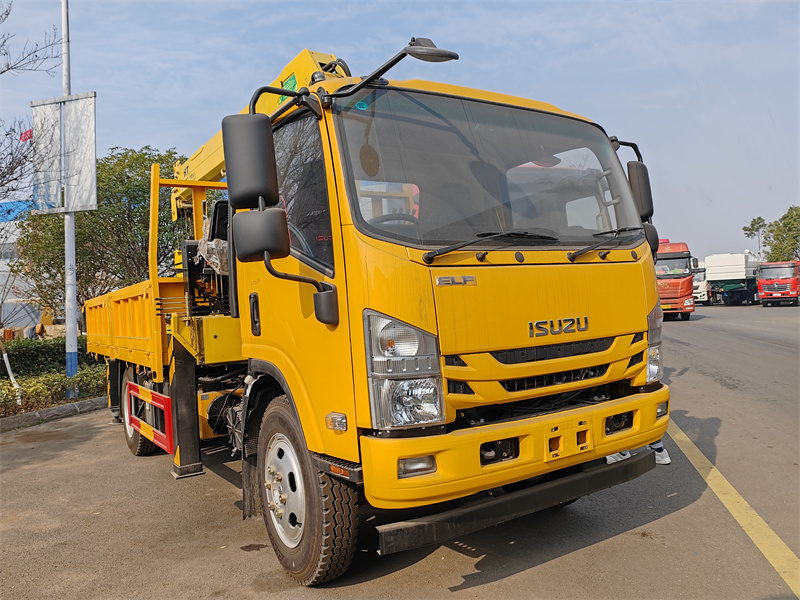

The Isuzu 700P RHD 5ton truck mounted crane has a 3815mm wheelbase, is equipped with an Isuzu 4HK1-TCG61 engine and a MLD 6-speed transmission, and has a cargo box size of 4500x2200x550mm (3mm side, 4mm bottom). It features an SQS175-4 4 section straight boom crane with a maximum lifting height of 15 meters, a maximum working radius of 13.1 meters, a maximum lifting weight of 7 tons, a maximum lifting torque of 175 kN•m, 360° full rotation, manual hydraulic control levers on both sides of the crane, and front and rear hydraulic outriggers.
MarketPrice:
$32400Manufacturer:
Powerstar TrucksWork capacity:
7 tonsDimension:
7050 x 2300 x 3200 mmCabin type:
Isuzu 700PWheelbase:
3815 mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2,RHDGear box:

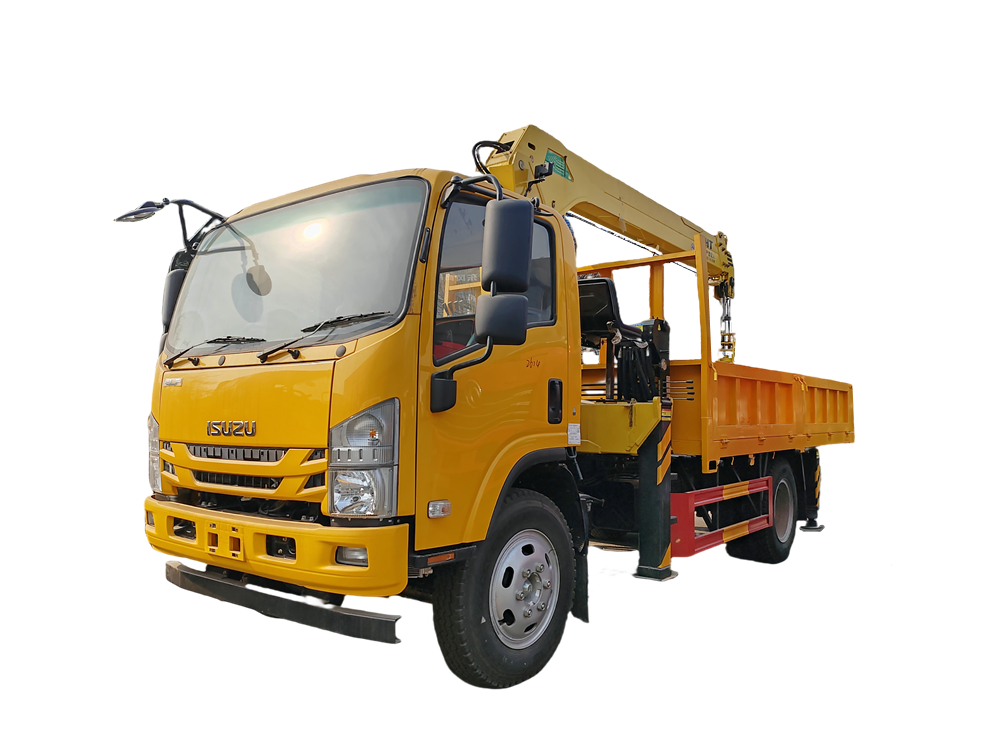

ISUZU MLD 6-speed,manualThis is a high-performance truck mounted crane specifically designed for the right-hand drive market. The RHD drive NPR Isuzu 7tons boom crane truck is equipped with a 190HP Isuzu engine, offering powerful performance while remaining environmentally friendly. At its core is the SQS175-4 four-section straight boom crane, boasting a maximum lifting capacity of 7 tons, a lifting height of 15 meters, and 360° full rotation capability. Combined with front and rear hydraulic outriggers and dual-side manual controls, operation is both safe and convenient. It can efficiently complete lifting tasks in construction, municipal, and logistics scenarios. The cargo box is large and durable.
▶ Features:
★ Isuzu NPR RHD chassis,4HK1 190HP engine,powerful engine
★ SQS175-4 boom crane,7tons loading capacity.
★ Optional Crane brand: XCMG, UNIC, PALFINGER...
★ Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load;
▶ Product Parameters:
|

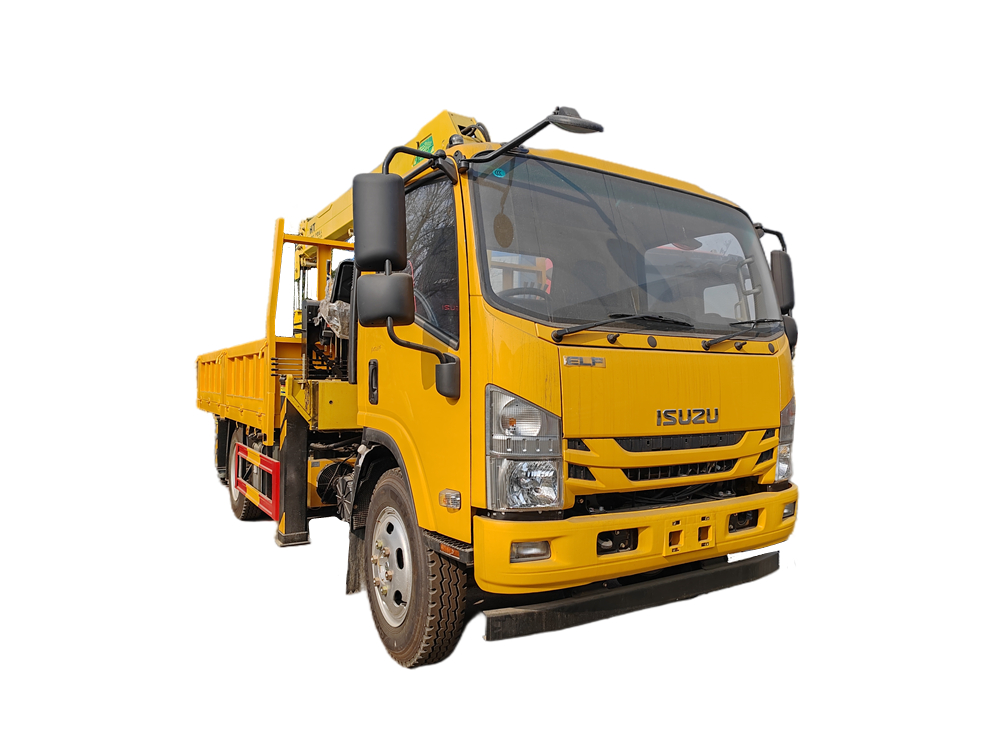

Isuzu 700P RHD 4x2 boom crane truck |
||
|
Vehicle Model: |
PT5100GZY |
|
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
7050x2300x3200mm |
|
Cargo box Dimension（L x W x H） |
4500*2200*550mm |
|
|
Wheelbase: |
3815mm |
|
|
Weights and Capacities |
Curb Weight: |
5850kg |
|
Payload: |
5tons |
|
|
GVW: |
10550kg |
|
|
Axle Loads: |
4000/7000kg |
|
|
Engine |
Engine Type: |
Inline 4-cylinder 4-stroke, turbocharged, intercooled, water-cooled |
|
Engine Model: |
Isuzu 4HK1-TCG61 |
|
|
Max output: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190HP |
|
|
Max.Torque |
507N.m |
|
|
Maximum torque speed |
1600-2600rpm |
|
|
Exhaust Gas Treatment Technology： |
DPF |
|
|
Transmission |
Isuzu MLD-6Q |
|
|
Cab |
Number of Seats: |
3 |
|
Type |
Isuzu 700P single row,with A/C |
|
|
Chassis |
Drive Type: |
4x2,RHD |
|
Tires: |
6+1(Including Spare Tire) |
|
|
Tire Model: |
235/75R17.5 |
|
|
Max speed: |
105km/h |
|
|
Model |
SQS175-4 |
|
|
Boom type |
4 sections telescoping boom |
|
|
Max. Lifting height |
15 m |
|
|
Max lifting moment |
175 kN•m |
|
|
Max. Hydraulic Boom Extension Length: |
13.1m |
|
|
Max. lifting capacity |
7000 kg |
|
|
Crane weight |
2300 Kg |
|
|
Slewing Angle: |
360°Continuous Slewing |
|
|
Front Outrigger |
2430-5650mm |
|
|
Rear Outrigger |
3500mm |
|
|
Installation space |
950 mm |
|
|
Cargo Box |
Dimension |
4500x2200x550mm |
|
Thickness |
Side 3mm,bottom 4mm |
|

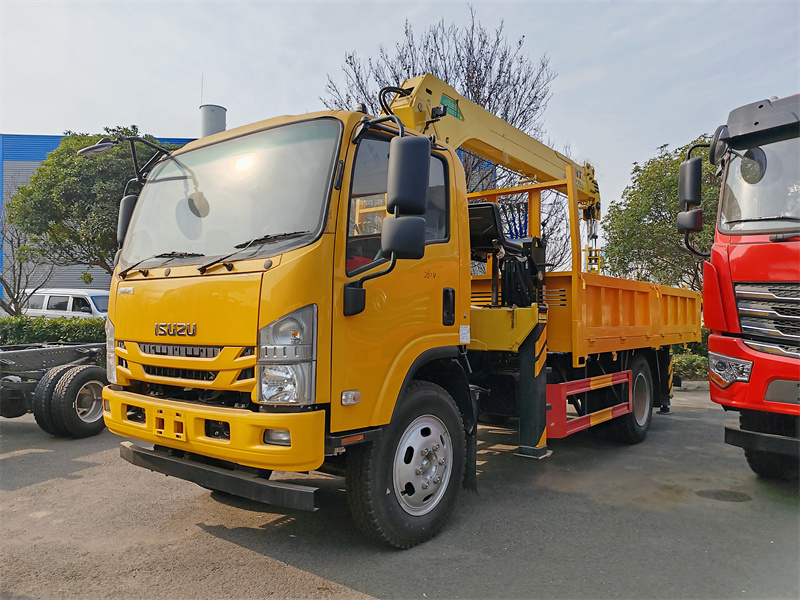

▶ Chassis System:
• Chassis: Isuzu 700P right-hand drive chassis, 4/7-ton load capacity
• Engine: Equipped with an Isuzu 4HK1-TCG61 190HP Euro 6 emission standard diesel engine, providing ample power
• Transmission: Equipped with an Isuzu MLD 6-speed transmission
• Wheelbase: 3815mm wheelbase design

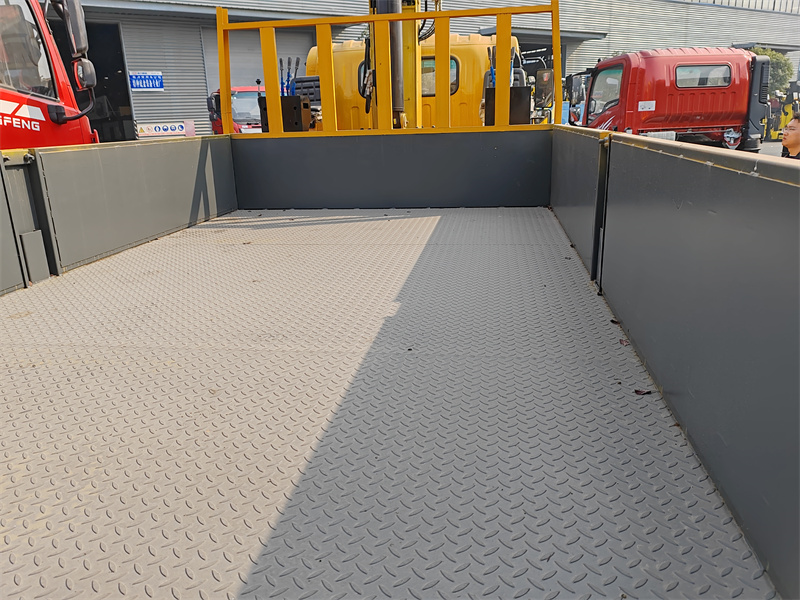

▶ Cargo Box:
• Cargo box dimensions: 4500x2200x550mm, providing ample loading space suitable for transporting various engineering materials and equipment.
• Plate thickness: 3mm on the edges, 4mm on the bottom, sturdy and durable.

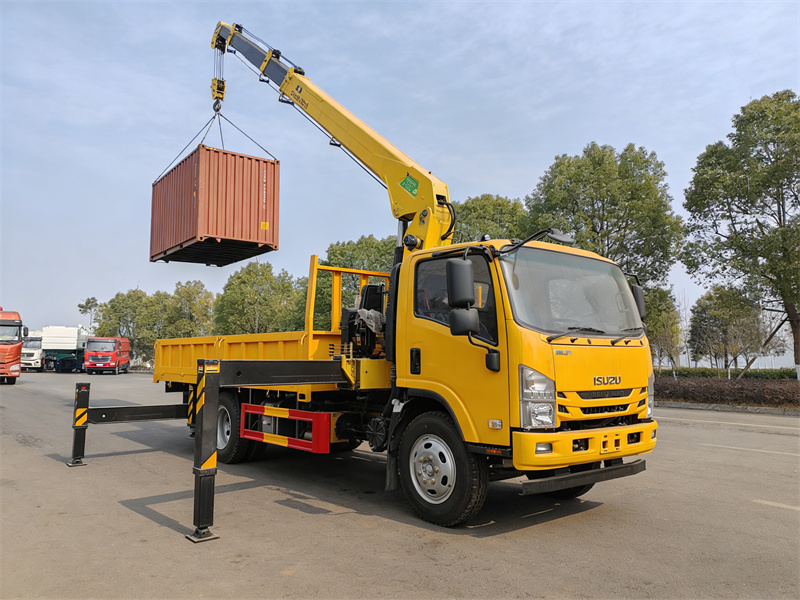

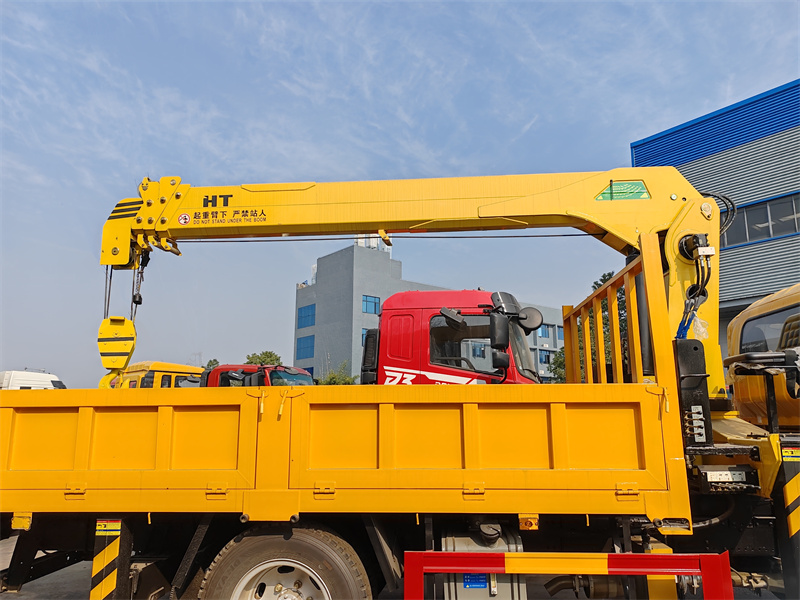

▶ Boom crane:
• Model: SQS175-4 4-Section Straight Boom Crane

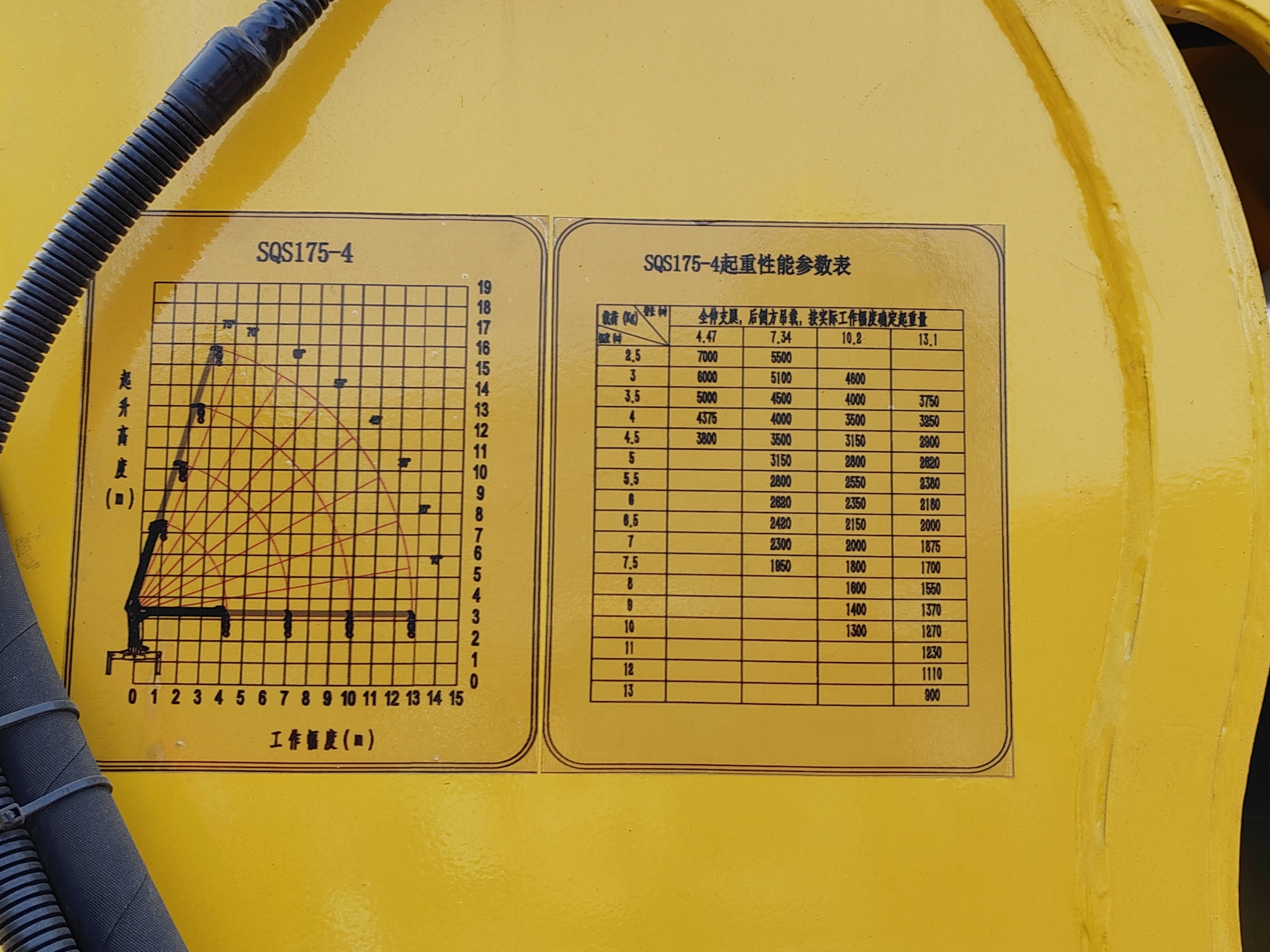

• Lifting Performance:
Max Lifting Height: 15 meters
Max Working Radius: 13.1 meters
Max Lifting Weight: 7 tons (short boom configuration)
Max Lifting Torque: 175 kN·m, ensuring stability under heavy loads.
Slewing Range: 360° full slewing, using a planetary gear reducer for smooth slewing and high load capacity.

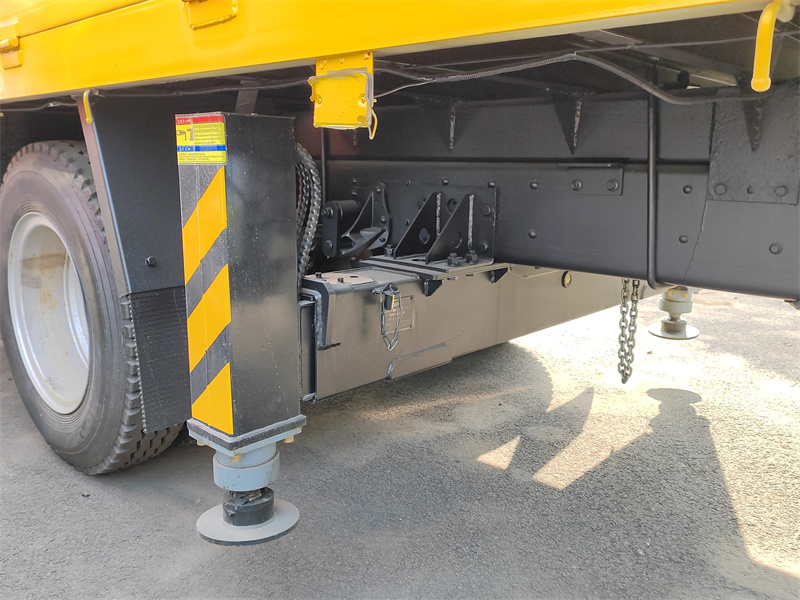

Outrigger Spacing: Front 2430-5650mm, Rear 3500mm, providing stable support.

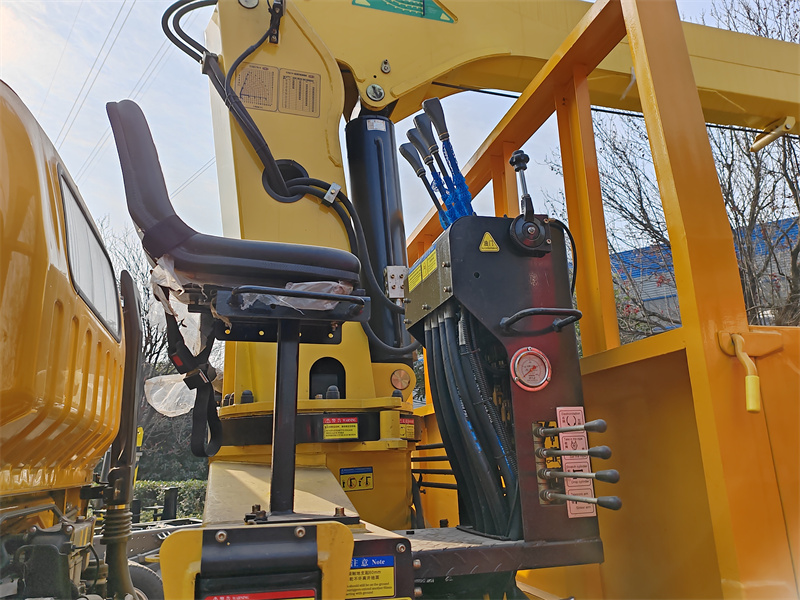

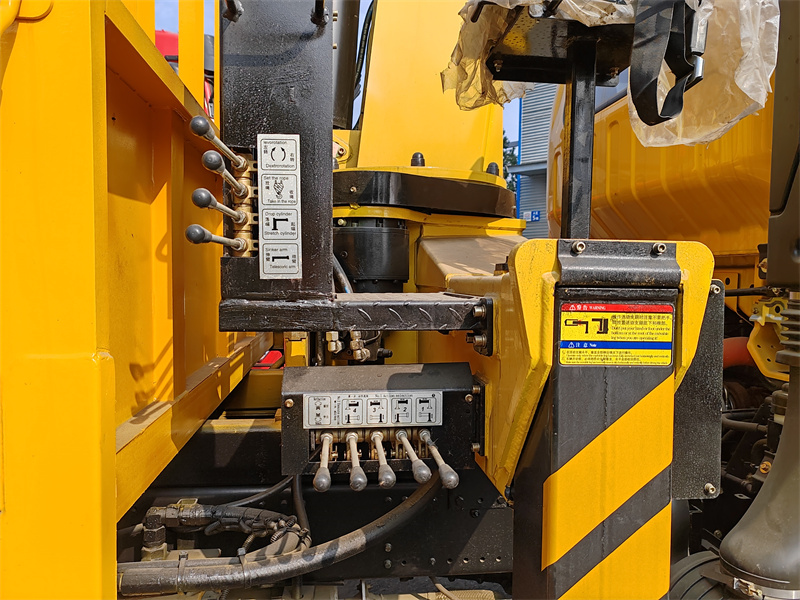

▶ Control System:

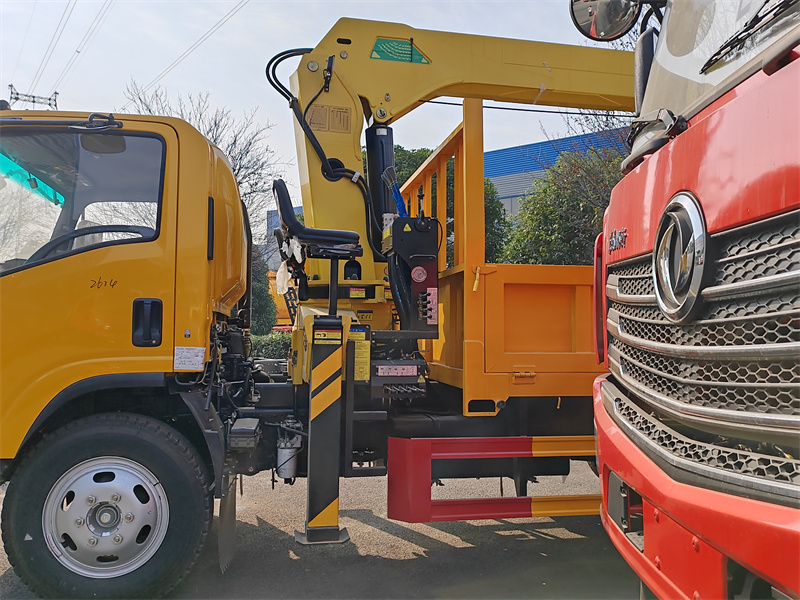

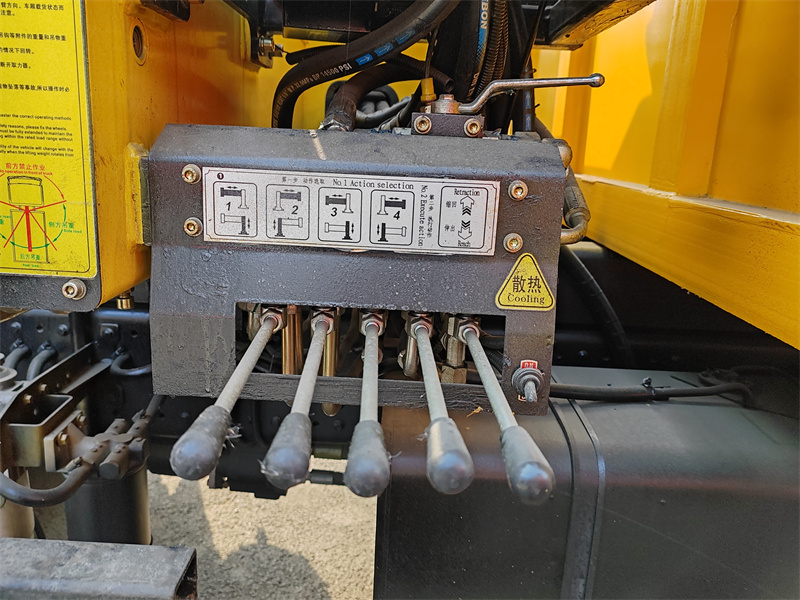

• Dual-operation valve, supporting manual hydraulic handle operation from both sides of the crane.
• Equipped with safety devices such as torque limiters and height limiters to prevent overloading.

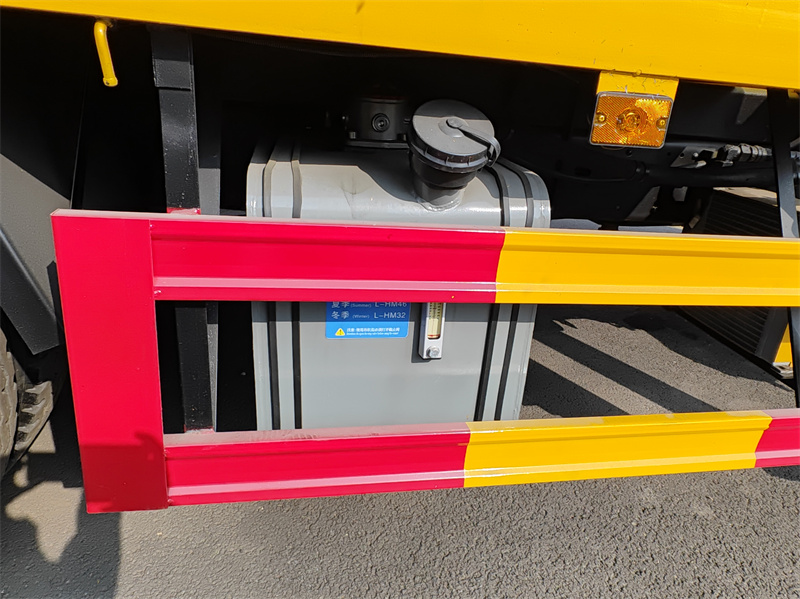

Hydraulic System:
Independent hydraulic pump (separate from chassis power to avoid interfering with engine performance)
Dual-cylinder support (improves lifting stability)
Overload protection valve + hydraulic lock (prevents accidental falls)
▶ Test:
Before shipping this batch of Isuzu 700P boom crane trucks, we conducted performance tests, including battery endurance tests, compression tests, loading and unloading operations (various operating buttons, levers, etc. of each operating device), and exterior paint checks, to ensure that the vehicles were delivered to customers in perfect condition.

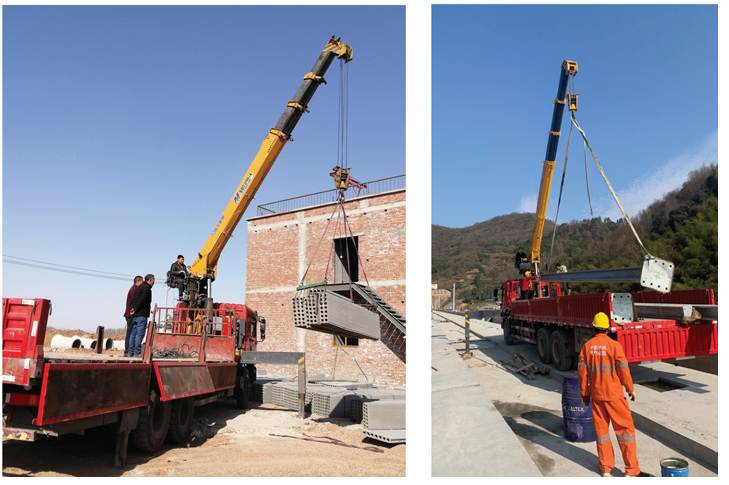

▶ Application:
• Municipal Engineering: Streetlight repair, billboard installation, small bridge construction.
• Construction Sites: Hoisting steel bars, concrete components, formwork, and other building materials.
• Logistics and Warehousing: Loading and unloading large equipment and heavy goods.
• Emergency Rescue: Disaster site material hoisting, power restoration, temporary facility erection.
