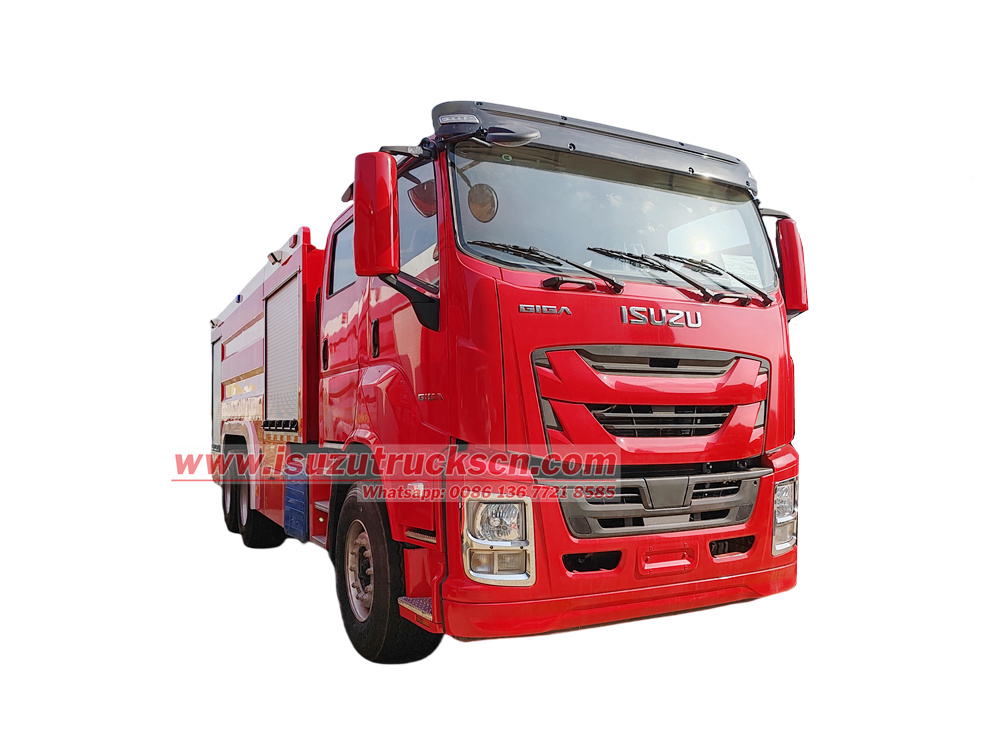

The Isuzu 6x4 dry powder foam fire truck is modified on the basis of Isuzu GIGA 6X4 heavy truck chassis, double-row cab, 4600+1370mm wheelbase, equipped with Isuzu 6WG1-TCG61 Euro VI engine, 460hp, inline 6 cylinders, 15.681L emission, 2250Nm torque, Fast 12-speed gearbox, upper body is 12 cubic carbon steel water tank, 2 cubic 304 stainless steel foam tank, 1 cubic Q345R dry powder tank, pump room is equipped with CB10/60-RS fire pump, control panel, PL48 fire monitor on the top of the truck, PF30 dry powder monitor, dry powder room has a control panel, dry powder reel with dry powder gun, 2 60L nitrogen cylinders, the vehicle is equipped with a series of fire fighting equipment, including fire hose, water collector, water filter, water distributor, fire extinguisher, fire water gun, foam gun, fire shovel, pickaxe, hammer, axe, etc.
Manufacturer:
Powerstar TrucksWork capacity:
12cbm carbon steel water tank, 2cbm 304 stainless steel foam tank, 1cbm Q345R dry powder tankDimension:
10060×2550×3700mmCabin type:
Isuzu GIGA double row,with A/C,USBWheelbase:
4600+1370mmEngine power:
460HP/ 338kWEngine type:
Isuzu 6WG1-TCG61Axle drive:
6x4,LHDGear box:

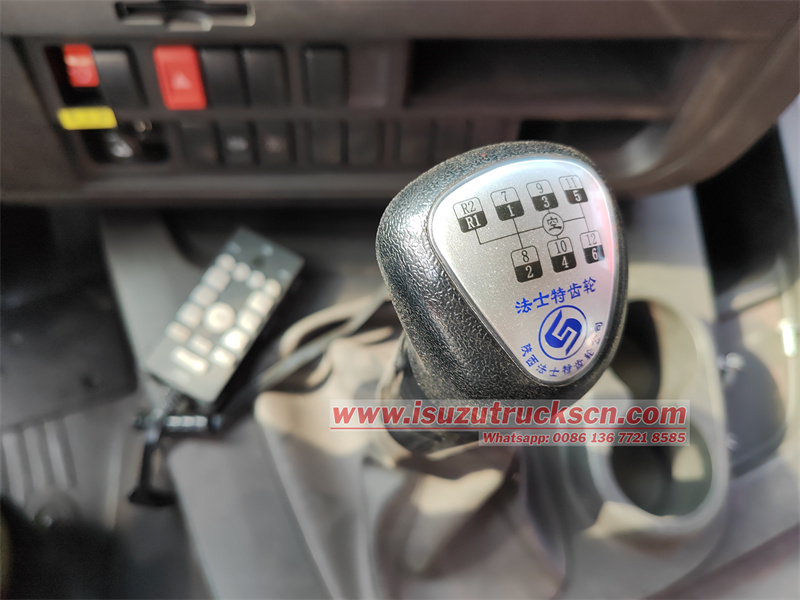

FAST 12-speed,manualRemarks:

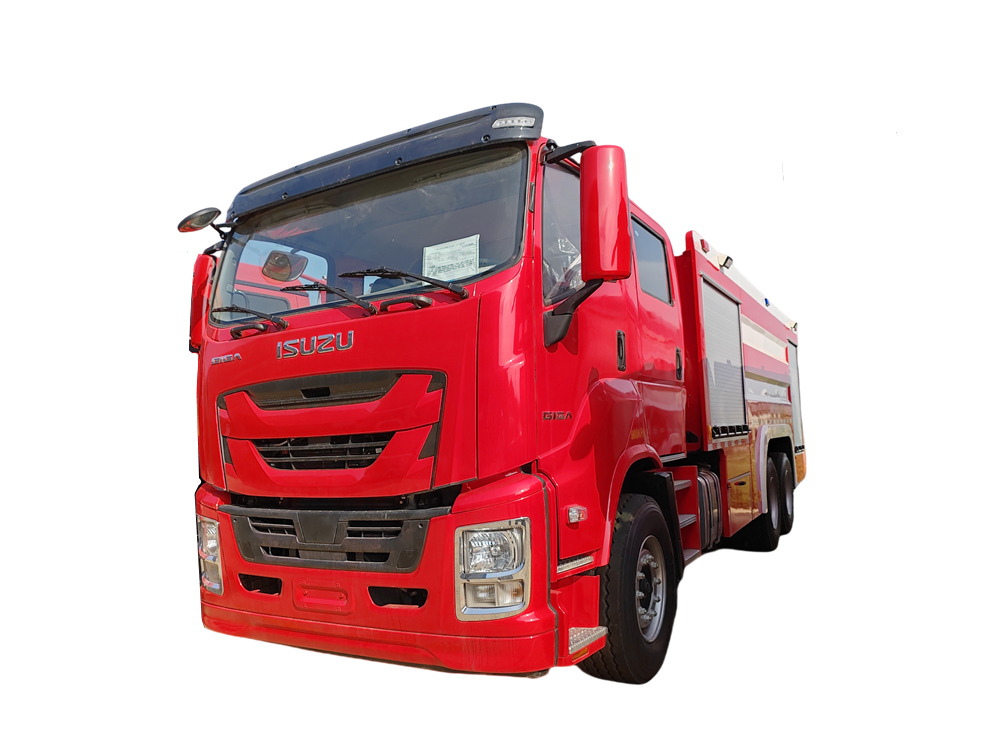

Equipped with CB10/60 fire pump,PL48 fire monitor,PF30 dry powder fire monitorTunisia Isuzu 15000 liters fire protection tender is a firefighting weapon. It is modified based on the Isuzu GIGA 6X4 heavy truck chassis. It has strong power, stable driving, and can quickly reach the fire scene. The vehicle is equipped with a 12 cubic meter carbon steel water tank, 2 cubic meter 304 stainless steel foam tanks and 1 cubic meter Q345R dry powder tank, which can deal with various fires such as solids, oils, and electrical. The CB10/60-RS fire pump provides power for the injection equipment, and the PL48 fire monitor and PF30 dry powder cannon can accurately strike the fire source at a long distance. In addition, two 60L nitrogen tanks provide power for dry powder injection, and the dry powder reel with dry powder gun can flexibly deal with local small fires. The control panel of the pump room and dry powder room can monitor the equipment status in real time to ensure accurate and safe operation. The vehicle integrates multiple fire extinguishing functions and has strong fire extinguishing capabilities. It is an important force to protect the safety of the city.
● China best Isuzu dry powder foam fire truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term

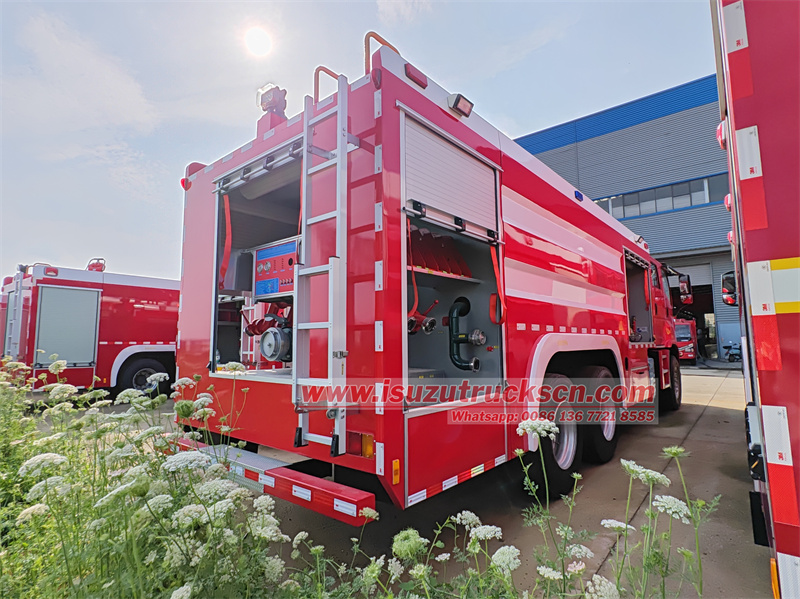

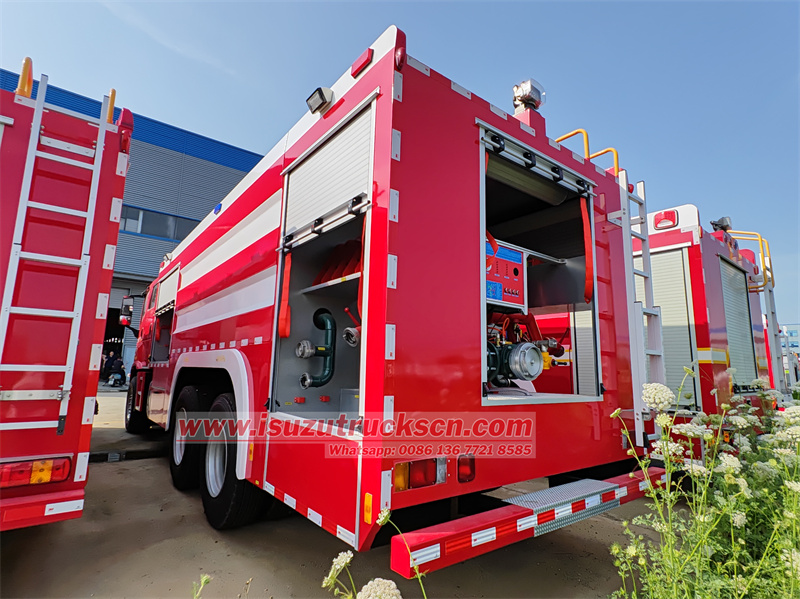

Isuzu 15 cubic meter dry powder foam water fire truck: the "vanguard" of fire fighting in the firefighting battlefield
At the fire scene, every second of delay may cause the fire to spread and cause immeasurable losses. At this time, a fire truck with strong firefighting ability is a weapon to fight the fire demon. Isuzu 15 cubic meter dry powder foam water fire truck, with its excellent firefighting ability, has become a solid line of defense to protect the safety of the city.
★ Reliable chassis, escort for firefighting and rescue

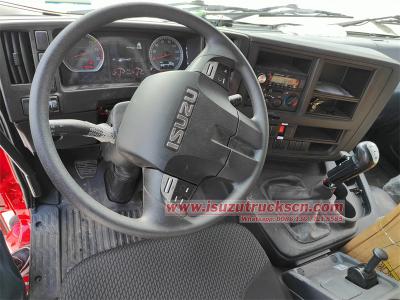

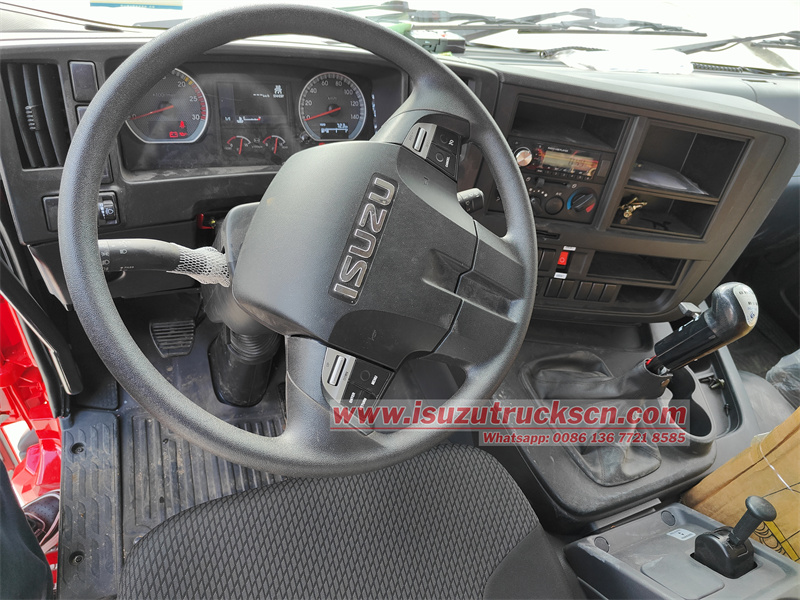

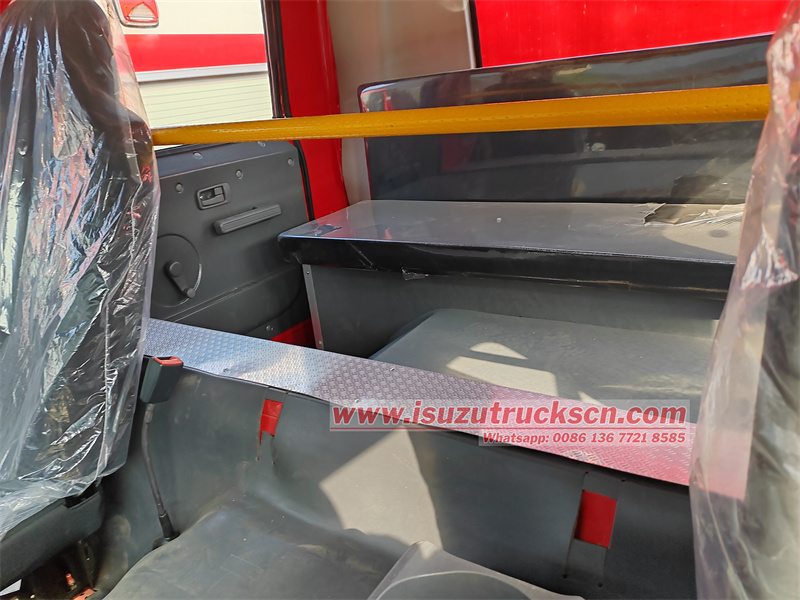

The vehicle is modified based on the Isuzu GIGA 6X4 heavy truck chassis. Although the chassis details are not a direct reflection of its firefighting ability, the solid and reliable chassis is the basis for the vehicle to quickly arrive at the fire scene. The double-row cab facilitates communication and collaboration between firefighters, and the 4600 + 1370mm wheelbase makes the vehicle more stable and can flexibly shuttle on urban roads. Equipped with Isuzu 6WG1 - TCG61 Euro VI engine, 460hp powerful horsepower and 2250 Nm torque provide sufficient power. Fast 12-speed gearbox accurately controls power transmission, ensuring that the vehicle can be quickly dispatched in an emergency, buying precious time for fire fighting.
|
Isuzu GIGA 6x4 dry powder foam fire fighting truck |
|||
|
Chassis parameters |
|||
|
Chassis Brand |
Isuzu |
||
|
Overall dimensions |
10060×2550×3700mm |
||
|
Gross weight |
35000kg |
||
|
Curb weight |
21920kg |
||
|
Passengers in cab |
2+4 |
||
|
Front/rear overhang |
1370/2720mm |
||
|
Front/rear track |
2140/1855/1855mm |
||
|
Axle loading |
9/13/13tons |
||
|
Wheelbase |
4600+1370mm |
||
|
Drive type |
6x4,LHD |
||
|
Engine |
Engine model |
Isuzu 6WG1-TCG61 |
|
|
Engine power |
460HP/ 338kW |
||
|
Engine type |
Inline 6 cylinders, 4 stroke, supercharged, intercooled, water-cooled |
||
|
Emission standard |
EURO 6 |
||
|
Displacement |
15.681L |
||
|
Rated speed |
1500rpm |
||
|
Max torque |
2250N.m |
||
|
Max torque speed |
900-1300rpm |
||
|
Tire |
385/65R22.5 20PR/315/80R22.5 20PR |
||
|
Gearbox |
FAST 12-speed,manual |
||
|
Max speed |
100km/h |
||
|
Fire performance |
|||
|
Tank capacity |
Water |
12000L，carbon steel |
|
|
Foam |
2000L，304stainless steel |
||
|
Dry Powder |
1000L，Q345R |
||
|
Fire pump |
Model |
CB10/60-RS |
|
|
Rated flow |
60L/s@1MPa |
||
|
Max pressure |
1.082MPa |
||
|
Max allowed inlet pressure |
0.4MPa |
||
|
Pump shaft speed |
3200±50r/min@1MPa |
||
|
Suction depth |
7m |
||
|
Fire monitor |
Model |
PL48 |
|
|
Rated flow |
48L/s |
||
|
Rated pressure |
0.8MPa |
||
|
Work pressure |
1.0~1.6Mpa |
||
|
Range |
Water: ≥60m,Foam:≥55m |
||
|
Pitch angle |
-15~+60° |
||
|
Horizontal rotation angle (°) |
≥180 |
||
|
Foaming multiple |
≥6 |
||
|
Dry Powder monitor
|
Model |
PF30 |
|
|
Rated flow |
30kg/s |
||
|
Range |
≥35m |
||
|
Work pressure range |
1.4MPa |
||
|
Pitch angle |
-15~+80° |
||
|
Dry powder residual rate |
≤15% |
||
|
Quantity of Nitrogen cylinders |
2, 60L/per one |
||
|
Dry powder reel（with gun） |
Length |
30m |
|
|
Range |
＞12m |
||
|
Injection rate |
＞2.5 kg/s |
||
★ Multiple tanks, capable of handling all kinds of fires
● Water tank - basic fire fighting force
12 cubic carbon steel water tank is the basic fire fighting equipment of fire trucks. When facing common solid material fires, such as fires caused by burning wood, paper, cotton and linen, water can quickly reduce the temperature of the burning material to achieve the purpose of fire fighting. Adequate water reserves ensure that rescue operations will not be interrupted due to insufficient water sources during the fire fighting process, providing a strong guarantee for extinguishing the initial fire.
● Foam tank - the nemesis of oil fires
The foam fire extinguishing agent stored in the 2 cubic 304 stainless steel foam tank is the "secret weapon" for dealing with oil fires. Oil fires have the characteristics of fierce burning and easy re-ignition, and ordinary water fire fighting methods are often difficult to work. Foam fire extinguishing agents can form a covering film on the surface of oil substances, isolate the air, and inhibit the combustion reaction. When facing fires in places such as gas stations and oil depots, foam tanks can play a key role in quickly controlling the fire and preventing the fire from spreading.
● Dry powder tank - multi-scenario fire extinguishing expert
The dry powder fire extinguishing agent in the 1cbm Q345R dry powder tank has a wide range of applicability. It can not only be used to extinguish fires of electrical equipment to avoid the risk of electric shock caused by water fire extinguishing, but also effectively deal with flammable gas fires and some liquid fires. Dry powder fire extinguishing agents can instantly suppress combustion reactions and quickly extinguish fires. In some complex fire scenes, dry powder tanks can be used in conjunction with other fire extinguishing equipment to improve fire extinguishing efficiency.
★ High-efficiency pump gun, long-distance and accurate attack on fire sources

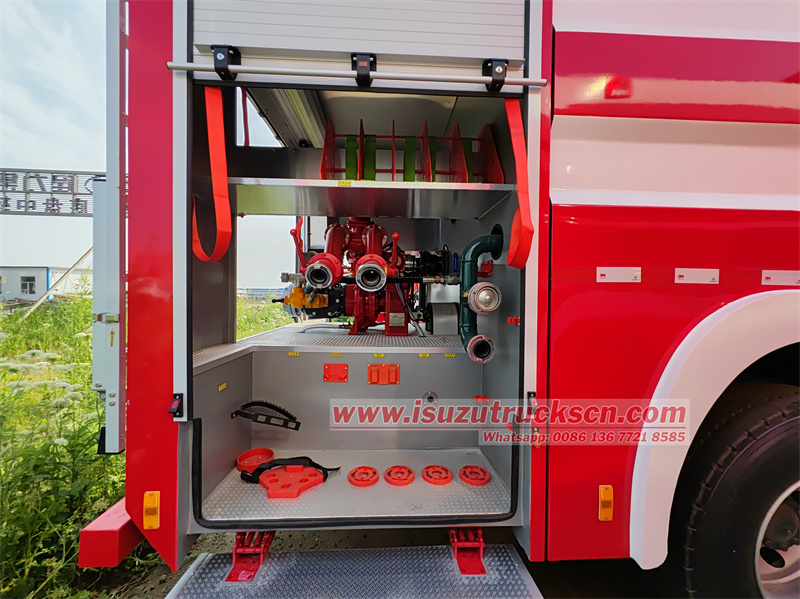

● Fire pump - power source

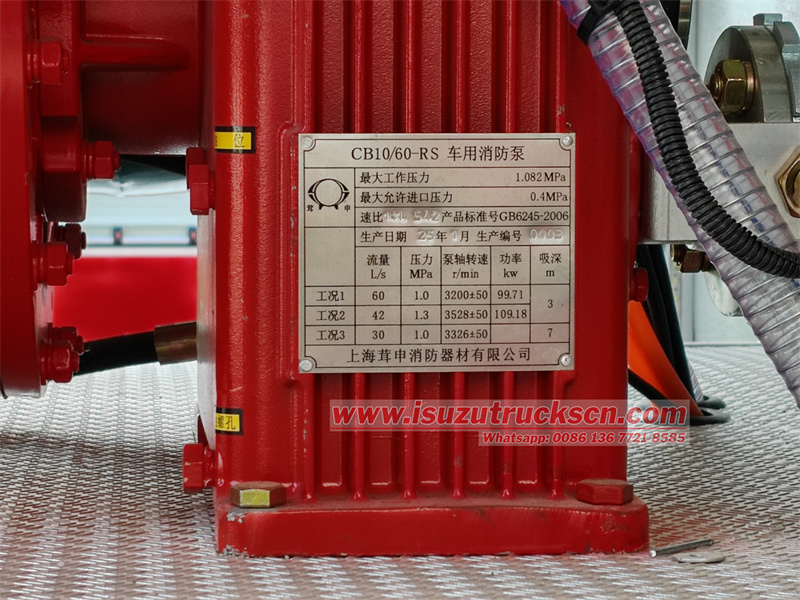

The CB10/60 - RS fire pump (60L/s) equipped in the pump room is the power source for fire fighting by fire trucks. It can provide strong water pressure for fire water cannons and fire water guns to ensure that the fire extinguishing medium can be sprayed to the fire scene with sufficient pressure and flow. Whether it is fighting a fire at close range or extinguishing a fire in a high-rise building at a long distance, the fire pump can work stably and provide reliable power support for firefighting operations.
● Fire cannon - a long-distance firefighting weapon
• The PL48 fire cannon (48L/s@0.8MPa) equipped on the top of the Isuzu GIGA 6x4 dry powder foam fire fighting truck has the characteristics of long range and great power. When facing a large-scale fire or a high-rise building fire, the fire cannon can quickly spray water to the center of the fire source and effectively control the spread of the fire. Its flexible rotation angle (horizontal rotation angle: 360° omnidirectional, pitch angle: -15° to +60°) and adjustable spray mode (DC/spray) enable firefighters to accurately strike the fire source according to the actual situation at the fire scene and improve firefighting efficiency.
● Dry powder gun - the pioneer of efficient firefighting
PF30 dry powder gun (spray rate 30kg/s, effective range: ≥35m, nitrogen driving pressure: 1.0-1.4MPa, dry powder residual rate ≤15%) is an efficient firefighting equipment for oil, gas and other fires. Dry powder fire extinguishing agent can cover the fire source in an instant, suppress the combustion reaction, and quickly extinguish the fire. In the early stage of a fire, the dry powder gun can quickly play a role to prevent the fire from expanding, creating favorable conditions for subsequent firefighting and rescue work.
★ Diverse equipment to enhance the effectiveness of firefighting operations
● Nitrogen tank - the "behind-the-scenes hero" driving dry powder injection
The two 60L nitrogen tanks equipped on the vehicle are not directly involved in firefighting, but they are the key "behind-the-scenes heroes" for the normal operation of the dry powder fire extinguishing system. During the dry powder fire extinguishing process, nitrogen is used as a power source to quickly push the dry powder fire extinguishing agent in the dry powder tank to the dry powder gun, dry powder gun and other injection equipment. The nitrogen tank provides stable and sufficient air pressure, ensuring that the dry powder can be sprayed out in a uniform and powerful manner, accurately covering the fire source, greatly enhancing the effect and speed of dry powder fire extinguishing, and allowing the fire to be effectively controlled in a short time.

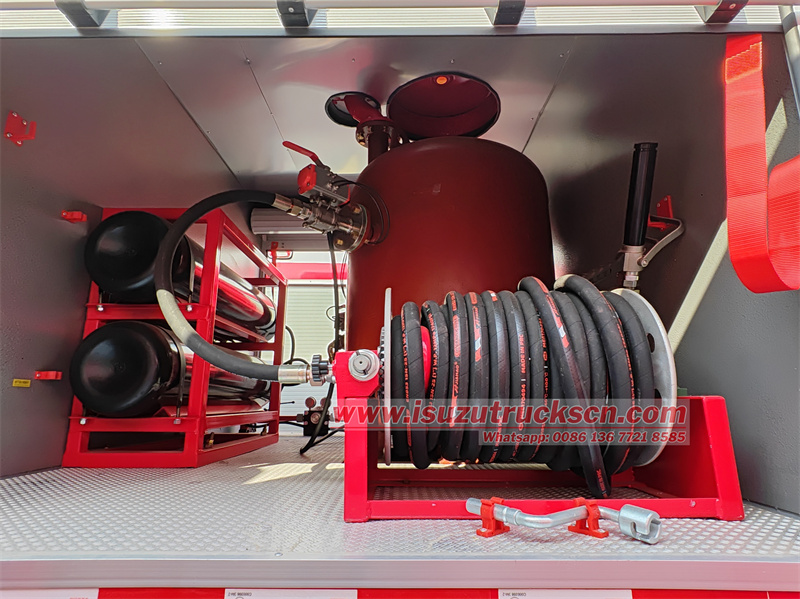

● Dry powder reel and dry powder gun - flexible response to local fires
The configuration of dry powder reel with dry powder gun provides firefighters with more flexible fire extinguishing methods. The dry powder reel can easily drag the dry powder gun to every corner of the fire scene, especially suitable for some small spaces and large fire extinguishing equipment. Areas such as basements and stairwells are difficult to use. Firefighters holding dry powder guns can spray and extinguish local fire sources at close range and accurately, quickly extinguishing small fires in the early stage, preventing the fire from further expanding, and taking the initiative for the overall fire fighting operation.
● Water fire gun and foam gun
The water gun can spray high-pressure water flow to extinguish solid material fires; foam gun can spray foam fire extinguishing agent, which has excellent effect on oil fires. The combination of the two can effectively control different types of fires.
● Comprehensive firefighting equipment:

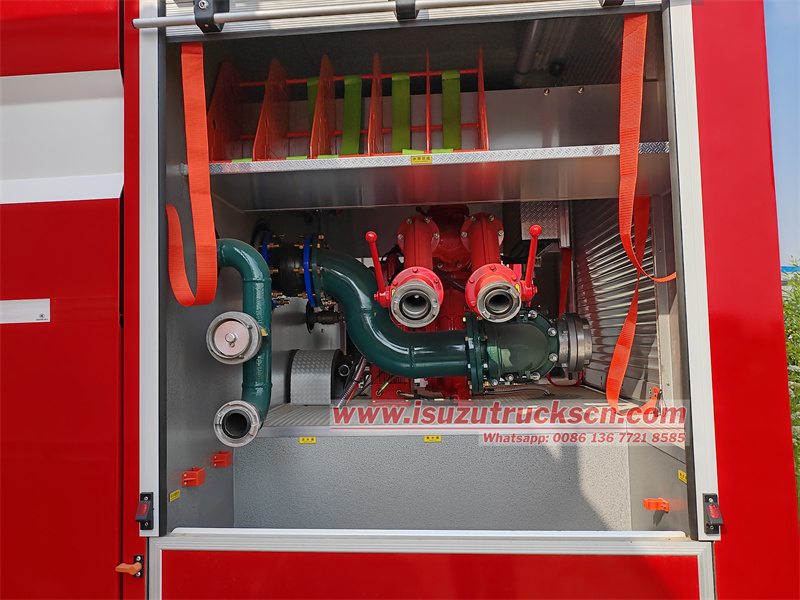

The Isuzu GIGA 6X4 12.5cbm dry powder fire rescue truck is equipped with fire hoses, water collectors, water filters, water distributors, fire extinguishers, fire shovels, picks, hammers, axes and other equipment. Fire hoses are used to transport fire extinguishing media; water collectors, water filters, and water distributors can optimize water flow distribution; fire extinguishers can quickly extinguish small fires; fire shovels, picks, hammers, axes and other tools can be used for rescue operations such as demolition, providing comprehensive support for firefighting and rescue work.
★ Precise control ensures efficient and orderly fire fighting operations

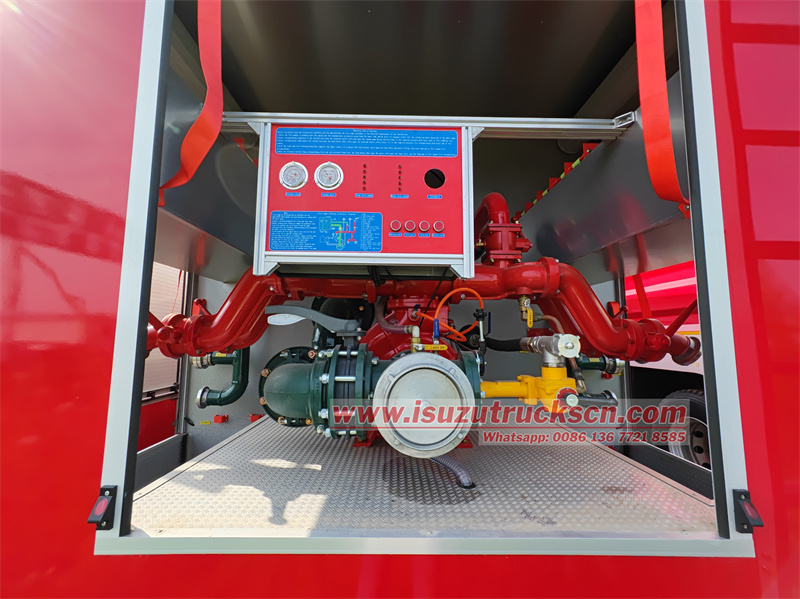

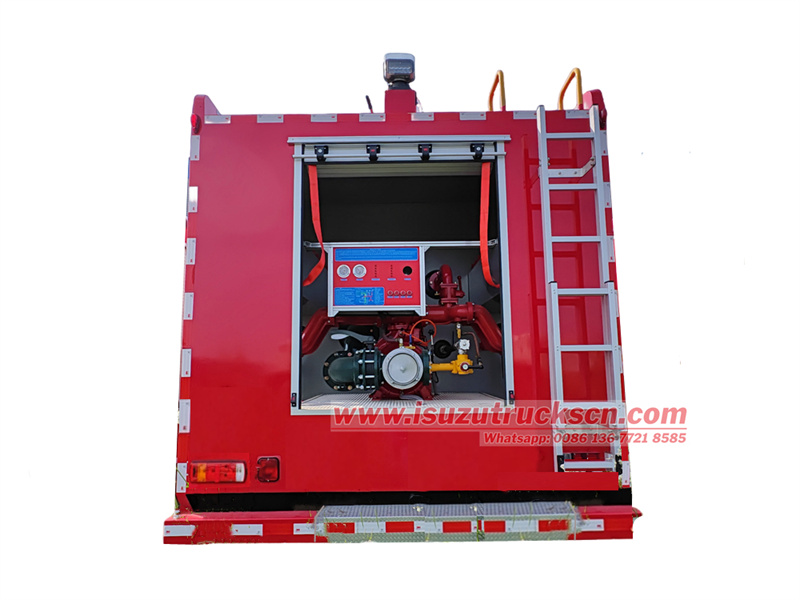

● Pump room control panel - real-time control of fire fighting status
The control panel in the pump room integrates a variety of instruments such as pressure gauges, vacuum gauges, water level gauges, foam level gauges, and tachometers. Firefighters can use these instruments to understand the working status of the fire pump and the amount of medium in the tank in real time, so as to accurately control the firefighting force. For example, the output pressure of the fire pump is adjusted according to the reading of the pressure gauge, and the firefighting medium is replenished in time according to the display of the water level gauge and the foam level gauge to ensure the continuity and efficiency of the firefighting action.

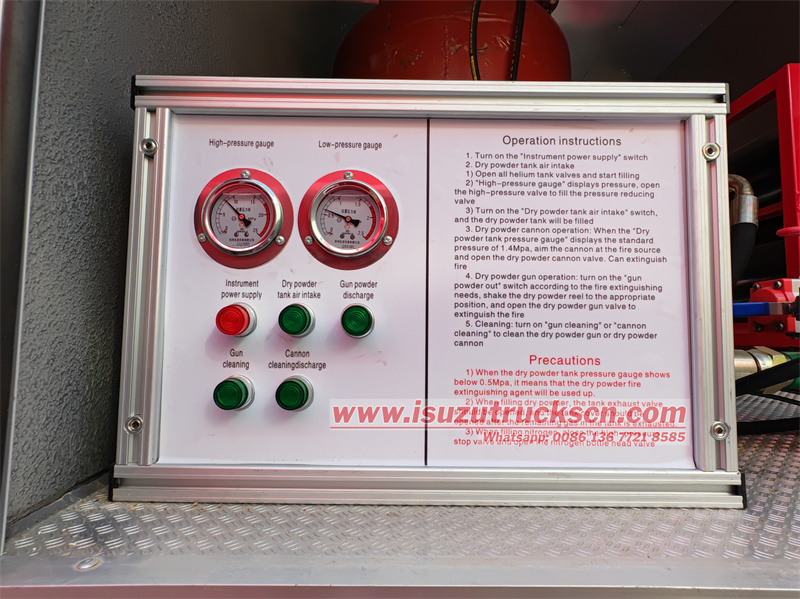

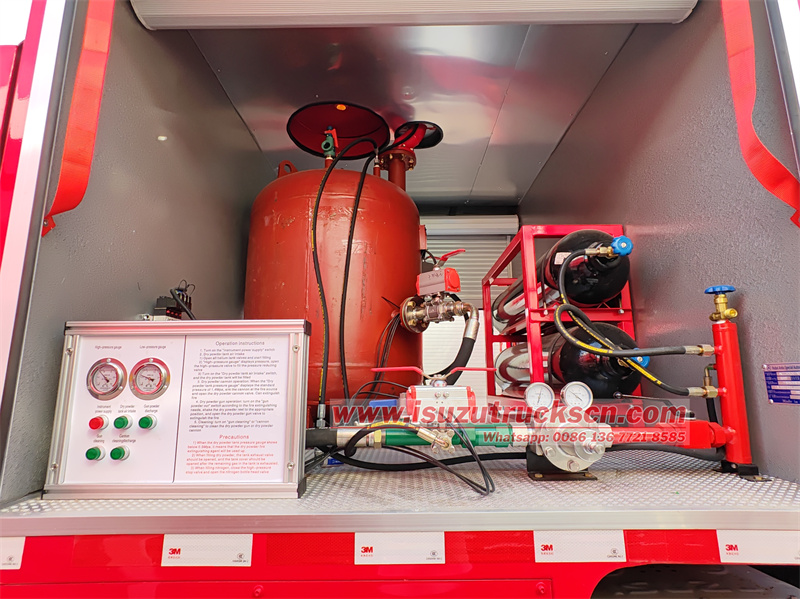

● Dry powder room control panel - to ensure the stable operation of the dry powder fire extinguishing system

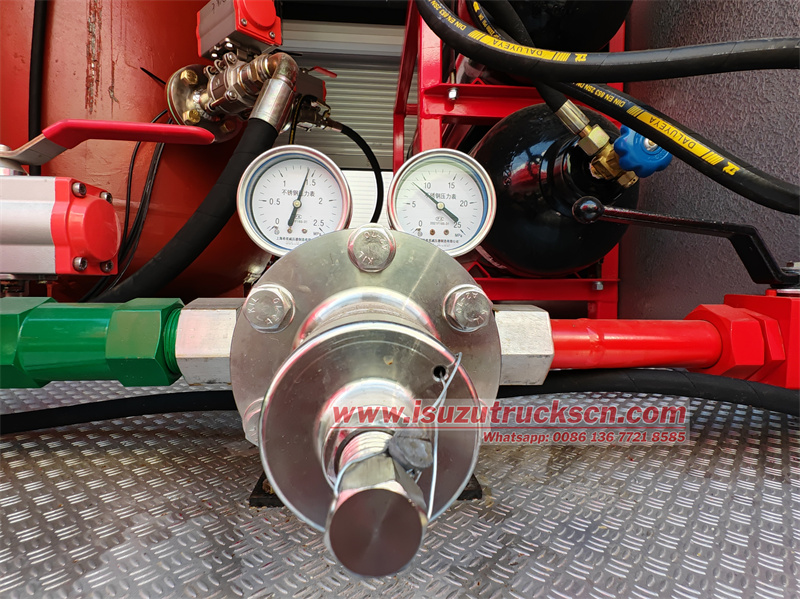

The control panel of the dry powder room integrates high pressure gauge, low pressure gauge, instrument power supply, Dry power tank air intake, gun powder discharge, Gun cleaning (, Cannon cleaning discharge, operation instructions, Precautions and other functions. Firefighters can monitor and accurately control the operation of the dry powder fire extinguishing system through the control panel to ensure that the dry powder can be accurately and efficiently sprayed onto the fire source during the fire extinguishing process. At the same time, the operating instructions and precautions also provide clear guidance for firefighters, ensuring the safety and standardization of operations.
