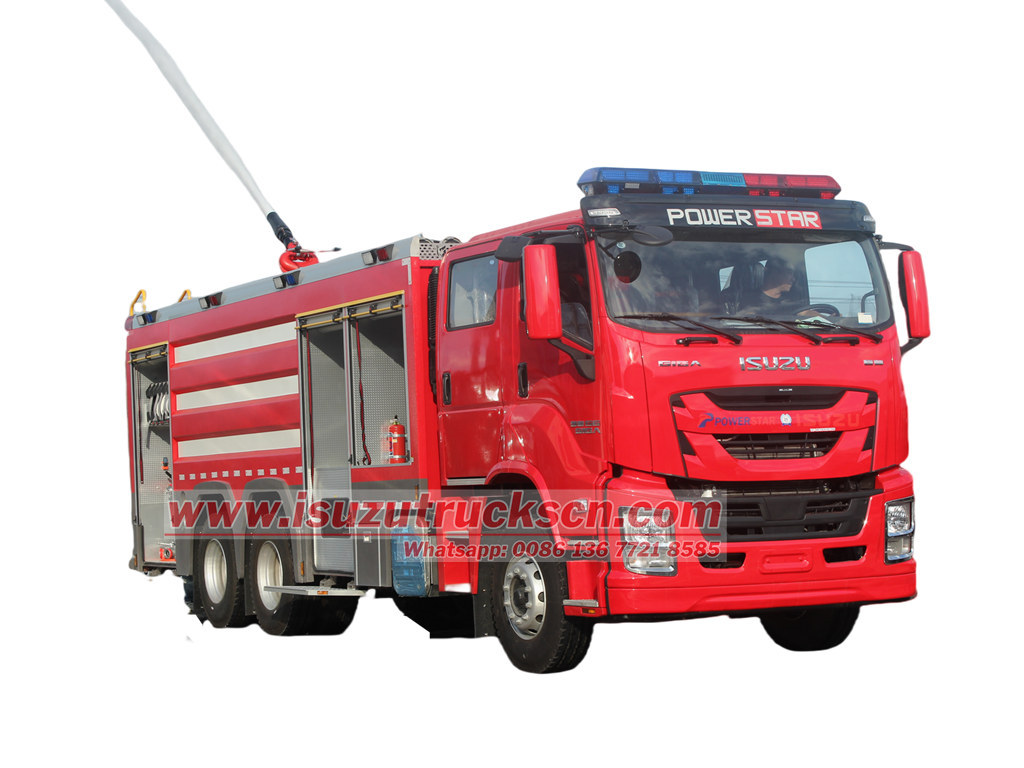

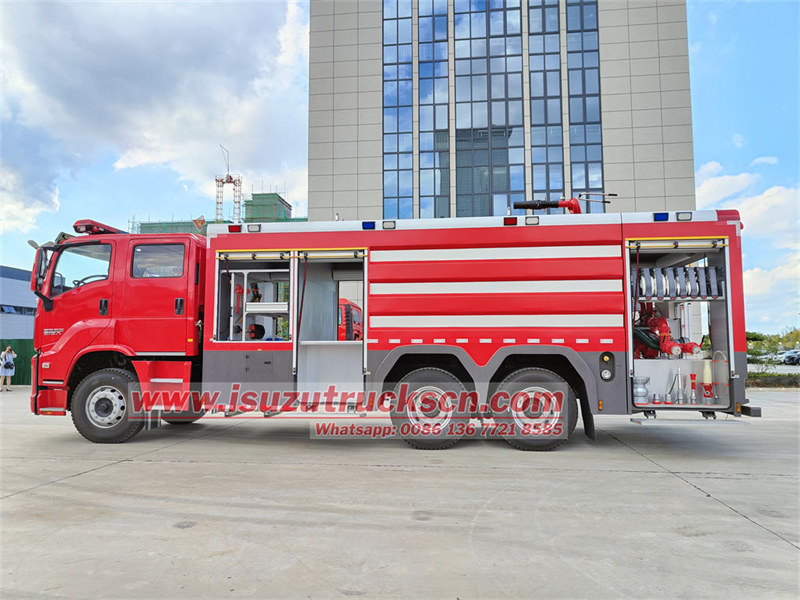

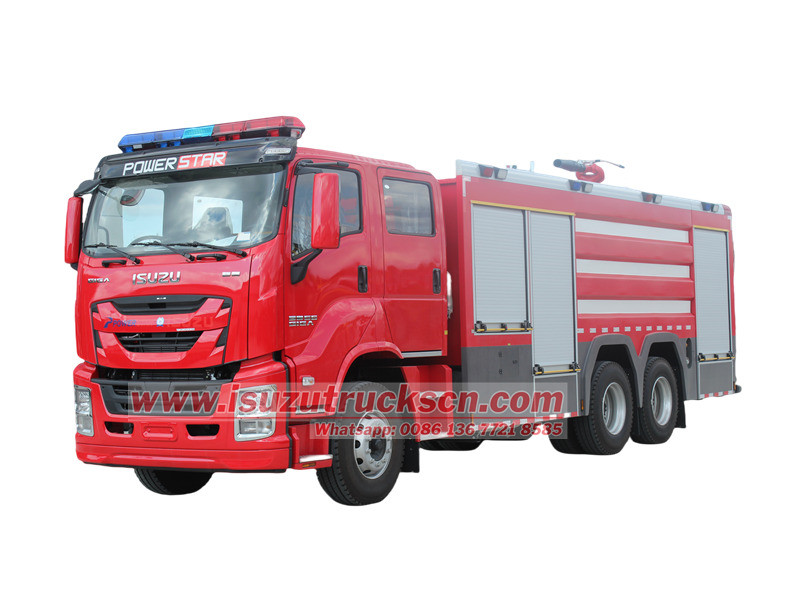

The ISUZU GIGA 6×4 Tanker Fire Truck is a multifunctional firefighting vehicle built on the ISUZU GIGA chassis, featuring a 6×4 drive configuration and integrating both a water tank and foam fire suppression system. Designed to tackle various fire scenarios, it can swiftly respond to emergencies in urban areas, highways, or remote villages, effectively executing firefighting and rescue operations. Combining ISUZU's renowned reliability and durability with advanced firefighting technology, this model has become an indispensable asset for modern firefighting teams.
Manufacturer:
Powerstar TrucksWork capacity:
12000 litersDimension:
10800 x 2550 x 3580mmCabin type:
ISUZU GIGA VC61 dual-row cab,2+4 seatsWheelbase:
4600+1370mmEngine power:
380 HPEngine type:
6UZ1-TCG61Axle drive:
6×4Gear box:
FAST 12-speed, manualRemarks:

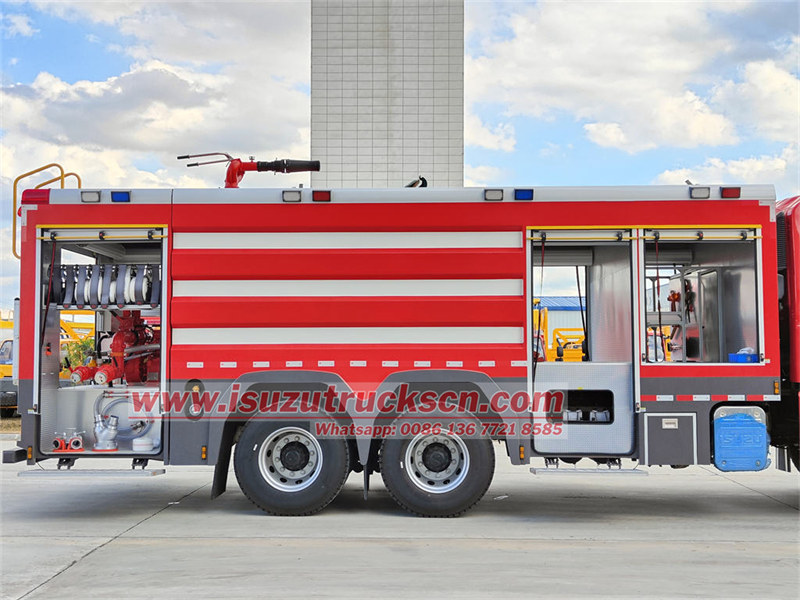

Equipped with large flow CB10/60 fire pump and PL48 fire monitorThe ISUZU GIGA 6×4 Pumper Fire Truck is a versatile heavy-duty firefighting apparatus designed for large-scale fire incidents. Built on the ISUZU GIGA 10-wheeler chassis, the vehicle measures 10.8 meters in length, 2.55 meters in width, and 3.58 meters in height, with a 6×4 drive configuration and a gross weight of 35 tons. Its standout feature is the dual-agent fire suppression system, equipped with a 10,000-liter carbon steel water tank and a 2,000-liter stainless steel foam tank, enabling it to combat both ordinary fires and oil/chemical fires effectively.
The ISUZU GIGA 6×4 multipurpose fire tender utilizes an ISUZU GIGA VC61 dual-row cab, offering a 2+4 seating arrangement to provide ample and comfortable space for firefighters. With a wheelbase of 4600+1370 mm, the chassis ensures stable and smooth maneuverability across various terrains. The cab is fitted with an advanced control system and communication equipment, allowing firefighters to maintain efficient coordination and command in complex environments.
The powertrain of the ISUZU GIGA tender fire truck features an ISUZU 6UZ1-TCG61 turbocharged diesel engine with a displacement of 9.8 liters, delivering a maximum power output of 380 horsepower and fully compliant with Euro VI emission standards. Paired with a FAST 12-speed manual transmission, this powertrain ensures excellent acceleration even under full load. The chassis is equipped with an 8/6+5 multi-leaf spring suspension and 315/80R22.5 all-terrain tires, guaranteeing driving stability across diverse road conditions.

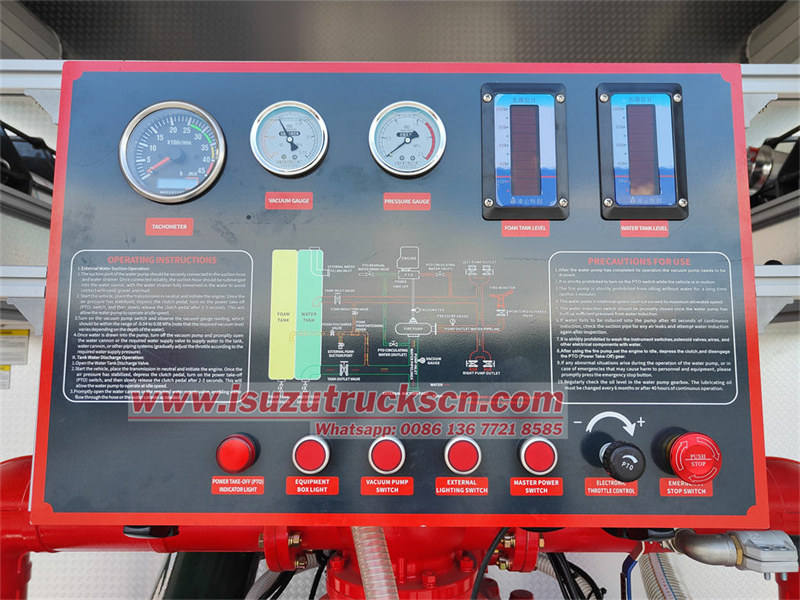

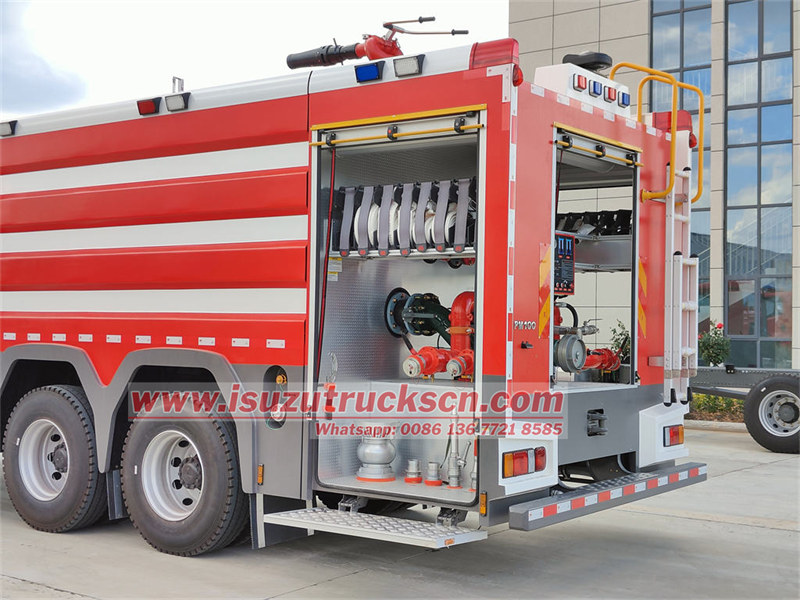

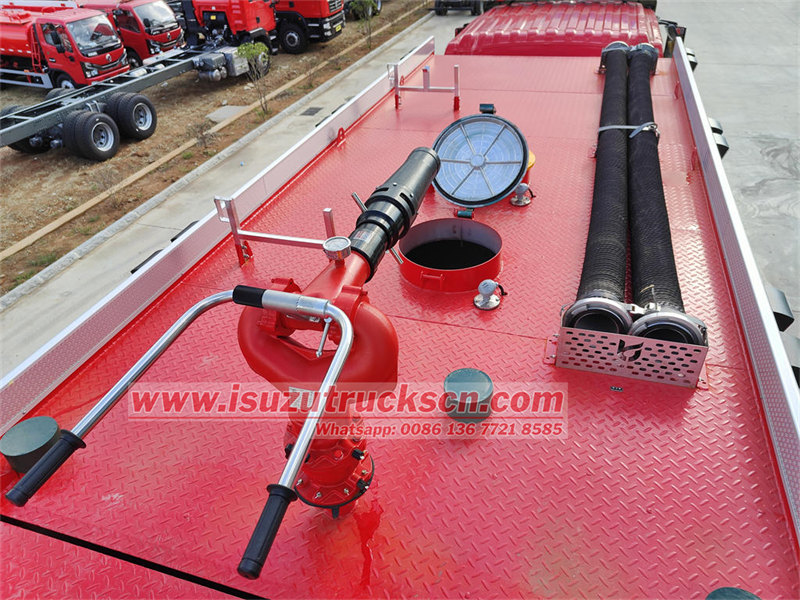

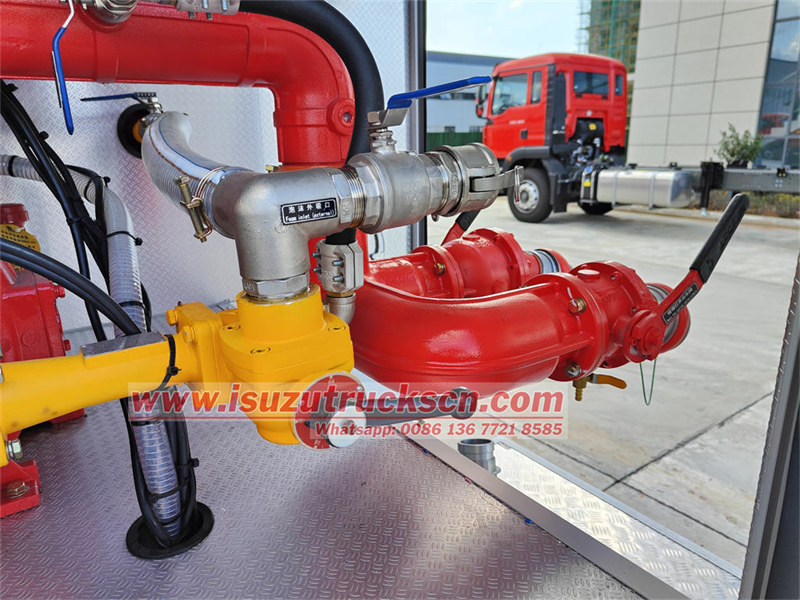

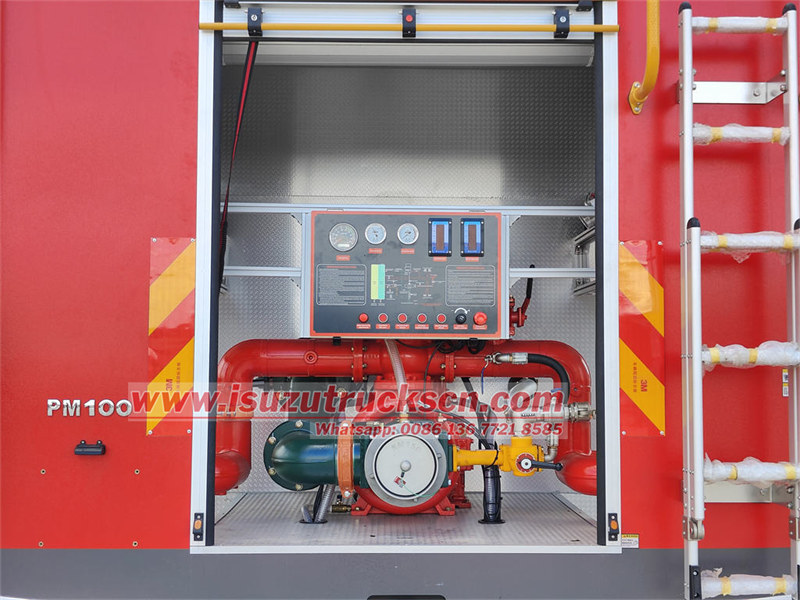

The CB10/60 normal-pressure fire pump serves as the core operational unit of this ISUZU GIGA heavy fire truck, with a rated flow of 60 liters per second, an outlet pressure of 1.0 MPa, and a priming time of no more than 50 seconds at a 7-meter suction depth. The PL48 fire monitor delivers a jet flow of 48 liters per second, achieving a water range exceeding 70 meters and a foam range of 60 meters. Its unique dual-axis rotating structure allows 360-degree horizontal rotation and -45 to +70-degree elevation adjustment, enabling nearly full-coverage firefighting angles.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
Product Specifications
|
ISUZU GIGA 10 wheeler multipurpose fire tender specifications |
|||
|
|
Item |
Unit |
Parameters |
|
Chassis |
Chassis brand |
/ |
ISUZU |
|
Model |
/ |
ISUZU5350 |
|
|
Drive type |
/ |
6x4 left hand drive |
|
|
Cabin |
/ |
ISUZU GIGA VC61, double row, 2+4 seats |
|
|
Overall dimension(L*W*H) |
mm |
10800*2550*3580 |
|
|
GVW |
kg |
35000 |
|
|
Curb weight |
kg |
17500 |
|
|
Wheel Base |
mm |
4600+1370 |
|
|
Front /rear suspension |
mm |
1015/1890 |
|
|
Approach/departure angle |
(°) |
24/12 |
|
|
Spring No. |
/ |
8/6+5 |
|
|
Tyre No. |
pcs |
10+1 |
|
|
Type & Size of Tyre |
/ |
315/80R22.5 |
|
|
Axle No. |
/ |
3 |
|
|
Steering wheel |
/ |
left hand drive |
|
|
Gear box |
/ |
FAST, 12 speed forward and 2 reverse, manual |
|
|
Engine |
Engine model |
/ |
6UZ1-TCG61 |
|
Engine brand |
/ |
ISUZU |
|
|
Engine type |
/ |
6 cylinders in line, turbocharged |
|
|
Maximum power |
HP/kw |
380/279 |
|
|
Fuel type |
/ |
Diesel |
|
|
Displacement |
ml |
9839 |
|
|
Emission Standard |
/ |
Euro VI |
|
|
Tanker |
Water tanker |
/ |
10000 liters, carbon steel |
|
Foam tanker |
/ |
2000 liters, stainless steel |
|
|
Fire pump |
Model |
/ |
CB10/60, Normal pressure pump |
|
Outlet Rated Pressure |
Mpa |
1.0 |
|
|
Max suction height |
m |
7 |
|
|
Flow |
L/S |
60 |
|
|
Rated speed |
r/min |
3280 |
|
|
Priming time (s) |
s |
≤50 |
|
|
Fire monitor |
Model |
/ |
PL48 |
|
Range |
m |
Water ≥70 |
|
|
m |
Foam ≥60 |
||
|
Flow |
L/S |
48 |
|
|
Rated Working pressure |
Mpa |
0.8 |
|
|
Pitching rotation |
° |
-45～+70 |
|
|
Horizontal rotation |
° |
0～360 |
|
Features of the ISUZU GIGA 10-Wheeler Fire Truck
1. Powerful Performance
★ The ISUZU GIGA fire truck is equipped with a 6UZ1-TCG61 inline 6-cylinder turbocharged diesel engine, delivering a maximum power of 380 HP (279 kW). This ensures strong performance, enabling quick response and stable operation in various challenging road conditions.
2. Large and Durable Tank Capacity
★ Water Tank: A massive 10,000-liter capacity, constructed from carbon steel for superior durability, ensuring long-term water storage without leakage.
★ Foam Tank: A 2,000-liter capacity, made of stainless steel to resist corrosion, maintaining the purity and effectiveness of the foam fire suppressant.
3. High-Efficiency Fire Pump
★ The CB10/60 normal-pressure fire pump provides a rated pressure of 1.0 MPa, a maximum suction depth of 7 meters, and a flow rate of 60 liters per second, ensuring rapid and sufficient water supply for firefighting operations.
★ The pump operates with high stability and reliability, making it a critical component for efficient firefighting.
4. Long-Range and Flexible Fire Monitor
★ The PL48 fire monitor delivers an impressive water jet range of ≥70 meters and a foam jet range of ≥60 meters, meeting the demands of long-distance fire suppression.
★ The monitor is highly maneuverable, allowing 360° horizontal rotation and vertical adjustment (-45° to +70°), providing precise firefighting control.
