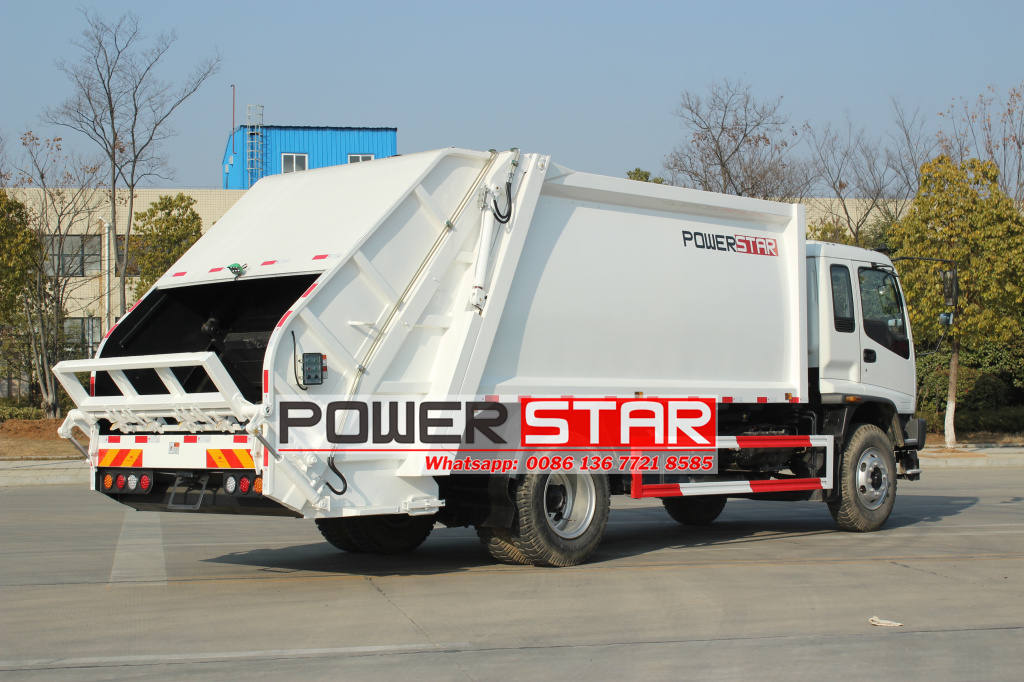

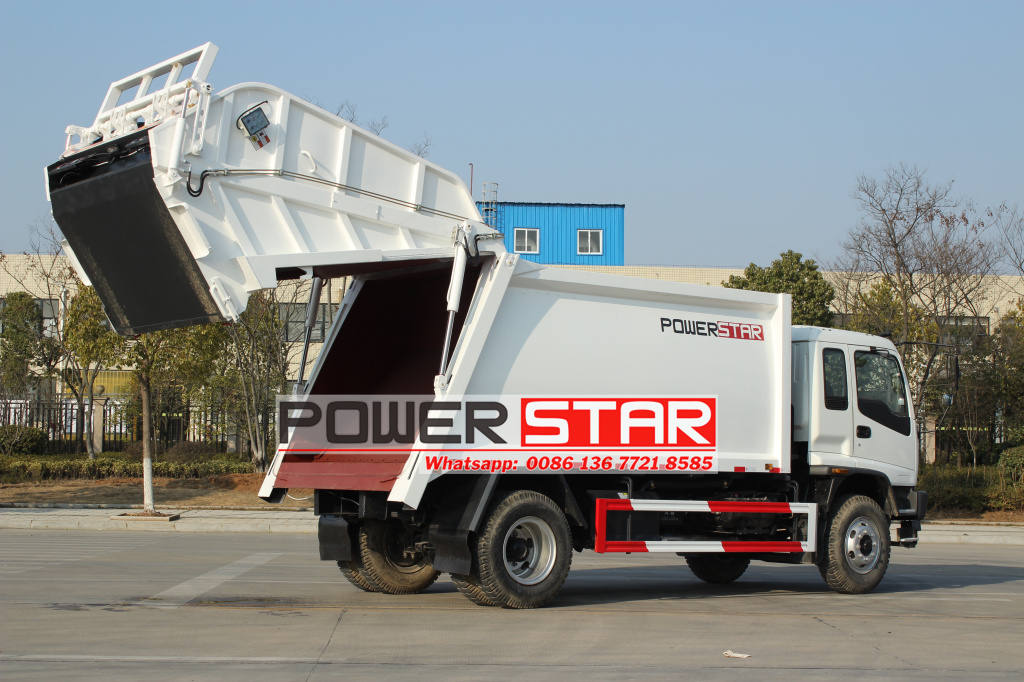

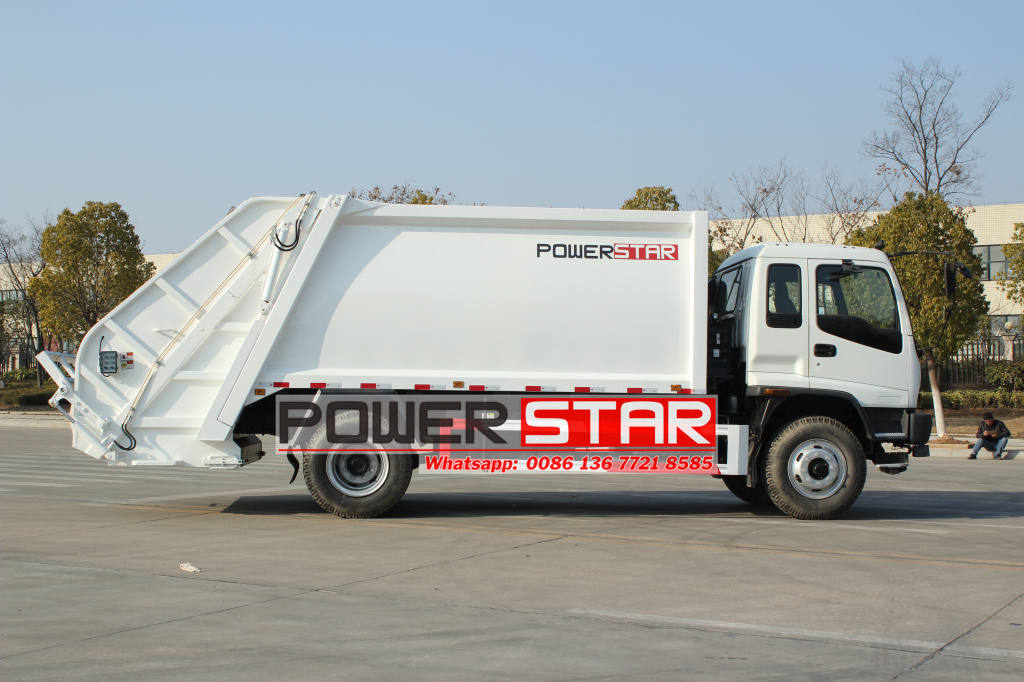

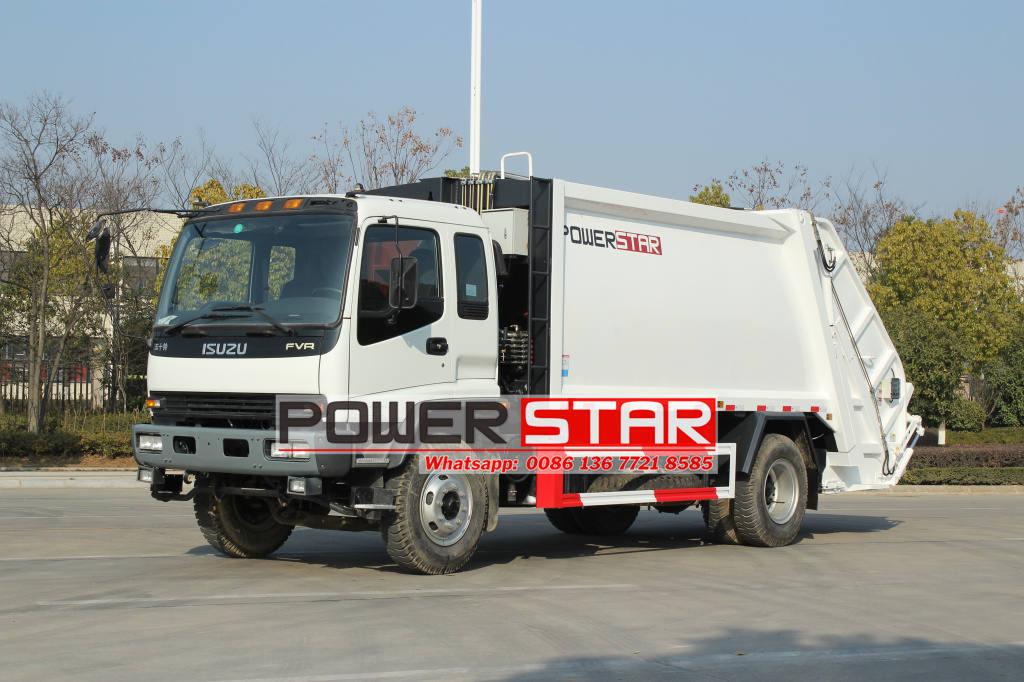

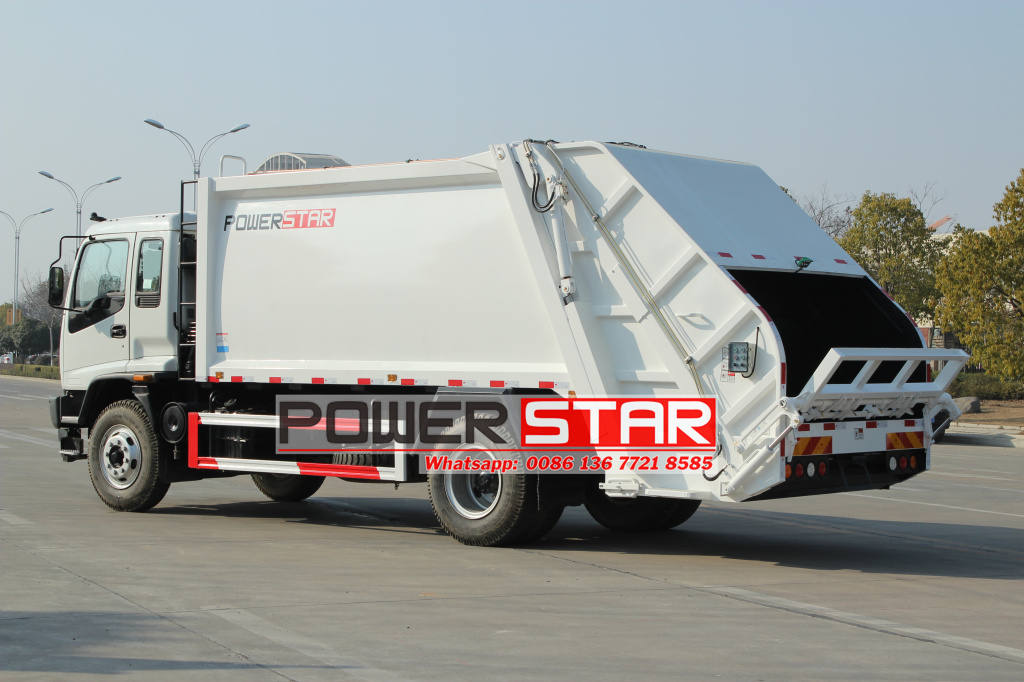

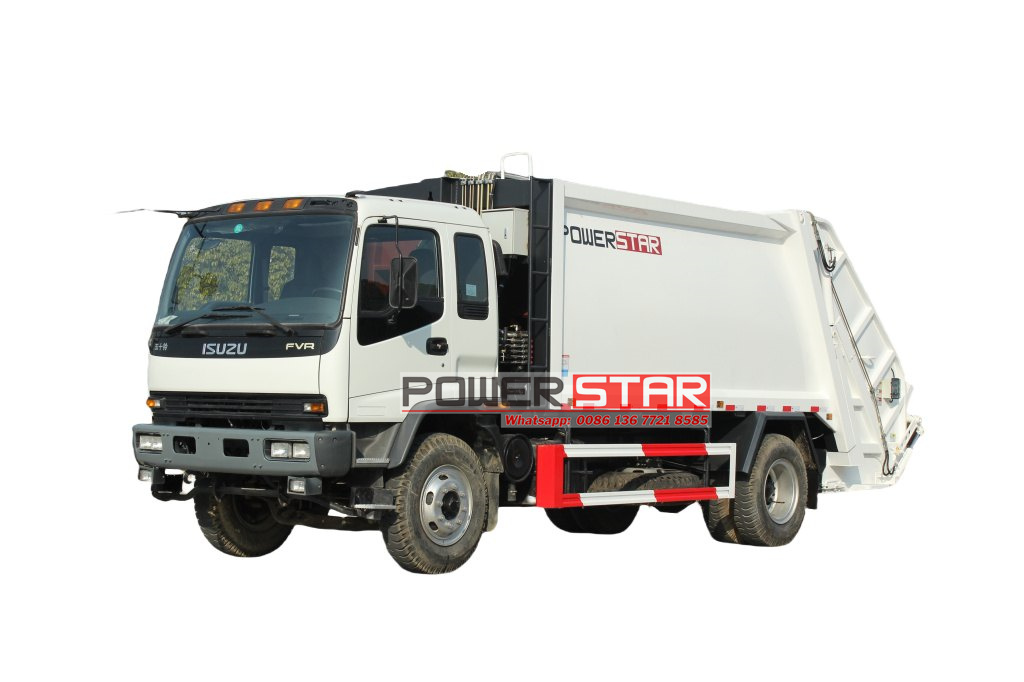

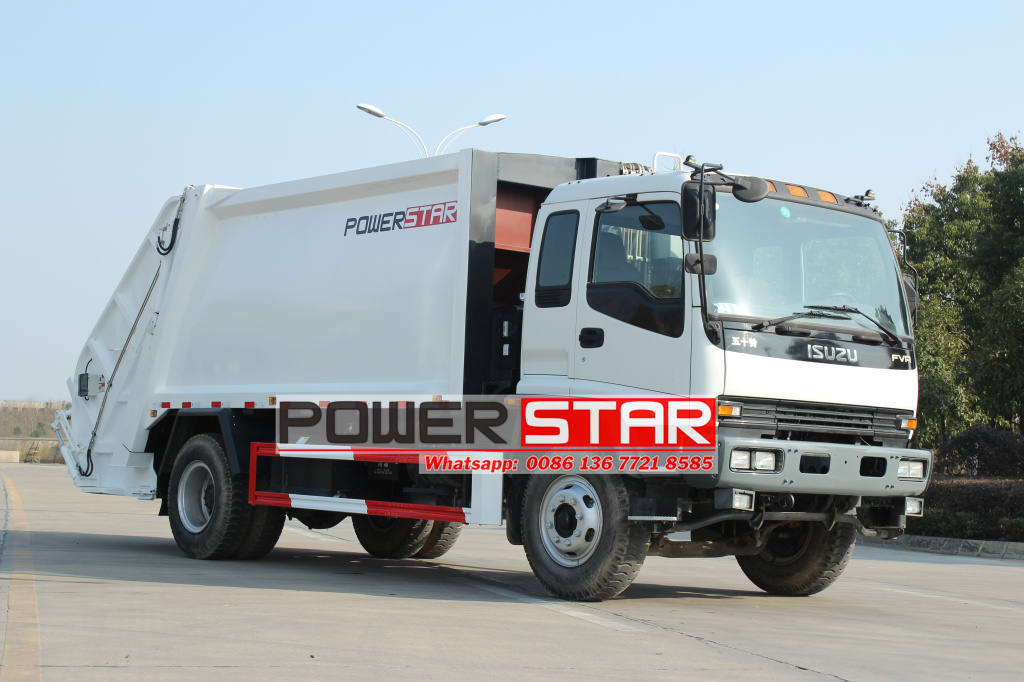

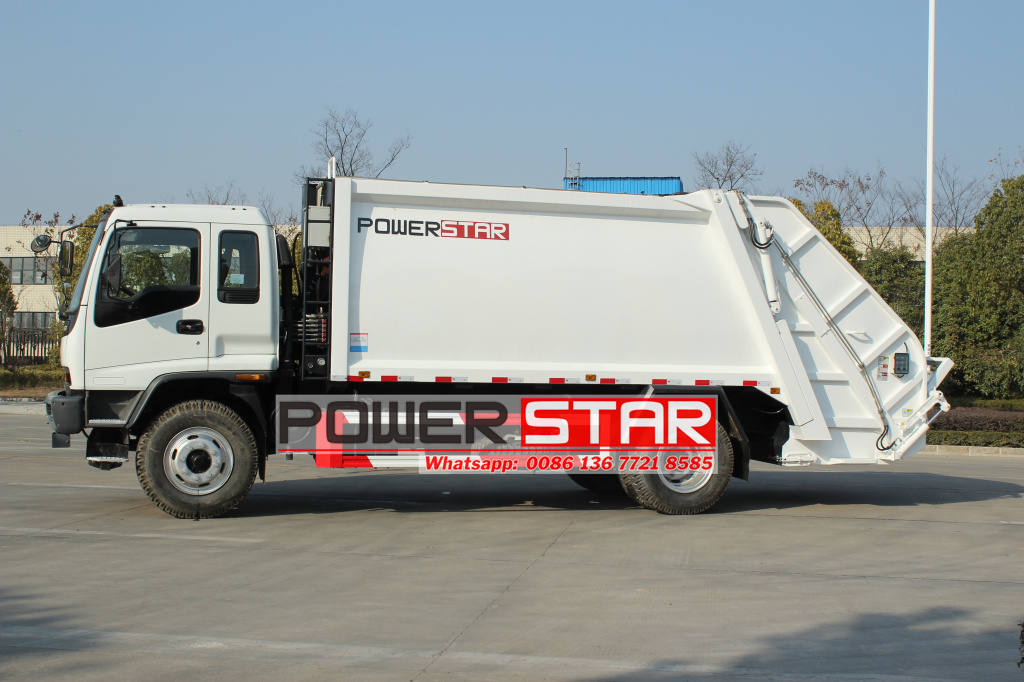

2025 Year 14cbm Isuzu FVR Solid Refuse Compactor
2025 year new or used Isuzu QL1180XMFRY Solid Refuse Compactor change the dirty appearance of the city and eliminate the secondary pollution.It is equipped with computer control system for loading and unloading operations. One Person operate that can reduce sanitation working time and greatly improves the working environment. It install computer control system and manual operation system in order to improve the vehicle using rate.
Work capacity:
14CBMEngine power:
240HPEngine type:
ISUZU 6HK1Axle drive:
4x2Gear box:
ISUZU MLD 6-shiftRemarks:
10~16cbm capacity available2025 Year 14cbm Isuzu FVR QL1180XMFRY Solid Refuse Compactor & Garbage Compactor Solutions
ISUZU FVR brand refuse compactor truck, a leading brand in waste management, offers state-of-the-art garbage trucks designed for efficient collection. Our powerful garbage compactors ensure that waste is compacted to maximize capacity and reduce the number of trips needed for collection. These vehicles are produced according to all city demands, incorporating designs that increase the amount of garbage collected per trip while reducing collection time and providing practicality for operators.
With durable construction and innovative features, ISUZU FVR compactor truck's equipment delivers top performance and longevity. Our vehicles have been engineered with fuel-efficient designs, and the collected garbage density is decreased through an advanced hydraulic mechanism. The trucks are produced with lifting systems of various capacities and size standards to meet specific requirements.
Furthermore, our R&D department is capable of tailoring projects according to the capacity and standards needed, ensuring that our solutions meet the unique demands of each state. Whether you refer to them as garbage disposal trucks, hydraulic garbage disposal trucks, garbage trucks, or garbage cars, ISUZU FVR's vehicles are ready to transform your waste management processes and drive cost savings. Contact us today to discover how our solutions can benefit your operations.
● China the best Isuzu refuse compactor factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, 100% customer made.
Product descriptions:
1. ISUZU FVR heavy duty chassis with high quality and good reputation
2. ISUZU 6HK1 240HP diesel engine match with fast 8-speed gearbox
3. 14cbm tank volum with side4mm, bottom5mm Carbon Steel-Q345 tank material
4. 6.3T /13T front and rear axle, good load-bearing performance

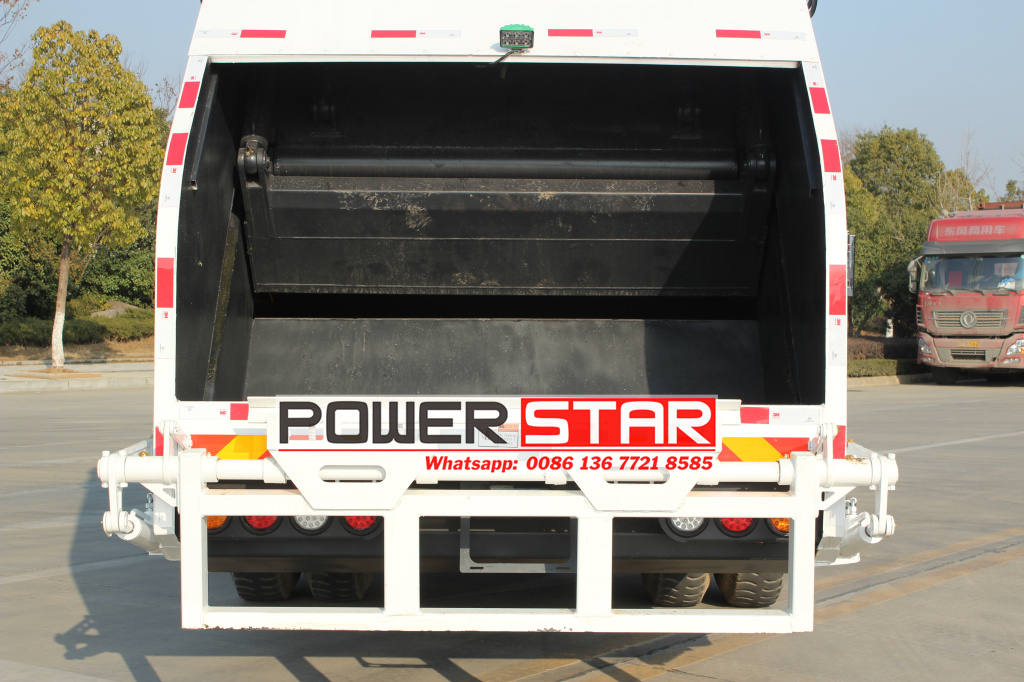

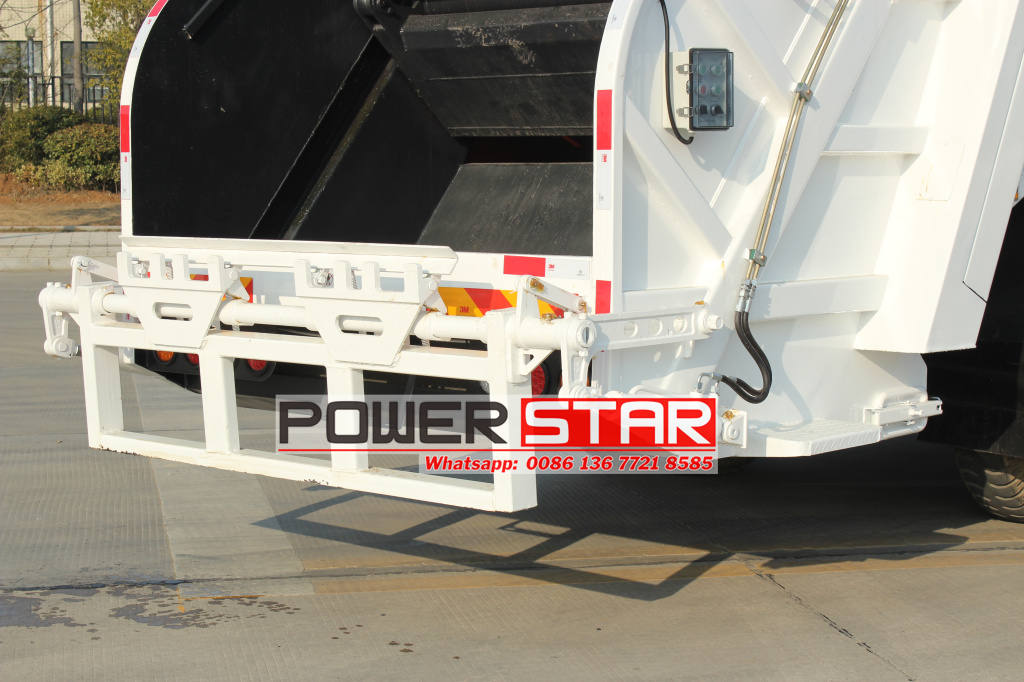

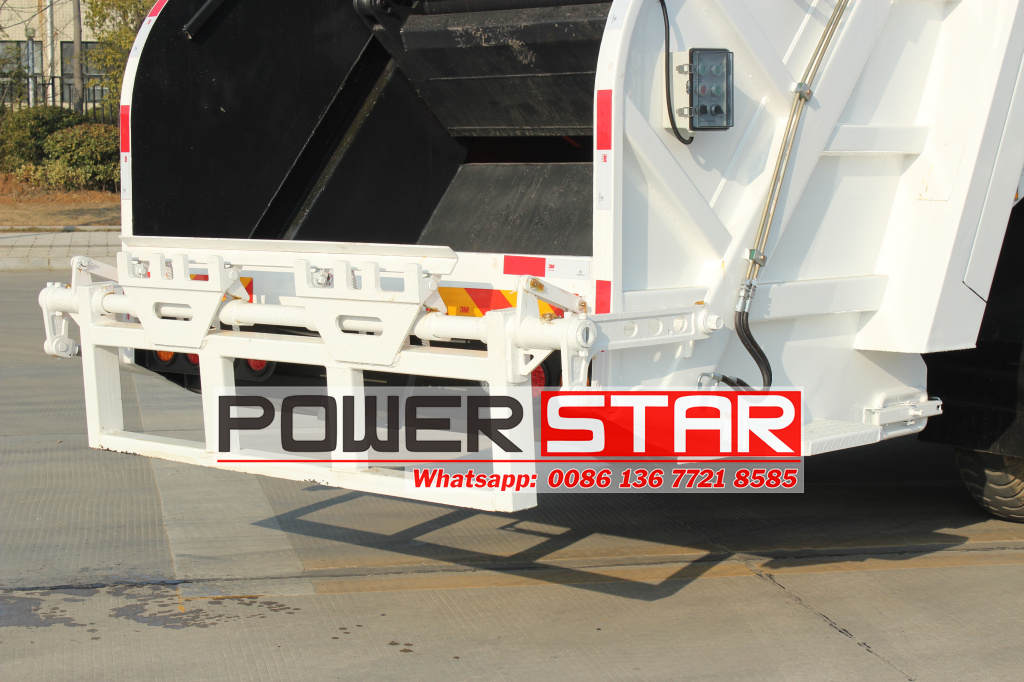

5. Optional different flip type like hanging bucket container, all-sealing container, swing arm container, triangle container
6. Bottom box and filler are made of thickened steel plate
7. Garbage Compact Ratio is up to 0.75tonnes/cbm
Product advantages:
Isuzu FVR Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.

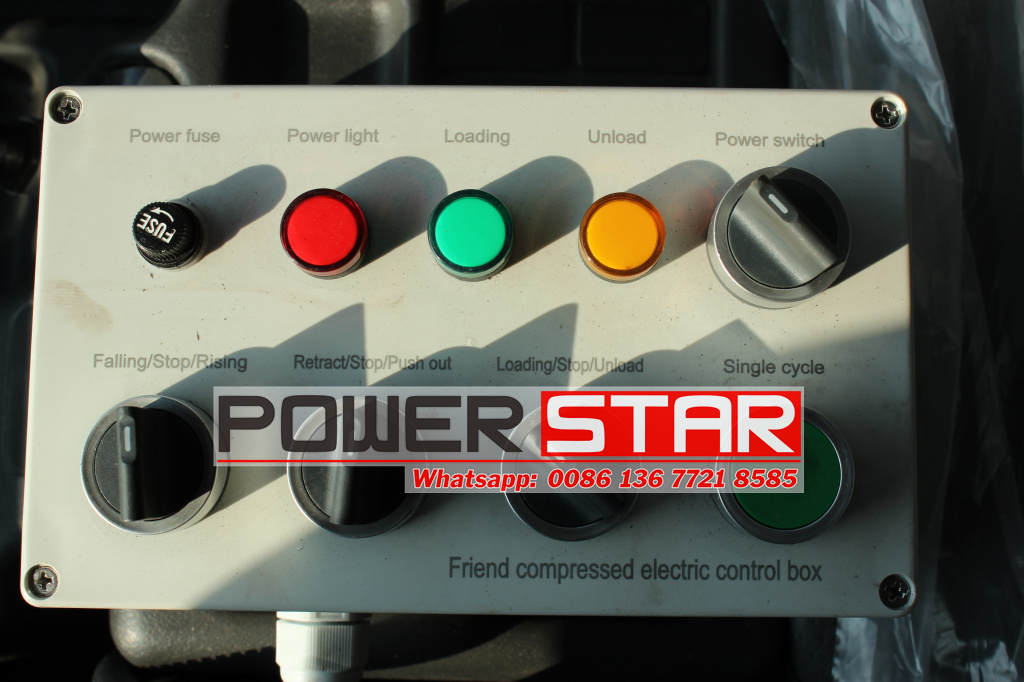

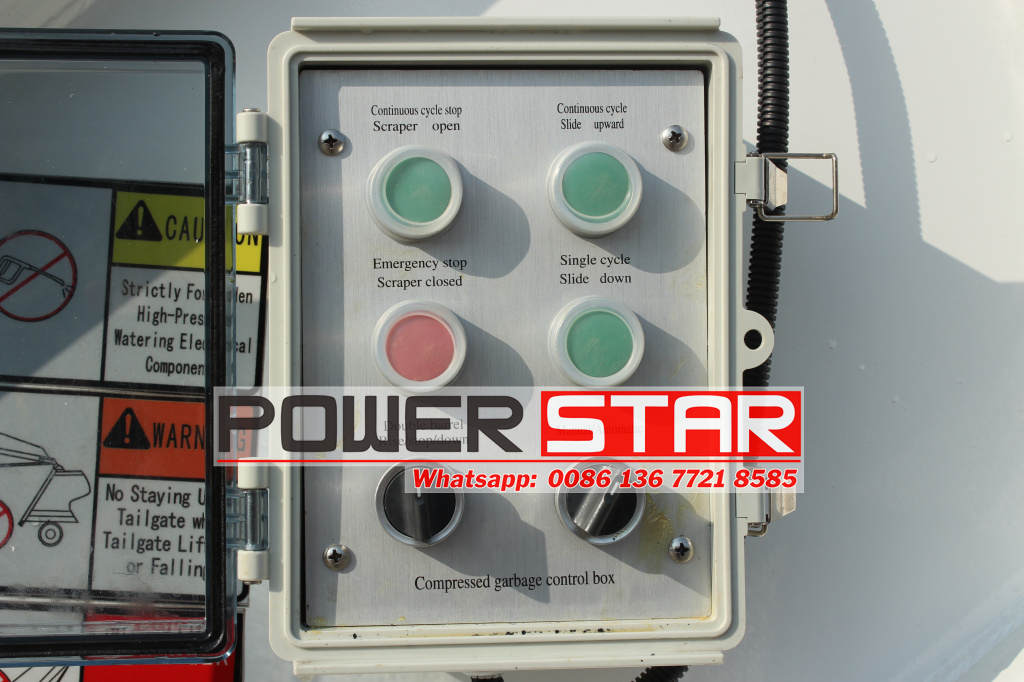

It is equipped with computer control system for loading and unloading operations.
One Person operate that can reduce sanitation working time and greatly improves the working environment.
It install computer control system and manual operation system in order to improve the vehicle using rate.

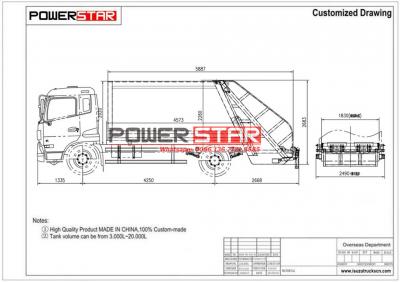

II. Specification of 4x2 LFD ISUZU 10cbm 12cbm 14cbm Wasetement Compressed Truck with rear loader bucket
| Chassis SPECIFICATION | |||
| Brand | ISUZU | GVW | 18000kg |

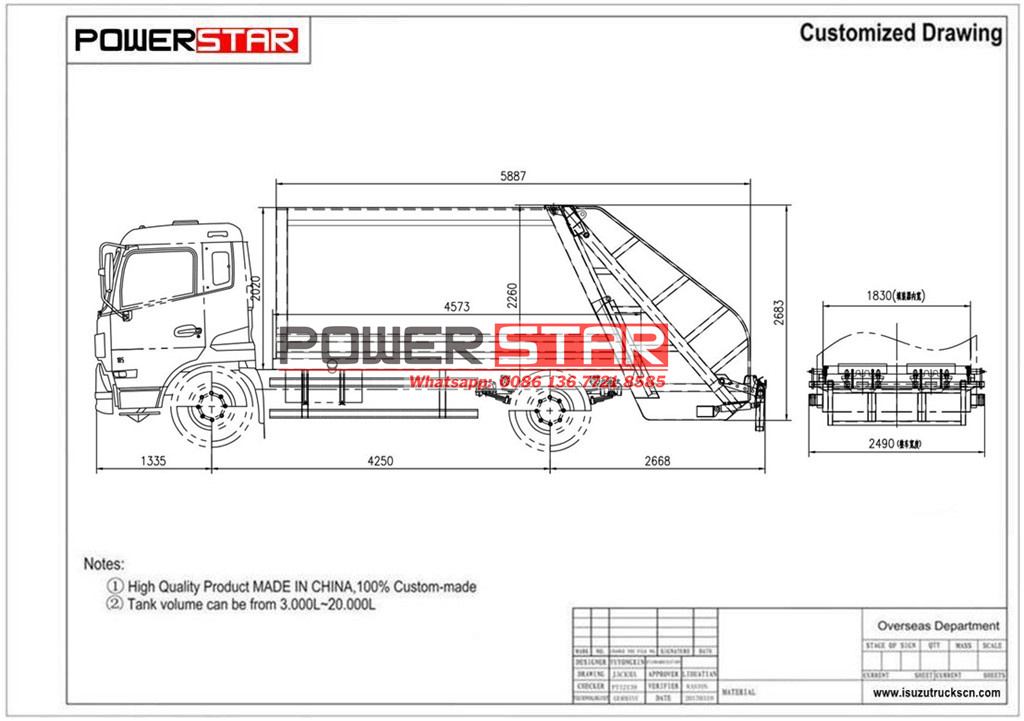

| Dimensions | 8910×2500×3390 mm | Wheelbase | 4500mm |
| Garbage Volume | 14CBM | Driving type | 4x2, LHD/RHD |
| Number of axles | 2 | No. of Tyre | 6+1 |
| Tire | 10.00R20 | Cab | Single row cabin |
| Transmission | 8F+2R | Axle | 6.3T/13T |
| Engine | |||
| Brand | ISUZU | Type | Diesel |
| Model | 6HK1-TC | Horsepower | 240HP |
| Garbage Equipment | |||
| Volume | 14 m3 | Filler Volume | 0.8m3 |
| Tank Material | 4 or 6mm | Material | carbon steel |
| Loading cycling time | ≤30s | Uploading cycling time |
<30s |
| Compressed proportion | 1:3/1:2 | Turnover Mechanism | Different instrument selective |
.

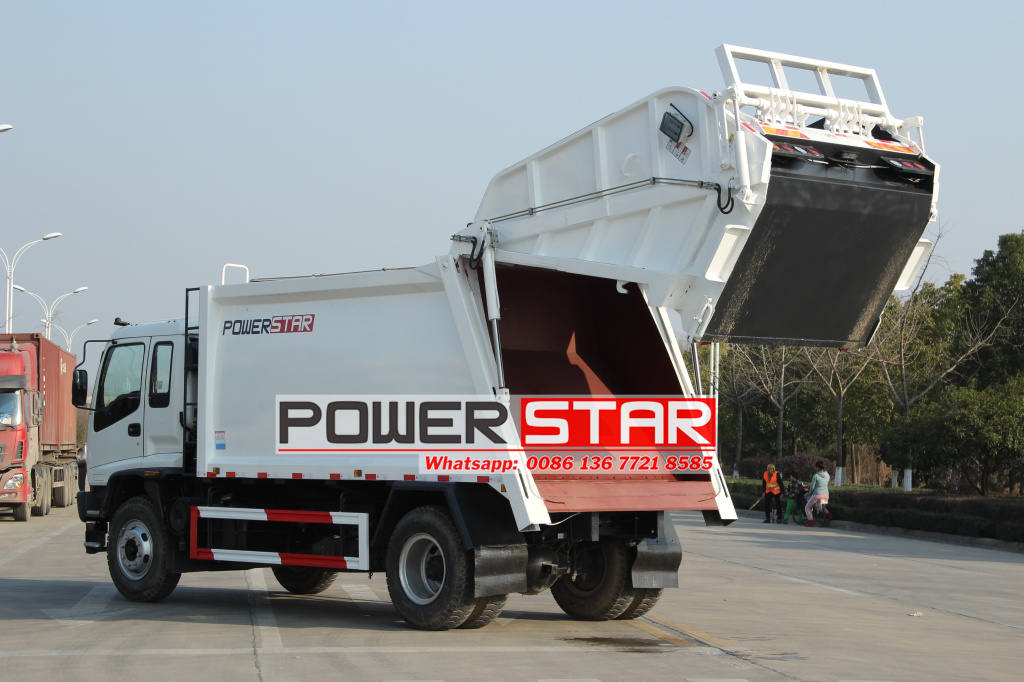

The information of ISUZU QL1180XMFRY chassis can be summarized as follows:
1. Basic parameters
Chassis model: QL1180XMFRY
Chassis category: Class II
Product trademark: Isuzu
Overall length: Depending on the configuration, the length may vary. For example, when it is equipped with a fire truck, it may be 8080mm (excluding the upper part), and when it is used as a dump truck, the length of the whole vehicle is 8200mm.
Overall width: It also varies depending on the configuration. The common width is 2490mm or 2500mm.
Overall height: It will also vary depending on the configuration. For example, it may be 3470mm when used as a fire truck.
Number of axles: 2 axles
Wheelbase: Usually 4500mm, but there may be other specifications such as 5550mm.
2. Engine parameters
Engine model: 6HK1-TCL
Manufacturer: Isuzu Engine Co., Ltd.
Displacement: 7790ml
Power: 177KW (240 horsepower)
Emission standard: GB17691-2005 National V, GB3847-2005
3. Tires and brakes
Tire specifications: Common specifications include 11.00R20, 295/80R22.5, etc., and the number of tires is usually 6.
Wheel width: Front wheel width 1960mm, rear wheel width 1855mm.
Braking method: Steam brake (partial configuration)
4. Other parameters
Gross mass: Depending on the configuration, the gross mass may vary, such as 16800Kg, 18000Kg, etc.
Curb weight: It will also vary depending on the configuration, for example, it may be 9750Kg when used as a fire truck, and it may be 7105Kg when used as a dump truck.
Maximum speed: Depending on the configuration and purpose, the maximum speed may vary, but it is generally high, such as 90Km/h or 95Km/h.
Approach angle/departure angle: Depending on the vehicle configuration, the approach angle and departure angle will also vary. The common approach angle is 15° and the departure angle is 12° or 15°.
Front overhang/rear overhang: The front overhang is usually 1335mm, and the rear overhang varies depending on the vehicle configuration.
V. Special configuration and use
Fire truck configuration: When the QL1180XMFRY chassis is used for fire trucks, it is usually equipped with large-capacity water storage tanks, fire pumps, fire cannons and other equipment, and has a full set of fire-fighting functions.
Dump truck configuration: When used as a dump truck, it is usually equipped with high-quality cargo boxes and dump devices, which are suitable for various cargo transportation and unloading scenarios.
