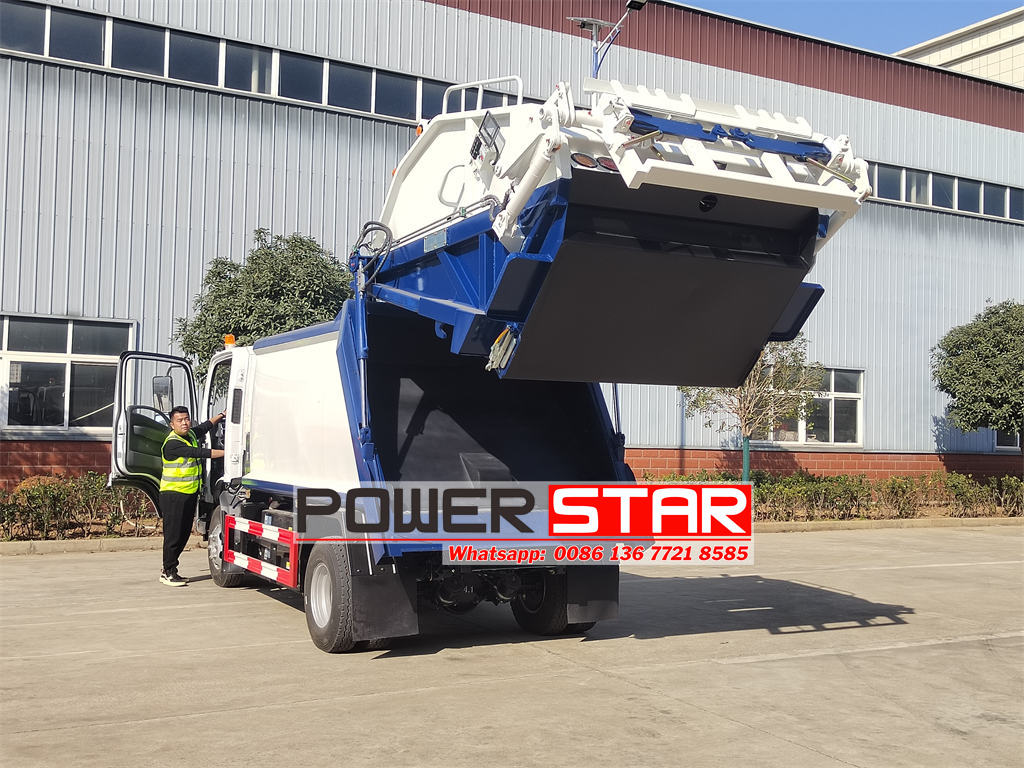

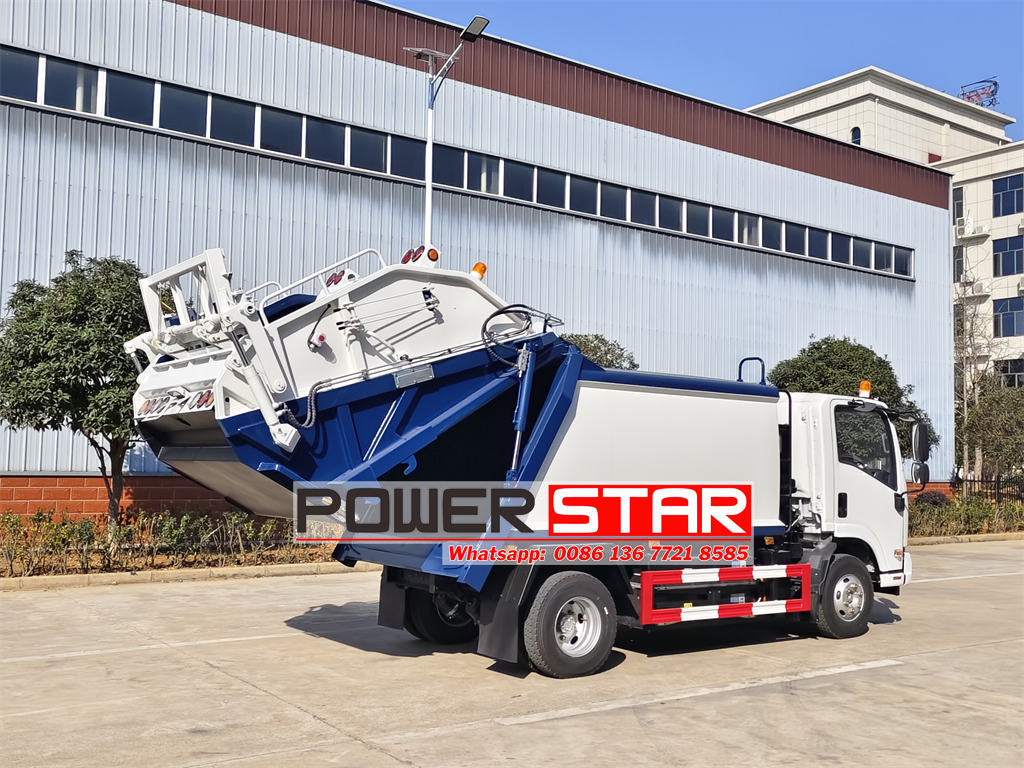

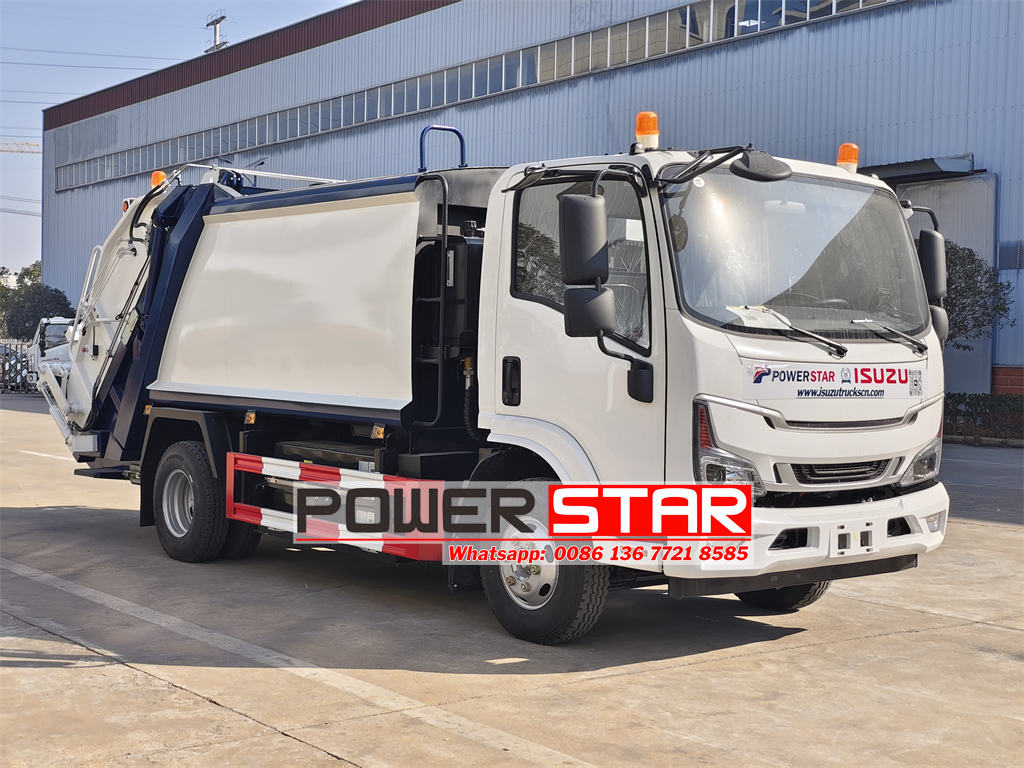

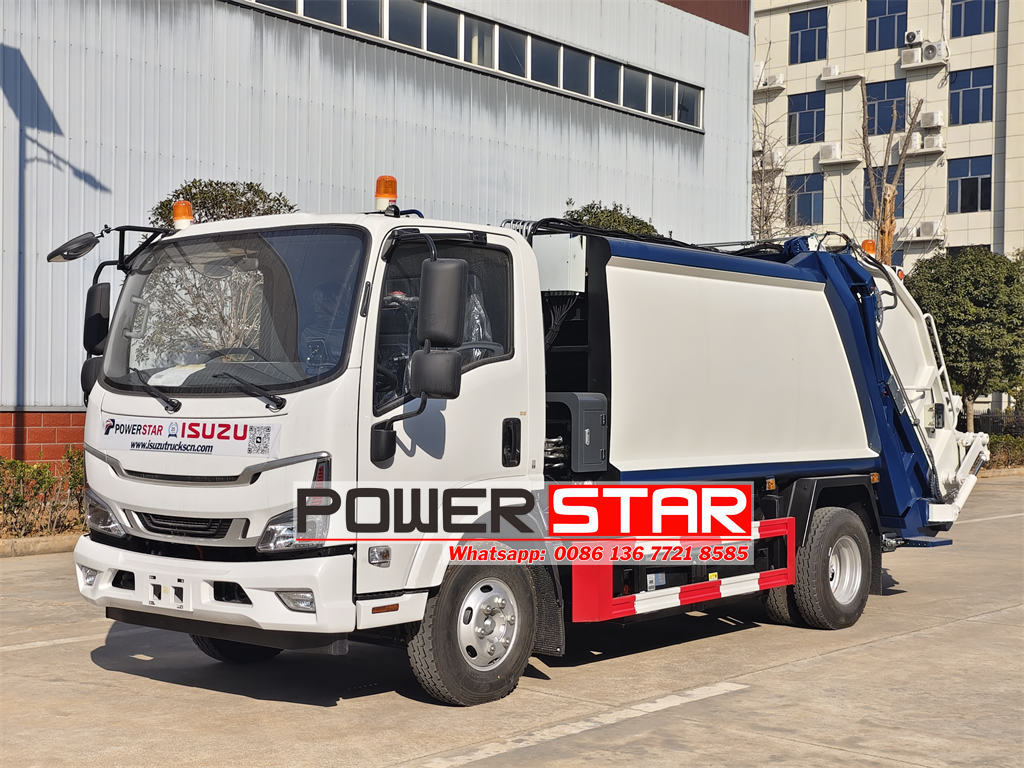

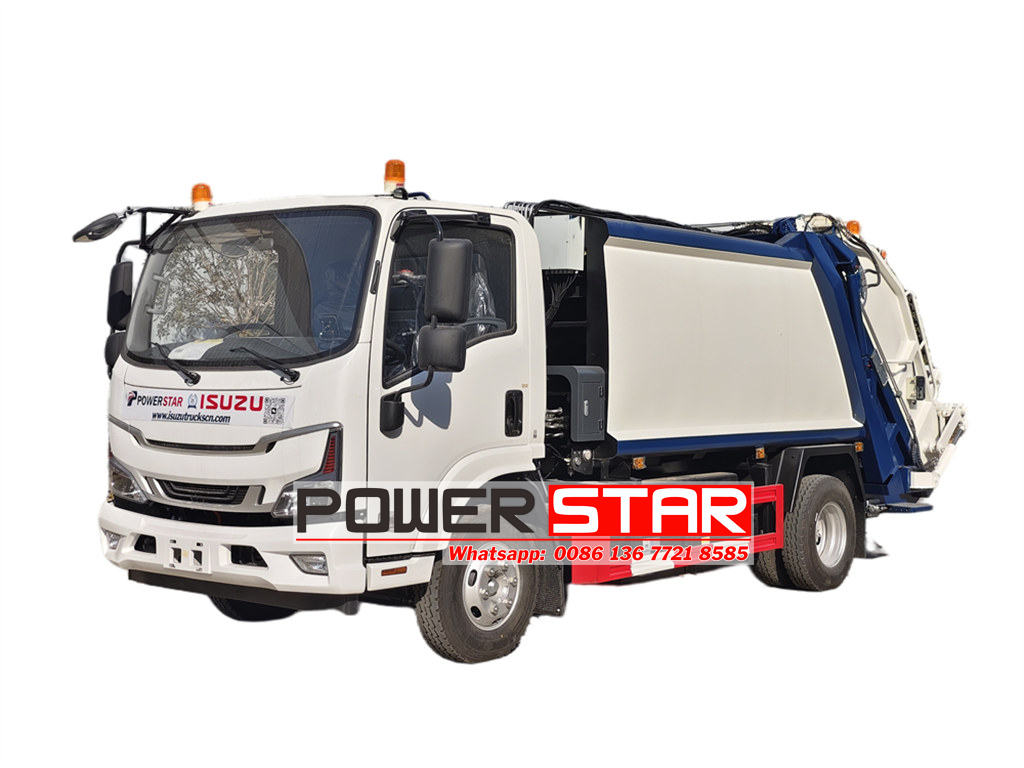

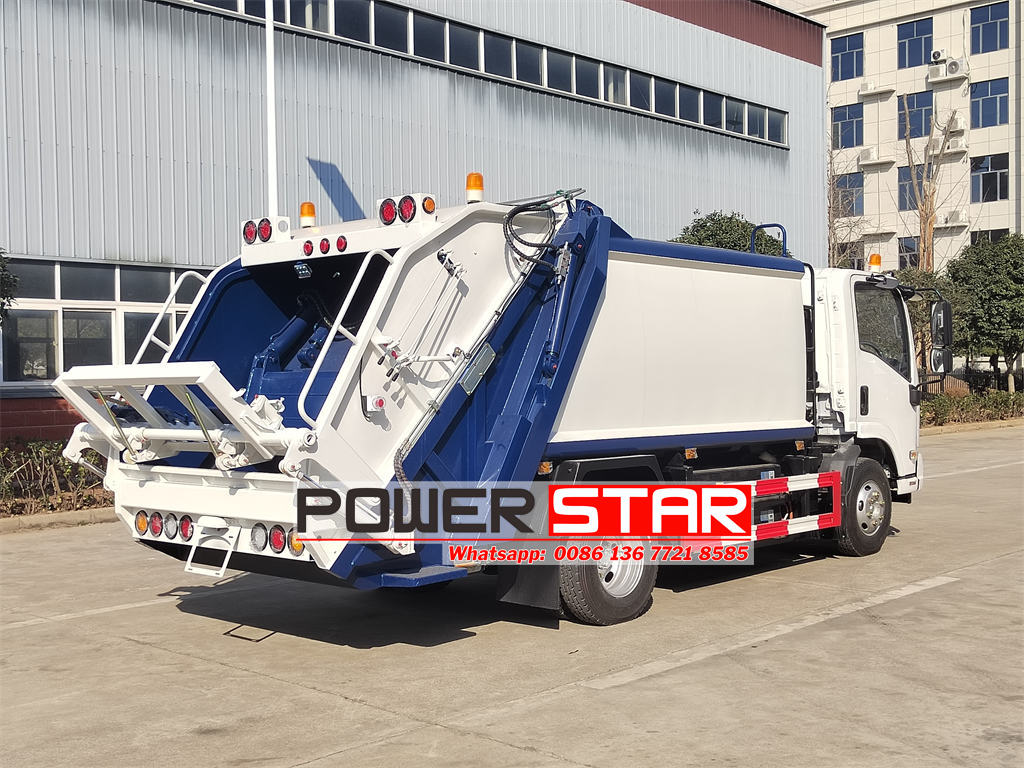

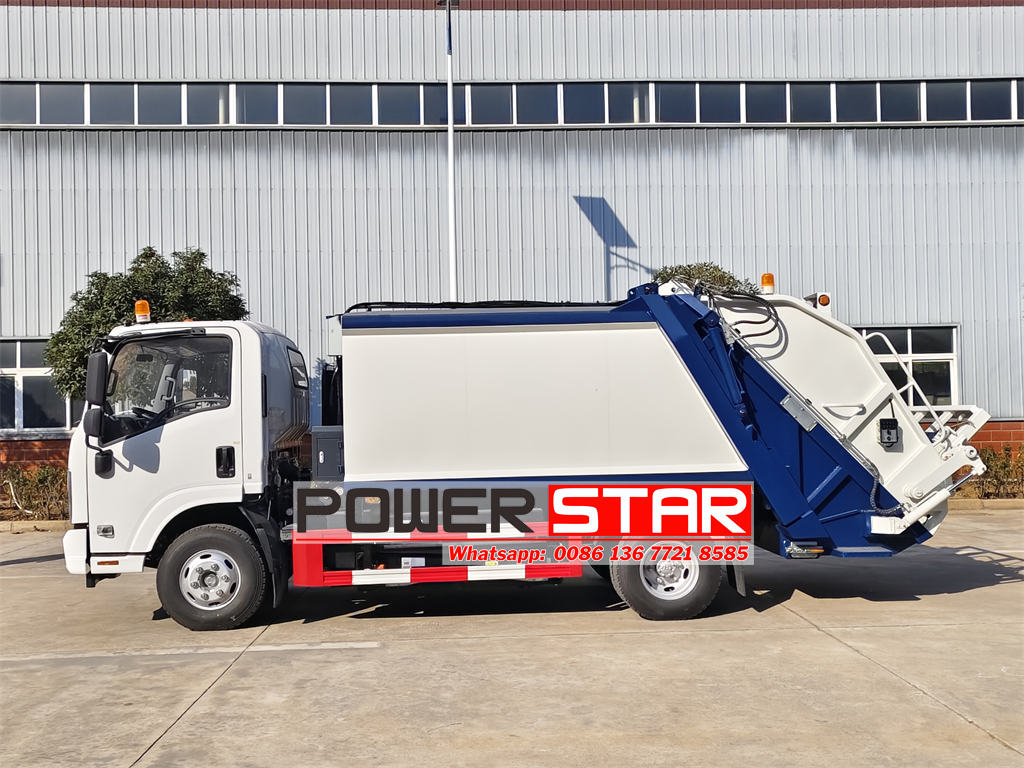

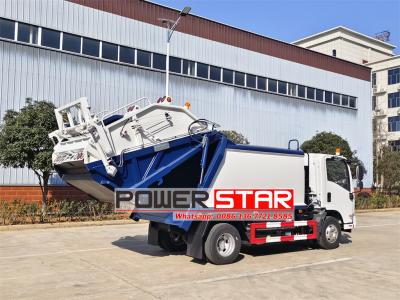

ISUZU Electric Rear Loader Refuse Truck
The Isuzu 6-cubic-meter electric rear loader is specifically designed for urban garbage collection and transfer operations. Built on the ISUZU EVM600 electric chassis, it adopts advanced electric drive technology and efficient garbage compression processing technology, achieving the environmental goals of zero emissions and low noise while ensuring cleaning efficiency. This model not only meets the modern city's demands for environmental protection and efficiency but also has won the favor of a wide range of customers with its outstanding performance and reliable quality.
Work capacity:
6 CBMEngine power:
100KWEngine type:
ElectricAxle drive:
4x2, left hand driveGear box:
NILRemarks:
Equipped with high-capacity lithium iron phosphate batteryThe Isuzu 6CBM electric garbage compactor truck is a specialized environmentally-friendly vehicle designed for garbage collection and transfer in cities and towns. It combines the energy efficiency of electric drive with the loading advantages of a compressed garbage truck, utilizing advanced electric and compression technologies to achieve efficiency, environmental protection, and convenience in the garbage collection process. The vehicle adopts an electric drive system, reducing exhaust emissions and meeting the demand for environmentally-friendly vehicles in modern cities. At the same time, its 6-cubic-meter loading capacity and powerful compression capability effectively enhance the efficiency of garbage collection and transfer.
● China best Isuzu refuse compactor truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● 50 units Isuzu garbage compactor trucks in stock, from 6CBM to 20CBM
● Build strict QC team to guarantee the quality
● Professional sales team which will help you to choose suitable truck.
Product Specifications
| Vehicle Parameters |

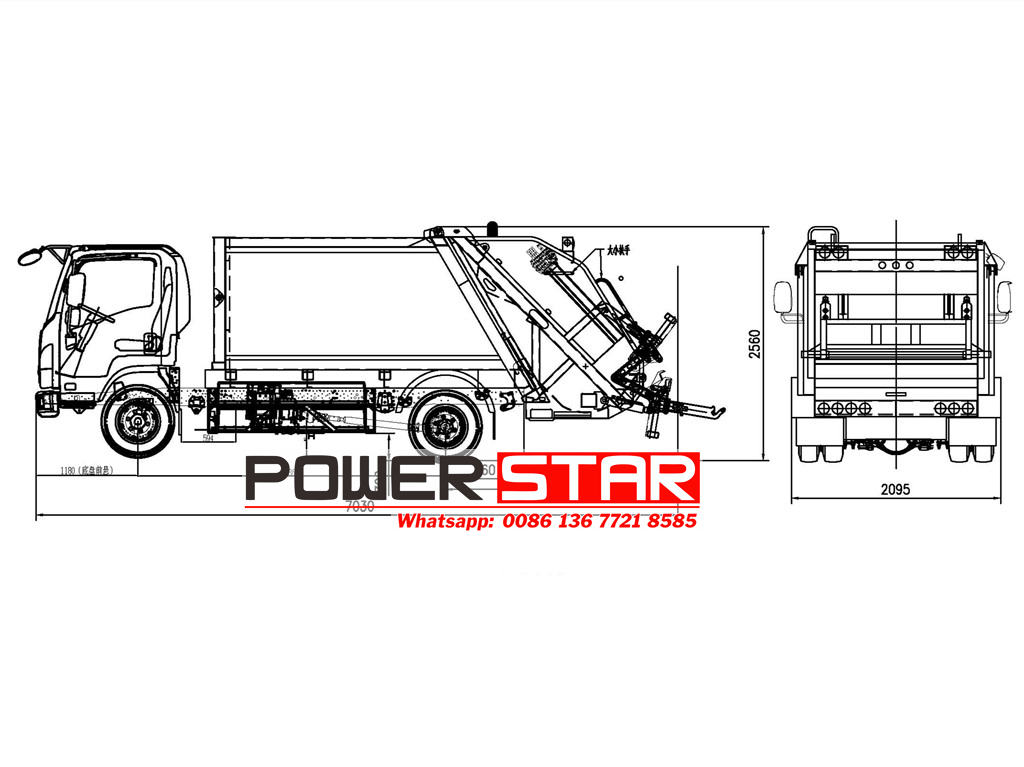

Overall Dimension (L x W x H) |
7030x2095x2560 (mm) |
|
Curb Weight: |
5200Kg |
|
|
GVW: |
8995kg |
|
|
Wheelbase: |
3360mm |
|
|
Drive Type: |
Motor Direct Driving |
|
|
Motor |
Motor Model: |
TZ370XS-LKM1201 |
|
Motor Type: |
Permanent magnet synchronous motor |
|
|
Rated /Peak Power: |
100kW / 185kw |
|
|
Rated /Peak Peak torque: |
500N.m / 1200N.m |
|
|
Rated / Peak Speed |
1910r/min / 4500r/min |
|
|
Protection Stage |
IP68 |
|
|
Insulated Stage |
H |
|
|
Working System |
S9 |
|
|
Cooling Model |
Liquid Cooling |
|
|
Battery |
Battery Brand/ Model: |
CATL/ L173TB2 |
|
Battery Type: |
Lithium iron phosphate |
|
|
Battery Capacity: |
106.95kwh (4 sets independent battery, with each battery 26.73kWh, rated voltage is 154.56V) |
|
|
Performance |
Maximum Speed: |
90km/h |
|
Endurance mileage: |
280km |
|
|
Charge mode: |
Fast charge |
|
|
Max Climb Capability |
30% |
|
|
Seats |
Front Seat: |
3 |
|
Chassis |
Front/ Rear Wheel Distance: |
1640/1655mm |
|
Front/Rear Suspension |
1121/1387mm |
|
|
Axle Loads: |
3300/5695kg |
|
|
Approach/Departure angle: |
23/19 |
|
|
Leaf Spring: |
6/6+6 |
|
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
7.50R16LT 16PR |
|
|
Standard Configuration: |
1 |
Power steering system |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
Garbage body |
Capacity |
6cbm |
|
Material |
Super stronger steel |
|
|
Thickness |
Side 4mm |
|
|
Floor 4mm |
||
|
Hydraulic Cylinder |
Push Plate 1 set |
|
|
Rear Hopper 2 sets |
||
|
Slide Plate 2 sets |
||
|
Scraper 2 sets |
||
|
Rear Tilting Device 2 sets |
||
|
PTO |
High quality brand |
|
|
Gear Pump |
Dual hydraulic oil pump connects with PTO |
|
|

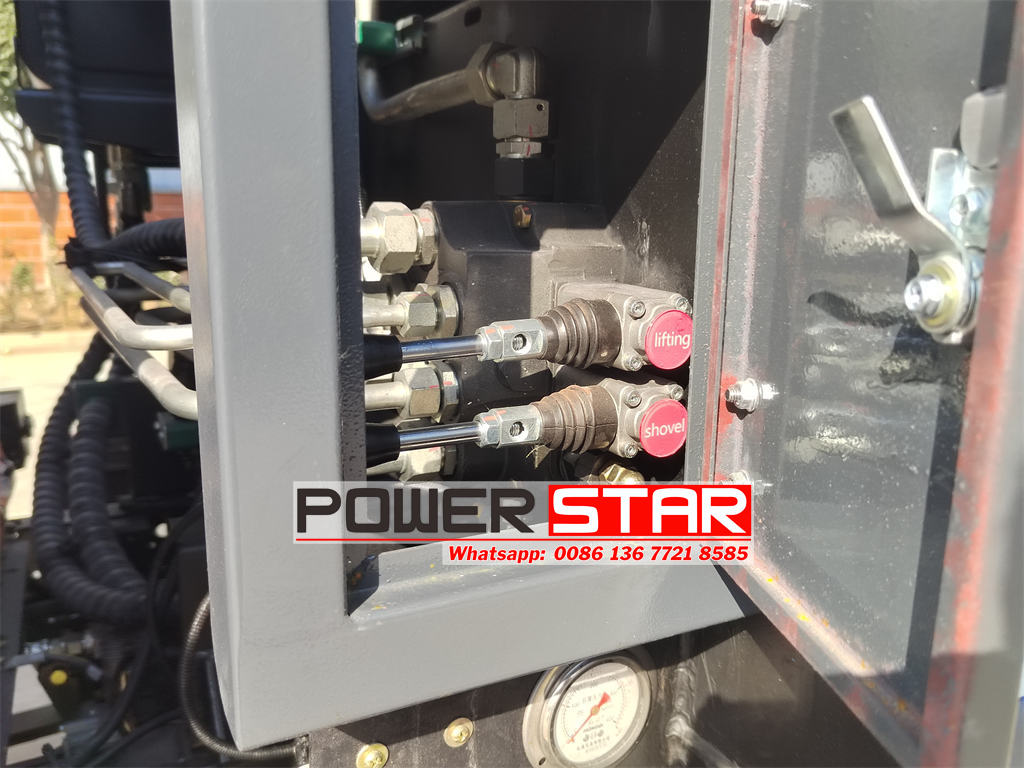

Control System |
Hydraulic Control Valve |
|
|
CAN BUS Electric Control Box |
||
|

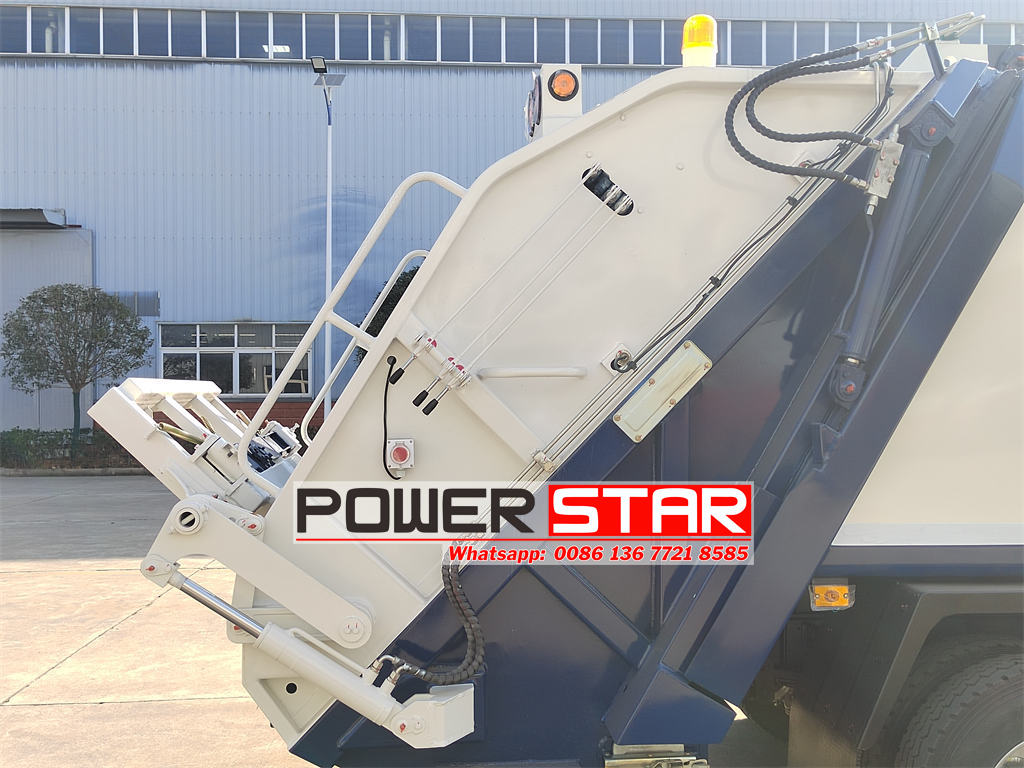

Rear Tilting Device |
Optional 1 with 2 sets 240L bin |
|
|
Optional 2 with 1 set 1100L bin |
||
|
Light System |
Full sets LED safety light system |
|
|
Painting & Logos |
As customized |
|
|
Fast Charge time |
1.5 hours |
Technical Characteristics
1. High-Efficiency Electric Drive
The Isuzu electric refuse compactor truck utilizes a permanent magnet synchronous motor as its power source, characterized by high efficiency, energy saving, and environmental friendliness. The direct-drive motor design reduces transmission losses and improves energy utilization efficiency. Additionally, the liquid cooling system ensures stable motor operation in high-temperature environments.

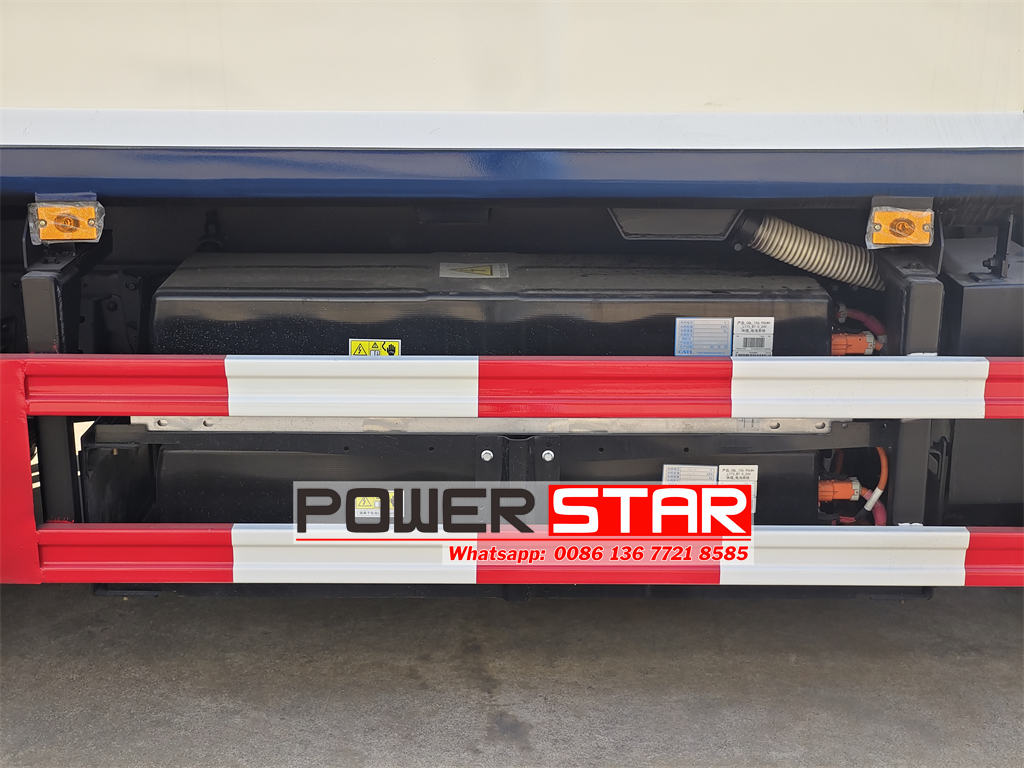

2. High-Capacity Lithium Iron Phosphate Battery
The vehicle is equipped with a lithium iron phosphate battery that features high energy density, long lifespan, and excellent safety. With a battery capacity of 106.95kWh, it ensures a long driving range and fast charging capability. Furthermore, the battery pack adopts a modular design for easy maintenance and replacement.

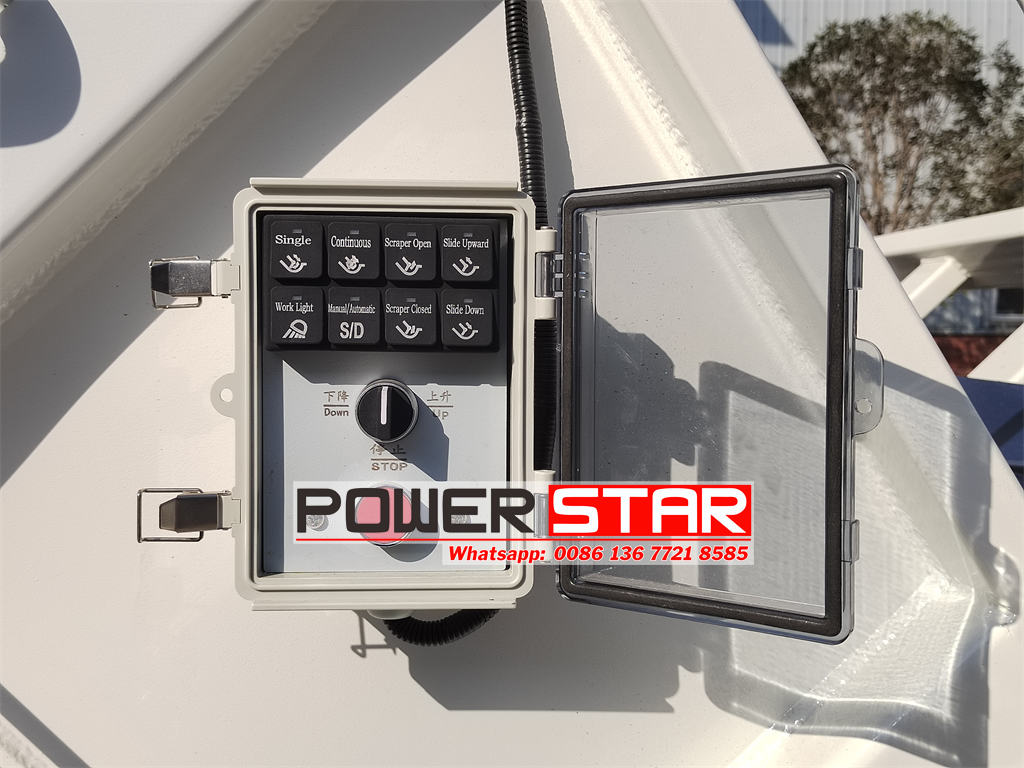

3. Advanced Intelligent Control System
The vehicle employs an intelligent control system consisting of a CAN BUS electronic control box and hydraulic control valves, enabling precise control over various vehicle functions. The one-button operating system simplifies and expedites the garbage collection process. Additionally, the vehicle is equipped with a full set of LED safety lighting systems to enhance driving safety.
4. High-Strength Body Design
The garbage compartment is made of ultra-strong steel material, with both side and bottom thicknesses of 4mm, ensuring the compartment's durability. The compartment surface undergoes anti-corrosion treatment to extend its service life. Moreover, the internal compartment is designed with a reasonable compression structure, allowing for more uniform and compact garbage compression.
5. Powerful Hydraulic System
The vehicle is equipped with a high-quality hydraulic system and hydraulic cylinders, ensuring smooth operation during garbage collection, compression, and transfer processes. The coordinated work of hydraulic cylinders for the pusher plate, rear hopper, slide plate, scraper plate, and tilting device makes the garbage handling process more efficient and rapid.
6. Environmental Protection and Energy Saving
The Isuzu electric rear load garbage truck adopts an electric drive system, achieving the environmental goals of zero emissions and low noise. Simultaneously, its high compression capability and large loading capacity reduce the number of garbage transportation trips and transportation costs, further enhancing environmental benefits.
Product Application Scope
1. Garbage Collection in Residential Areas
In densely populated areas such as residential neighborhoods, a large amount of garbage is generated and scattered. The Isuzu 6-cubic-meter electric compressed garbage truck, with its compact body size and efficient compression system, can easily navigate through narrow streets and alleys, enabling timely garbage collection and transportation. Additionally, its low noise and zero-emission characteristics reduce the impact on residents' lives.
3. Garbage Collection in Industrial Areas
Industrial areas produce a large volume of garbage with diverse types. The Isuzu 6-cubic-meter electric compressed garbage truck, with its powerful engine and efficient compression system, can easily tackle garbage collection tasks in industrial areas. Moreover, its high-quality materials and craftsmanship ensure stable vehicle operation under various harsh conditions.
