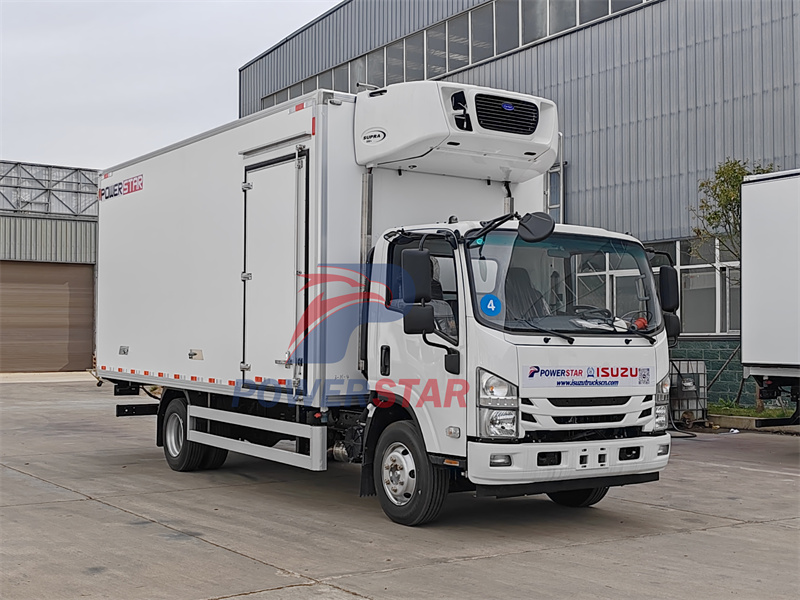

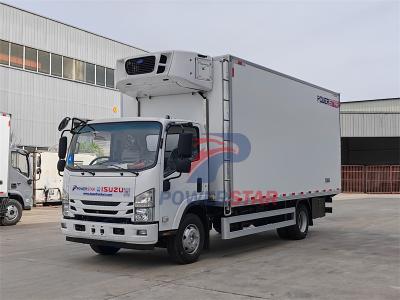

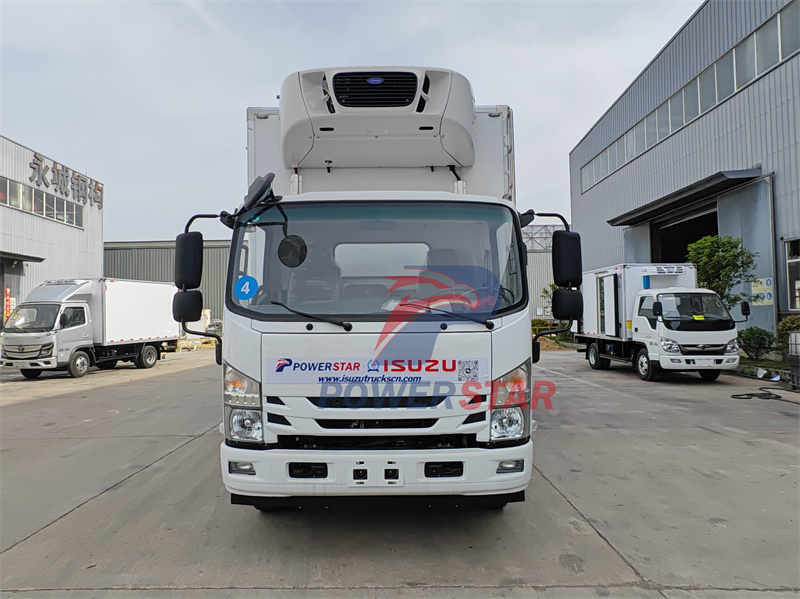

Isuzu 700P 4-ton refrigerated truck, it is modified on the basis of Isuzu 700P chassis, 3 seats, with air conditioning, USB, power steering, equipped with Isuzu 4HK1-TCG61 190Hp engine, 5193ml National VI emission, Isuzu MLD 6-speed gearbox, maximum speed 110km/h, the upper body is a refrigerated compartment, 5500x2300x2400mm, interior and exterior fiberglass material, polystyrene insulation layer, 5mm thick large pattern plate bottom plate, the right front is a 1.2m side door with a locking system, containing rubber curtains, the tailgate is a full-size double-opening rear door, the interior of the compartment has a central flip partition, Carrier SUPRA 850+ independent refrigeration unit, Carrier C400 evaporator.
Manufacturer:
Powerstar TrucksWork capacity:
4 tonsDimension:
7580 x 2400 x 3500mmCabin type:
Isuzu 700P 3X wide-body cab，3 seatsWheelbase:
4175mmEngine power:
190HP/139kwEngine type:
Isuzu 4HK1-TCG61Axle drive:
4x2Gear box:
Manual MLD 6-speed,manualRemarks:

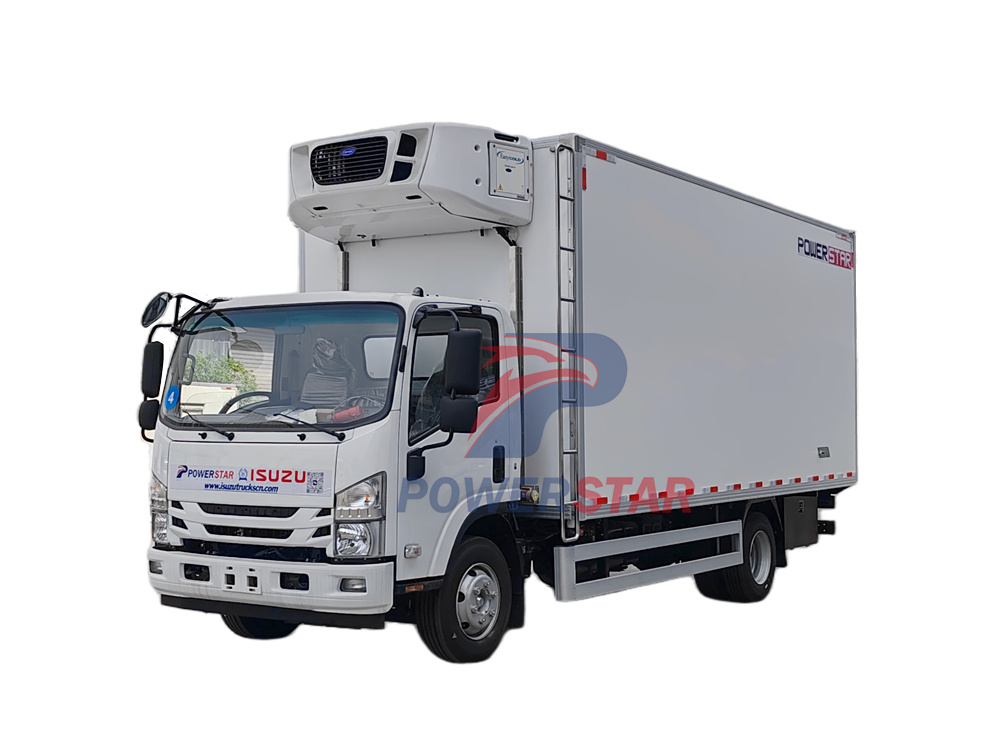

Carrier SUPRA 850+ independent units and C400 evaporatorsThe Isuzu 4 Ton refrigerated box truck is an "all-round player" in cold chain transportation. It is based on the Isuzu 700P chassis, equipped with a 190-horsepower National VI engine and a 6-speed gearbox. It has strong power and economical fuel consumption. The power steering and comfortable cab design make long-distance driving easier. The refrigerated compartment is made of fiberglass and polystyrene insulation inside and outside, with a 5 mm thick non-slip bottom plate, and has excellent insulation performance. The refrigeration system uses Carrier SUPRA 850+ independent units and C400 evaporators, with a temperature control accuracy of ±1°C, and supports remote monitoring to ensure that the goods are kept at a constant temperature throughout the journey. The central flip partition in the compartment can flexibly divide the space to meet the transportation needs of multiple categories. Whether it is urban distribution, medical transportation or fresh food e-commerce, it can provide reliable guarantees for cold chain logistics with efficient, accurate and flexible performance, and become a capable partner for enterprises to reduce costs and increase efficiency.
● 30 years experience on refrigerated truck designing
● Build strict QC team to guarantee the quality
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● Fast delivery time, Quick 10 days shipping time
|
Isuzu 700P refrigerated box truck |
||
|
Chassis Parameters |
Chassis Brand: |
Isuzu |
|
Overall Dimension(L x W x H) |
7580x2400x3500mm |
|
|
Curb Weight: |
5500kg |
|
|
GVW: |
10550kg |
|
|
Wheelbase: |
4175mm |
|
|
Drive Type: |
4x2,LHD |
|
|
Max speed: |
110km/h |
|
|
Engine |
Engine type: |
Inline 4-cylinder, 4-stroke, turbocharged, intercooled, water-cooled,diesel |
|
Engine Model: |
Isuzu 4HK1-TCG61 |
|
|
Engine Power: |
190HP/139kw |
|
|
Displacement: |
5193ml |
|
|
Max torque: |
507N.m |
|
|
Rated speed: |
2600rpm |
|
|
Max torque speed: |
1600-2600rpm |
|
|
Emission standard: |
Euro 6 |
|
|
Transmission |
Transmission: |
Manual MLD 6-speed,manual |
|
Front/Rear suspension |
1110/2295mm |
|
|
Axle Loads: |
4000/7000kg |
|
|
Tires: |
7(Including Spare Tire) |
|
|
Tire Model: |
235/75R17.5 |
|
|
Configuration: |
1 |
Power Steering |
|
2 |
AC |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
Radial tire |
|
|
5 |
ABS |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
90A Generator |
|
|
Body Parameter |
Box inner Dimension: |
5500x2300x2400mm |
|
Material of the body: |
FRP |
|
|
Refrigeration units: |
Carrier SUPRA 850+ Independent refrigeration unit, Carrier C400 evaporator |
|
|
Temperature setting range |
-20ºC～+20ºC |
|
|
Air volume |
2 500 m3/hr |
|
|
Bottom Rail: |
Aluminum |
|
|
Insulation layer |
Polystyrene |
|
|
Flooring |
5mm thick large pattern plate |
|
|
Side Door |
Right front, 1.2m width, Latch locking system with rubber curtain inside, |
|
|
Rear Door Type |
Full Size Double Opening Rear Door |
|
|
Partition plate |
Center flip partition |
|
|
Marker Light |
2 sets white on front. 2 sets Red on rear |
|
|
Celling Light |
2 sets of 24V LED |
|
|
Control Panel |
English |
|
|
Painting |
Two primers, and one final paint coating |
|
|
Optional equipment |
1, Refrigeration brand:KAIXUE Thermoking, DAlKlN (with any brand) Optional equipment 2. Rear vision camera 3. Hanging system |
|
Chassis system
1. Basic platform
● Modified based on Isuzu 700P commercial chassis, 3-seat single-row cab layout, in line with light truck regulations.
● Standard hydraulic power steering, air conditioning system and USB interface to improve driving comfort.
2. Powertrain
● Engine: Equipped with 4HK1-TCG61 inline four-cylinder diesel engine, displacement 5.193L, maximum power 190 horsepower (140kW), peak torque 500N·m (1800rpm), meeting the National VI emission standards.
● Transmission: Matched with Isuzu MLD 6-speed manual transmission, gear ratio optimization design, taking into account low-speed torque and high-speed fuel economy.
● Maximum speed: electronic speed limit 110km/h, suitable for urban and inter-city cold chain transportation.
Refrigerated compartment: technological insulation, precise temperature control
Refrigerated compartment is the core of cold chain transportation. Isuzu 700P 4-ton refrigerated truck adopts a composite structure of "inner and outer fiberglass + polystyrene insulation layer". The inner and outer skins are high-strength fiberglass, which is impact-resistant and corrosion-resistant, with a smooth and easy-to-clean surface; the middle layer is a 50mm thick polystyrene insulation board with low thermal conductivity and excellent insulation performance, ensuring that the compartment can operate stably in a wide temperature range of -20℃ to +20℃.

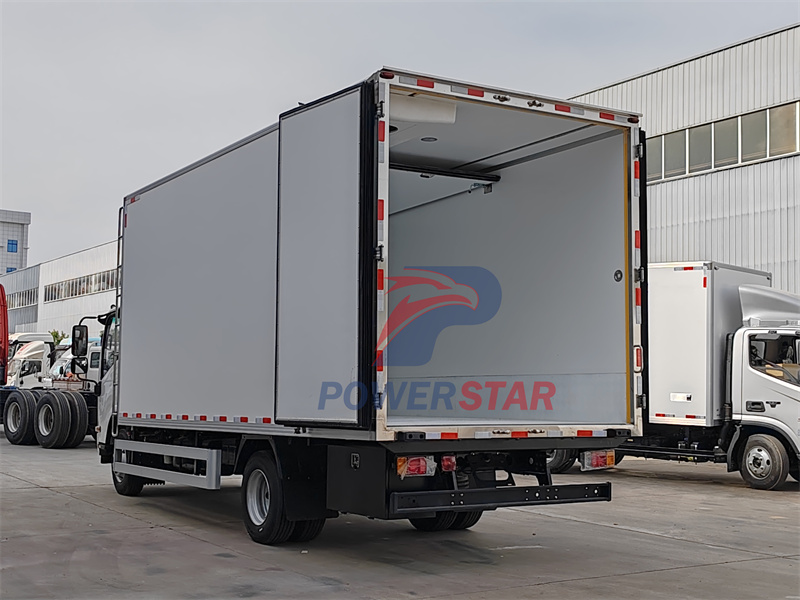

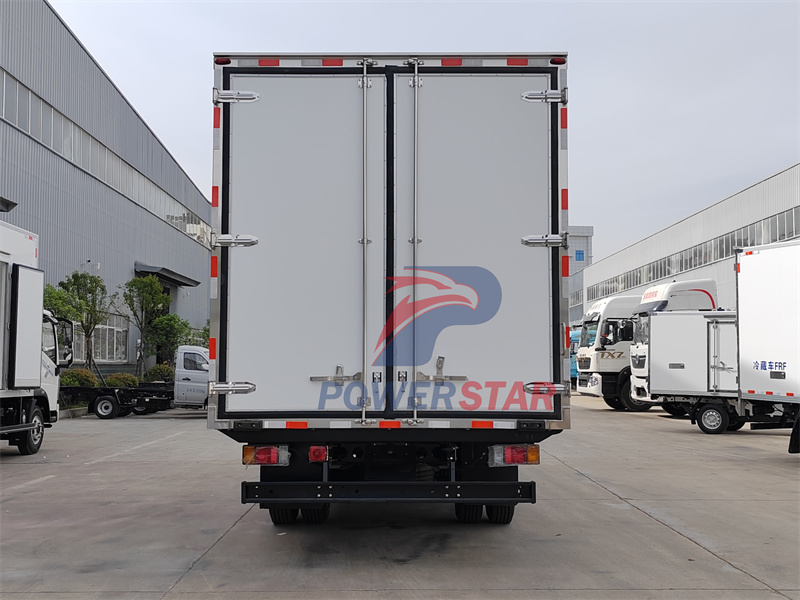

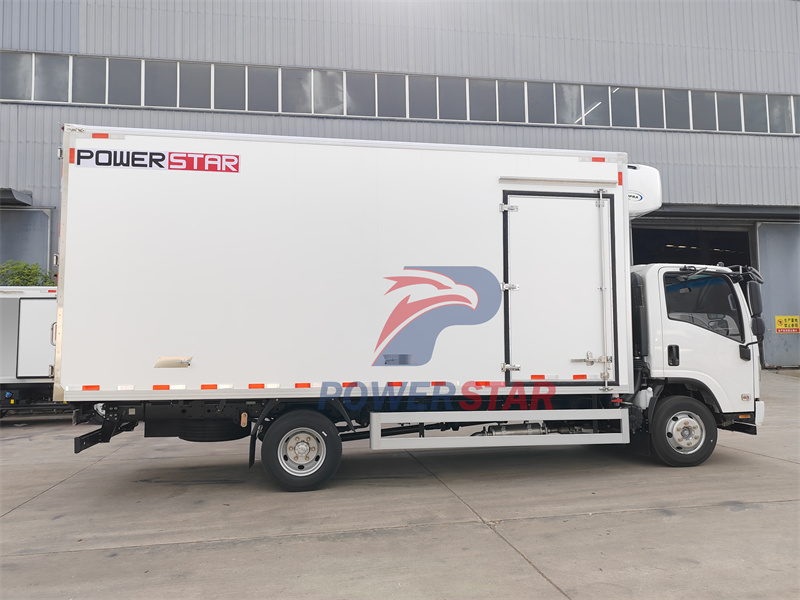

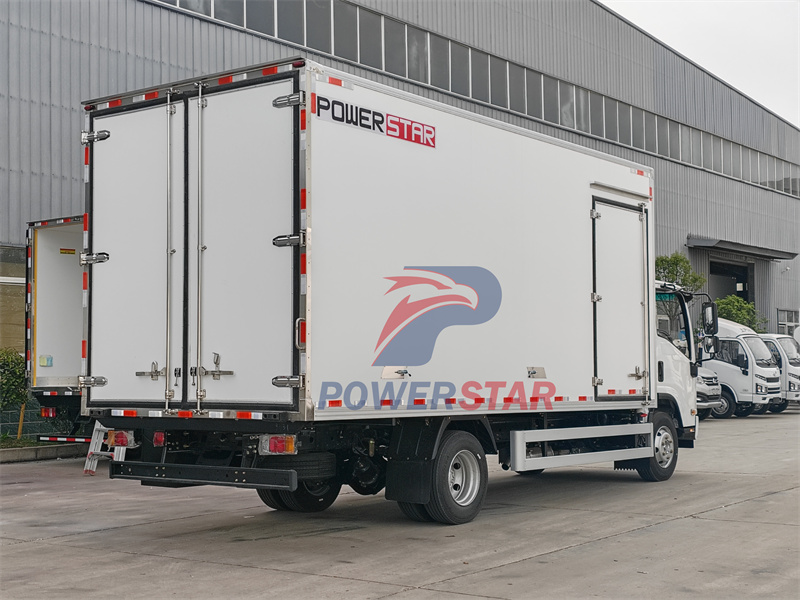

The design of the bottom plate is particularly sophisticated, using 5mm thick patterned aluminum plate, which is non-slip and wear-resistant, not easy to slip during forklift operation, and has a stronger load-bearing capacity. The door system takes into account both practicality and sealing: the 1.2-meter side door on the right is equipped with a locking system and a rubber curtain, which can be opened and closed quickly when loading and unloading goods, and the sealing strip fits tightly to effectively prevent cold air leakage; the full-size double-opening rear tailgate has a 180° hinge, which supports forklift loading and unloading, and improves loading and unloading efficiency.
Refrigeration system: Carrier quality, temperature worry-free

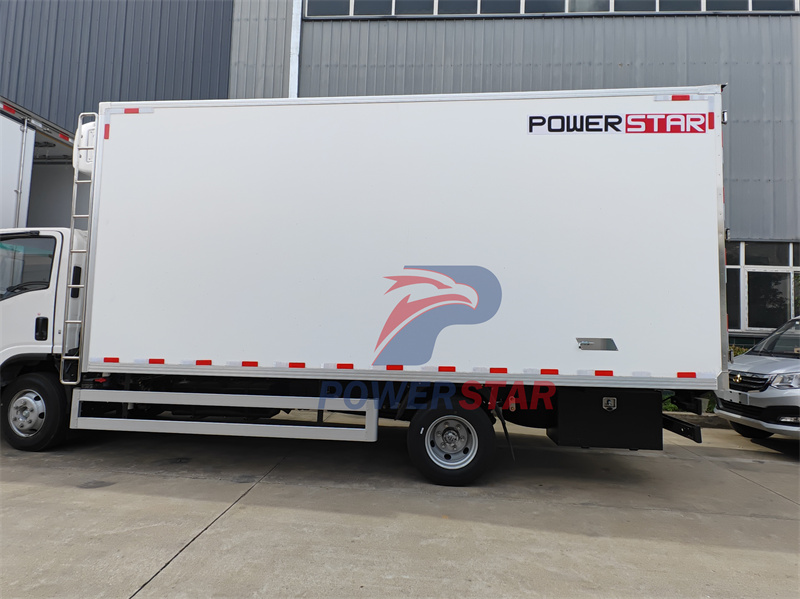

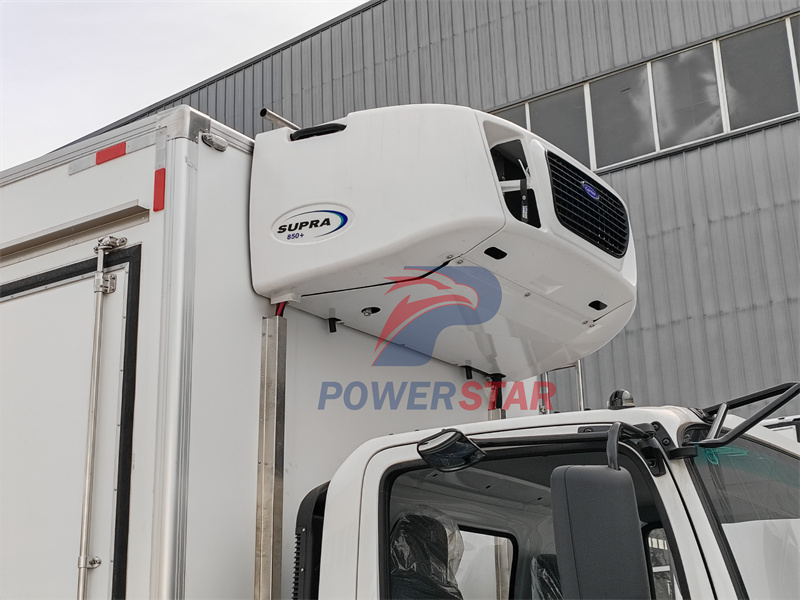

The core of the refrigerated compartment is the refrigeration unit. The Isuzu 700P refrigerator van truck is equipped with Carrier SUPRA 850+ independent refrigeration unit, which uses environmentally friendly refrigerant, has strong cooling capacity, can reach as low as -20℃, and has temperature control accuracy of ±1℃, ensuring that the goods are always in the best preservation state.

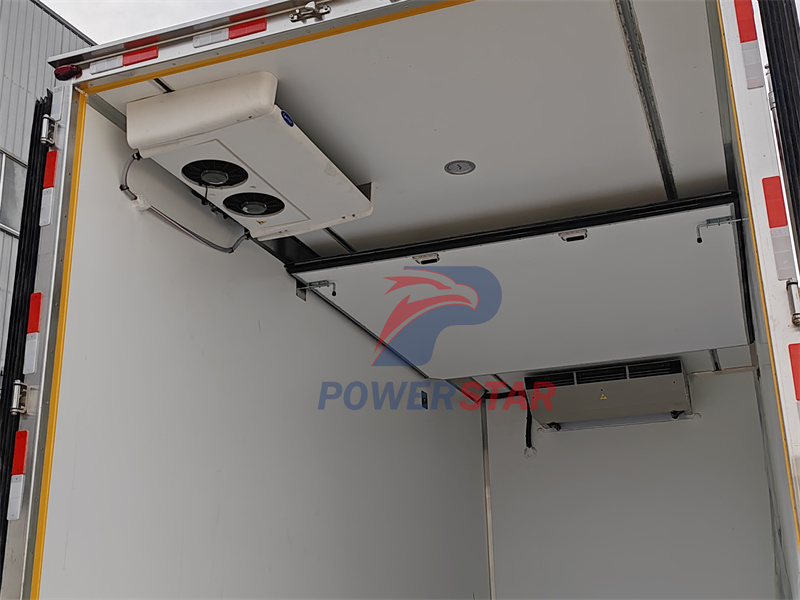

Carrier C400 evaporator is installed on the top, with an air volume of 2500 m³/h, evenly distributed, and combined with multi-air vent design to ensure the uniformity of the compartment temperature and avoid temperature dead corners inside the compartment. The unit supports remote monitoring and fault warning. The driver can view the compartment temperature and unit status in real time through the mobile phone APP, predict potential problems in advance, and ensure transportation safety.
The refrigeration system is deeply matched with the compartment structure to form a "cold air circulation closed loop". Even if it is transported for a long time, the compartment temperature fluctuation is extremely small, ensuring the quality of the goods.
Space design: flexible separation and efficient utilization

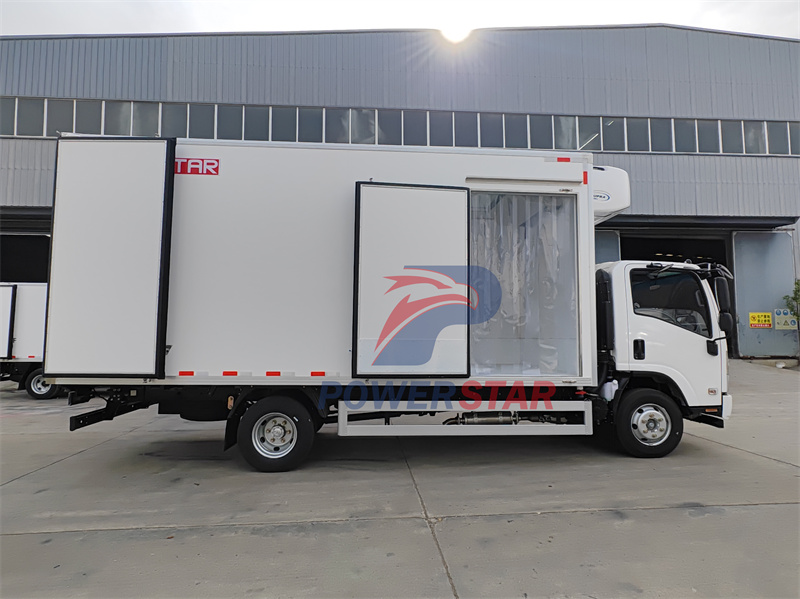

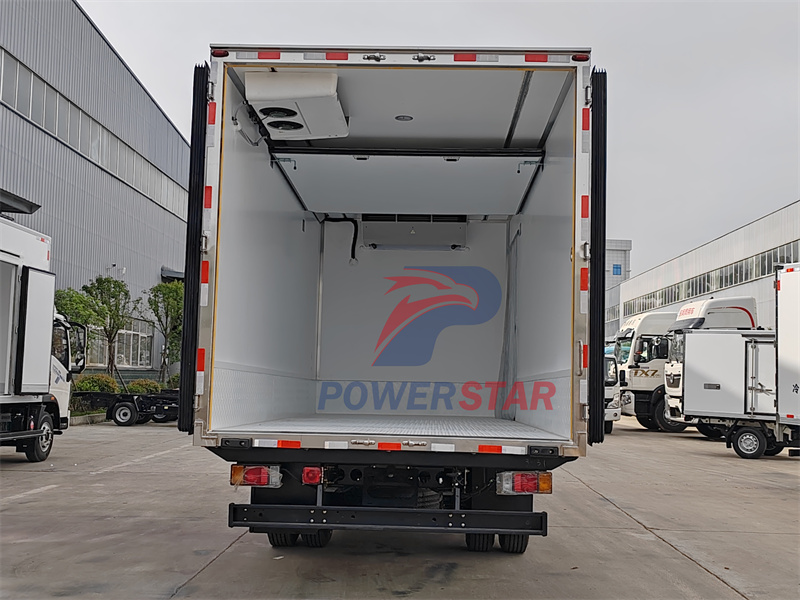

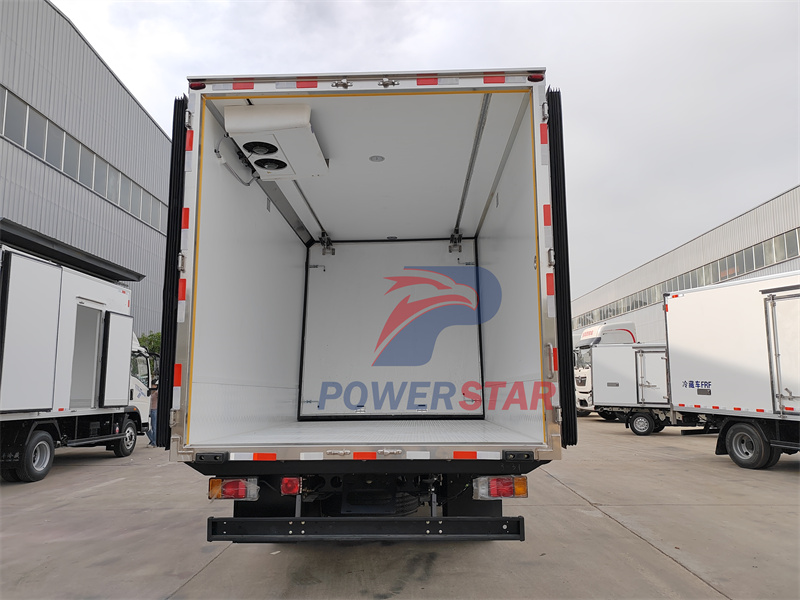

In order to meet the needs of different warehouses for different goods, a central flip partition is designed inside the compartment. The partition can be easily flipped and disassembled to separate the compartment into two independent spaces, realizing "one car for multiple uses". For example, when transporting medicines, the refrigerated area and the normal temperature area can be strictly isolated; when transporting different types of fresh produce, the space can be flexibly adjusted according to temperature requirements to improve transportation efficiency.
