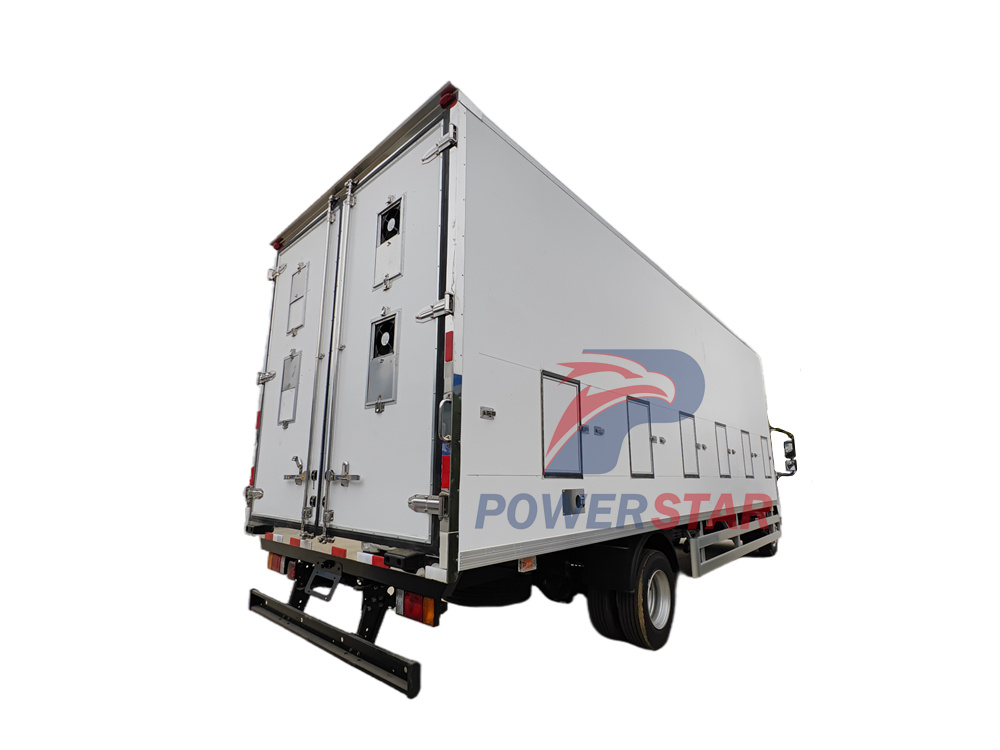

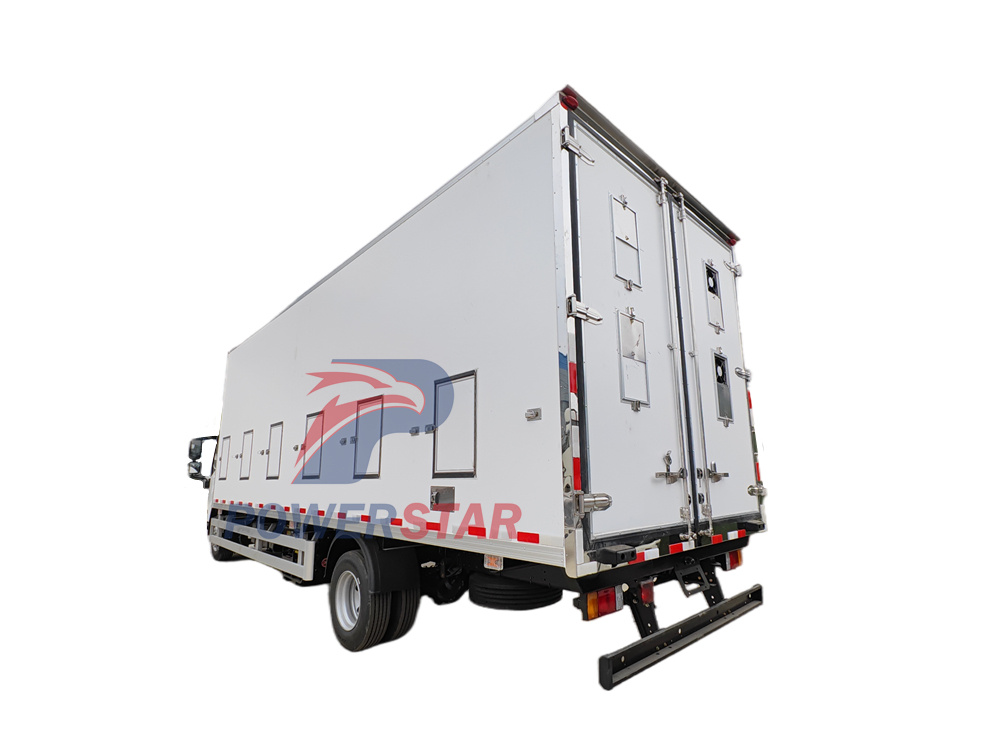

Isuzu Chicken Constant temperature refrigerated truck

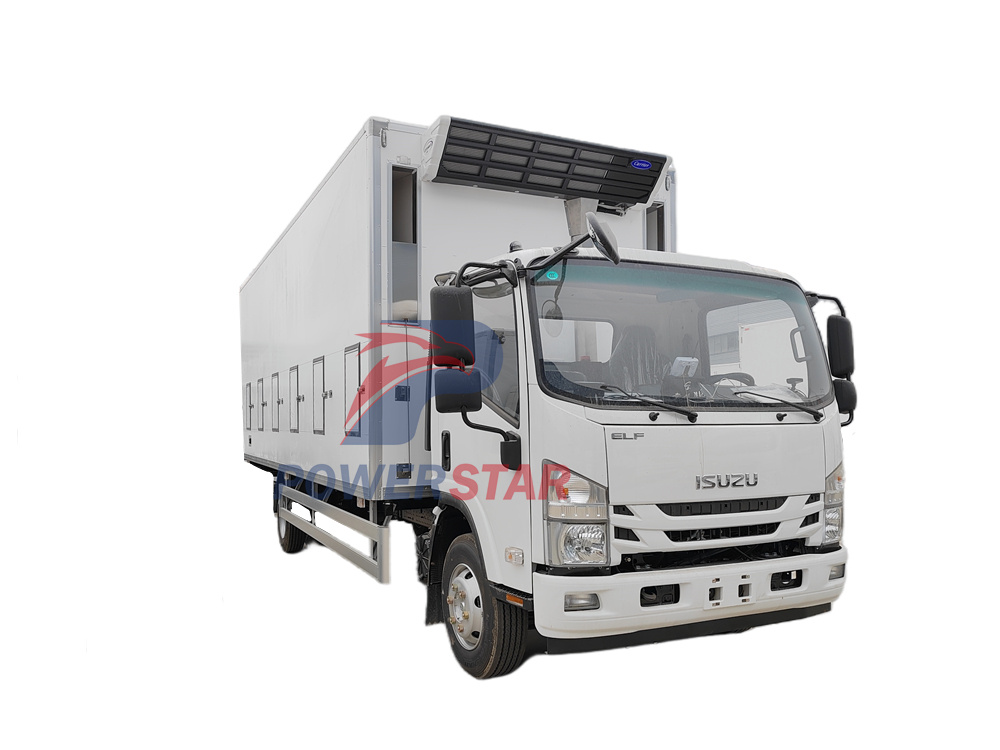

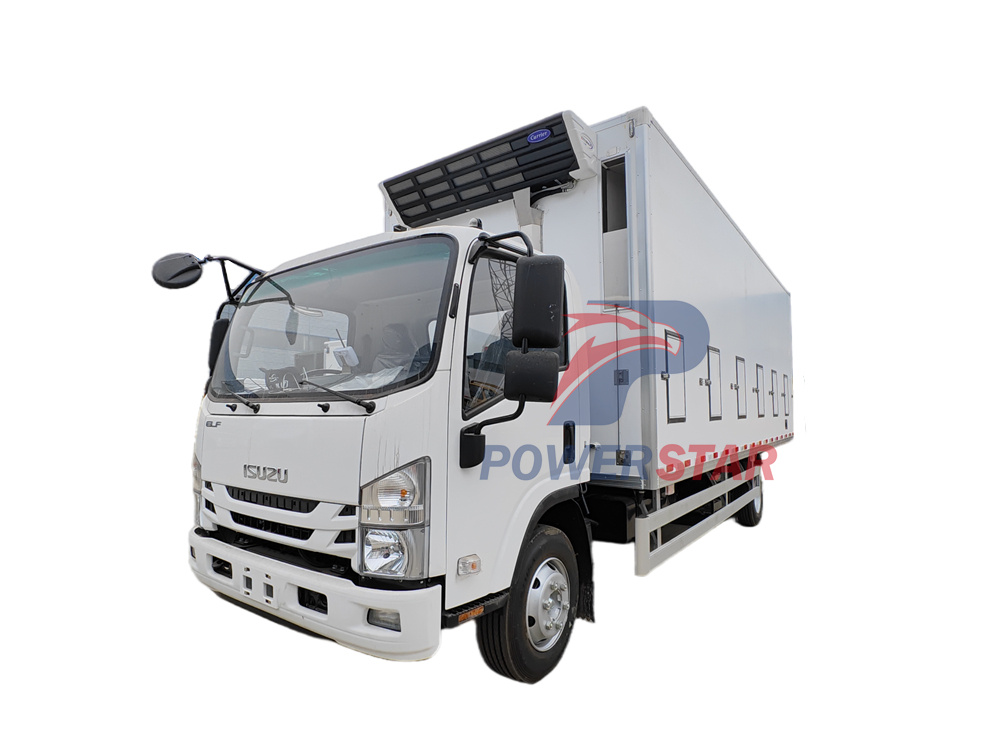

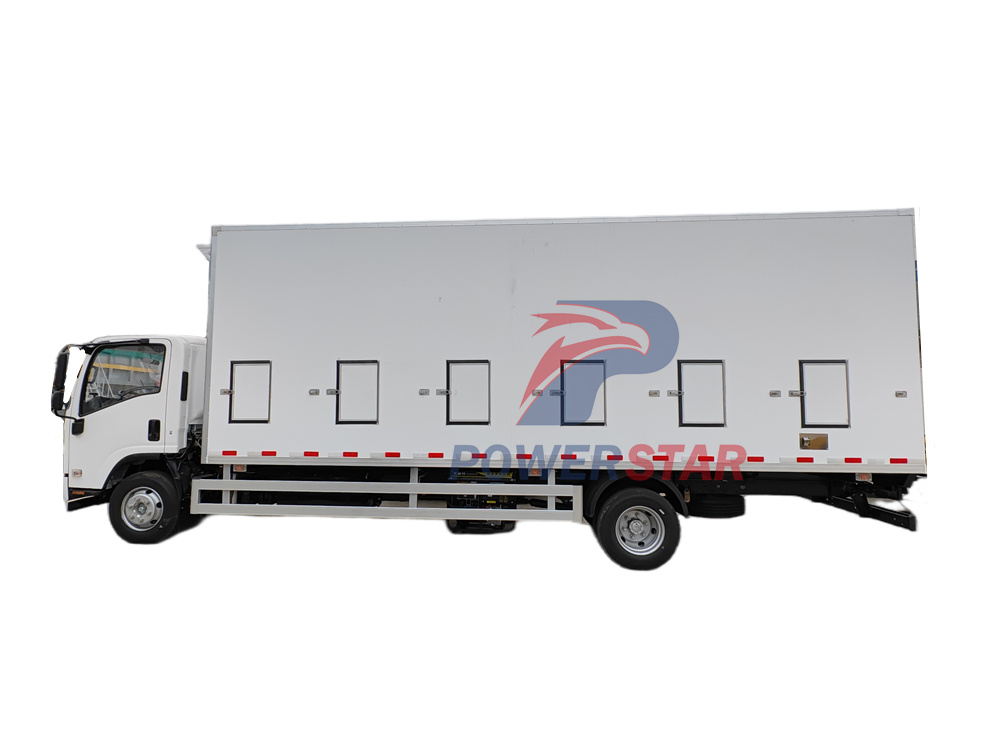

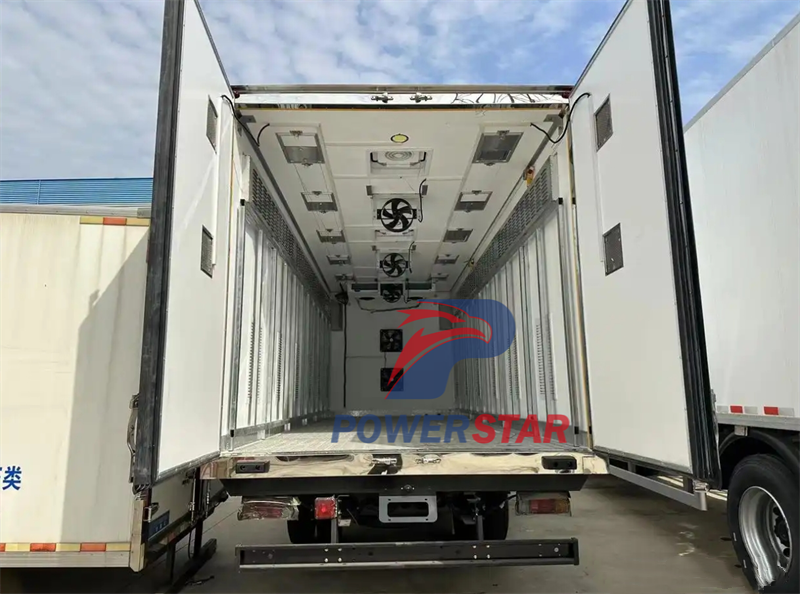

Isuzu Chick Refrigerated Insulated Vehicle, it is modified based on the Isuzu 700P chassis, with a wheelbase of 4175mm, the vehicle is equipped with a 4HK1-TCG61 diesel engine, 190HP Euro6 5193ml, MLD 6-speed gearbox, and a maximum speed of 110km/h. The vehicle is equipped with a refrigerated and insulated cargo box with insulation materials and a Carrier CITIMAX 1100 refrigeration unit, which can maintain a temperature of -20°C to 0°C and can be adjusted according to actual transportation conditions to ensure the survival rate of chicks.
Manufacturer:
Powerstar TrucksWork capacity:
6tonsDimension:
7500 x 2450 x 3200mmCabin type:
Isuzu 700P single row,2 seatsWheelbase:
4175mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2Gear box:
Isuzu MLD 6-speed,manualRemarks:
Carrier CITIMAX 1100 refrigerator unitIsuzu Chicken Constant temperature refrigerated truck is a special transport vehicle built on the Isuzu chassis, designed for short-distance or long-distance transportation of live animals such as chicks. It is equipped with Carrier CITIMAX 1100 refrigeration unit. It has advanced refrigeration and insulation technologies such as high-efficiency compressor, variable frequency drive control and environmentally friendly refrigerant system, ensuring that chicks can maintain a suitable temperature environment during transportation, thereby improving the survival rate and health of chicks.
● China best Isuzu chicken constant temperature refrigerated truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
|
Isuzu Chicken Constant temperature refrigerated truck |
||
|
General |
||
|
Chassis brand |
Isuzu |
|
|
Driving type |
4x2,LHD |
|
|
Dimension(Lx W x H) |
7500*2450*3200mm |
|
|
Gross Weight |
11000kg |
|
|
Loading weight |
6tons |
|
|
Axle loading |
4000/7000kg |
|
|
Max speed |
110km/h |
|
|
Chassis |
||
|
Wheel base |
4175mm |
|
|
Cab |
Isuzu 700P single row,2 seats,with A/C,USB,direction assistance |
|
|
Brake |
Air brake |
|
|
Engine model |
Isuzu 4HK1-TCG61 |
|
|
Engine power |
190HP |
|
|
Displacement |
5193ml |
|
|
Fuel capacity |
100L |
|
|
Emission standard |
Euro 6 |
|
|
Gearbox |
Isuzu MLD 6-speed,manual |
|
|
Tire |
235/75R17.5 6+1tire |
|
|
Superstructure |
||
|
Box size |
5200*2250*2300mm |
|
|
Thickness of insulation layer |
8cm |
|
|
Protector Material |
Q235 |
|
|
Door lock material |
stainless steel |
|
|
Insulation box material |
Polyurethane thermal insulation cotton |
|
|
Refrigerator unit |
Refrigerator brand |
Carrier CITIMAX 1100 |
|
Refrigerator temperature |
-20°C～0°C |
|
|
Refrigeration Capacity on road at 2400rpm 0°C (W) |
10200 |
|
|
Refrigeration Capacity on road at 2400rpm -20°C (W) |
5100 |
|
|
Compressor |
Model |
Carrier 310 |
|
Displacement |
313 cm3 |
|
|
n° of cylinders |
10 |
|
Basic vehicle configuration
1. Chassis: It adopts Isuzu's high-quality 700P chassis, which has excellent load-bearing capacity and driving stability, and is suitable for transportation needs under various road conditions.
2. Power system: It is equipped with an energy-efficient 4HK1-TCG61 engine, which provides sufficient power output, while reducing fuel consumption and emissions, and meets environmental protection requirements.
3. Cab: The spacious and comfortable cab is equipped with advanced driving assistance systems and safety devices to ensure the driver's comfort and driving safety
4. Transmission: The MLD 6-speed transmission is matched with the engine, providing smooth shifting and enhanced driving power.
Refrigeration and insulation system
1. Refrigeration unit: It adopts the high-performance Carrier CITIMAX 1100 refrigeration unit, which can quickly reduce the temperature in the car and keep it stable, meeting the demand for a low-temperature environment during the transportation of chicks.

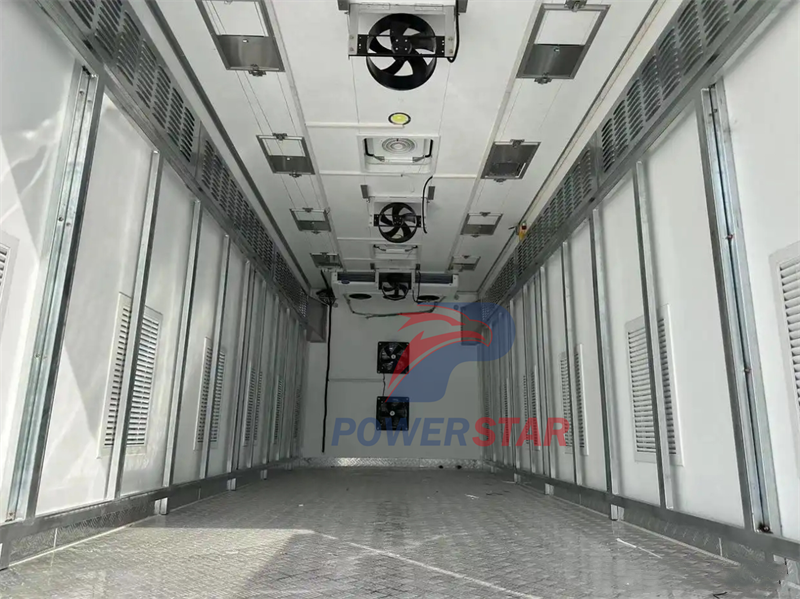

2. Insulation materials: The interior of the carriage is made of high-quality insulation materials, such as polyurethane foam, which effectively isolates the external heat transfer and keeps the temperature in the carriage constant.
3. Temperature control system: Equipped with an intelligent temperature control system, it can monitor the temperature in the carriage in real time and automatically adjust the working state of the refrigeration unit according to the preset value to ensure that the temperature is always in an appropriate range.

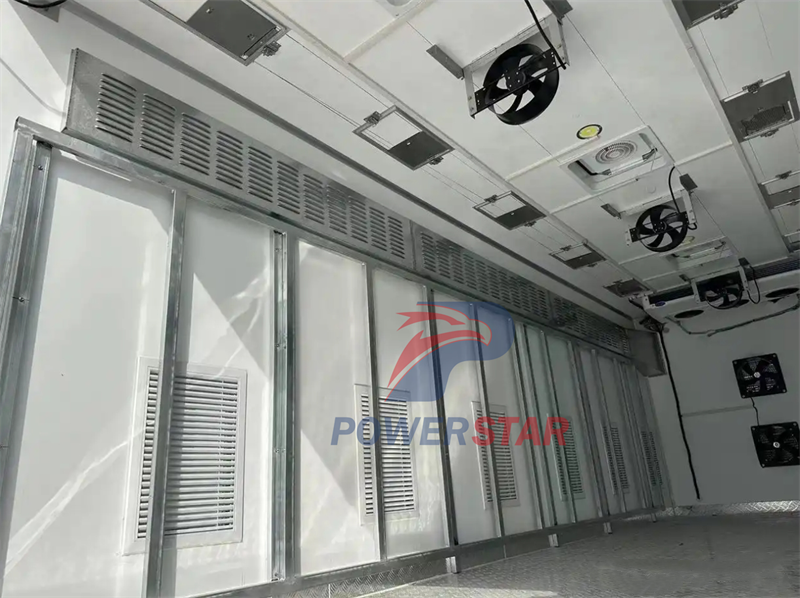

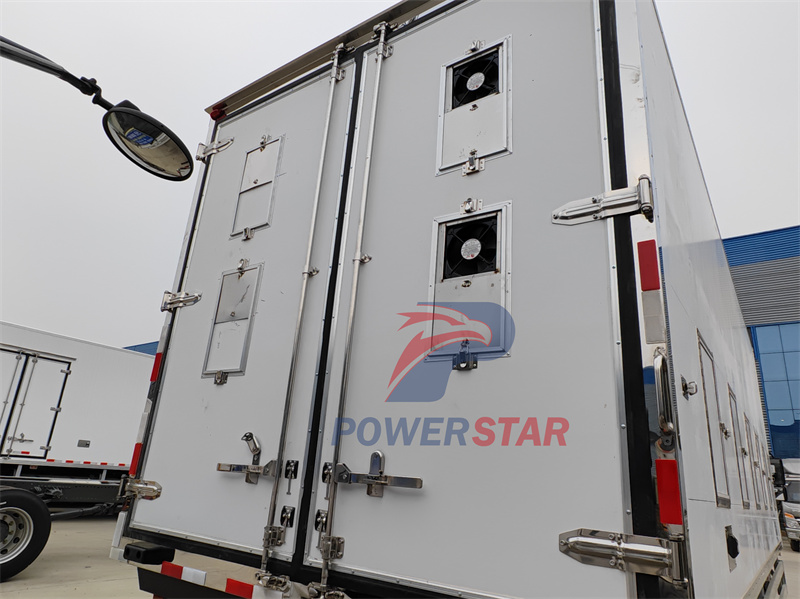

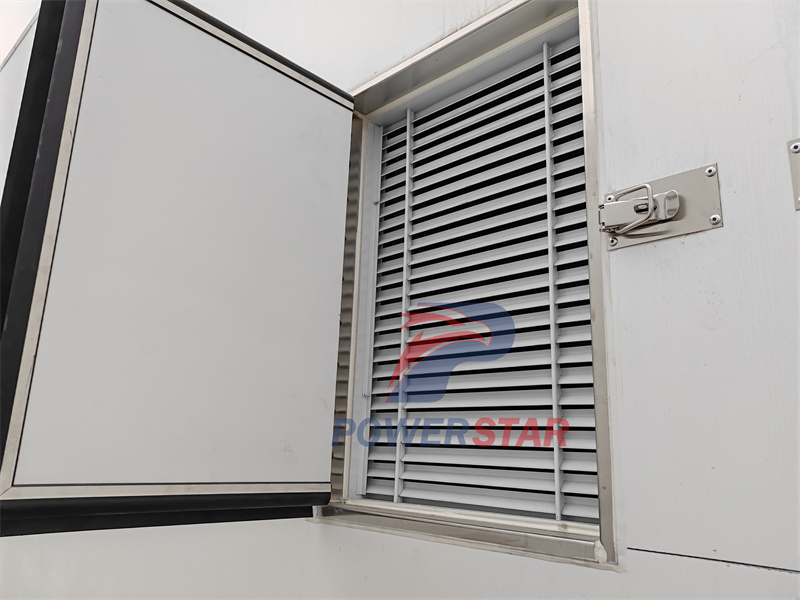

4. Ventilation system: A reasonable ventilation device is designed to maintain air circulation in the carriage, reduce the accumulation of harmful gases, and provide sufficient oxygen for the chicks.
Safety and health protection
1. Disinfection facilities: The carriage is equipped with a disinfection spray device to facilitate the disinfection of the carriage before and after transportation to prevent the spread of diseases.
2. Emergency lighting: An emergency lighting system is set up in the carriage to ensure that good lighting conditions can be maintained in emergency situations, which is convenient for rescue and operation.
3. Monitoring system: An optional on-board monitoring system can monitor the status and transportation process of the chicks in the carriage in real time to improve the transparency and efficiency of transportation management.

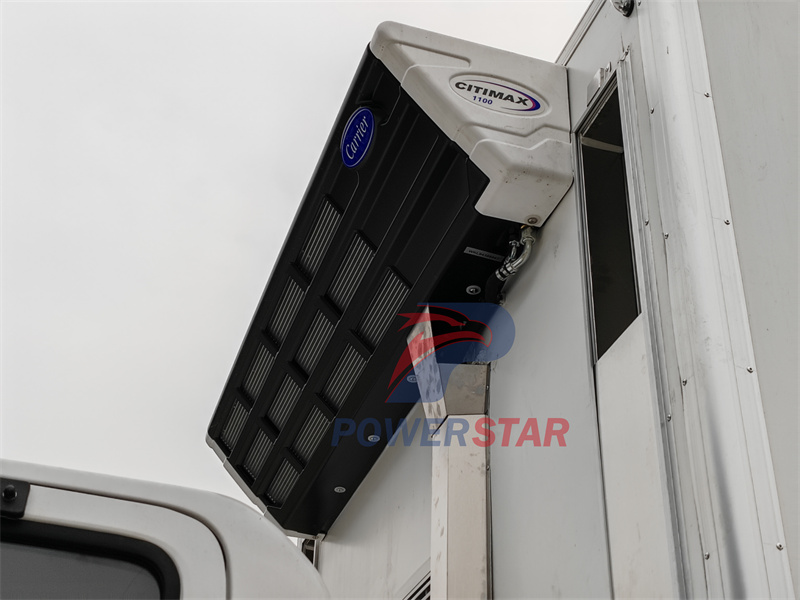

Technical highlights of Carrier CITIMAX 1100 refrigeration unit
The Carrier CITIMAX 1100 refrigeration unit stands out as a technological marvel in the realm of refrigerated transportation, particularly tailored for vehicles such as the Isuzu Chicken Constant Temperature Refrigerated Truck. Here’s a closer look at its technical specifications and innovations:
1. Advanced Compressor Technology:
At the heart of the CITIMAX 1100 lies a state-of-the-art compressor system. This component employs cutting-edge design principles to ensure high efficiency, low noise levels, and minimal vibration. It’s capable of maintaining consistent cooling performance even under extreme operating conditions, thereby preserving the integrity of perishable goods.
2. Variable Frequency Drive (VFD) Controls:
The unit incorporates a Variable Frequency Drive (VFD) system that optimizes compressor speed based on real-time cooling demands. This intelligent feature reduces energy consumption and enhances system responsiveness, ensuring that temperature fluctuations are kept to a minimum.
3. Smart Refrigerant Management:
The CITIMAX 1100 uses an environmentally friendly refrigerant, compliant with current regulations. Its refrigerant management system includes advanced leak detection and isolation mechanisms to minimize environmental impact and maintain system performance.
4. Electronic Control System (ECS):
The Electronic Control System (ECS) is the brains of the operation. It integrates sensors throughout the refrigeration unit to monitor temperatures, humidity, and other critical parameters. The ECS uses this data to adjust system operations in real-time, ensuring optimal performance and energy efficiency.
5. Heat Exchanger Design:
The heat exchanger within the CITIMAX 1100 is engineered for maximum heat transfer efficiency. It features a compact, high-density fin design that maximizes surface area contact with ambient air, enhancing cooling capacity and reducing the need for excessive fan power.
6. Insulation and Sealing Technology:
The refrigerated compartment benefits from advanced insulation materials and sealing technologies. These features minimize heat ingress, maintaining consistent internal temperatures and reducing energy consumption.
