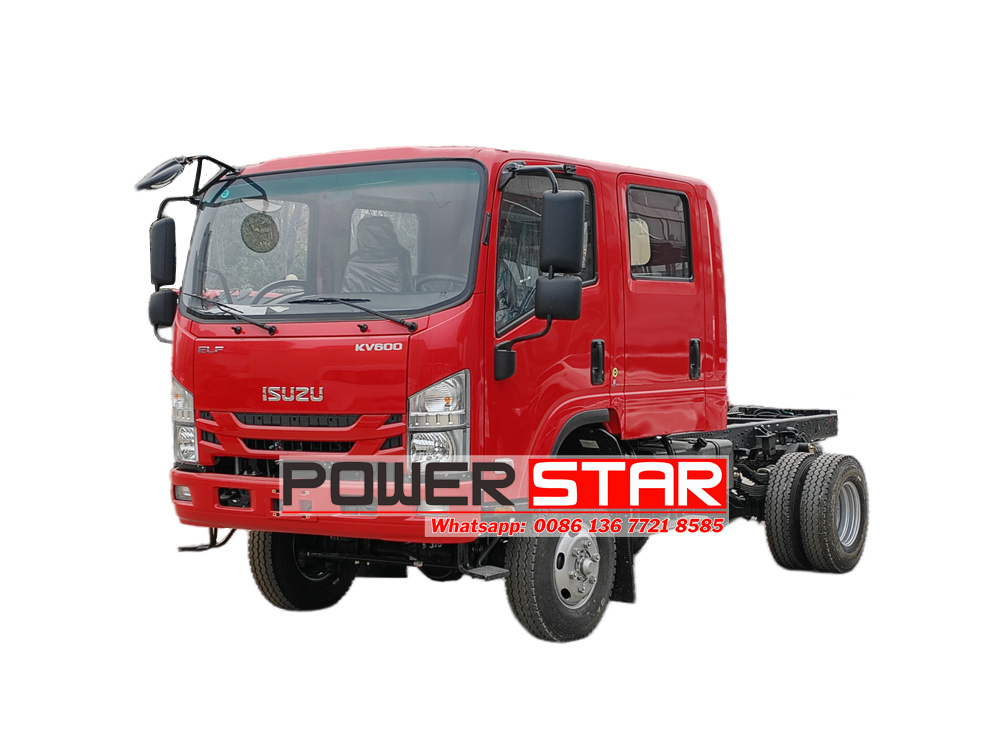

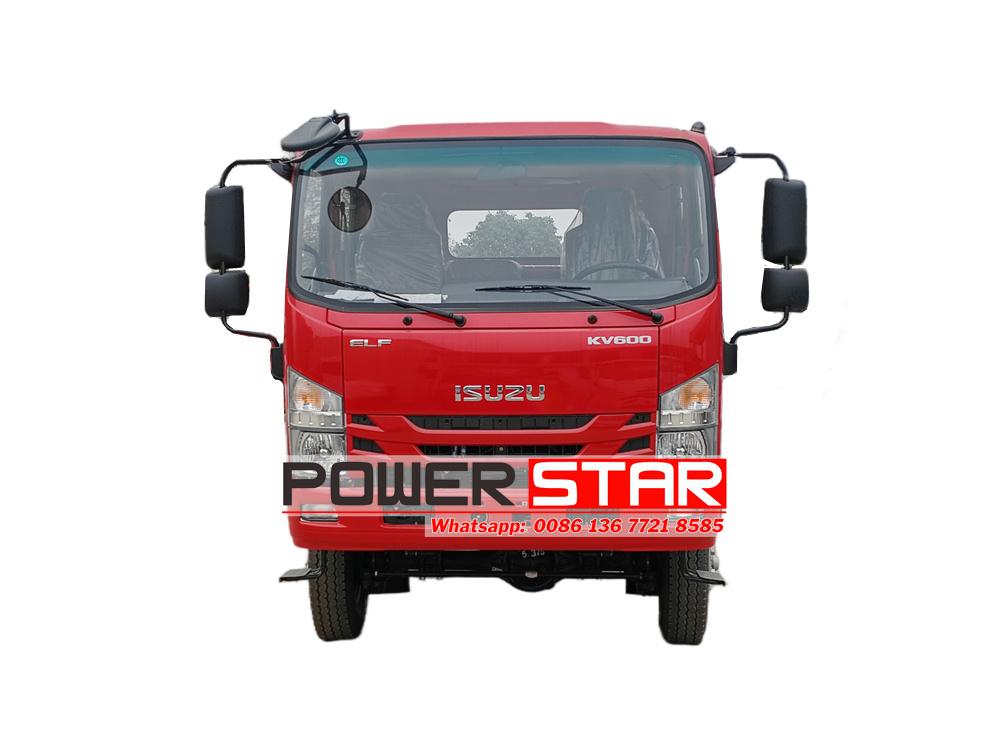

Isuzu 4X4 crew cabin fire fighting truck chassis is a chassis used for fire truck modification.It is Isuzu ELF KV600 4x4 off road double row cabin light chassis,with 3365mm wheelbase,8280kg GVW,3+3 seats,A/C,USB,direction assistance,Isuzu 4KH1CN6HB 132HP diesel engine,2999ml Euro 6 displacement,Isuzu MLD 6-speed gearbox.
Work capacity:
3～6 tonsEngine power:
132HPEngine type:
4KH1CN6HBAxle drive:
4X4,LHDGear box:
MLD 6-speed，manualRemarks:
Isuzu ELF KV600 4x4 off road double row cabin light chassisIsuzu ELF KV600 4X4 all-wheel drive double-row fire truck chassis adopts a modular design, which is easy to customize and modify according to actual needs. It supports a variety of fire truck models, such as water tank fire trucks, foam fire trucks, etc. It also has excellent off-road performance and passability, excellent power performance and spacious driving space. This Isuzu 4X4 crew cabin fire fighting truck chassis is specially designed to cope with complex and changeable rescue scenes, ensuring rapid response and efficient operation.
● More than 30 years professional manufacturer experience.
● 50 units Isuzu chassis in stock, 5 cbm, 8 cbm, 12 cbm
● Promptly delivery. any order is welcome.
● CKD, SKD parts service, Container shipping, Save freight
● 24 month quality guarantee term
The Isuzu ELF KV600 4X4 all-wheel drive double-row chassis inherits the excellent off-road performance and stable handling of the original model, and through professional modification, it further enhances its application ability in the field of firefighting.

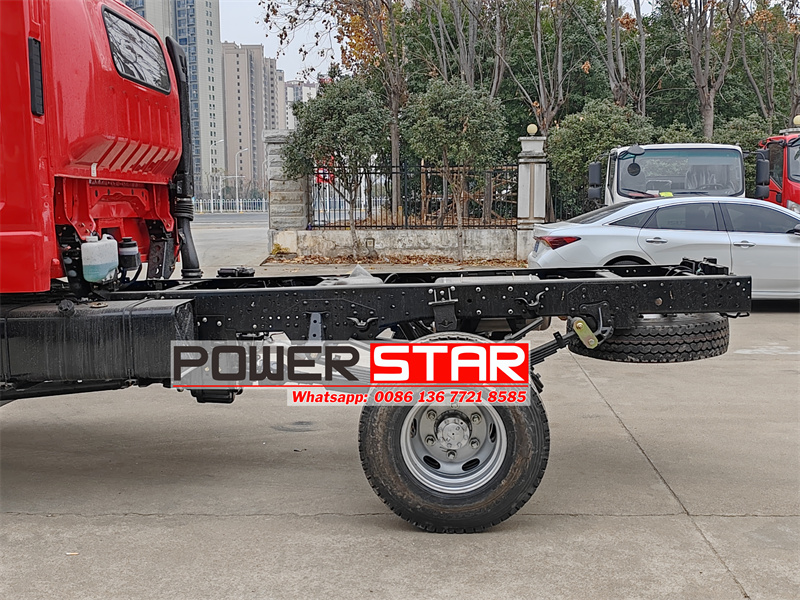

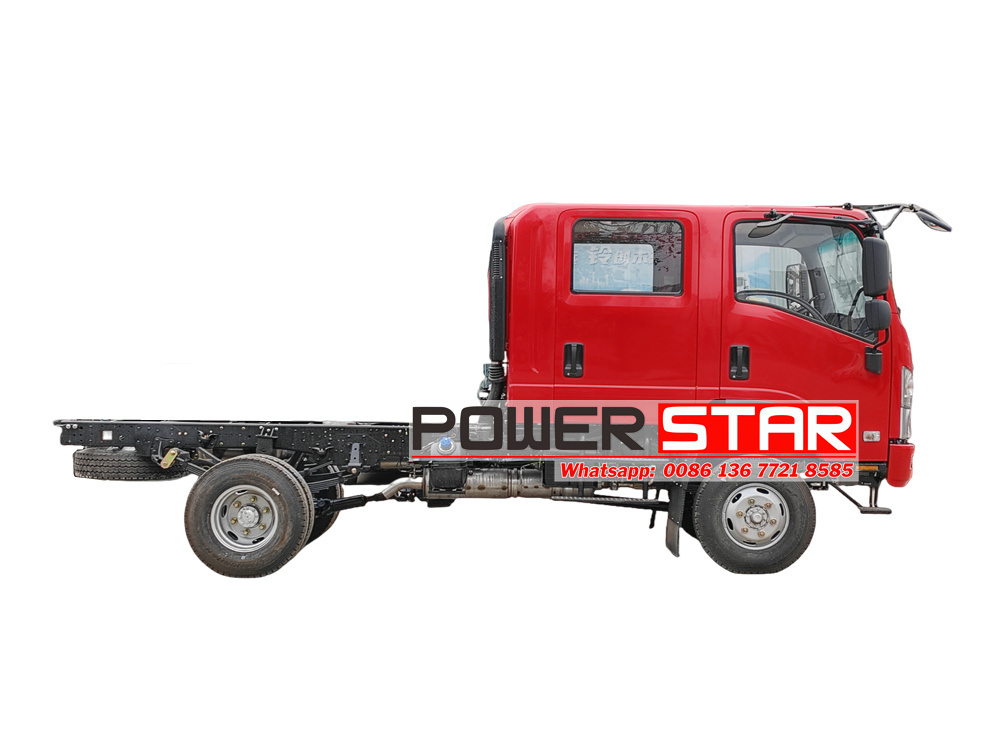

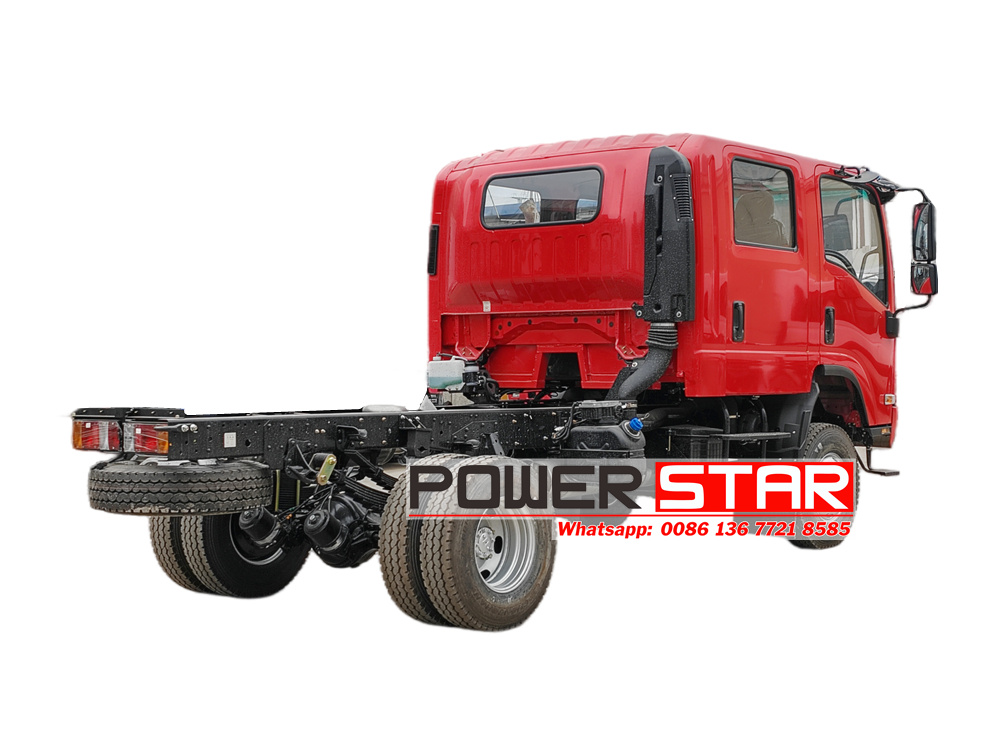

In terms of wheelbase, the chassis maintains the 3365mm wheelbase design of the original model, ensuring the stability and handling of the vehicle, and providing sufficient space for the installation of firefighting equipment and the riding of personnel. At the same time, the gross weight (GVW) of 8280kg enables the vehicle to carry enough firefighting equipment and personnel to meet the needs of various emergency rescue missions.
In terms of power, the Isuzu ELF KV600 4X4 all-wheel drive double-row fire truck chassis is equipped with a 4KH1CN6HB 132 horsepower diesel engine. This engine provides strong power output for the vehicle with its high efficiency, durability and environmental protection, ensuring the power requirements of the fire truck during high-speed driving and emergency rescue.

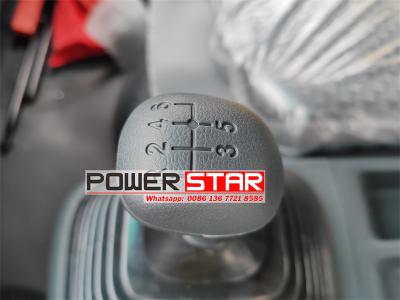

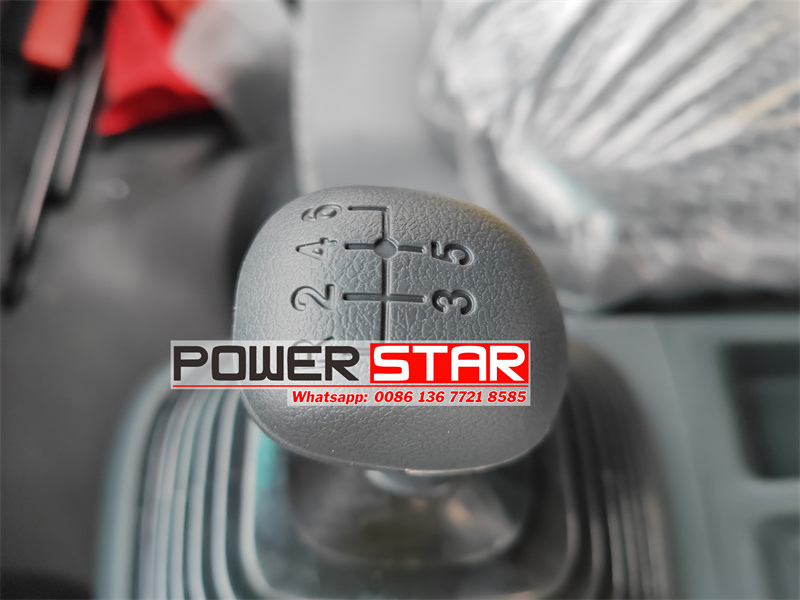

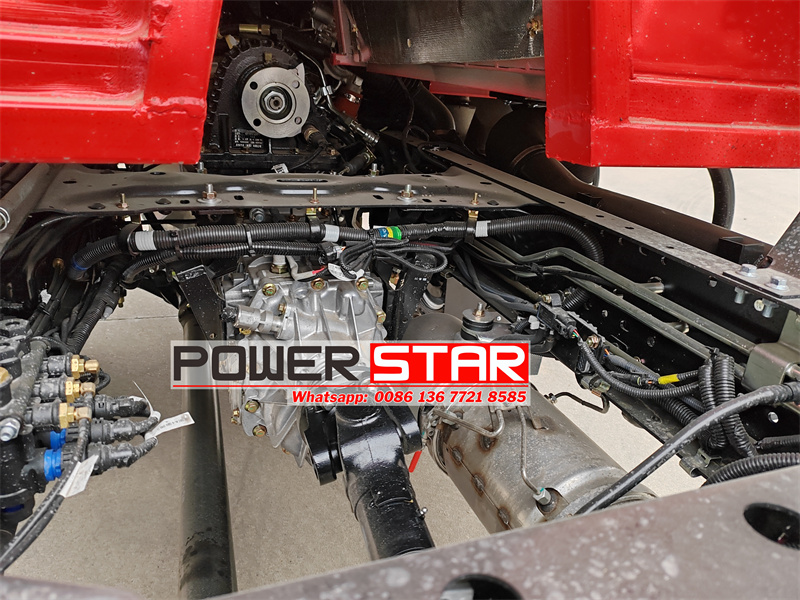

In terms of transmission system, the chassis is equipped with an MLD 6-speed gearbox, which has smooth shifting and quick response, providing the driver with a more flexible and comfortable control experience. The multi-gear design enables the vehicle to maintain optimal power output and fuel economy under different road conditions, further improving the rescue efficiency of the fire truck.

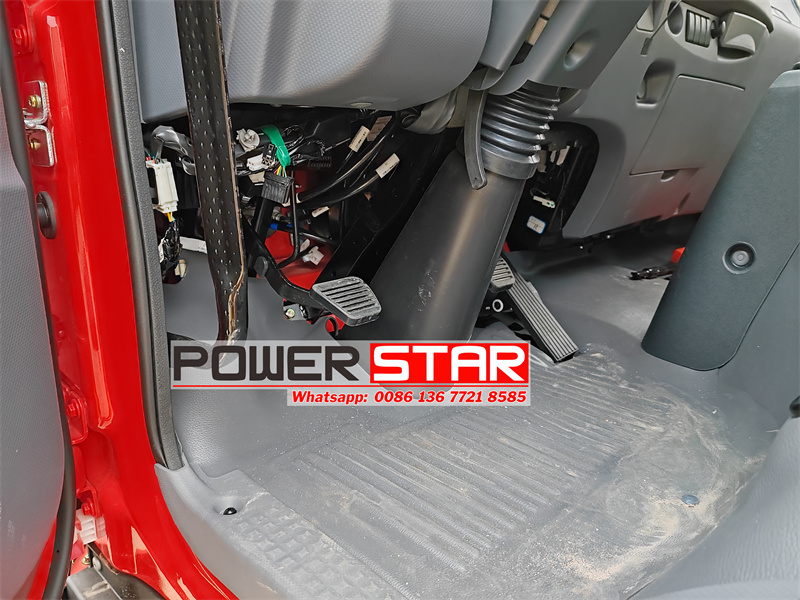

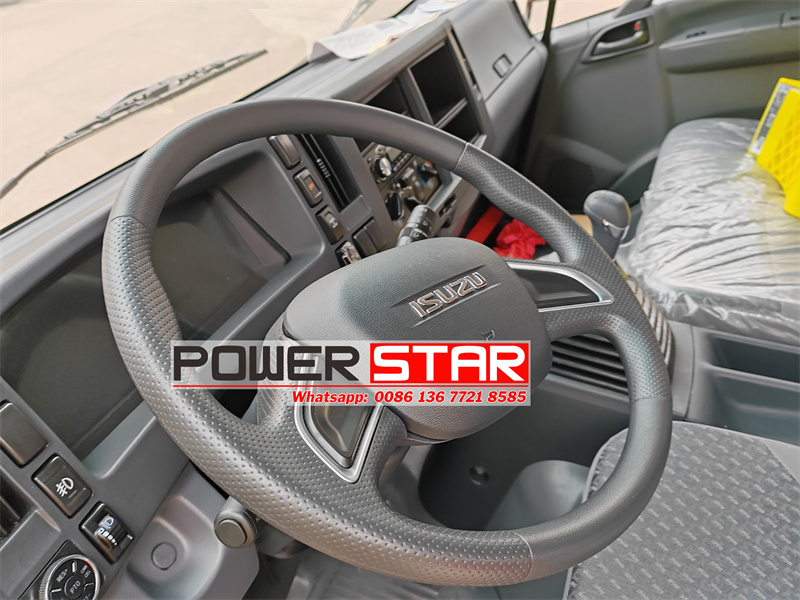

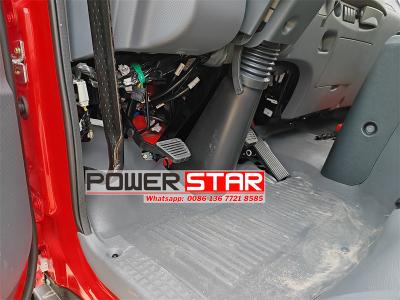

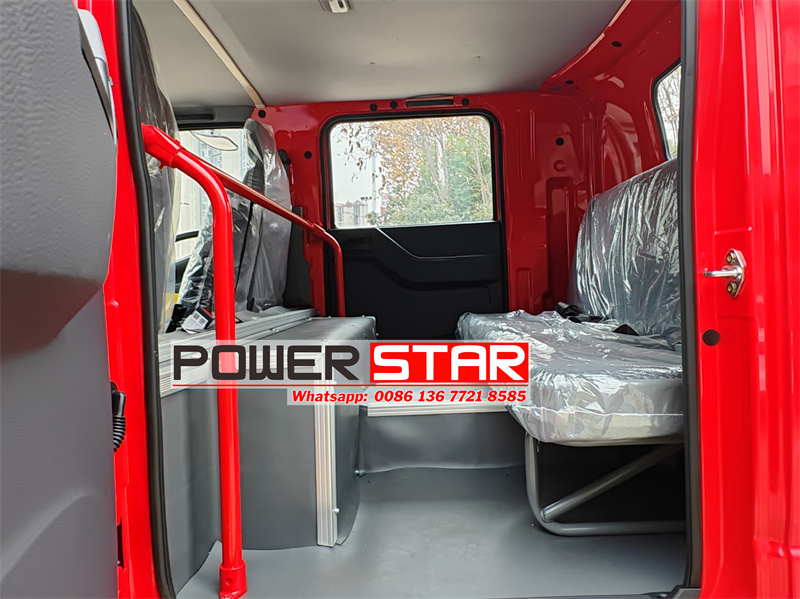

In terms of the cab, the Isuzu ELF KV600 4X4 all-wheel drive double-row fire truck chassis adopts a double-row design with a total of 6 seats. The spacious interior space provides a comfortable riding experience for the driver and passengers, and also meets the needs of multi-person collaborative operations of the fire brigade. The control system is reasonably laid out and easy to operate. The driver can easily control various functions of the vehicle, such as steering, braking, acceleration, etc., which improves the safety and convenience of driving.
In addition, the chassis is also equipped with a 100L fuel tank, which provides sufficient cruising range. At the same time, the design of the fuel tank also takes into account fuel economy and environmental protection, reducing operating costs.
|
Isuzu KV600 4X4 double row cabin fire engine chassis |
||
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
5875*2130*2315mm |
|
Wheelbase: |
3365mm |
|
|
Front/ Rear Wheel Distance: |
1690/1655mm |
|
|
Front/Rear Suspension |
1120/1390mm |
|
|

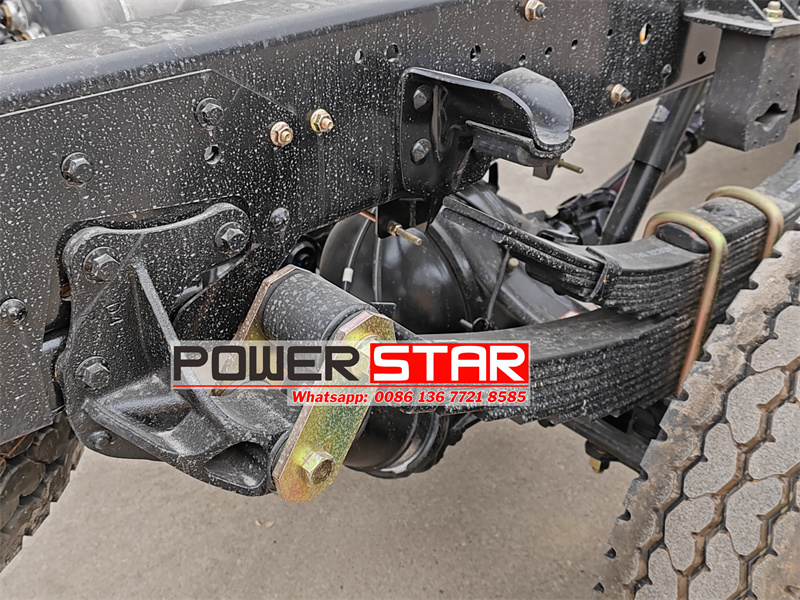

Leaf Spring: |
3/3+2 |
|
|
Weights and Capacities |
Curb Weight: |
2560kg |
|
GVW: |
8280kg |
|
|
Axle Loads: |
3000/5280kg |
|
|
Engine |
Engine Model: |
4KH1CN6HB |
|
Max output: |
96Kw |
|
|
Displacement: |
2999ml |
|
|
Horsepower: |
132HP |
|
|
Exhaust Gas Treatment Technology： |
DPF |
|
|
Transmission |
Transmission: |
MLD-6SM |
|
Forward Gear: |
6 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Hydraulic Brake |
|
|
Front Drum Back Drum |
||
|
With Exhaust Brake |
||
|
Generator |
12V-60A |
|
|
Cab |
Number of Seats: |
3+3 |
|
Chassis |
Drive Type: |
4x4,LHD |
|
Tires: |
7(Including Spare Tire) |
|
|
Tire Model: |
750R16 |
|
|
Max speed |
115km/h |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
100L |
|
|
Configurations |
1 |
Power steering system |
|
2 |
Air conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless tire |
|
|
5 |
Retro-reflective marking |
|
|
6 |
Free maintenance battery |
|
|
7 |
Cab tilting mechanism |
|
Fire truck modification applications
1. Water tank fire truck:
● The chassis can easily carry large-capacity water tanks and efficient water pump systems to meet the fire-fighting needs in different scenarios such as cities and forests.
2. Foam fire truck:
● The chassis's sturdiness and stability enable it to carry foam tanks and injection systems to effectively deal with fires in special places such as chemical plants and oil depots.
● The modified foam fire truck has the ability to respond quickly and extinguish fires efficiently, reducing fire losses.
3. Ladder fire truck:
● The chassis can carry high-altitude ladders and rescue equipment for rescue and firefighting of high-rise building fires.
● The ladder fire truck has excellent lifting capacity and stability to ensure the safety of rescue personnel in high-altitude operations.
4. Emergency rescue fire truck:
● The modified emergency rescue fire truck can carry various rescue equipment and tools, such as demolition tools, lighting equipment, etc., for emergency rescue work in natural disasters such as earthquakes and floods.
● The off-road performance and power performance of the chassis enable it to quickly reach the rescue site in complex terrain.
