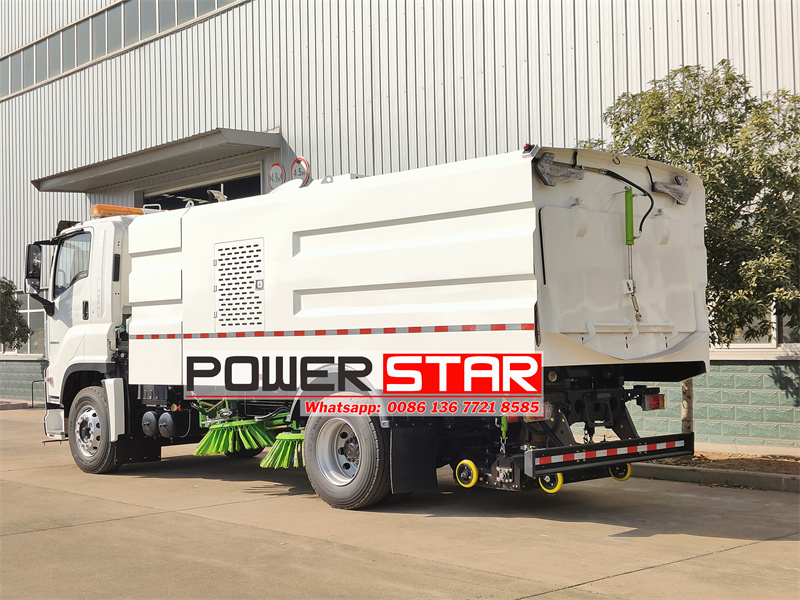

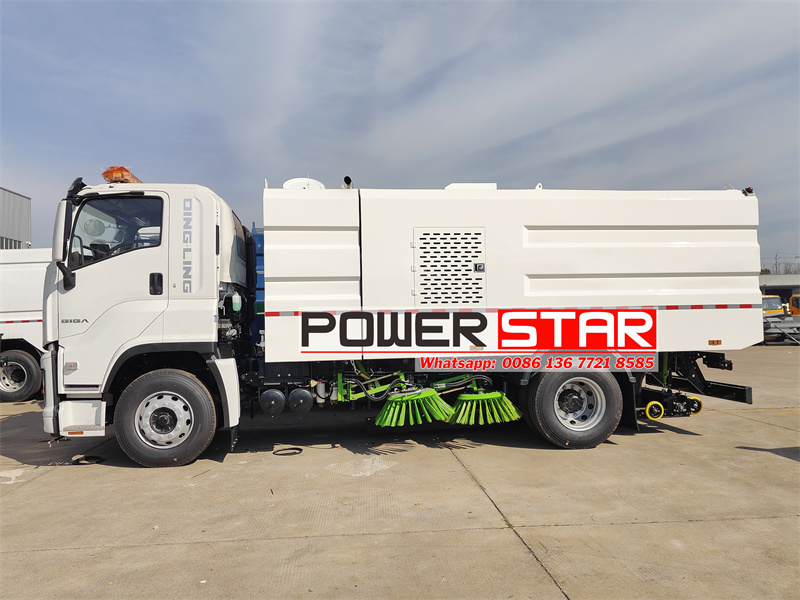

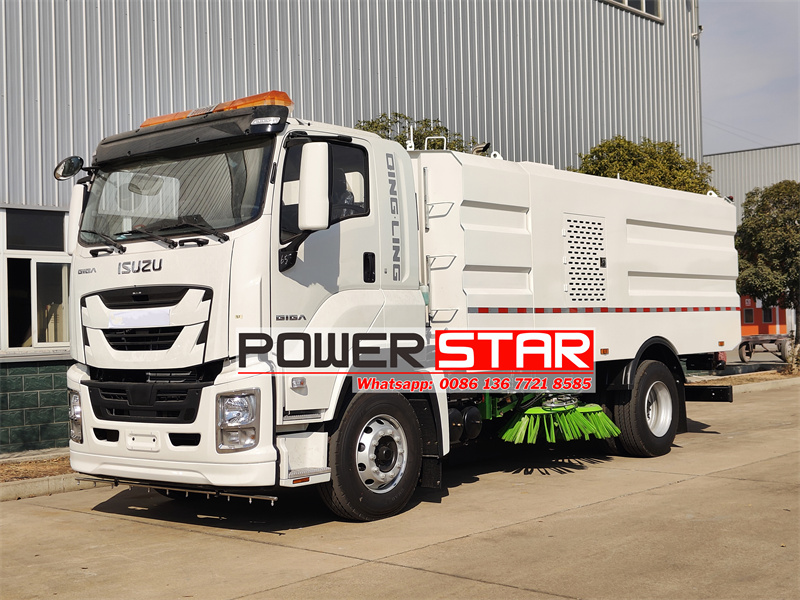

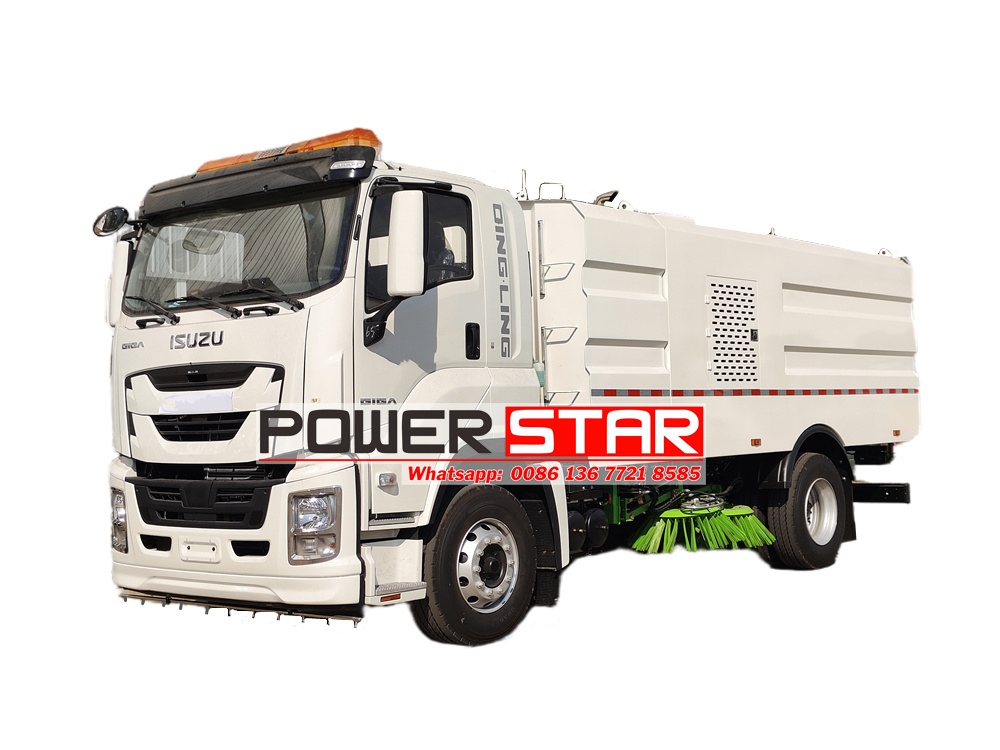

Isuzu 12 cbm mechanical vacuum sweeper truck
Isuzu FVR GIGA 12cbm road sweeper is a high-efficiency working vehicle specially designed for urban road cleaning, equipped with Isuzu 6HK1-TCG61 240HP engine, Fast 8-speed gearbox, Jiangling 77HP auxiliary engine, cleaning system including sweeping brush, high-pressure water pump, negative pressure dust suction device, suction cup, Weiye blower, Haideruiwo solenoid valve group, etc. The upper part is an 8-cubic-meter stainless steel trash can and a 4-cubic-meter carbon steel water tank.
Work capacity:
12cbmEngine power:
240HPEngine type:
Isuzu 6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 8-shift gearbox,manualRemarks:
4000L carbon steel water tank,8000L stainless steel dustbinIsuzu 12 cbm mechanical vacuum sweeper truck is a city cleaning tool that integrates high efficiency, intelligence and environmental protection. The vehicle is equipped with an advanced control system, which is easy to operate, highly intelligent and supports customized solutions. The cleaning system is powerful, integrating cleaning brushes, high low pressure water pumps, sucker and negative pressure dust suction devices, which can adapt to a variety of ground materials and conditions. High-quality components such as Weiye 6.0 maintenance-free centrifugal fan and Hyderriv solenoid valve group ensure stable operation of the system. The upper body is a 4 cbm water tank and a 8 cbm garbage bin.
● 30 years experience on road sweeper truck designing
● 50 unit isuzu road sweepers in stock
● Container shipping, CKD & SKD parts
● 24 months long guarantee time assurance
Features:
★.Control box in cabin, centraized control of allelectric system, convenient to operate.anguage can be customized as Enaish, French, Russia. Arabic, et
★. Four sweeping plate with matched totally 88pcs sweeper brushes and suction nozle working together for an excellent sweeping performance.
★. Both sides of sweeping brushes can work at the same time or only one side work dependently. In cabin electric control
★.Stainless truck body system, including 4cbm water tank and 8cbm dustbin
★.Originally imported hydraulic system key parts. Motor and Hydraulic valves
★. Road sweeper mounted on ISUZU truck chassis NKR, NPR, FTR. FVR. GIGA
II.Product Parameters
|
Isuzu FVR 12 cbm street sweeping truck |
||
|
Main Specification |
||
|
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU NEW FVR GIGA |
|
|
Overall dimensions |
9460x2540x2960 mm |
|
|
Drive Type |
4x2 Left hand drive |
|
|
Wheelbase |
4500mm |
|
|
Cabin |
Isuzu new FVR GIGA 5X cab, with A/C and 3 passengers, Forward control, all steel welded construction. Manual tilt,Mechanical suspension |
|
|
Weight |
GVW |
18000kg |
|
Kerb weight |
7680kg |
|
|
Engine |
Model |
Isuzu 6HK1-TCG61 |
|
Type |
Inline 6-cylinder diesel engine |
|
|
Power |
240HP/177Kw |
|
|
Displacement |
7790ml |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Manual |
FAST 8-shift gearbox,manual |
|
Tyre |
295/80R22.5 |
6+1 spare tyre |
|
Upper Structure Parameter |
||
|
Volume of water tank |
4000L |
|
|
Volume of Dustbin |
8000L |
|
|
Material |
water tank |
Carbon steel |
|
garbage tank |
Inner stainless steel, outer carbon steel |
|
|
Hydraulic valve |
Taiwan famous brand |
|
|
Hydraulic motor |
Domestic famous brand |
|
|
Switch |
Schneider control switch |
|
|
Auxiliary Motor |
Brand |
Isuzu 493 |
|
Horsepower |
77HP |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
60000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥98% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
≥400mm |
|
|
Garbage tank door max.discharge angle |
≥50° |
|
|
Sweeping system |
Type |
Total 2 pcs brushes and 1 sucking disc mounted in the rear, it is driven by the hydraulic motor speed is adjustable, can be independently controlled, has automatic avoidance function |
|
Sweeping brush diameter |
ф 850mm |
|
|
Sweeping disk speed |
110r/min high-speed,80r/min medium speed,50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 °~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction disc diameter |
2400mm |
|
|
Suction performance |
Delivers air blast and suction |
|
|
Hydraulic system |
Type |
Open type, electrical |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle, water filter, etc. |
|
High pressure water system |
Type |
High pressure plunger pump |
|
Model |
Germany PINFL PF36 |
|
|
System Pressure |
10Mpa |
|
|
Rotation speed |
1150r/min |
|
|
Water valve type |
hydraulic high pressure ball valve |
|
|
Water valve pressure |
7MPa |
|
|
Nozzle type |
High pressure washing type |
|
|
Water filter |
Strainer mesh |
|
|
Winch |
20m |
|
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Washing road |
Type |
Front washing bar |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|
Battery |
2x12V |
|
|
Tools |
2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker |
|
|
Spare parts |
88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal |
|
III.Product Applications

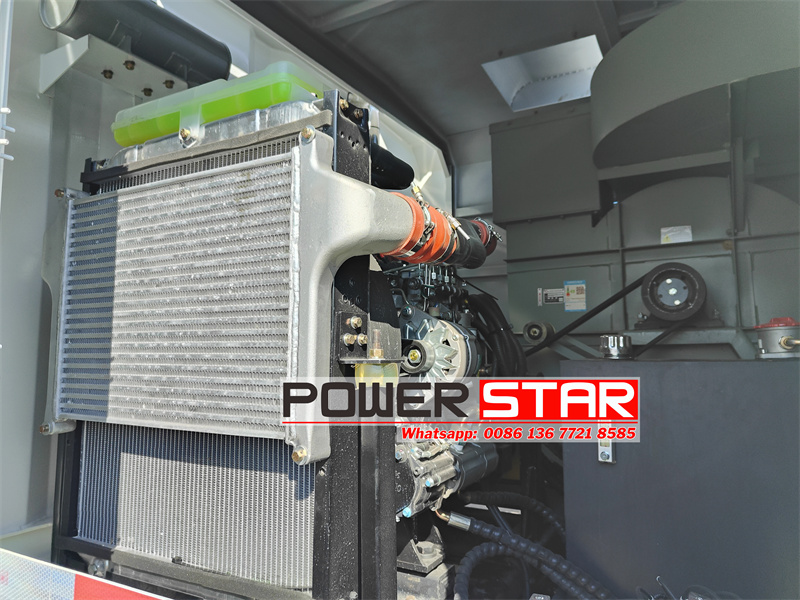

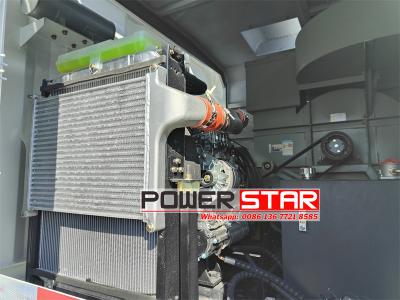

Auxiliary engine: Isuzu 77HP
The Isuzu 77HP auxiliary engine uses advanced fuel injection technology and optimized combustion chamber design to improve fuel economy and reduce emissions. At the same time, the engine is also equipped with an intelligent control system that can automatically adjust the power output according to the needs of the cleaning operation to achieve the best balance between energy consumption and efficiency.
The 77 horsepower output power ensures stable and efficient operation of key components such as the cleaning system, water spray system and dust collection device.
4 cubic carbon steel water tank:
This water tank is made of high-quality carbon steel and has undergone special anti-corrosion treatment to ensure its corrosion resistance and durability during long-term use. The 4 cubic large capacity design provides sufficient water reserves for the road sweeper.
The water tank is closely connected to the cleaning system, and water is sprayed onto the ground through a high-pressure water pump and cleaned with a cleaning brush to effectively remove stains and dust on the road surface.

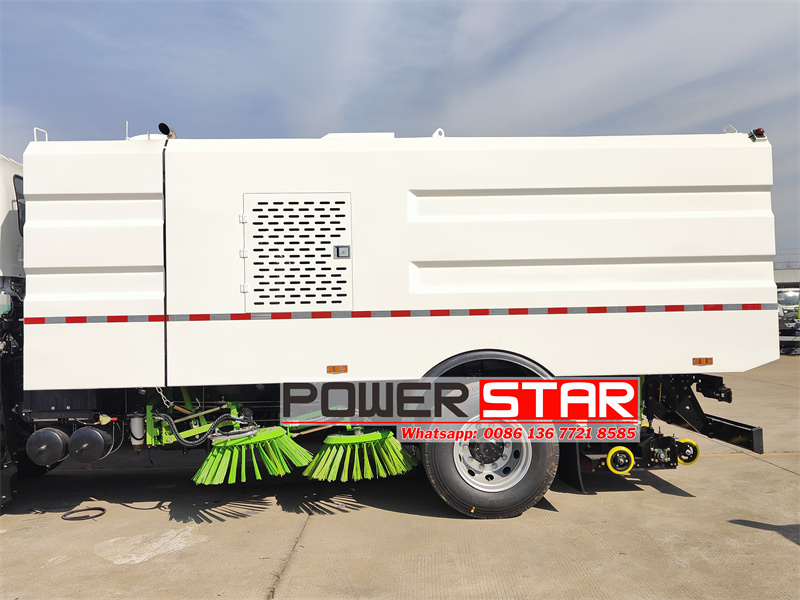

8 cbm stainless steel trash bin:
The inner layer of the trash bin is made of stainless steel and the outer layer of carbon steel. It has excellent corrosion resistance and wear resistance and can keep clean and hygienic for a long time. The 8cbm capacity design can meet the needs of long-term cleaning operations and reduce the number of frequent dumping of garbage. The interior of the trash can is smooth and flat, and it is not easy to leave garbage and dirt. At the same time, it is equipped with a garbage compaction device to improve the efficiency of garbage collection.
The trash bin is connected to the cleaning system, which uses negative pressure suction to suck the garbage and dust on the ground into the trash bin, achieving simultaneous cleaning and collection.
Cleaning system: efficient integrated cleaning solution
The cleaning system is the core part of the vehicle, mainly composed of cleaning brushes, high-pressure water pumps, negative pressure dust suction devices, suction cups, etc. The arrangement of four centrally placed brushes and a rear suction port makes the cleaning width large and the efficiency high.

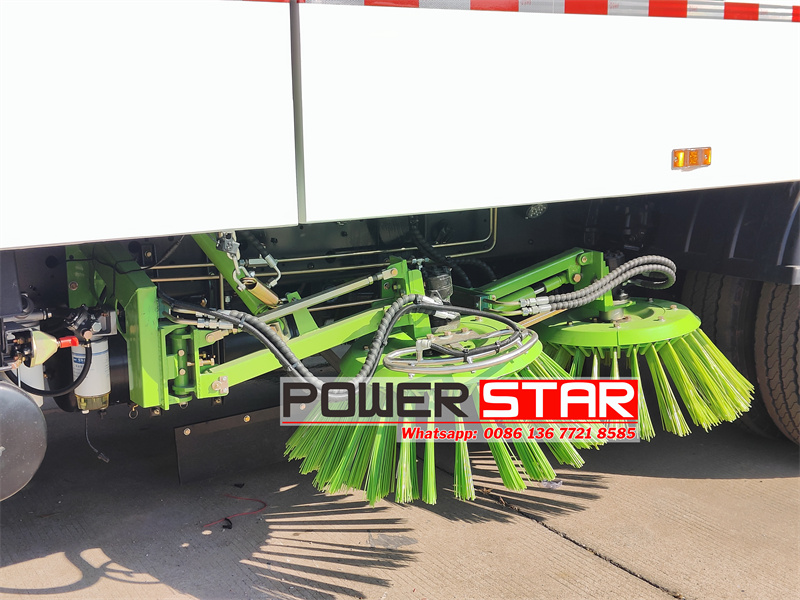

Cleaning brush
The cleaning brush is responsible for the preliminary collection of garbage, dust and other debris on the ground. The vehicle is equipped with a high-performance cleaning brush, which is made of wear-resistant and durable materials and can maintain good working condition during long-term operation. At the same time, the design of the cleaning brush fully considers the cleaning needs of different ground surfaces. By adjusting the angle and height of the cleaning brush, efficient cleaning of floors of different materials and different states can be achieved.
High-pressure water pump
The high-pressure water pump is responsible for providing high-pressure water flow to the cleaning brush to wash away stubborn stains and adhesives on the ground. The high-pressure water pump has a strong water pressure output capacity, which can quickly wash away the stains on the ground and create favorable conditions for subsequent vacuuming operations. At the same time, the high-pressure water pump also has an intelligent control system, which can adjust the water pressure according to actual needs to achieve the effect of saving water and energy.
Negative pressure suction device:
The negative pressure suction device uses the negative pressure principle to suck the fine dust and particles on the ground into the dustbin. The negative pressure suction device of the Isuzu FVR 12 cubic meter road sweeper adopts advanced centrifugal fan technology to generate strong suction to ensure that the dust and particles on the ground are completely removed. At the same time, the suction device is also equipped with an efficient filtration system to effectively prevent the secondary pollution of dust and particles to the environment and human body.

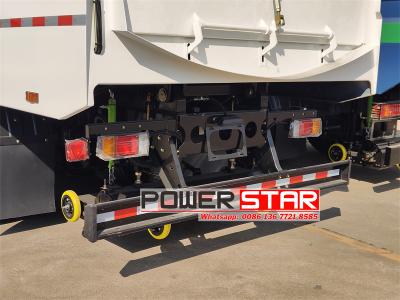

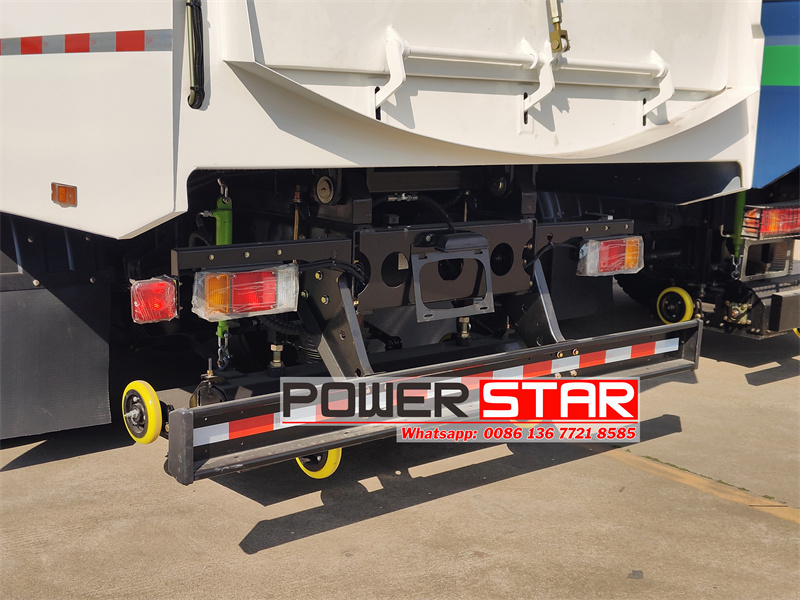

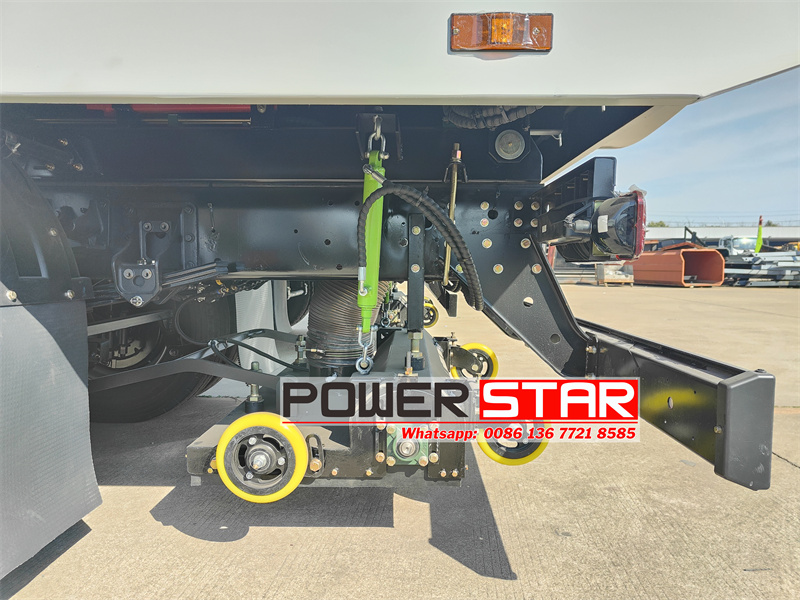

Sucker
The sucker located at the bottom of the tail of the box is made of high-quality materials, has excellent wear resistance and corrosion resistance, and can maintain good working condition during long-term operation. Its clever design can work closely with the negative pressure vacuum device to form a strong suction force, easily sucking away fine dust, particles and other debris on the ground. At the same time, the installation position of the suction cup has been carefully considered to ensure its stability and efficiency in cleaning operations.
In addition, the sucker is also easy to maintain and clean, and the operator can easily inspect and maintain it to extend its service life.

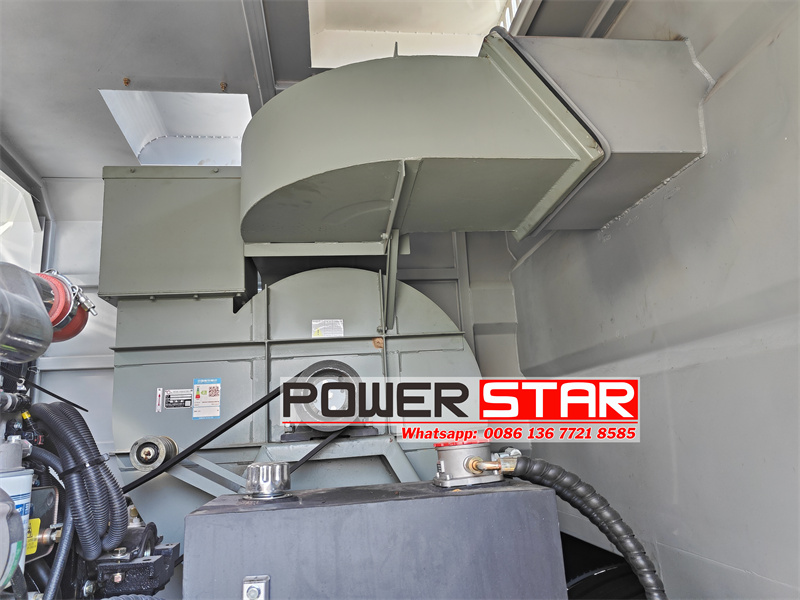

Weiye 6.0 maintenance-free centrifugal fan:
The Weiye 6.0 maintenance-free centrifugal fan adopts an advanced centrifugal design, which can generate strong suction at high speed, and quickly suck dust, particles and other small debris on the ground into the trash can. Its efficient airflow organization and optimized air duct design ensure smooth and stable air flow, thereby improving cleaning efficiency.
The internal structure of the fan has been carefully optimized to reduce the number of vulnerable parts and the degree of wear, and reduce maintenance costs and downtime. At the same time, the fan also has an intelligent control system, which can adjust the speed and suction size according to the actual needs of the cleaning operation to achieve energy-saving and environmental protection effects.

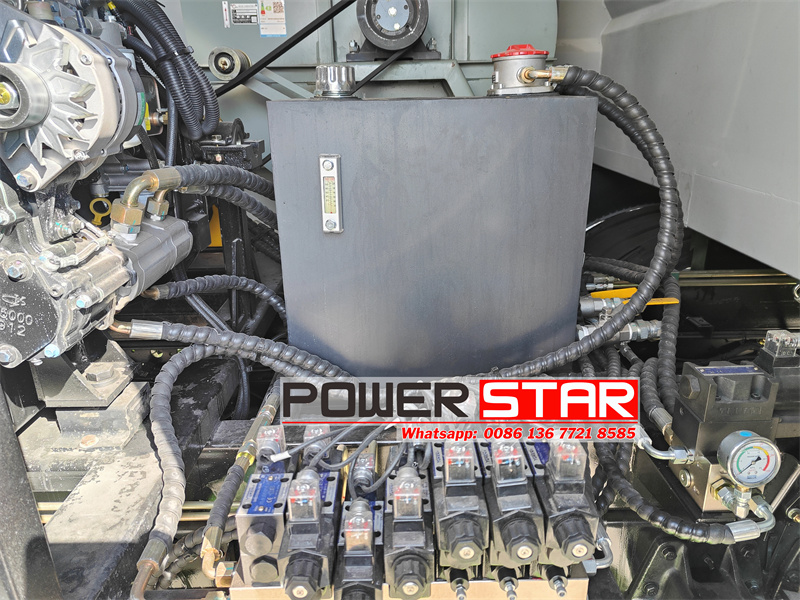

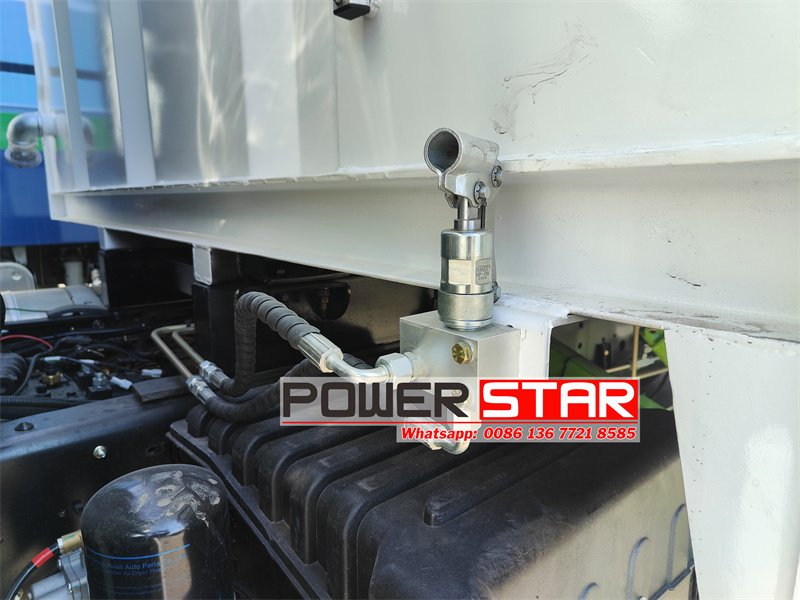

Hyderuv solenoid valve group:
Hyderuv solenoid valve group adopts advanced electromagnetic control technology and precise manufacturing process, which can realize accurate control of each component in the cleaning system. Whether it is the start and stop of the cleaning brush, the water pressure adjustment of the high-pressure water pump, or the suction adjustment of the negative pressure dust suction device, the solenoid valve group can respond to the control command quickly and accurately to ensure the efficient cleaning operation.
Control system: the intelligent command center of Isuzu FVR 12 cubic meter road sweeper
Isuzu FVR 12 cubic meter road sweeper is equipped with a highly integrated control system, which is not only well-designed but also fully functional, providing the driver with an intuitive and convenient operating environment. Through the operation box in the cab and the box operation knob under the tail of the box, the driver can easily control the vehicle's driving, cleaning, watering, vacuuming and other functions to ensure efficient and orderly cleaning operations.

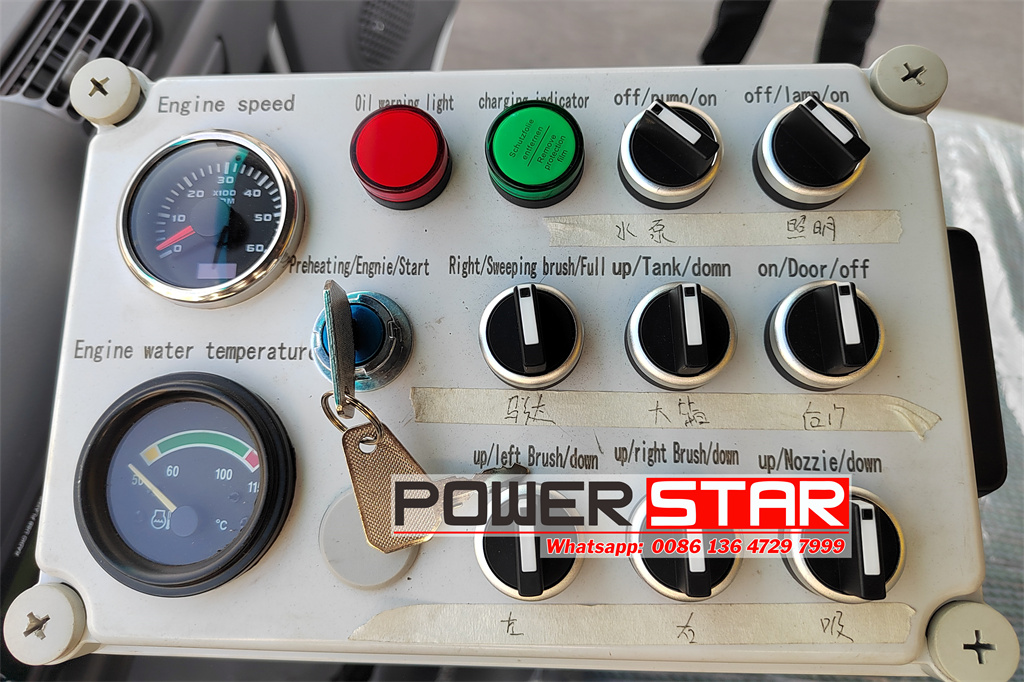

Operation box in the cab:
The operation box in the cab is the core part of the control system, integrating two major functions: vehicle driving control and cleaning operation control. The driver can easily realize the vehicle's driving control such as starting, accelerating, decelerating, and steering, as well as the start and stop of the cleaning brush, the switch of the high-pressure water pump, and the adjustment of the negative pressure dust suction device through the buttons and knobs on the operation box. The design of the operation box conforms to the principles of ergonomics, the layout of buttons and knobs is reasonable, and the touch is clear, ensuring the comfort and accuracy of the driver during long-term operations.

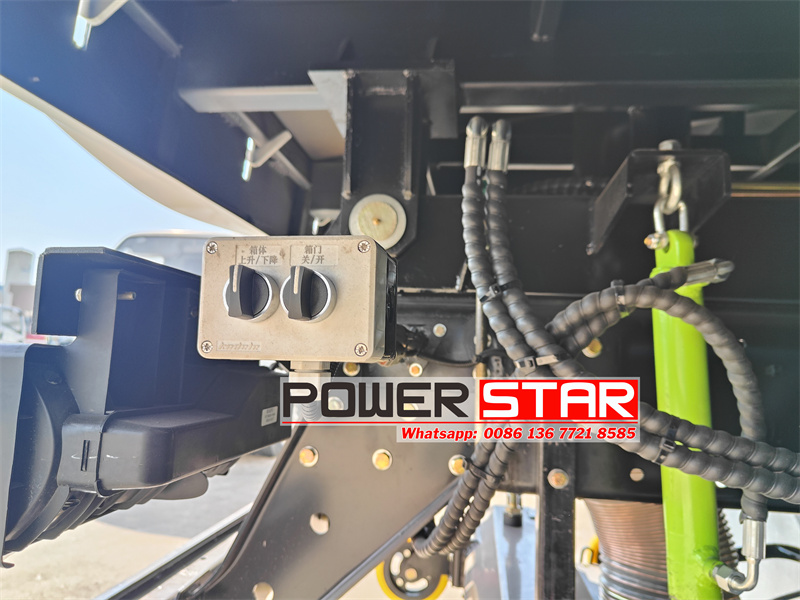

Operating knob at the rear of the box:
In addition to the operating box in the cab, the Isuzu FVR 12-cubic-meter road sweeper is also equipped with 2 operating knobs at the bottom of the rear of the box. These knobs are mainly used to control the lifting and lowering of the garbage box and the opening and closing of the box door, etc. The driver can easily open and close the garbage box, as well as dump and recycle the garbage by operating the knob according to actual needs. This design not only improves the efficiency of the cleaning operation, but also reduces the labor intensity of the driver.
